Dynatem CPU-71-10 User Manual

Vmebus intel core duo single board computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

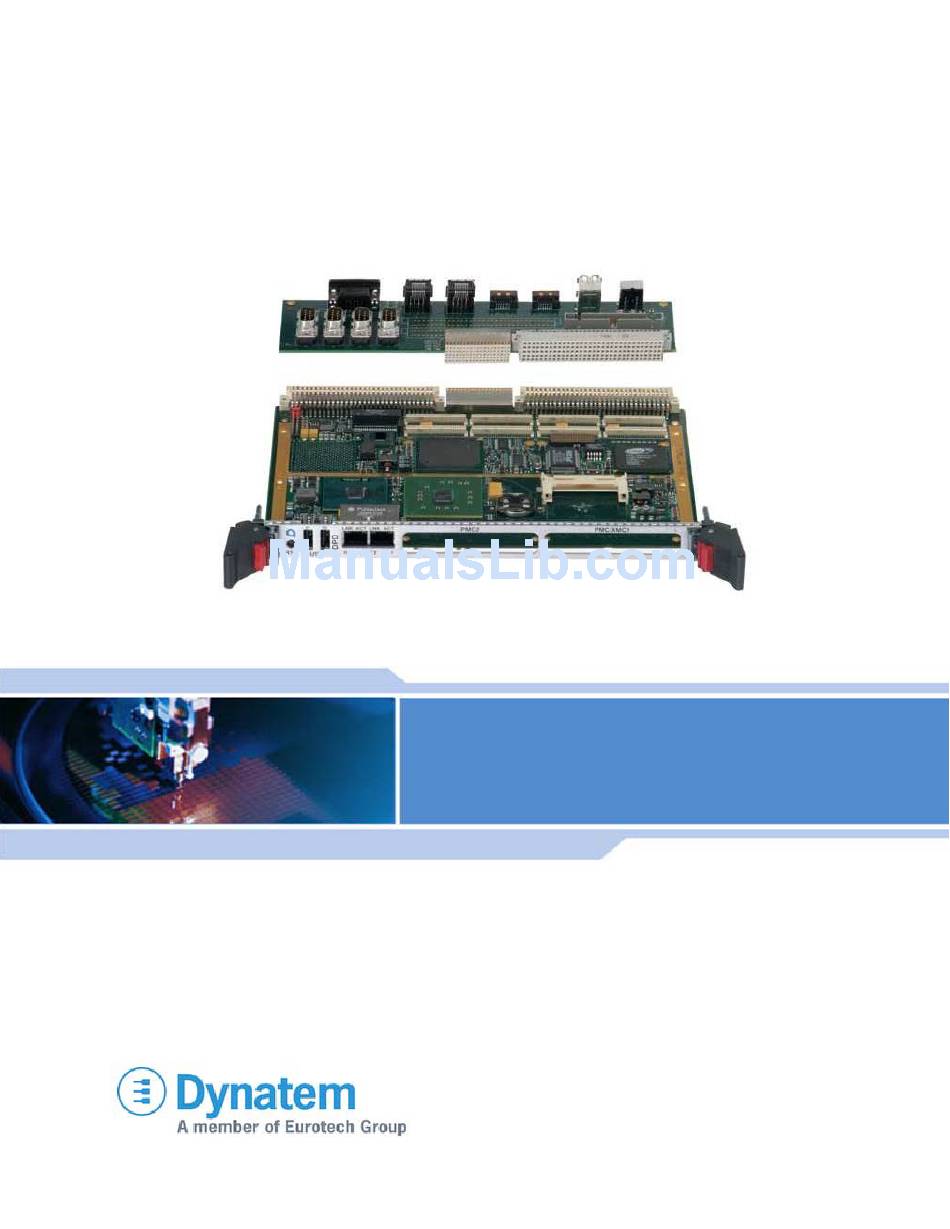

USER MANUAL
CPU-71-10 (DPD/RPD/XPD)
VMEbus Intel® Core™ Duo
Single Board Computer
DPDMAN103A
Updated 14 Dec 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPU-71-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dynatem CPU-71-10

  • Page 1 USER MANUAL CPU-71-10 (DPD/RPD/XPD) VMEbus Intel® Core™ Duo Single Board Computer DPDMAN103A Updated 14 Dec 2012...
  • Page 2 CPU-71-10 (XPD) User’s Manual Rev. 1.03 Revised to fix JP8 description December 2012 Dynatem 23263 Madero, Suite C Mission Viejo, CA 92691 Phone: (949) 855-3235 Fax: (949) 770-3481 www.dynatem.com...

  • Page 3: Table Of Contents

    3.11 Reset Circuitry 3.12 Watchdog Timer Operation Installation Jumper Selectable Options CompactFlash Drive Installation PCI Mezzanine Card (PMC) Installation VMEbus Chassis Installation Front Panel Connectors and Reset Switch Dynatem CPU-71-10 (XPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 4 Super I/O (SIO) Setup Menu B.10 Features Setup Menu B.11 Firmbase Setup Menu B.12 Miscellaneous Setup Menu Power and Environmental Requirements XPDPTB Rear Plug-in I/O Expansion Module for the XPD XPDPTB Connector Pin-outs CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 5: Features

    Features The CPU-71-10 (also known as the XPD / DPD / RPD) is a single-slot 6U VMEbus Single Board Computer (SBC). The XPD offers full PC performance with a Core Duo processor. The XPD is available in two versions: the lower cost DPD for standard industrial applications and the 1101.2 compliant, conduction-cooled RPD with wedgelocks,...
  • Page 6 Programmable watchdog timer for system recovery and a CPLD for LED control, Geographical Addressing, and Built-In Test (BIT) status and control  Operating System (OS) and driver support, including Windows NT, Embedded NT, XP, QNX, VxWorks, Linux, Solaris, and pSOS+. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 7: Related Documents

    345 East 47th Street New York, NY 10017 (800) 678-4333  Wade D. Peterson, The VMEbus Handbook VITA 10229 North Scottsdale Road, Suite B Scottsdale, AZ 85253 (480) 951-8866 CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 8 345 East 47th Street New York, NY 10017 (800) 678-4333  VITA 42.0, XMC Switched Mezzanine Card Auxiliary Standard VITA 10229 North Scottsdale Road, Suite B Scottsdale, AZ 85253 (480) 951-8866 CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 9: Hardware Description

    Chapter 3 – Hardware Description Hardware Description Overview The block diagram of the XPD is shown below. The sections that follow describe the major functional blocks of the XPD. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 10: Processor

    Memory mirroring allows for two copies of all data in the memory subsystem (one on each channel) to be maintained.  Hardware periodic memory scrubbing, including demand scrub support. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 11: Dram

    (TCP), user datagram protocol (UDP), and Internet protocol (IP); header and data splitting; and TCP segmentation. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 12: Silicon Motion Sm712 Graphics Processor

    The SM712 offers low power graphics for limited GUI purposes. It attaches to the system via the ICH’s 32 bit @ 33 MHz PCI bus. Silicon Motion SM712 Signal PCI Bus Connection IDSEL AD17 REQ# REQ1# GNT# GNT1# INTR# INTB# CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 13: Tundra Universe Iid Ca91C142D Pci-Vmebus Interface

    VMEbus P1 Connector INTG#, REQ1#, GNT1# AD19 AD[31:0] VMEbus P2 Connector Reset Circuitry I/O Controller Hub ICH P2 User Defined Pins Low Pin Count (LPC) Bus PCI-VMEbus Interface Block Diagram CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 14 PCI Memory Space – The entire 4 KB UCSR block is accessible in this space.  VMEbus A32/A24/A16 Space – The entire 4 KB UCSR block is accessible in this space. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 15 The PCI signals specific to the Tundra Universe IID CA91C142D are routed from the PCI bus of the ICH and they are shown below: Tundra Universe IID CA91C142D PCI Bus Connection Signal IDSEL AD16 REQ# REQ0# GNT# GNT0# LINT0# INTA# LINT1# Pulled Up CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 16: Pci Mezzanine Card (Pmcx) And Xmc Expansion

    1 Gb Ethernet ports provided to the backplane by the 82571EB require separate 25.0 MHz oscillators (one of the two oscillators is also used for the watchdog timer clock). A 64.0 MHz oscillator drives the Universe IID CA91C142D VMEbus circuitry. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 17: Reset Circuitry

    WDT_CLKEN General Purpose Output Register’s GPIO20 14.318 MHz Clock Reset Control Register Core Duo “soft” reset INIT PWRGD_VR Vcore Core Duo “hard” reset Monitor LTC1778 3.3V Reset Reset Circuitry CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 18: Watchdog Timer Operation

    20 of the GP_LVL register low. For instructions on programming the GP_LVL register, refer to the Intel® 6300ESB I/O Controller Hub Data Sheet from Intel Corporation, Document # 300641-002. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 19: Installation

    The XPD contains eight jumpers. JP3 is located near JN1 for the second PMC site. Jumpers JP1 through JP8 (minus JP3) are arranged in order as shown below: CompactFlash Drive PMC Site 2 PMC/XMC Site 1 CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 20 JP4 lets VMEbus SYSRESET reset the XPD when closed. When open, a VMEbus SYSRESET from other modules will not reset the XPD. VMEbus SYSRESET In Selection XPD Won’t Receive SYSRESET from the VMEbus Open XPD Receives SYSRESET from the VMEbus Closed VMEbus SYSRESET In Selection CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 21: Compactflash Drive Installation

    Bus Grant 0 – BG0IN* and BG0OUT*  Bus Grant 1 – BG1IN* and BG1OUT*  Bus Grant 2 – BG2IN* and BG2OUT*  Bus Grant 3 – BG3IN* and BG3OUT* CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 22: Front Panel Connectors And Reset Switch

    – Ethernet link is established when on. This LED is to the left (or top when the XPD is held vertically)  Activity – Ethernet data is being transmitted from or received by the XPD when on. This LED is to the right/bottom of the Link LED. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 23: Connector Pin-Outs

    Two 1Gb LAN Ports - J1 USB0/1 CompactFlash – J3 Reset Button Core Duo Universe 82571EB Dual Gb LAN XMC Connector PMC Connectors VMEbus – P2 VMEbus – P0 VMEbus – P1 CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 24: Front Panel Usb Connector (Usb1 & Usb2)

    A Receive Data - (RX-) TP1- Unused TP3+ Unused TP3- 1000BaseTX Fast Ethernet Connector (J1) – Front Panel RJ-45 Connector. The metal shell of the connector goes to chassis ground. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 25: Compactflash Interface Connector (J3)

    Pulled Low (master) No connection IDERESET Pulled Up to 3.3 No connection +5 VDC No connection Pull-up to +5 VDC No connection No connection CompactFlash Type II Interface Connector (J3) CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 26: Vmebus Connectors (P1, P2, And P0)

    IRQ4* IRQ3* IRQ2* IRQ1* -12VDC/NC +5 VDC Standby +12VDC/NC +5 VDC +5 VDC +5 VDC +5 VDC VMEbus Connector (P1) – DIN 41612 96-pin (3 rows x 32 pins) CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 27 COM1-RI COM2-RI P14-42 P14-44 COM3-RxD COM4-RxD P14-43 COM3-TxD COM4-TxD P14-45 P14-46 KBDATA MDATA KBCLK +5 VDC MCLK +5 VDC VMEbus Connector (P2) – 160-pin (5 rows x 32 pins) CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 28 PIO51 PIO60 PIO59 PIO58 PIO57 PIO56 VGA_ddcclk PIO64 PIO63 PIO62 PIO61 VME64 Extensions Bus Connector (P0) for XPD, Rev A (PWB D010 6065 001) – Row F is grounded CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 29: Pci-X Mezzanine Card Connectors (Jn1, Jn2, Jn3, And Jn4) And Xmc Connector (J15)

    AD11 +5 VDC C/BE0# VI/O from JP3 +5 VDC REQ64# PCI-X Mezzanine Card (PMCX) Connector (JN1) – Molex 71439-0164 VIO is jumper selectable through JP3 (please see Section 4.1). CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 30 +3.3 VDC No connection +3.3 VDC No connection No connection No connection No connection No connection ACK64# +3.3 VDC No connection PCI-X Mezzanine Card (PMCX) Connector (JN2) – Molex 71439-0164 CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 31 AD43 AD42 AD41 AD40 AD39 AD38 AD37 AD36 AD35 AD34 AD33 AD32 No connection No connection No connection No connection PCI-X Mezzanine Card (PMCX) Connector (JN3) – Molex 71439-0164 CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 32 PCI-X Mezzanine Card (PMCX) Site #1 Connector (J14) – Molex 71439-0164 J14 is the JN4 I/O connector for PMC Site #1. These lines will be routed to the D & Z rows of the P2 backplane connector. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 33 PCI-X Mezzanine Card (PMCX) Site #2 Connector (J24) – Molex 71439-0164 J24 is the JN4 I/O connector for PMC Site #2. These lines will be routed to the pins shown for the P0 backplane connector. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 34 Ground No Connect Ground Ground No Connect CLK100P_XMC CLK100N_XMC No Connect No Connect No Connect No Connect XMC Bus Connector (J15) for XPD, Rev A (PWB D010 6065 001) CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 35: Bios & Setup

    B.2 Setup Menus The standard Embedded BIOS setup menus are described below in the order they generally appear in the menuing system (Dynatem cannot vouch for support for all BIOS functions described in the subsequent sections): Main Display main system components and allow editing of date and time.

  • Page 36: Navigating Setup Menus & Fields

    POST can configure itself with the new settings. After rebooting it may be desirable to reenter the Setup system as necessary to adjust settings as necessary. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 37: Main Setup Menu

    OEM. The BIOS information is obtained by Setup from the internal system BIOS build itself; this information is useful when obtaining support for your system. PLEASE CALL Dynatem at (800)543-2830 FOR BIOS SUPPORT; DO NOT CALL GENERAL SOFTWARE DIRECTLY.

  • Page 38: Exit Setup Menu

    To select any of these options, position the cursor over the option and press the ENTER key. Pressing the ESC key at any time within the Setup system is equivalent to requesting “Exit Setup Without Saving Changes.” CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 39: Boot Setup Menu

    (BAID). The drive may be Legacy Floppy, PATA, Drive”) if the drive has not been detected yet, or the SATA, Compact Flash, or a USB drive. drive’s full manufacturing name and serial number CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 40 Note: PATA cable autodetection sometimes fails with older drives, so 40-pin is the default, to ensure data integrity. For higher performance, you should change this setting to 80-pin or AUTO if an 80-pin cable is installed. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 41: Post Setup Menu

    Be sure to review the Features menu, where additional items can be configured, such as the Splash Screen and BIOS initiatives. The figure below shows the same menu, scrolled down so that the remainder of its fields may be viewed. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 42 Enable head seek on each hard drive configured in the system. This is a way of extending the standard testing performed on each drive during POST, by requesting that the drive actually move the head. Not available with all drives. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 43: Pnp Setup Menu

    Enable exclusive use of IRQ7 by PnP. IRQ8 Enable exclusive use of IRQ8 by PnP. IRQ9 Enable exclusive use of IRQ9 by PnP. IRQ10 Enable exclusive use of IRQ10 by PnP. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 44: Super I/O (Sio) Setup Menu

    It should be noted that these are not the only possible addresses, but they are the ones that will ensure compatibility with the most legacy software, especially early DOS programs that do not use BIOS to access the COM ports. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 45: Features Setup Menu

    Enable automatic entry into manufacturing mode when POST encounters a critical error. Used in closed device settings such as smart phones that need access to docking stations when they don’t boot. Leave disabled. Splash Screen Enable graphical POST CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 46: Firmbase Setup Menu

    USB devices to be supported in the BBS device list(see the BOOT menu.) EHCI/USB 2.0 Enables EHCI Firmbase Technology driver, allowing USB Boot feature to use high speed transfers on USB 2.0 ports in the system. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 47 None – Serial console disabled. COM1 – Console on 1st serial port. COM2 – Console on 2nd serial port. COM3 – Console on 3rd serial port. COM4 – Console on 4th serial port. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 48: Miscellaneous Setup Menu

    Specifies the amount of time a repeating key may be pressed on a PS/2 keyboard until the key repeat feature begins repeating the keystroke. USB typematic is automatic and does not use this parameter. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 49 AS-IS WITHOUT WARRANTY OF ANY KIND. ALWAYS BACKUP YOUR DATA BEFORE PERFORMING DIAGNOSTICS ON ANY SYSTEM, AS THEY COULD CAUSE DATA LOSS. Floppy Disk Read There is no Floppy Drive interface implemented on the DPD. Stimulation CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 50 Appendix B – BIOS & Setup CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 51: Power And Environmental Requirements

    Clock, the 2 MB of NV-SRAM, and the BIOS’s NV-RAM. At 3.4 A this battery should last for over six years with power off. Condition Environmental Requirements Operating Temperature -20 to 85 C with Thermal Monitor II enabled Storage Temperature -50 to +105 C Environmental Requirements CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 52 Appendix C – Power & Environment Requirements CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...

  • Page 53: Xpdptb Rear Plug-In I/O Expansion Module For The Xpd

    XPDPTB Rear Plug-in I/O Expansion Module for the XPD Dynatem offers a rear plug-in paddle card for I/O expansion with the XPD. Essentially the XPDPTB routes the XPD’s backplane I/O, including IDE, COM1/2/3/4, P/S2 Mouse/Keyboard interfaces, VGA, two USB ports, and two SATA ports to industry standard connectors.

  • Page 54: Xpdptb Connector Pinouts

    Request To Send (RTS) Output Clear To Send (CTS) Input Ring Indicator (RI) Input COM1 (J3) and COM2 (J4) Connectors – DB9M Connector. The metal shell of the connector goes to chassis ground. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 55 Mouse Data +5 VDC (via 1 amp self-resetting fuse F1) Keyboard Clock Mouse Clock Keyboard/Mouse Connector (J12) –Mini-DIN Receptacle. The metal shell of the connector goes to chassis ground. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 56 10BaseT/100BaseTX Fast Ethernet Connector (J7/J6) – RJ45 Connectors. The metal shell of the connectors go to chassis ground. J8 is a dual-USB connector. Each connector has the same pinout as shown in Section A.3. CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
  • Page 57 Appendix D – XPDPTB Rear Plug-in I/O Expansion Module for the XPD DYNATEM Toll free: +1 800.543.3830 Tel: +1 949.855.3235 Fax: +1 949.770.3481 Email: sales@dynatem.com Email: tech@dynatem.com Web: www.dynatem.com CPU-71-10 (XPD/RPD/DPD) VMEbus Core 2 Duo Processor Board – User’s Manual...
