Summary of Contents for RSQ MV-333

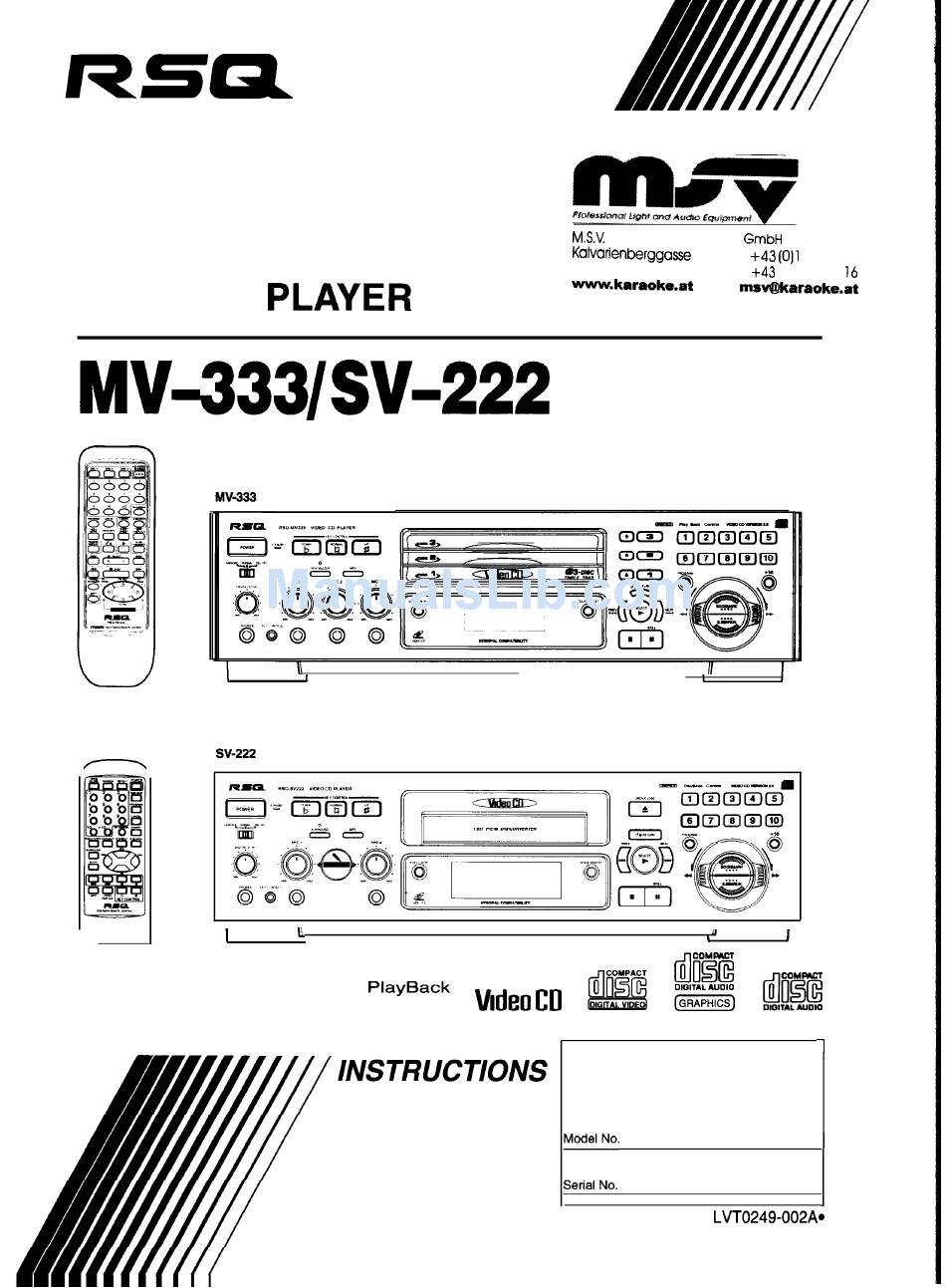

- Page 1 Tel. +43 (011 4057915 A-l 170 Wien, Austria Fax. +43 (0) 1 40579 VIDEO CD PLAYER C o n t r o l Customer Use: Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet.
- Page 2 Warnings, Cautions and Others Caution - POWER switch! for the U.K. IMPORTANT Disconnect the plug to shut the power off completely. The POWER cut off the plug for this equipment. If the lug fitted is switch in any position does not disconnect the unit from the power not suitable for the power points in your home or R source.
- Page 3 IMPORTANT FOR LASER PRODUCTS LABELS AVOID DIRECT EXFOSJRE er ude al IunMion. Udqa &at. CLASS 1 LASER PRODUCT DANGER: Invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam. not open the top cover. There are no user service- CAUTION: able parts inside the Unit;...
-
Page 4: Table Of Contents
Adjusting echo effect..............22 Overview of the three modes ............. 8 Vocal replace ................22 Triple disc tray usage (only for MV-333) ........8 Vocal masking(only for MV-333) ..........22 Display window ................8 OPERATION OF PLAYBACK CONTROL FUNCTION ....23 Preparation for playing ............... -
Page 5: General Information
GENERAL INFORMATION Care and handling of compact discs How to handle Which compact discs can be used? When handling a compact disc, do not touch the surface of the disc Many types of compact discs are sold for a variety of uses. The Video (reflective silver side -the side without the label). -
Page 6: Before Using For The First Time
BEFORE USING FOR THE FIRST TIME Basic connections The Video CD Player must be connected directly to a television set or Notes an amplifier that is connected to a television or monitor. The television When you play an NTSC disc in PAL AUTO mode on a PAL set or the amplifier must have audio input jacks for right and left exclusive TV, the image may be distorted. -
Page 7: Installing Batteries
FOR THE FIRST TIME BEFORE USING Installing batteries Remove batteries the remote control if it is not going to be used from Puttina batteries in the remote control for a long period of time. Remove dead batteries and dispose of them properly. The battery compartment is located on the back of the remote control. -
Page 8: Left Front Panel Of The Player
The following is an explanation of the the basic function of controls on-going operations. The remote control has twelve (12) unique on the front panel of the Player and the remote control. The function function buttons in addition to those on the player. of some controls may be restricted in actual use depending on the Left front panel of the Player Center front panel of the Player... -
Page 9: Remote Control Unit
OVERVIEW CONTROLS The controls with identical names on the Player and on the remote control have the same function and are used in the same manner. Durina ooeration with the Plavback Control function Invokes previous or next screen. Skipsforwardorbackwardquicklyfromcurrenttrack being played. Starts to play the disc with/without the Playback Control function. -
Page 10: Overview Of Controls
OVERVIEW OF CONTROLS (For W-222) The following is an explanation of the the basic function of controls on-going operations. The remote control has nine (9) unique function on the front panel of the Player and the remote control. The function buttons in addition to those on the player. -
Page 11: Remote Control Unit
OVERVIEW OF CONTROLS The controls with identical names on the Player and on the remote control have the same function and are used in the same manner. POWER TIME SKIP PROGRAM CANCEL Invokes previous or next screen. quickly from backward current track being played. -
Page 12: Basic Operations
The STANDBY goes out. The display window shows the initial information as shown below. MV-333 Easy start up Without pressing the POWER button you can start up the Player by pressing ) SELECT button or disc buttons. s v - 2 2 2... -
Page 13: Inserting/Removing A Disc(S)
“Operation of Playback Control function”. When you press ) SELECT button during play, the disc will restart Tray from the beginning of the track except when the PBC function is CORRECT activated. During play, the indicator on the DISC button blinks. (only for MV-333... -
Page 14: Using Number Keys
To release the pause, press the ) SELECT or blinking DISC 1 function is activated. through 3 button for MV-333. The angle at which you hold the shuttle dial determines the manual During “PAUSE” the time counter on the display will blink. -
Page 15: Slow-Motion Playback On The Remote Control Unit
Operation Check the Preset Code Table (page 10) to determine the two- digit brand code number for your TV. MV-333 While holding down theTVNlDEO/SPATlALlZEFl button on the remote control, press the Number keys to insert the two-digit brand code number. (For example, if the code number is “28”, Normal press Number key 2, then 8. -
Page 16: Using The Shift Button On The Remote Control Unit
BASIC OPERATIONS Using the SHIFT button on the remote Preset code table control unit You can control other functions with the remote control, simply by Television manufacturer holding down the SHIFT button while pressing another button. Some of these functions are useful for Karaoke and Video CD playing, others for controlling the TV. -
Page 17: Various Unique Functions
(STOP) button and then the PROGRAM button. “PROG OFF” will PROGRAM is displayed in the Display Window. be displayed on the television screen. 2. For MV-333,Specify the disc by the DISC (1 through 3). Note 3. Specify the track by the number keys successively. You can... -
Page 18: Repeating Tracks
Notes When playing a programmed sequence of tracks, only one track repeat is available. Only REPEAT1 and REPEAT OFF (only for MV-333) are available in KARAOKE mode. The Repeat function is not available when the player is set to PBC... -
Page 19: Playing A Multiplex Sound Cd
VA RIOUS UNIQUE FUNCTIONS Playing a multiplex sound CD Viewina the VIDEO INTRO of a video CD This function is used for multiplex sound discs. Usingthisfunction, youcancheckthecontentsof avideoCD, watching the first five seconds of each track on the video CD. Operation By pressing the MPX button consecutively, channel multiplex- Preparation... -
Page 20: Programming During Video Intro
While in VIDEO INTRO or HIGHLIGHT, sometimes image is partially distorted. This symptom is caused by noise in the disc itself or incorrect manufacturing, not by a malfunction of the Player. The segments are each of nine (9) equal-time divisions of the track. (only for MV-333) -
Page 21: Selecting Spatializer Mode(Only For Mv-333)
Note on which type of TV, amplifier or receiver to combine Depending (only for MV-333) with this device or which software to play back, sound may be distorted when the SPATIALIZER function is turned on. In such can change the sound ambiance and enjoy a different sound using cases, set SPATIALIZER mode to “L”. -
Page 22: Skipping Ahead During Playback Using Time Skip Function
VARIOUS UNIQUE FUNCTIONS Skipping ahead during playback using TIME Selecting the surround mode SKIP function (only for SW222) (only for W-222) You can change the sound ambiance using the Surround function. is possible to skip specified minutes ahead during playback. Operation 1. -
Page 23: Playback With The Bookmark Function
VARIOUS UNIQUE FUNC77ONS Playback with the Bookmark function Marking segments for later viewing with Using the BOOKMARK SEARCH button the Bookmark function 1. Press the BOOKMARK SEARCH button while playing a disc. The Bookmark function lets you marls segments of a Video CD, so that The BOOKMARKSEARCH lightwlllflash on and off, Indicating you can have almost instant playback of desired scenes later. -
Page 24: Canceling Individual Bookmarks
(If the Player is in KARAOKE or NORMAL mode, the Stop play. Hold down the It STILL (PAUSE) button on the bookmark with the highest number will be canceled.) Player for at least three seconds. MV-333 Note (Television screen) When you cancel a bookmark number, all subsequent bookmark numbers change, moving up one level to fill the gap you made. -
Page 25: Using Microphones
Turn the MIC 1 through MIC 3 for W-333, MIC 1 to WC 2 for SV- clockwise. Keep turning until sung. 222 knobs clockwise (level up) or counterclockwise (level 3. Up to three (3) for MV-333, two (2) for SW222 microphones can down) as desired. be connected to the MIC jacks on the front panel. -
Page 26: Adjusting Music Key
Be sure to remove the microphone VCR: Note when connecting the sound output to the input of aN Operation for MV-333 If an excessively strong signal is given to a unit through a micro- 1. While holding down the SHIFT button, press the MPW phone, for example when using Karaoke, it may cause an adverse effect such as distorted sound. -
Page 27: Operation Of Playback Control Function
Player starts up the PBC function. “Pb” (W-333) or “Pbc” (SW222) is shown in the Display window. The main menu, “PBC”, and disc (only for MV-333)Itrack numbers are displayed on the television screen. Only for MV-333 The Player starts up the PBC function by pressing the DISC(l through3). -
Page 28: Video Cds With Playback Control Function
OPERATION OF PLAYBACK CONTROL FUNCTION Video CDs with Playback Control function Menu-driven playback You can interact with the screen using a menu display to select and play an entry. What is Playback Control function? High-resolution still image display The Playback Control function, ushering in a new video CD age, allows You can display high-quality images four times clearer than moving you to enjoy menu-driven operation and high-resolution still images pictures. -
Page 29: Restricting Use Of Your Discs
If you try to play another disc which has exactly the same number of tracks and the same recorded time, the Player may mistakenly assume that it is the locked disc. MV-333 sv-222 You cannot lock a disc while it is playing, or when the VCD light is blinking (i.e., immediately after turning on the player or shutting a... -
Page 30: Graphic/Digital Audio Cds
The display has no indicator to show disc type. requirements adjustable with the voltage selector; 50/60Hz Power MV-333 16 watts consumption sv-222 14 watts In standby mode 5 watts (MV-333/S/-222) Weight MV-333 5.3 Kg (11.7 Ibs) sv-222 4.5 Kg (10.0 Ibs) Dimensions MV-333 (W/H/D) sv-222 435 x 127 x 333.5 mm... -
Page 31: Troubleshooting
TROUBLESHOOTING Troubleshooting What appears to be a malfunction may not always be so. Please go through the following list before requesting service. Remedy Possible cause Symptom Firmly connect the plug to AC outlet. Power does not come on. Power plug is disconnected from AC outlet. Replace the batteries with new ones. - Page 32 AC Power Line Instructions IMPORTANT BEFORE PLUGGING IN, check that your AC power line voltage corresponds with the position of the voltage selector switch provided on the outside of this equipment. If different, reset the voltage selector switch, to prevent damage or risk of fire/electric shock.
