[Table of contents] Before use Package contents Description of parts Wearing Charging Low battery How to use Power on Power off Pairing Connecting Answering a call Making a call Ending a call Volume control Functions during a call Summary of button functions LED indication and signal sound Supplement Troubleshooting...

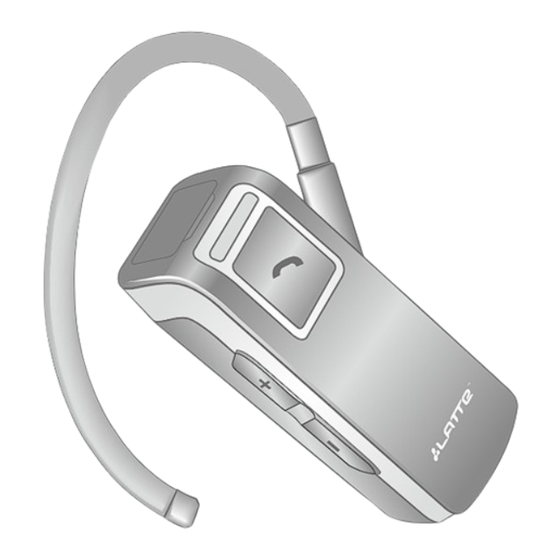

The Latte Bluetooth headset Mocha is a lightweight and compact wireless connectivity device. The DSP (digital signal processor) feature of the Latte Mocha Series offers superior audio performance via noise reduction and echo cancellation. The Latte Mocha Series is compatible with most Bluetooth mobile phones that support the “headset”...
Ear loop Charging port Status LED Multifunction button Volume controls Microphone [Wearing] The ear loop of the Latte Mocha Series can be rotated and adjusted to fit on either the left or the right ear, as shown below. Left Right...
Charge your headset until the status LED turns off. The unit will be fully charged in approximately 2 h. WARNING: Do not attempt to charge the Latte Mocha Series with any charger other than the one provided. Using another charger may damage or destroy the headset.
3. Go to the Bluetooth menu in your mobile phone and search for either “headset” or “hands-free” (When the headset is connected as a hands-free device, you can use all functions of the Latte Mocha Series).
Page 8
5. When prompted for a passkey, enter 0000. 6. A beep will sound when the devices are paired successfully. The Latte Mocha Series will turn off automatically if it stays in the “pairing mode” for over 3 min without being paired to any device.
How to use [Connecting] To use the headset after pairing (or after losing the connection), you should connect it to the paired mobile phone. For more details regarding the connection method, please refer to the manual of your Bluetooth mobile phone. Auto reconnection 1.
How to use [Answering a call] The headset and mobile phone will ring simultaneously when an incoming call is received. You can answer a call by pressing briefly (The call can also be answered using the mobile phone). [Making a call] Voice dialing* Press and release once.
How to use [Ending a call] To end a call, briefly press [Volume control] Briefly press the volume up or volume down button located at the side of the headset in order to control the speaker volume. Eight levels of volume control are available. [Functions during a call] Transferring a call* Briefly press...
How to use Call waiting* Answer the second incoming call without ending the first call by pressing for 1 s. To return to the first call, simply press again for 1 s. Call reject* To activate the call reject function, press for 1 s when an incoming call is detected.
How to use [Summary of button functions] Function Action Headset status Power on Power off Press for 2 s Power off Power on Press for 5 s Volume up Talking Briefly press the volume up button Volume down Briefly press the volume up button Talking - From the mobile phone to the headset: Briefly press...
How to use [LED indication and signal sound] Function Status of LED Signal Sound The LED flashes blue 5 Power on Booting tone times rapidly The LED flashes blue 5 Power off Shutdown tone times rapidly The LED flash red and Beeps twice Pairing blue in turn continuously...
Status Corrective action Signal Sound Check whether the battery The LED flashes blue 5 Power on of the Latte Mocha Series times rapidly headset is charged Your mobile phone should Check whether your support “headset” and/or mobile phone supports Unable to “hands-free”...
Supplement [Cautions] 1. Do not drop the unit from 2. Do not modify, repair, or a height. take apart this unit. 3. Do not expose this unit 4. Do not expose this unit directly to water, alcohol, directly to flammables. benzene, etc.
Page 17
However, frequent bending of the ear loop is not recommended. In order to ensure the best performance and to prevent any damage to or misuse of the Latte Mocha Series unit, please read the complete information provided in this user manual carefully prior to using it.
Bluetooth “headset” and/or “hands-free” profile(s). This headset is not compatible with the standard cordless phones used in homes. As it operates in the same frequency range, the Latte Mocha Series can be affected by the devices that operate in the ISM band (2.402 GHz ~ 2.480 GHz), for example, wireless LAN,...
Page 19
Supplement If handled properly, a rechargeable battery can have a long service life. A new battery or one that has not been used for a long period of time could have reduced capacity the first few times it is used.
Supplement [Standards and specifications] A wireless device for wireless data communi- Name of product cation system (Latte Mocha Series) Bluetooth specification V 2.0 Supported profiles Headset and hands-free profiles 2.402 GHz ~ 2.480 GHz (ISM band) Frequency Transmitting output Class 2...
Should your product require warranty service, please contact the dealer from whom the product was purchased. Product Name Bluetooth Headset Model Name Latte Mocha Series Purchase Date Dealer Serial No. Purchase Price [Free service] If the product malfunctions in spite of proper usage, the warranty is valid only within the limited warranty period of one (1) year from the original purchase date.
Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Latte Communications, Inc. will void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 24
Latte Communications, Inc. http://www.lattefone.com Latte Mocha Series User Manual...
