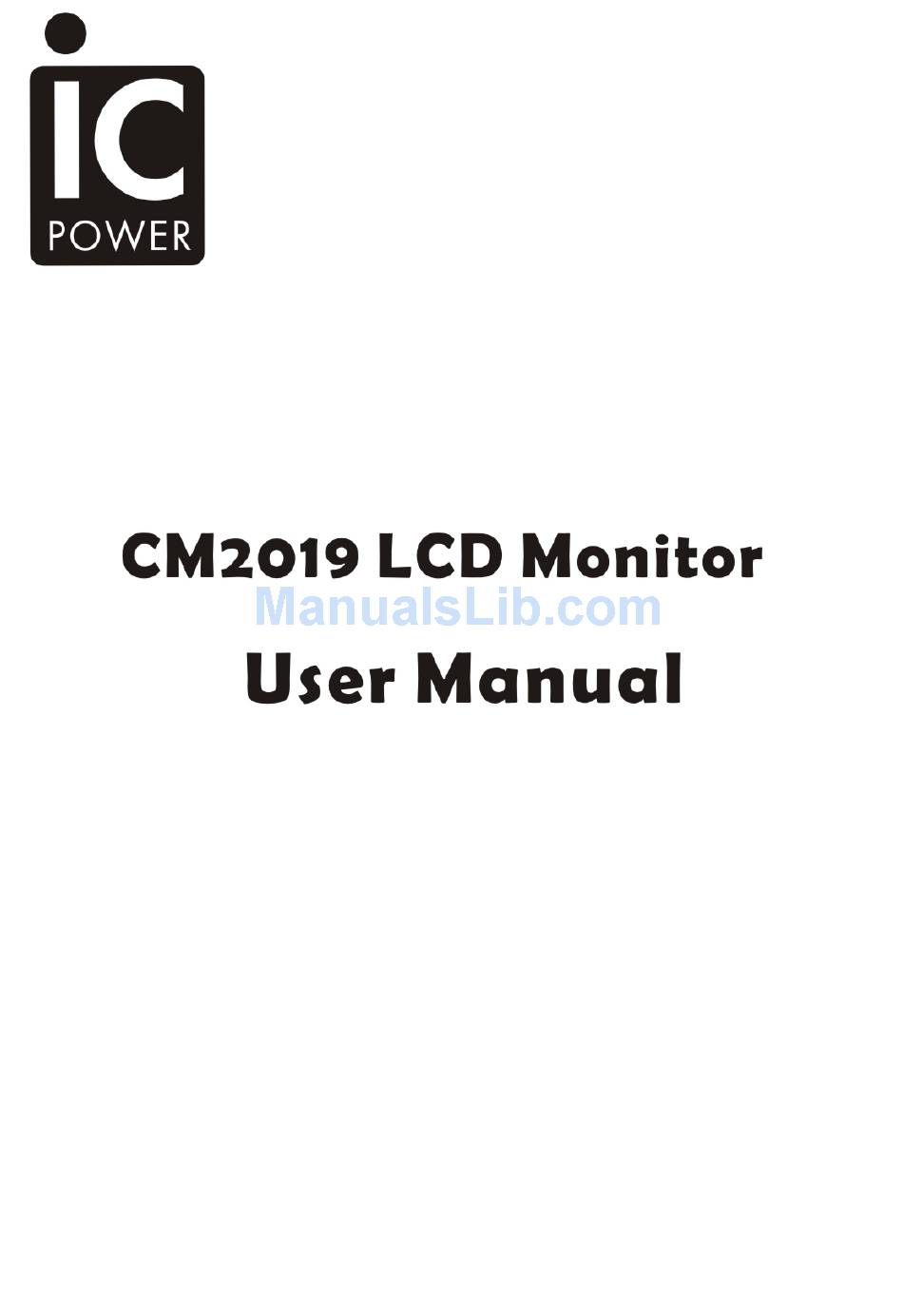

Summary of Contents for IC CM2019
- Page 2 Page1-2 stands for TCO’99 model only. Please see back label for model distinction. Congratulations! You have just purchased a TCO'99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
- Page 3 computers. The labeling scheme is developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), by Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation), and by Statens Energimyndighet (The Swedish National Energy Administration). Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety.
-
Page 4: Environmental Requirements
TCO Development SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'99 approved and labeled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. - Page 5 TCO'99 requirement states that batteries, the color-generating layers of display screens and the electrical or electronics components must not contain any cadmium. Mercury Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury.
-
Page 6: Operation Instructions
Operation Instructions Thank you for purchasing this monitor, a high-resolution multi-scan color monitor. Please read this guide thoroughly before installation. FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 7: Table Of Contents
Content Safety Precautions ..............1 First Setup..................2 Front Panel Control ..............3 Installation ...................3 Using OSD Functions..............4 Technical Information ...............13 Care and Maintenance ...............14 Troubleshooting .................14... -
Page 8: Safety Precautions
Safety Precautions This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy. -
Page 9: First Setup
First Setup Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories : Video cable with 15 pin D-SUB connector and 24 pin DVI connector. Power Cable. Audio Cable. User guide book or CD-ROM. Quick Installation 1. -
Page 10: Front Panel Control
Front Panel Control ACTIVATE/EXIT OSD SELECT DESIRED FUNCTION SCROLL DOWN/DECREASE POWER ON/OFF SCROLL UP/INCREASE LED INDICATER Installation POWER INPUT AUDIO INPUT DVI INPUT VGA INPUT... -
Page 11: Using Osd Functions
Using OSD Functions 1. Press the button to display the main menu shown below. 2. Press the button to scroll to the desired menu option. 3. Press the button to select the menu option. 4. Press the button to select submenu option. After making adjustment, press button to save changes and exit the screen. - Page 12 Contrast : To adjust the foreground white level of screen image. : increase contrast, : decrease contrast. Brightness : To adjust the background black level of screen image. : increase brightness, : decrease brightness. Color Adjust : To provide four preset color adjustments for improving brightness and color saturation: 9300K, 6500K, 5400K, and User Color.
- Page 13 9300K--Adds blue to screen image for cooler white. 6500K--Adds red to screen image for warmer white and richer red. 5400K--Adds green to screen image for a darker color. User Color : Individual adjustments for red (R), green (G), blue (B). 1.
- Page 14 Image Adjust : To manually adjust the Horizontal /Vertical position ,H. Size, Fine Tune and Sharpness. H./V. Position : To adjust the horizontal and vertical position of the video. H. Position : move screen to the right, : move screen to the left. V.
- Page 15 Fine Tune : To adjust the delay time of data and clock. Press to adjust to user preference. Sharpness : To adjust the clarity of a non-SXGA (1280x1024) signal. Press button to adjust. Setup Menu : To setting language Select, Resolution Notice, OSD Position and OSD Time Out and Input Select (Analog).
- Page 16 Language Select : To allow the user to choose from available language. Resolution Notice : There is a OSD message of "For best picture quality change resolution to 1280 x 1024" displayed on the screen after 30 seconds Powering ON or changing mode to lower resolutions (640 x 480/ 720 x 400 / 800 x 600/ 1024 x 768), if the function was "enable".
- Page 17 OSD Position : Press the button to select the horizontal or vertical OSD position. Horizontal OSD Position：To horizontally replace the OSD position. ：move OSD to the right, ：move OSD to the left. Vertical OSD Position：To vertically replace the OSD position. ：move OSD up, ：move OSD down.
- Page 18 Input Select : When press Input Select change Input signal to Analog or Digital. Memory Recall : To return to the factory setting condition, about Picture＆Audio setting. Press the button to select the Memory Recall menu option. Audio Menu: Volume: To adjust the volume of speaker output. Mute: To select the Mute ON/OFF.
-
Page 19: Supporting Timing Modes
Supporting Timing modes 700 x 400 @ 70Hz VESA 640 x 480 @ 60Hz VESA 640 x 480 @ 67Hz 640 x 480 @ 75Hz VESA 800 x 600 @ 56Hz VESA 800 x 600 @ 60Hz VESA 800 x 600 @ 72Hz VESA 800 x 600 @ 75Hz VESA... -
Page 20: Technical Information
Technical Information Technical Specification LCD Panel 19.0” TFT Power Management Energy Star compliant VESA DPMS compatible < 2 W Displayable Resolution SXGA 1280 x 1024 max. Vertical Frequency 75Hz max. Pixel Dimension 0.294 x 0.294 mm LCD Display Color 16.2M (6 bits+FRC/color) Viewing Angle 140/130, CR>10 Tilt... -
Page 21: Care And Maintenance
Care and Maintenance Care Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. Put your monitor in a well ventilated area. Do not place any heavy things on top of your monitor. Make certain your monitor is installed in a clean and moisture-free area. - Page 22 Wrong or abnormal colors If any colors (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection. Connect the monitor to another computer.
