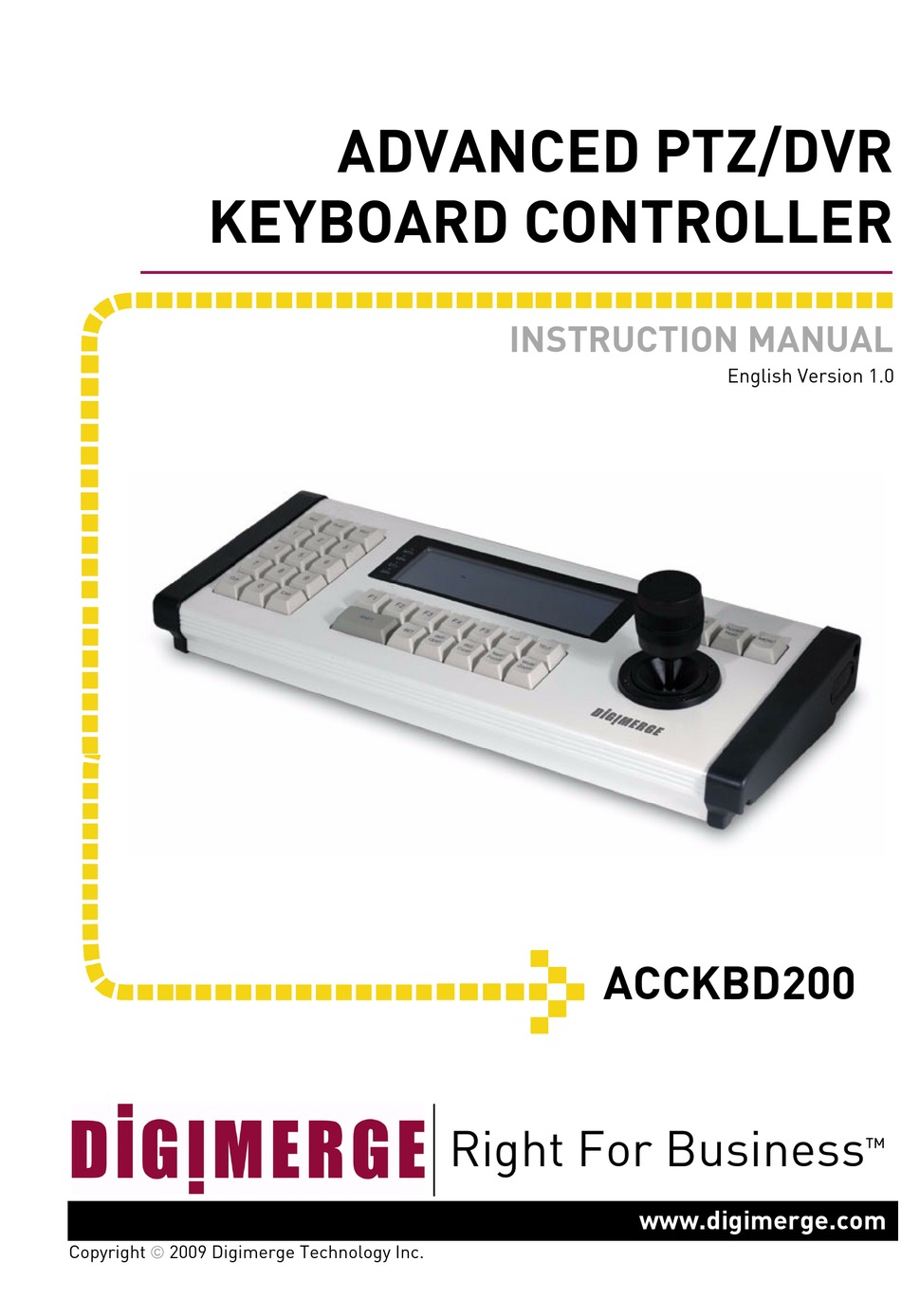

- Page 1 ADVANCED PTZ/DVR KEYBOARD CONTROLLER INSTRUCTION MANUAL English Version 1.0 ACCKBD200 Right For Business ™ www.digimerge.com Copyright ¤ 2009 Digimerge Technology Inc.
-
Page 2: Fcc Compliance Statement
SYSTEM CONTROLLER WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended To alert the user to the presence of un- insulated "dangerous voltage"... -
Page 3: Table Of Contents
SYSTEM CONTROLLER CONTENTS General Descriptions, Features …….. ………………………..…. 4 Installation ………………..………………….…..…….5 Part names & Functions …………………... ………….…….………….6 Display LCD window ……………………..…………………..…….9 PTZ Control …..….……………..…...……..….…..…10 PTZ Configuration …..….……………..…...……..….…..…10 Hidden command …………………………………..………….………13 Specifications & Dimensions .………………..…………………………14 - 3 -... -
Page 4: General Descriptions
SYSTEM CONTROLLER General Descriptions The ACCKBD-200 is a pan/tilt controller and it allows operators to perform the following functions : • Controls camera functions such as pan, tilt, zoom, and focus. • Sets and calls camera preset positions • Activates pre-programmed group presets, tour and group sequences. The LCD is used to display current status as well as to provide a menu system for setting operational parameters. -
Page 5: Installation
SYSTEM CONTROLLER Installation UNPACKING Unpack the equipment and make sure all listed items are included in the box. Product Carton 1 Keyboard controller ………………………………………………….……… 1 Junction box ………………………………………………………….………. 2 3m 6p cable RJ-11………………………………………………….………… 2 Instruction manual ….………….…………………………………………….. 1 Product Carton 2 12V DC Power Adaptor .……………………………………………………………. -
Page 6: Part Names & Functions
SYSTEM CONTROLLER Parts name & functions 20 21 15 16 10 11 12 13 14 1. LCD Display: Displays numeric input, system status, function status, general status, etc. 2. Shows the communication status (Master / Slave) 3. Mon : Select output channel of Matrix Switcher 4. - Page 7 2. Master Port : Connect to Master Communication Port Drawing of Console Desk The ACCKBD200 is designed to use on the console desk. When you install the keyboard on the console desk , please make holes as below drawing. Unit : mm...
-
Page 8: Display Lcd Window
SYSTEM CONTROLLER Display LCD window (1) Initial display 1. C-001 : Shows the current camera No. (Address). PROTOCOL PELCO-D : 2400 BPS 2. M-001 : Displays output channel of Matrix Switcher. (TBD) PTZ ADDR 3. DRX5 : Shows the selected camera protocol. 4. - Page 9 ※ To using Preset, Group, Tour, Scan, Auto pan, Focus, Zoom functions of keyboard, user should store these functions on the camera Menu in advance. These functions are different according to manufacturer. ACCKBD200 series support Pelco D/P, Dongyang DRX-502, Samsung Techwin SPD-2500 and Samsung Electronics SCC-643 protocols.
-
Page 10: Ptz Configuration
SYSTEM CONTROLLER • System Controller (Keyboard) Functions setting 1. System functions setting PTZ Camera (Rx) and Protocol setting. <Pressing keypad “1” and holding the “SET” key ① for approximately 2 seconds> ② You will be prompted for a password if one has previously been set (factory default is “0000”.) ③... - Page 11 SYSTEM CONTROLLER ACCKBD2000 Accessing the system setup menu PROTOCOL PELCO-D : 2400 BPS Pressing keypad 1 and then holding the SET key for PTZ ADDR approximately 2 seconds. MON CHAN It provides access to the system setup menu system. Note: You will be prompted for a password if one has PRE GRO TOUR SCAN PATT FOCUS ZOOM previously been set (factory default is “0000”)
-
Page 12: Hidden Command
SYSTEM CONTROLLER 2.Hidden command This hidden menu performs to operator to change PASSWORD and others. ① <Pressing keypad “2” and holding the “SET” key for approximately 2 seconds> ② You will be prompted for a password if one has previously been set (factory default is “0000”.) ③... -
Page 13: Specifications
SYSTEM CONTROLLER Specifications Model ACCKBD200 Pan/Tilt interface: RS-485 DVR interface: RS-485 Keyboard Communication Pan/Tilt operating distance: 4000 ft (1029m) on 24AWG wire Protocol: Multiple (Pelco D/P, Dongyang DRX-502, Samsung Techwin SPD-2500, Samsung Electronics SCC-643), Baud rate selectable Connector Type Data...
