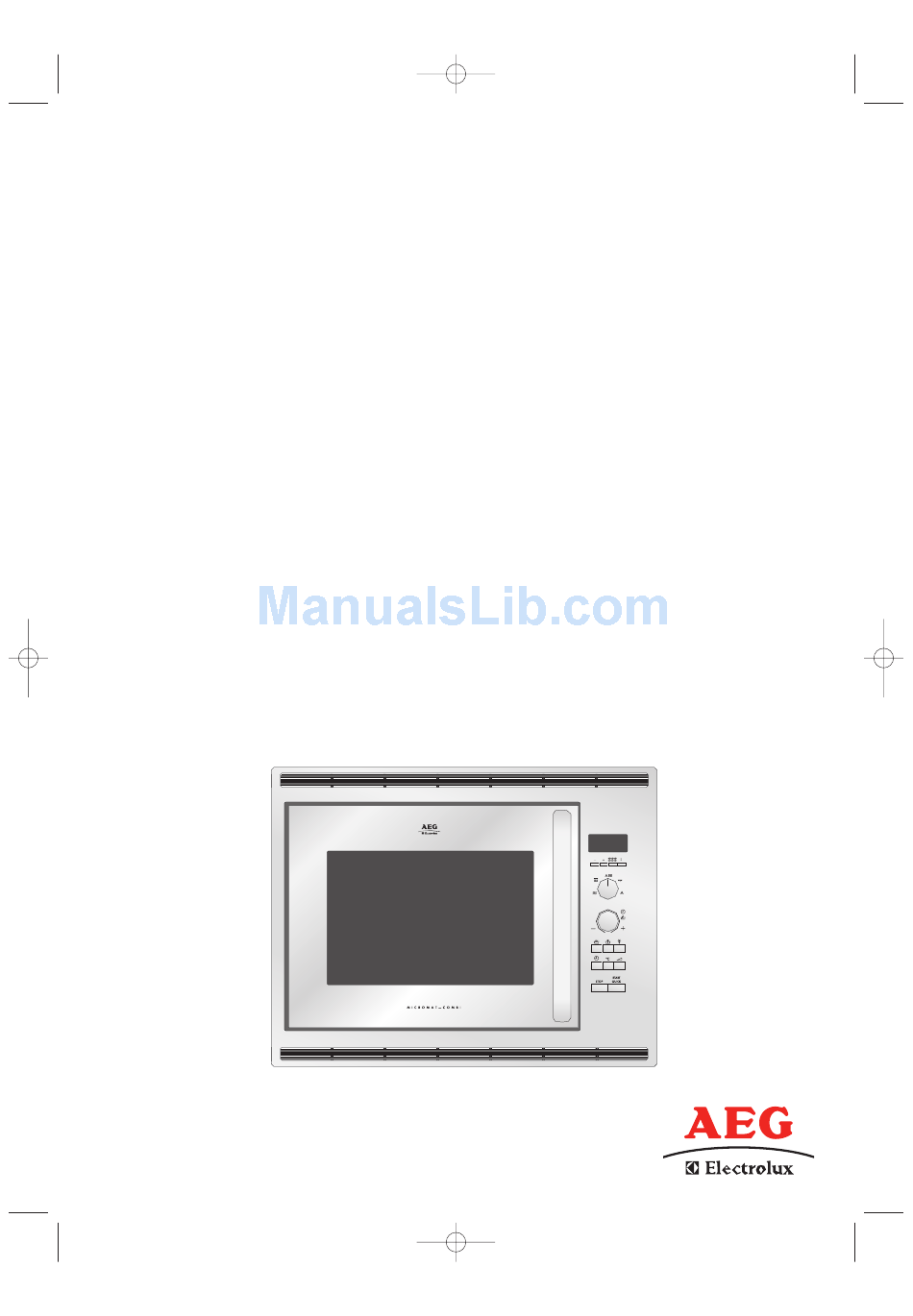

1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page A MCC4060E Microwave oven with grill and convection Operating instructions PERFEKT IN FORM UND FUNKTION... -
Page 2: Dear Customer
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page B Dear Customer, Thank you for buying an AEG Electrolux microwave oven and putting your trust in the AEG Electrolux brand name. Before using your AEG Electrolux microwave oven for the first time, please read the instruction book thoroughly. -
Page 3: Table Of Contents
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 1 Contents Important safety instructions ..........2 - 3 Oven &... -
Page 4: Important Safety Instructions
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 2 Important safety instructions IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE To avoid the danger of fire To avoid the possibility of injury The microwave oven should not be left unattended WARNING: during operation. -
Page 5: Important Safety Instructions
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 3 Important safety instructions If the power supply cord of this appliance is damaged, it during GRILL mode, CONVECTION mode, DUAL mode, must be replaced with a special cord. The exchange must AUTO COOK and AUTO COOK FROM FROZEN, operation be made by an authorised Service Force Centre. -
Page 6: Oven & Accessories
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 4 Oven & accessories 1 Fixing points (4 points) 2 Grill heating element 3 Convection heating element 4 Oven lamp 5 Control panel 6 Shelf runners 7 Waveguide cover 8 Oven cavity 9 Coupling 10 Door seals and sealing surfaces 11 Door opening handle 12 Air-vent openings... -
Page 7: Control Panel
2. MCC4060-UK ENGLISH 12/05/2006 13:49 Page 5 Control panel Digital display and indicators: COOKING indicator START indicator GRILL indicator CONVECTION indicator MICROWAVE indicator INFORMATION indicator Operating buttons: INFORMATION button LANGUAGE button COOKING MODE knob for microwave cooking for microwave cooking with GRILL for microwave cooking with CONVECTION for GRILL for CONVECTION... -
Page 8: Before Operation
2. MCC4060-UK ENGLISH 12/05/2006 13:49 Page 6 Before operation Your oven has an energy save mode. COOKING HINTS: 1. Plug in the oven. Nothing will appear on the The oven has an ‘Information Display System’ which display at this time. offers you step by step instructions to easily guide you through each feature, and enable you to gain 2. -
Page 9: Using The Stop Button
2. MCC4060-UK ENGLISH 12/05/2006 13:49 Page 7 Using the STOP button Use the STOP button to: 1. Erase a mistake during programming. 2. Stop the oven temporarily during cooking. 3. Cancel a programme during cooking, press the STOP button twice. Setting the clock There are two setting modes: 12 hour clock and 24 hour clock. -
Page 10: Energy Save Mode
2. MCC4060-UK ENGLISH 12/05/2006 13:49 Page 8 Energy save mode Your oven comes set for the energy save mode. If you do nothing for 3 minutes after a preceding operation, i.e. closing the door or at the end of cooking, the power will go off automatically. -
Page 11: What Are Microwaves
2. MCC4060-UK ENGLISH 12/05/2006 13:49 Page 9 What are microwaves? Like radio and television waves, microwaves are THE CHARACTERISTICS OF MICROWAVES electromagnetic waves. Microwaves penetrate all non-metal objects made of Microwaves are produced by a magnetron inside the glass, china, earthenware, plastic, wood or paper. This is why the microwaves never make these materials hot. -
Page 12: Microwave Cooking
2. MCC4060-UK ENGLISH 12/05/2006 13:49 Page 10 Microwave cooking Your oven can be programmed for up to 90 minutes. Cooking Time: Increasing unit: (90.00). The input unit of cooking (defrosting) time 0-5 minutes 10 seconds varies from 10 seconds to five minutes. It depends on 5-10 minutes 30 seconds the total length of the cooking (defrosting) time as... -
Page 13: Grill Cooking
2. MCC4060-UK ENGLISH 12/05/2006 13:50 Page 11 Grill cooking The grill heating element at the top of the oven cavity has one power setting only. Example: To cook cheese on toast for 5 minutes (Place toast on the high rack.) 3. -
Page 14: Convection Cooking
2. MCC4060-UK ENGLISH 12/05/2006 13:50 Page 12 Convection cooking Your oven can be used as a conventional oven using the convection facility and 10 pre-set oven temperatures. Press Convection button Oven Temp (˚C) Example 1: To cook with preheating To pre-heat to 180°C and cook for 20 minutes at 180°C. 1. -
Page 15: Convection Cooking
2. MCC4060-UK ENGLISH 12/05/2006 13:50 Page 13 Convection cooking Example 2: To cook without preheating To cook at 250°C for 20 minutes. 1. Select the cooking 4. Press the START/ QUICK 2. Use the TIMER/WEIGHT 3. Select the desired mode by rotating button. -
Page 16: Dual Cooking
2. MCC4060-UK ENGLISH 12/05/2006 13:50 Page 14 Dual cooking Your oven has 2 DUAL cooking modes combining 1) Convection & microwave, 2) Grill with microwave. To select the DUAL cooking mode rotate the COOKING MODE dial to the desired setting, then choose the cooking time. -
Page 17: Dual Cooking
2. MCC4060-UK ENGLISH 12/05/2006 13:51 Page 15 Dual cooking Example 2: To cook for 20 minutes on DUAL 2 using 90 W microwave power and GRILL. 1. Select the cooking 2. Enter the desired 3. Press the MICROWAVE mode by rotating the cooking time (20 POWER LEVEL button cooking mode dial to... -
Page 18: Other Convenient Functions
2. MCC4060-UK ENGLISH 12/05/2006 13:51 Page 16 Other convenient functions 1. LESS ( ▼ ) / MORE ( ▲ ) button The LESS ( ▼ ) and MORE ( ▲ ) buttons allow you to decrease or increase programmed setting times easily, (for a less well or more well cooked result), when cooking in progress. - Page 19 2. MCC4060-UK ENGLISH 12/05/2006 13:51 Page 17 Other convenient functions 2. START/QUICK FUNCTION The START/QUICK button allows you to operate the two following functions: a) 30 seconds cooking You can cook on your desired cooking mode for 30 seconds without entering the cooking time. Example: To cook for 30 seconds on 630 W microwave power.
-
Page 20: Other Convenient Functions
2. MCC4060-UK ENGLISH 12/05/2006 13:51 Page 18 Other convenient functions 3. TO CHECK SETTINGS WHILE THE OVEN IS OPERATING You can check the power level and the actual oven temperatures ie: when pre-heating. TO CHECK THE POWER LEVEL: As long as your finger is To check the microwave power level during cooking pressing the button, the press the MICROWAVE POWER LEVEL button. -
Page 21: Suitable Ovenware
2. MCC4060-UK ENGLISH 12/05/2006 13:51 Page 19 Suitable ovenware Ovenware material Mode of operation Micro- Convec- Grill Combination wave tion Ovenproof glass and ceramic dishes (without any metal parts, e.g. Pyrex, oven-to-tableware, glass tray). Non ovenproof glass and porcelain (e.g table crockery Glass ceramic and vitroceramic made of fire / frostproof material (e,g. -
Page 22: Cooking Charts
2. MCC4060-UK ENGLISH 12/05/2006 13:51 Page 20 Cooking charts BAKING USING THE GLASS TRAY WITH THE CONVECTION FUNCTION MENU TIME MODE POSITION Quiche Preheat 200˚C Cook base for 15‘00, directly in glass tray, lower 1) 20’00 200˚C position, rotate after 1) 2) 12’00 200˚C Banana Loaf Cake... -
Page 23: Recipes For Glass Tray And Convection
2. MCC4060-UK ENGLISH 12/05/2006 13:51 Page 21 Recipes for glass tray & convection Banana loaf Preheat the oven. 1. Grease and line loaf tin. Ingredients 2. Cream butter and sugar together. 120 g butter 3. Add egg and coffee essence and beat again. 170 g caster sugar 4. -
Page 24: Recipes For Glass Tray And Convection
2. MCC4060-UK ENGLISH 12/05/2006 13:51 Page 22 Recipes for glass tray & convection 1. Grease and line the springform. Cherry almond cake 2. Cream the margarine and sugar until light and fluffy. Ingredients 3. Beat in the eggs one at a time. 175 g margarine 4. -
Page 25: Recipes For Glass Tray And Grill
2. MCC4060-UK ENGLISH 12/05/2006 13:52 Page 23 Recipes for glass tray & grill Onion soup 1. Slice the onions, place in a bowl with the stock, salt and pepper, cook for Ingredients 8 min. 900 W 2. Put the soup in to 4 soup bowls. 20 g butter 3. -
Page 26: Automatic Operations
2. MCC4060-UK ENGLISH 12/05/2006 13:52 Page 24 Automatic operations The AUTOMATIC OPERATIONS automatically work out the correct cooking mode and cooking time. You can choose from 5 AUTO COOK menus, 4 AUTO COOK FROM FROZEN menus and 7 AUTO DEFROST menus. Warning: For AUTO COOK and AUTO COOK FROM FROZEN: AUTOMATIC buttons... - Page 27 2. MCC4060-UK ENGLISH 12/05/2006 13:52 Page 25 Automatic operations Example: To cook 300 g of Rice using AUTO COOK (AC-1) 1. Press the AUTO COOK 3. Press the START/QUICK button to 2. Enter the weight by rotating the button once to select Rice. start cooking.
-
Page 28: Auto Cook Chart
2. MCC4060-UK ENGLISH 12/05/2006 13:52 Page 26 Auto cook chart MENU NO. WEIGHT (Increasing PROCEDURE Unit) / UTENSILS AC-1 0,1 - 0,3 kg (100 g) • Place in a big bowl and add boiling water. Rice (par-boiled) Big bowl & lid •... -
Page 29: Auto Cook From Frozen Chart
2. MCC4060-UK ENGLISH 12/05/2006 13:52 Page 27 Auto cook from frozen chart MENU NO. WEIGHT (Increasing PROCEDURE Unit) / UTENSILS ACF-1 Cook 0,3 - 1,0 kg* (100 g) • Transfer meal to suitable casserole dish. Frozen Ready Meals Casserole dish & lid •... -
Page 30: Auto Defrost Chart
2. MCC4060-UK ENGLISH 12/05/2006 13:52 Page 28 Auto defrost chart MENU NO. WEIGHT (Increasing PROCEDURE Unit) / UTENSILS AD-1 Defrost 0,2 - 1,0 kg (100 g) • Place the food on a plate in the centre of the turntable. Steaks, Chops (see note on page 29) •... -
Page 31: Auto Defrost Chart
2. MCC4060-UK ENGLISH 12/05/2006 13:52 Page 29 Auto defrost chart NOTES: 1. Steaks, Chops and Chicken legs should be frozen in one layer. 2. Minced meat should be frozen in the thin shape. 3. After turning over, shield the defrosted portions with small, flat pieces of aluminium foil. 4. -
Page 32: Recipes For Auto Cook Ac-4
2. MCC4060-UK ENGLISH 12/05/2006 13:52 Page 30 Recipes for auto cook AC-4 Baked courgettes and pasta 1. Put the water, oil and salt in the bowl, cover and bring to the boil. (This recipe makes approx. 1,5 kg). 3-5 min. 900 W Ingredients 2. -
Page 33: Recipes For Auto Cook Ac-5
2. MCC4060-UK ENGLISH 12/05/2006 13:52 Page 31 Recipes for auto cook AC-5 Carrot cake 1. Grease the dish. 2. Cream the egg yolks and sugar with a hand mixer. (This recipe makes approx. 1,1 kg) 3. Add the carrots, lemon juice and almonds. 4. -
Page 34: Recipes For Auto Cook Ac-5
2. MCC4060-UK ENGLISH 12/05/2006 13:52 Page 32 Recipes for auto cook AC-5 Apple tart with calvados 1. Mix the flour with the baking powder. Add the sugar, vanilla sugar, salt, the egg, bitter almond oil and butter and knead to a paste with the kneading hook of (This recipe makes approx. -
Page 35: Care And Cleaning
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 33 Care & cleaning Oven Interior CAUTION: DO NOT USE COMMERCIAL OVEN 1. For cleaning, wipe any splatters or spills with a soft CLEANERS, STEAM CLEANERS, ABRASIVE, HARSH damp cloth or sponge after each use while the oven CLEANERS, ANY THAT CONTAIN SODIUM is still warm. -
Page 36: What To Do If
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 34 What to do if..the microwave appliance is not working ... the microwave will not switch off ? properly ? - Isolate the appliance from the fuse box. Check that - Contact an authorised Service Force Centre. - the fuses in the fuse box are working, ... -
Page 37: Service & Spare Parts
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 35 Service & spare parts If you wish to purchase spare parts or require an engineer, contact your local AEG-Electrolux Service Force Centre by telephoning: 08705 929 929 Your telephone call will be automatically routed to the Service Force Centre covering your post code area. For the address of your local Service Force Centre and further information about Service Force, please visit the website at: www.serviceforce.co.uk... -
Page 38: Guarantee Conditions
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 36 Guarantee conditions Standard guarantee conditions We, AEG-Electrolux, undertake that if within 12 months of the date of the purchase this AEG-Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •... -
Page 39: Specifications
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 37 Specifications AC Line Voltage : 230-240V, 50 Hz, single phase AC Power required: Microwave : 1.55 kW Grill : 2.85 kW Grill/Microwave : 2.95 kW Convection : 2.85 kW Convection/Microwave : 2.95 kW Output power: Microwave : 900 W (IEC 60705) -
Page 40: Important Information
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 38 Important information Ecologically responsible disposal of packaging materials and old appliances Packaging materials AEG- microwave ovens require effective packaging to protect them during Electrolux transportation. Only the minimum packaging necessary is used. Packaging materials (e.g. foil or styrofoam) can place children at risk. Danger of suffocation. -
Page 41: Installation
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 39 Installation INSTALLING THE APPLIANCE 1. Remove all packaging and check carefully for any signs of damage. 2. If the microwave is fitted in position C, ensure that the minimum air gaps are maintained as shown in the diagram. -
Page 42: Installation
1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 40 Installation CONNECTING THE APPLIANCE TO THE POWER SUPPLY • The electrical outlet should be readily accessible so that the unit can be unplugged easily in an emergency. • The socket should not be positioned behind the cupboard. •... - Page 43 1. MCC4060-UK ENGLISH 12/05/2006 13:48 Page 41...
