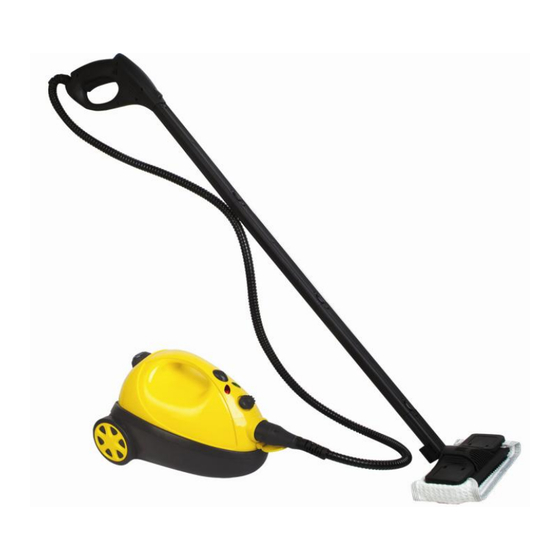

4 Bar Steam Cleaner

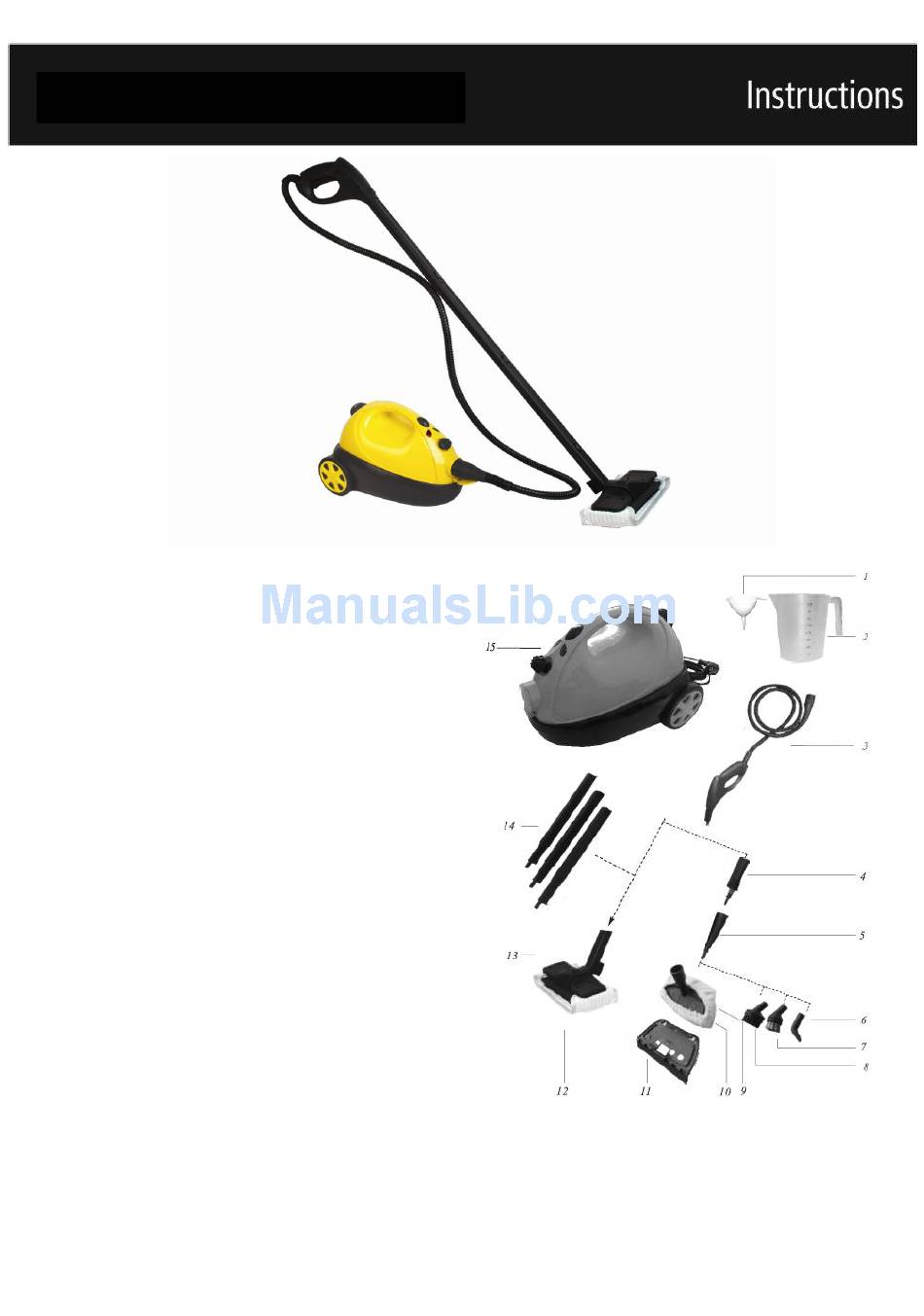

Steam Cleaner & Accessories:
1. Funnel
2. Measuring Jug
3. Steam Gun with Hose Connector
4. Accessory Adaptor
5. Detail Nozzle
6. Jet Nozzle
7. Small Nylon Brush
8. Nylon Brush
9. Part 1 of 2 in 1 Window Attachment- Right
angled steam attachment
10. Cotton Cover for 2 in 1 Window Attachment
11. Part 2 of 2 in 1 Window Attachment
12. Large Cleaning Cloth for Floor Nozzle
13. Floor Nozzle
14. 3 x Extension Tubes
15. Steam Cleaner & Mains Plug
9283
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9283 and is the answer not in the manual?

Questions and answers

Summary of Contents for Coopers of Stortford 9283

  • Page 1 4 Bar Steam Cleaner 9283 Steam Cleaner & Accessories: 1. Funnel 2. Measuring Jug 3. Steam Gun with Hose Connector 4. Accessory Adaptor 5. Detail Nozzle 6. Jet Nozzle 7. Small Nylon Brush 8. Nylon Brush 9. Part 1 of 2 in 1 Window Attachment- Right angled steam attachment 10.
  • Page 2: Assembly And Use

    Assembly and Use: 1. Remove all items from packaging and verify that all parts are included as per list. The Steam Cleaner has an accessory compartment that houses all accessories which is located under the main cover. You open this by pressing the yellow button on the back of the Steam Cleaner just above the wheels, lifting the unit handle upwards and then separating the top and bottom of the unit.
  • Page 3 Floor Nozzle: Assemble floor nozzle when cleaning the required floor area, the nozzle should be used with the extension tubes as above. Attach the floor nozzle to the end of the extension tube; ensure that the nozzle clicks into place. The floor nozzle is ideal for cleaning washable floor coverings and also has its own cleaning cloth cover which is included in the accessories.
  • Page 4 Brush Nozzles: The brush nozzles offer different levels of cleaning for different materials and can be great for those heavier stains. To use the brush nozzles the detail nozzle should first be fitted (as above) and then the brush nozzles to be firmly pushed onto the detail nozzle. To remove, pull off in a downward movement.
  • Page 5: After Use & Storage

    5. Plug the steam cleaner into the mains socket and switch appliance on. The ON/OFF switch is located on the front of the carry handle. Once on, the Green Operating Light and the Red Heating light should both come on, these are also located on the front of the carry handle.
  • Page 6: Safety Instructions

    8. The water tank should be treated with lime scale remover approx. every 6 months to prolong the steam cleaners’ life. Place a maximum of 2 lime scale removal stick into 1 Litre of warm water and fill water tank. Allow the solution to work for approximately 30 minutes and then pour away. Repeat the process if necessary.
  • Page 7: Troubleshooting

    Caution: Always patch tests the surfaces that you wish to use the steam clean on. It may have an adverse effect on materials sensitive to heat. Warning: Risk of scalding or burn if safety instructions are not followed correctly Troubleshooting: Fault Possible Cause Remedy...
  • Page 8 Technical Specification: Type of Appliance: Steam Cleaner Model: VSC28 Voltage: 220~240V~, 50HZ Power Consumption: 1500w Nominal Steam Pressure: Max. 4 Bar Volume of Water Tank: 1.4Lt Max. Steam Availability: Max. 40 minutes /Tank Heating Time: 10 Minutes Steam Flow Rate: Max.

This manual is also suitable for:

Vsc28
