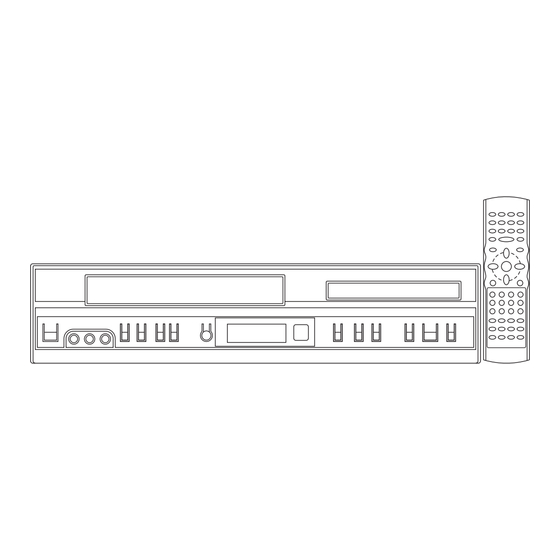

DVD PLAYER WITH VCR
MODEL NO.: DVC510E
Instruction Manual
- 32 -
ELECTROHOME DVC510E_EngP19-32.p65
32
5/3/2007, 9:41 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVC510E and is the answer not in the manual?

Questions and answers

Summary of Contents for Electrohome DVC510E

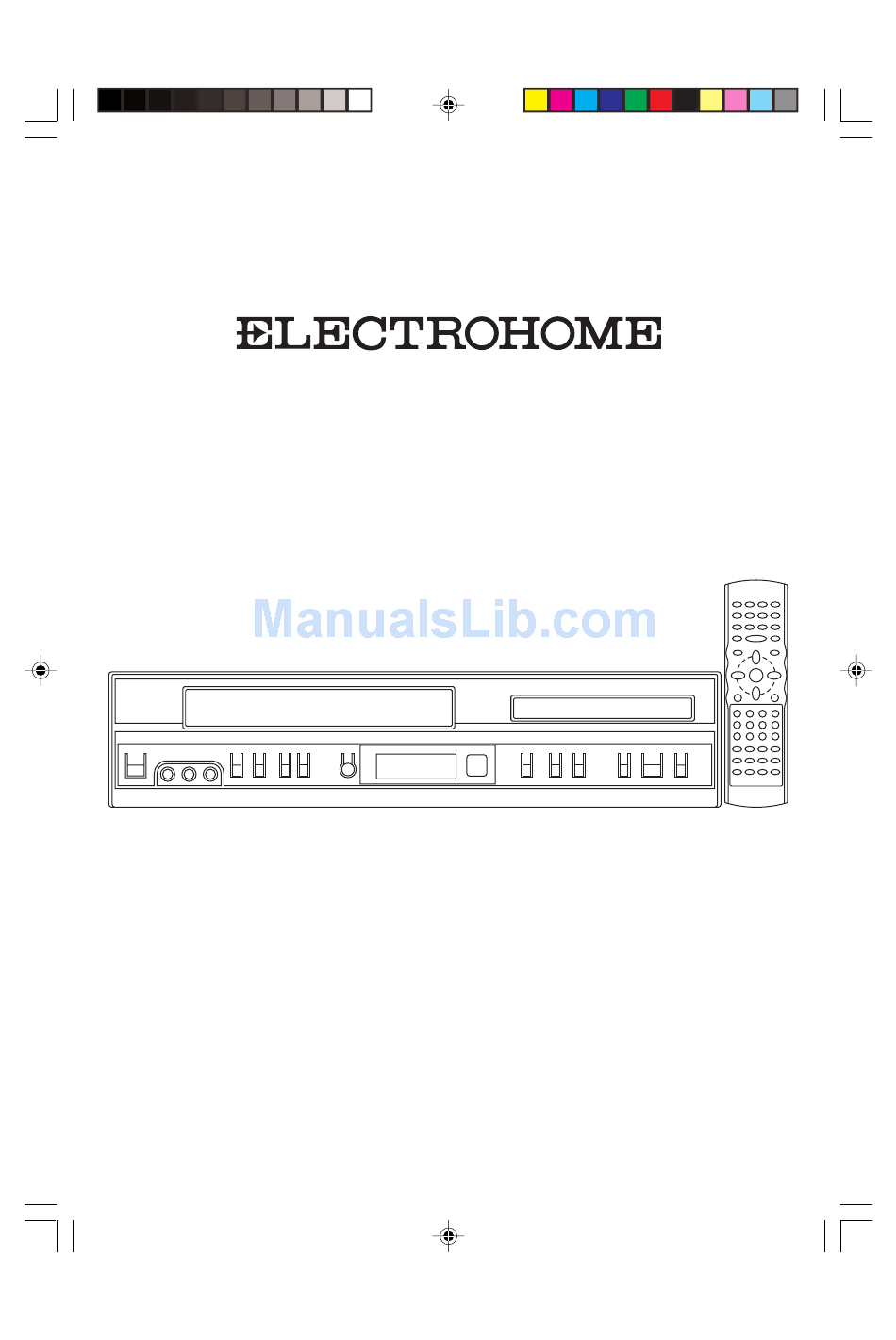

  • Page 1 DVD PLAYER WITH VCR MODEL NO.: DVC510E Instruction Manual - 32 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...

  • Page 2: Read Carefully Before Using

    • After use, store tape vertically in a case to prevent loose. • Do not store the following places. – High temperature and humidity – Subject generation of mold – Much dirt or dust – Near strong magnetic materials such as speaker - 1 - ELECTROHOME DVC510E_EngP01-10.p65 5/3/2007, 9:45 AM...
  • Page 3 If Dew Condensation Occurs 1. First, turn it on for one or two hours before using it. 2. Do not use it because it may develop troubles with the VCR or videotape. - 2 - ELECTROHOME DVC510E_EngP01-10.p65 5/3/2007, 9:45 AM...

  • Page 4: Maintenance And Care

    • Before playback, wipe the disc from the center hole toward the outer edge with a clean cloth. • Never use benzine, thinner, cleaning fluid, static electricity prevention liquids or any other solvent. Right Wrong - 3 - ELECTROHOME DVC510E_EngP01-10.p65 5/3/2007, 9:45 AM...

  • Page 5: Location Of Controls And Indicators

    14. EJECT Button (VCR) 6. STOP Button 15. AUDIO L & R Input jack 7. OPEN/CLOSE Button (DVD) 16. VIDEO Input jack 8. SELECT Button 17. POWER (STANDBY/ON) Button 9. Remote Sensor - 4 - ELECTROHOME DVC510E_EngP01-10.p65 5/3/2007, 9:45 AM...

  • Page 6: Main Unit (Rear View)

    6. RF OUT 12. AC Power Cord Display Window 1. VCR in operation 5. DVD in operation 2. VCR Tape operation 6. Timer indicator 3. Status Bar 7. REC indicator 4. DVD Disc operation - 5 - ELECTROHOME DVC510E_EngP01-10.p65 5/3/2007, 9:45 AM...

  • Page 7: Control Reference Guide

    3. Replace the cover. • Do not attempt to recharge, short-circuit, disassemble, heat or throw the batteries into the fire. • Do not mix different types of batteries or old and new batteries. - 6 - ELECTROHOME DVC510E_EngP01-10.p65 5/3/2007, 9:45 AM...
  • Page 8 Connect the player to TV set by S-Video Socket Use S-Video cable to connect the player with your TV. ANTENNA S-VIDEO IN VIDEO IN AUDIO IN S-Video Cable Audio L & R Cables - 7 - ELECTROHOME DVC510E_EngP01-10.p65 5/3/2007, 9:45 AM...
  • Page 9 • Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 progressive scan picture problems, it is recommended that the user set the PROGRESSIVE SCAN switch to ’OFF’. - 8 - ELECTROHOME DVC510E_EngP01-10.p65 5/3/2007, 9:45 AM...
  • Page 10 To digital audio input To video input Coaxial Cable AV amplifier with a Dolby Digital decoder Center speaker Front left Front right speaker speaker Subwoofer speaker Surround left Surround right speaker speaker - 9 - ELECTROHOME DVC510E_EngP01-10.p65 5/3/2007, 9:45 AM...
  • Page 11 If your TV set is old style and do not have AV jacks, use the below connections to record and display your desired TV program on your old TV set. Aerial or Cable TV ANTENNA AUDIO IN VIDEO IN - 10 - ELECTROHOME DVC510E_EngP01-10.p65 5/3/2007, 9:45 AM...
  • Page 12 2. Press AV1/AV2 of the remote control repeat- “VCR” appears on the display. edly to select desired external input. 3. Press REC to start recording. 4. Press STOP to stop the recording. - 11 - ELECTROHOME DVC510E_EngP11-18.p65 5/3/2007, 9:47 AM...

  • Page 13: Clock Set

    (mm / dd / yy) Quit : Setup 4. When CLOCK SET is completed, press SETUP. CLOCK SET Date Time 11 02 / 20 02 : 50PM (mm / dd / yy) Quit : Setup - 12 - ELECTROHOME DVC510E_EngP11-18.p65 5/3/2007, 9:47 AM...

  • Page 14: Program Set

    9. Press SETUP to store the programmed data. Tape Speed Press PREV. [ ] or NEXT [ ] to go to previous Page : PROG +/ Quit : Setup or next program list. - 13 - ELECTROHOME DVC510E_EngP11-18.p65 5/3/2007, 9:47 AM...

  • Page 15: Channel Set

    Quit : Setup 6. When the auto scanning has finished, the unit switches automatically to channel 1. 7. If you wish to cancel the auto scanning before the end, press SETUP to exit. - 14 - ELECTROHOME DVC510E_EngP11-18.p65 5/3/2007, 9:47 AM...

  • Page 16: Language Set

    Quit : Setup 3. Press [ ] Navigation button to select your LANGUAGE SELECT desired OSD Language. ENGLISH SPANISH FRENCH Quit : Setup 4. Press OK to confirm your selection of language. - 15 - ELECTROHOME DVC510E_EngP11-18.p65 5/3/2007, 9:47 AM...
  • Page 17 The pointer will indicate the forward or reverse direction on the TV screen. Press OK to start the Index Number search and play from that index. Select : Ok Quit : Setup - 16 - ELECTROHOME DVC510E_EngP11-18.p65 5/3/2007, 9:47 AM...

  • Page 18: Auto Power Off

    Output Channel ACS Set ACS Set Select : Ok Quit : Setup Select : Ok Quit : Setup 4. Press SETUP to exit the menu. 4. Press SETUP to exit the menu. - 17 - ELECTROHOME DVC510E_EngP11-18.p65 5/3/2007, 9:47 AM...
  • Page 19 Auto Power Off Output Channel ACS Set Select : Ok Quit : Setup 4. Press SETUP to exit the menu. Select : Ok Quit : Setup 4. Press SETUP to exit the menu. - 18 - ELECTROHOME DVC510E_EngP11-18.p65 5/3/2007, 9:47 AM...

  • Page 20: Dvd Basic Operation

    During playback, press the SLOW/F button to move the DVD forward in slow motion speeds of 1/2, 1/4, 1/8, 1/16 and resume normal playback. You can also resume normal playback by pressing the PLAY/PAUSE button. - 19 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...

  • Page 21: Freeze Frame And Frame Advance

    Press the Repeat A-B button again to define where you would like the section to end, the unit will then play the selected area continuously. Press the Repeat A-B button again to cancel A-B Repeat mode. Note: Repeat function may not work properly with some discs. - 20 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...
  • Page 22 While in the playback mode, press the ANGLE button; the total number of angles will appear on the screen. Repeatedly press the ANGLE button to select the desired angle, the angle will change in one to two seconds. This is not available on all discs. - 21 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...

  • Page 23: Mp3 Basic Operation

    • If there are no folders on the disc, it will repeat all the tracks/files on the disc. To cancel Repeat play, press the REPEAT button until the Off indicator appears on the TV screen. - 22 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...

  • Page 24: Cd / Vcd Basic Operation

    The Playback Control feature is available only on video CDs. Press PBC on the remote control to turn the PBC feature on and off. The playback control feature supports the menus of the VCD format similar to a DVD menu. - 23 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...

  • Page 25: Dvd Setup Menu

    • Press the OK button to confirm your selection. • Return to a previous menu using the Navigation button. • To exit from the player menus, press the SETUP button repeatedly. - 24 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...

  • Page 26: General Setup Page

    OK button to select. Downmix: Sets the Audio Output mode. LT/RT: The front speakers are in theatrical LT/RTdownmix mode. Stereo: The front speakers are in stereo downmix mode. - 25 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...

  • Page 27: Dolby Digital Setup

    Select the language the Disc Menu will be in (English, French, Spanish, German, or Japanese). The DVD’s Disc Menu must be made in the selected language, otherwise the default language of the DVD will be shown. - 26 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...

  • Page 28: Specifications

    Video Signal: NTSC color Cassette Tape: Video Cassette Tape Audio Track: 1 track Tape Speed: SP/SLP F.F/Rewinding Time: Approx. 2 minutes (T-120 tape) Specifications are subject to change without notice. Weight and dimensions are approximate. - 27 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...

  • Page 29: Troubleshooting (Dvd)

    The file name of MP3 (CD-R) (0~9) and special symbol on keyboard (~, !, @, #, $ ..). appears with strange letters. • The letters other than the above will be displayed as "----". - 28 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...

  • Page 30: Troubleshooting (Vcr)

    • Did the cable data output cable connect correctly? does not work. Cable broadcasting can not be • Select "Antenna" or "Cable" from the CHANNEL SET menu option selected. on the screen (refer to page 14). - 29 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...
  • Page 31 Apparatus Claims of U.S. Patent Nos. 4,631,603; 4,819,098; 4,907,093; 5,315,448 and 6,516,132. licensed for limited viewing uses only. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under License from Dolby Laboratories. - 30 - ELECTROHOME DVC510E_EngP19-32.p65 5/3/2007, 9:41 AM...
  • Page 32 Electrohome product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the...
