Victor Garden Tools 9782 Instructions Manual

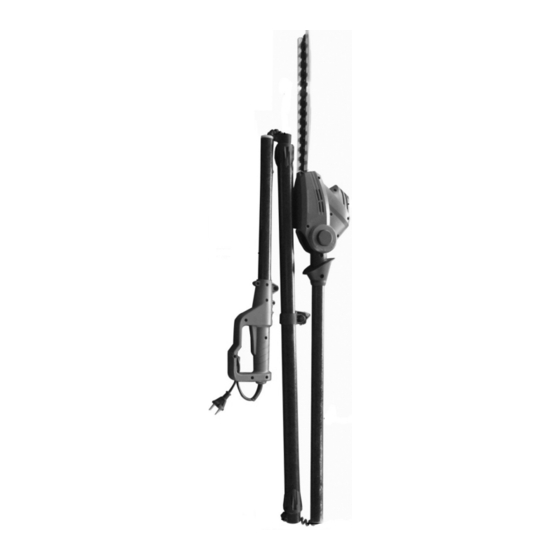

Telescopic hedge trimmer
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

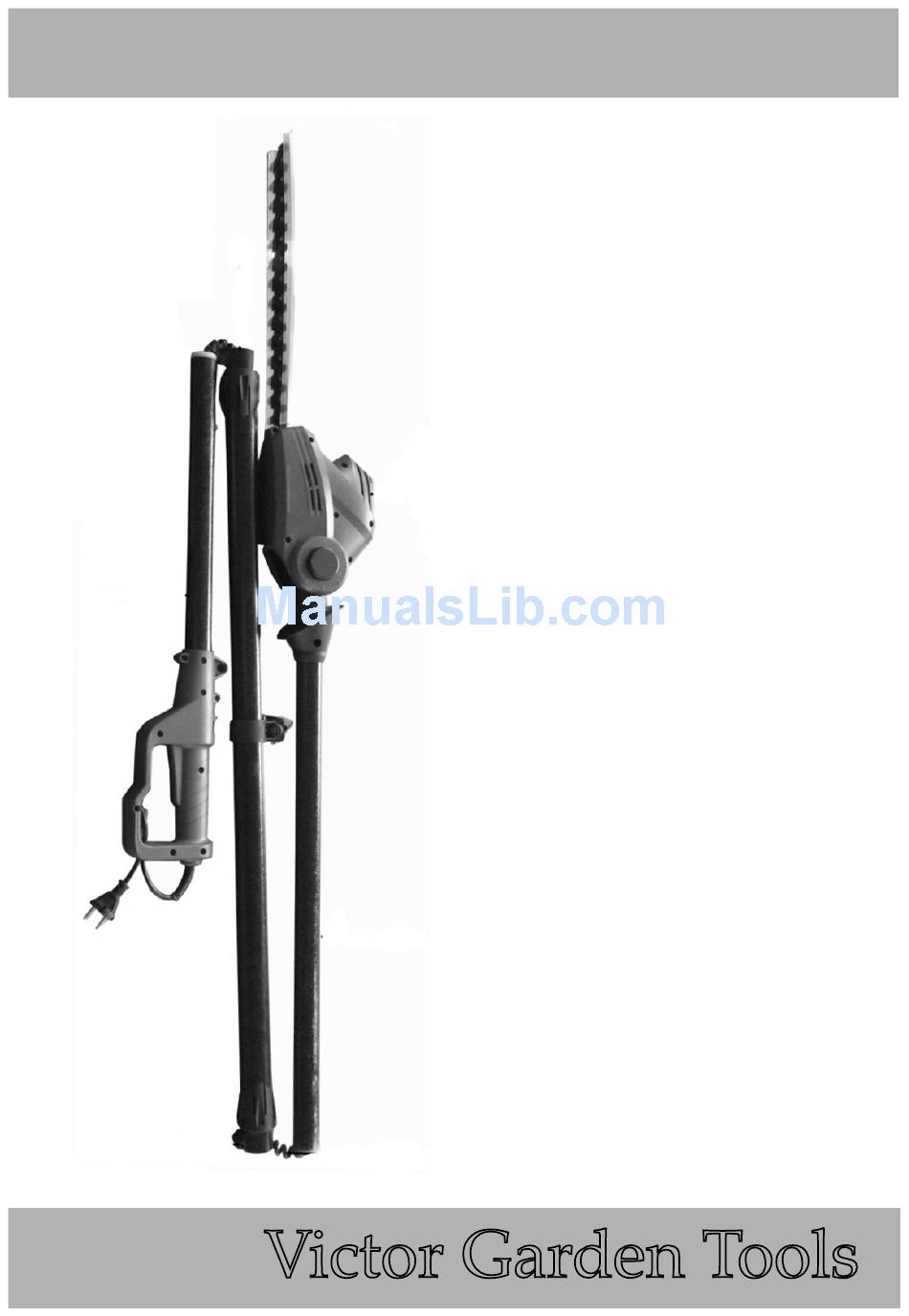

Telescopic Hedge Trimmer
Please read carefully before use
and retain for future reference.
Victor Garden Tools
9782

General Power Tool Safety Warnings

WARNING: Read all safety warnings and
all instructions.
Failure to follow the warnings and
instructions may result in electric shock,
fire and/or serious injury.
Save all warnings and instructions for
future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) hedge trimmer.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
d) Do not operate whilst stood on a ladder or in a tree.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase the risk of electric
shock and must only be replaced by a qualified electrician or service agent.
e) When operating a power tool outdoors, use an extension cord suitable for
outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f) Always use of an RCD plug.
Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9782 and is the answer not in the manual?

Questions and answers

Summary of Contents for Victor Garden Tools 9782

  • Page 1: General Power Tool Safety Warnings

    Telescopic Hedge Trimmer Instructions 9782 General Power Tool Safety Warnings WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 2: Personal Safety

    5) SERVICE 3) PERSONAL SAFETY Have your power tools serviced by a qualified repair person using only a) Stay alert, watch what you are doing and use common sense when identical replacement parts. This will ensure that safety of the power tool is operating a power tool.
  • Page 3 Parts description Fig.1 Fig.1 1. Blade guard 2. Blade 3. Four-position pivoting head 4. Telescopic pole 5. Lock-off button 6. Rear handle 7. Trigger switch 8. Cord retainer Fig.2 Fig.2 9. Trimmer pole 10. Mains power cord 11. Collar 12. Trimmer motor head 13.

  • Page 4: Operation

    ASSEMBLY OPERATION 1) UNPACKING WARNING: This product requires assembly. Carefully remove the product from the box. • Do not allow familiarity with this product to make you careless. Remember Inspect the product carefully to make sure no breakage or damage occurred that a careless fraction of a second is sufficient to inflict serious injury.

  • Page 5: Cutting Tips

    CUTTING TIPS WARNING: • Always keep both hands on the hedge trimmer handles. Never hold shrubs with one hand and operate hedge trimmer with the other. Failure to heed this warning can result in serious injury. • Clear the area to be cut before each use. Remove all objects such as cords, lights, wire, or loose string which can become entangled in the cutting blade and create a risk of serious personal injury.
  • Page 6 Specification Product Name: TELESCOPIC HEDGE TRIMMER Model: 9782 (ETHT1) Voltage/Frequency: 230-240V~50Hz. Input Power :450W No-load Speed: 1850RPM Blade length: 450mm/17 Cutting length: 410mm/13 in 135º Angle-Adjustable Cutting Head Cutting Action And Capacity： Double Action Reciprocating / 16mm/1in diameter. Net Weight: 4.2g Gross Weight: 5.2kg...
  • Page 7 Symbol explanation read the instruction manual completely and carefully before using the power tool This marking indicates that this product should not be disposed of with other household wastes. Follow the disposal instructions within this instruction manual. This power tool is class II double insulated.

  • Page 8: Packaging Disposal

    Machinery Directive 2004/42/EC EN60745-1:2009+A11 Low Voltage Directive 2006/95/EC Telescopic Hedge Trimmer Model number: 9782 (ETHT1) hereby declare that the equipment named above has been designed to comply with the relevant sections of the above referenced specifications. The unit complies with all applicable Essential Requirements of the Directives.

This manual is also suitable for:

Etht1
