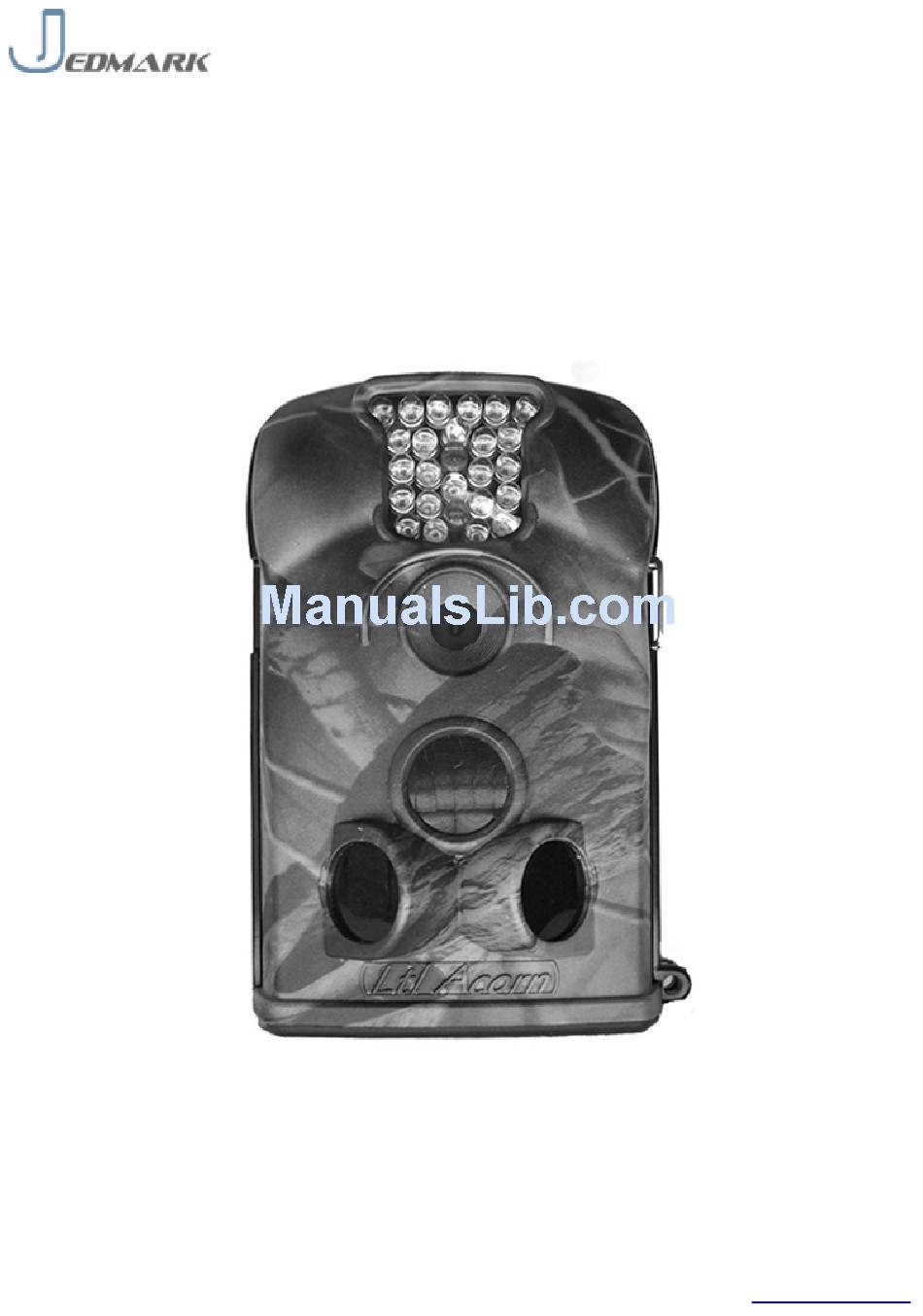

Scouting / Trail Camera Ltl 5210（5MP）& Ltl 5210A（12MP） USER MANUAL http://www.jedmark.co.uk... -
Page 2: Table Of Contents
2.4 Enter Live Mode ......................... 6 Advanced Settings ........................... 8 3.1 Parameter Settings....................... 8 3.2 File Format........................10 Warranty Information........................11 Appendix I Technical Specifications.................... 12 Appendix II Package Contents ....................14 Appendix III Instruction on Installing Additional Battery Box..........15 - 1 - http://www.jedmark.co.uk... -
Page 3: General Information
All other indoor/outdoor surveillance where invasion evidence needed 1.3 Illustration • Figure 1.1 shows the front view of the camera • Figure 1.2 shows the bottom view of the camera • Figure 1.3 shows the back view of the camera - 2 - http://www.jedmark.co.uk... - Page 4 Quick Start Figure 1.1: Front View Figure 1.2: Bottom View - 3 - http://www.jedmark.co.uk...
- Page 5 To supply power, it is recommended to use four new high-performance alkaline AA batteries or low self-discharge Ni-MH chargeable AA batteries. To achieve longer in-field time, install the additional battery box which contains four more AA batteries. Figure 1.3: Back View - 4 - http://www.jedmark.co.uk...
-
Page 6: Quick Start
Switch to the TEST position to enter the Test mode. In this mode you can take pictures or video clips like a regular digital camera, or enter the Menu to set up parameters. On the keypad there are four “shortcut” functional keys (see Figure 2-1) working as below: - 5 - http://www.jedmark.co.uk... -
Page 7: Enter Live Mode
Switch to the ON position to enter the live mode. The Motion Indicator will flash red for about 10 seconds and the camera starts working by itself without any manual handling. It will at once shoot pictures or record videos when game or other objects enter the PIR area of the main sensor - 6 - http://www.jedmark.co.uk... - Page 8 So later on when the game enters the PIR area of the main sensor eventually, since it is not in fast movement, the picture will by all means capture the whole body of the game based on our standard 1 second response time. - 7 - http://www.jedmark.co.uk...
-
Page 9: Advanced Settings
Press Enter to set up date and time. Picture No. (affects 01 Photo, 02 Photos, Select the number of photos taken in still photos only) 03 Photos sequence per trigger in Camera mode. Please also refer to the Interval parameter. - 8 - http://www.jedmark.co.uk... - Page 10 Periodic Shot Off, On If set On, the camera will automatically take photos/videos according to the set interval, regardless of whether the PIR sensor has detected any game. This is - 9 - http://www.jedmark.co.uk...
-
Page 11: File Format
SD card to a SD card reader, plug in a computer, and browse the files on the computer without downloading. The AVI video files can be played back on most popular media players, such as Windows Media Player, QuickTime, etc. - 10 - http://www.jedmark.co.uk... -
Page 12: Warranty Information
This warranty extends solely to failures due to defects in materials or workmanship under normal use. It does not cover normal wear of the product. If you need to return a Ltl product under this warranty, please contact your dealer or our distributor. - 11 - http://www.jedmark.co.uk... -
Page 13: Appendix I Technical Specifications
8xAA (With Power Supply additional battery box) Stand-by Current 0.4mA 3～6 Months（4xAA～8xAA） Stand-by Time Auto Power Off Auto power off in 2 minutes while no keypad controlling 150mA (+500mA when IR LED lights up) Power Consumption - 12 - http://www.jedmark.co.uk... - Page 14 4.2~4.3V Low Battery Alarm Interface TV out (NTSC); USB; SD Card Slot; 6V DC External Mounting Strap; Tripod Nail Waterproof IP54 -22~+158°F/-30 ~+70°C Operation Temperature Operation 5% ~ 95% Humidity FCC & CE & ROHS Certificate - 13 - http://www.jedmark.co.uk...
-
Page 15: Appendix Ii Package Contents
Appendix II: Package Contents Appendix II: PACKAGE CONTENTS Part name Quantity Digital camera Additional battery box(optional) TV AV IN cable USB cable Strap External DC cable (optional) Instruction Manual - 14 - http://www.jedmark.co.uk...
