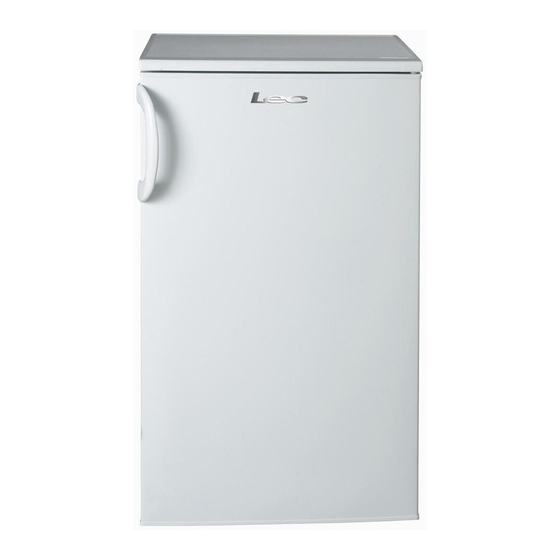

Lec U50262W User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER GUIDE
U50262W

Advertisement

Table of Contents
loading

Related Manuals for Lec U50262W

Summary of Contents for Lec U50262W

  • Page 1 USER GUIDE U50262W...
  • Page 3 Thank you for buying this high quality appliance This handbook is designed to help you through each step of owning your new appliance, from installation to use. Please read through this handbook carefully before you start using your appliance, as we have endeavoured to answer as many questions as possible, and provide you with as much support as possible.

  • Page 4: Table Of Contents

    Index BEFORE USING THE APPLIANCE ................3 Safety Instructions ......................3 Recommendations ....................... 4 Installation and Switching On The Appliance .............. 5 Before Switching On ..................... 5 THE VARIOUS FUNCTION AND POSSIBILITIES ..........6 Thermostat Setting ....................... 6 ARRANGING FOOD IN THE APPLIANCE .............. 7 CLEANING AND MAINTENANCE ................8 Defrosting the Freezer compartment ................

  • Page 5: Before Using The Appliance

    PART- 1. BEFORE USING THE APPLIANCE Safety Instructions • The model, which contains R600a-see name plate under refrigerant (the coolant isobutane), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged.

  • Page 6: Recommendations

    Recommendations Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

  • Page 7: Installation And Switching On The Appliance

    Installation and Switching On The Appliance • This appliance is connecting to 220-240V and 50 Hz. • You can offer help from the service to install and switching on the appliance. • Before making the connection to the power supply,ensure that the voltage on the name plate corresponds to the voltage of electrical system in your home.

  • Page 8: The Various Function And Possibilities

    THE VARIOUS FUNCTION AND POSSIBILITIES PART- 2. Thermostat Setting The freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 3, colder temperatures can be obtained. “0” position shows thermostat is closed and no cooling will be available. Freezer Thermostat Setting;...

  • Page 9: Arranging Food In The Appliance

    If your fridge is not cooling enough; Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

  • Page 10: Cleaning And Maintenance

    • While freezing food ; Maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label. • For optimum appliance performance to reach maximum freezing capacity , turn the thermostat knob to position max 24 hours before placing fresh food in the freezer. •...

  • Page 11: Defrosting The Freezer Compartment

    Defrosting the Freezer compartment Freezer defrost process • Small amounts of frost will accumulate inside the freezer depending upon the length of time during which the door is left open or the amount of moisture introduced. It is essential to ensure that no frost or ice is allowed to form at places where it will affect the close fitting of the door seal.

  • Page 12: Transportation And Changing Of Installation Position

    TRANSPORTATION AND CHANGING OF PART- 5. INSTALLATION POSITION Transportation and Changing of Installation Position • The original packages and foamed polystyrene (PS) can be concealed if required. • In transportation the appliance should be tied with a wide stripe or a strong rope. The rules written on the corrugated box must be applied while transporting.
  • Page 13 What to do if your appliance performs poorly; Check that; • You have not overloaded the appliance , • The refrigerator and freezer thermostat settings is “1” position(if so set the thermostat dial suitable value) • The doors are closed perfectly , •...

  • Page 14: Technical Data

    Technical data Supplier's name or trade mark Model / Item U50262W Type of appliance GT/N1151K The energy efficiency class Voltage 220-240V / 50HZ Power 91.2 W Energy consumption 0.483 kw / 24h Net storage volume of frozen food 62 lt...

  • Page 15: The Parts Of The Appliance And The Compartment

    THE PARTS OF THE APPLIANCE AND THE PART- 7. COMPARTMENT U50262W This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model. 1) THERMOSTAT DIAL 2) FREEZER ROOM COVER 4) FREEZER COMP. BOTTOM DRAWER 3) FAST FREEZER COMP.

  • Page 16: Changing Of Door Opening Direction

    Changing of Door Opening Direction Step-1: Lie down the appliance to the left Step-2: Dismantle both leveling foot. side. (FIG-1) (FIG-2) Fig. 1 Fig. 2 Step-3: Unscrew the bottom hinge fixing screws and remove it. (FIG-3.1) Unscrew the bottom hinge pin and screw in the next hole. (FIG-3.2) Fig.
  • Page 17 Step-5: Unscrew the right pin of the top hinge (FIG-5.1) Screw the pin on the left hole of the top hinge (FIG-5.2) Fig. 5.1 Fig. 5.2 Step-6: Replace the top bushing and top bushing cap. (FIG-6) (You can use the bushing cap that is put in the user manuel bag) Remove the bottom bushing and assemble it to the left side.
  • Page 18 LEC CUSTOMER CARE Please keep this handbook in a safe place. Please fill in the model number and serial number in the spaces provided below as they will assist us should you need to call. 0844 815 3737 When you dial this number you will hear a recorded message and be given a number of options.
  • Page 19 ELECTRICAL CONNECTION (UK ONLY) For your safety please read the following information Warning: This appliance must be earthed. This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug. The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.
  • Page 20 52073561...
