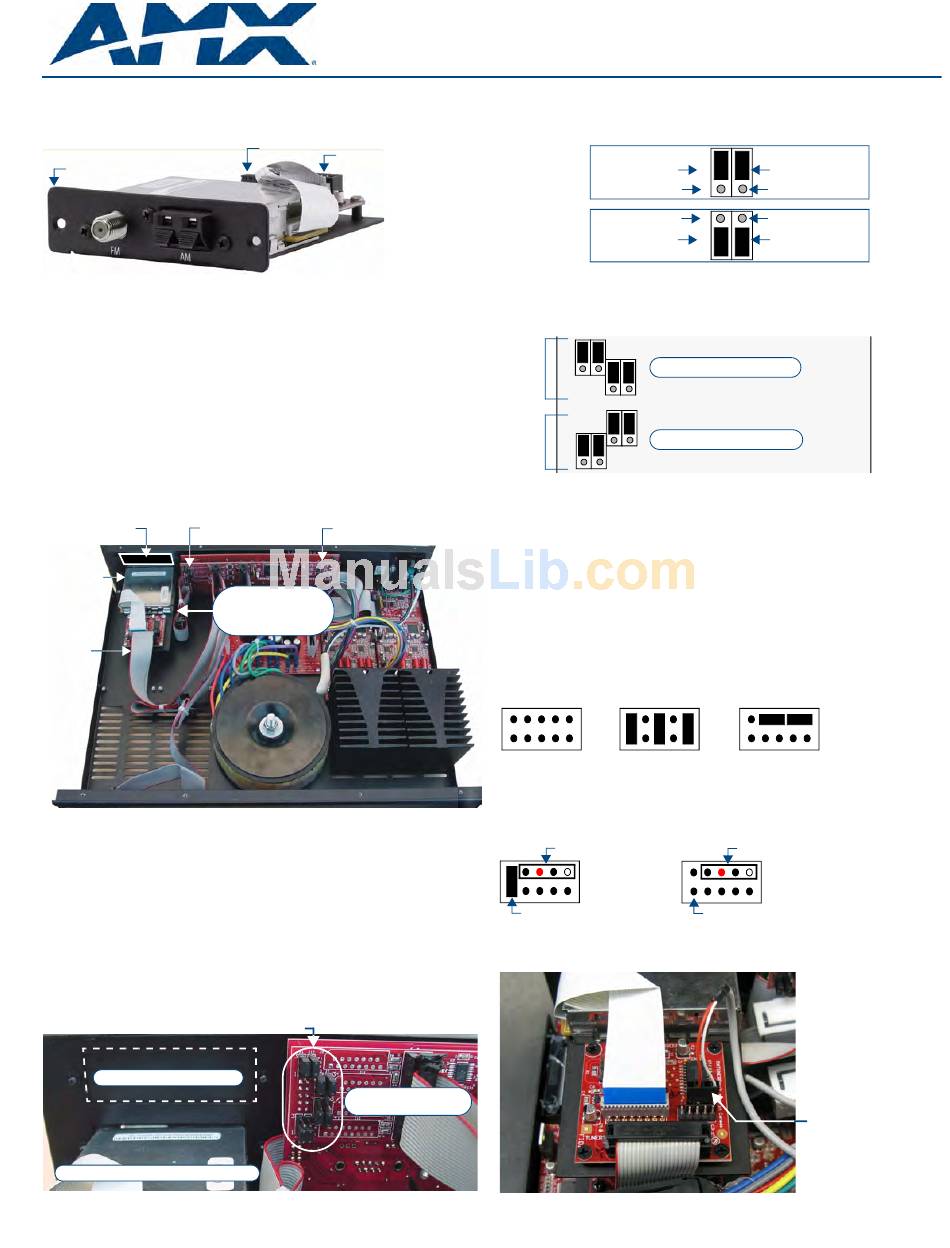

AMX DAS-AMFM Installation Manual

Overview

Add AM/FM Radio functionality to your Mi Series or Tango system with the DAS-AMFM
AM/FM Tuner Module (FG1110-01).
Tuner Mounting Plate
FIG. 1 DAS-AMFM Satellite Radio Tuner Module
• The DAS-AMFM Tuner Module can be used with both Mi-Series and Tango Audio
Controllers.
• All Mi-Series and Tango Audio Controllers come equipped with a DAS-AMFM Tuner
Module. The Mi-Series and Tango Audio Controllers support two Tuner Modules
(DAS-AMFM and/or DAS-SIRIUS) in any combination (one of each, or two of either
module). Refer to the DAS-SIRIUS Installation Guide for details on installing the
DAS-SIRIUS Tuner Module.
• Each Tuner Module uses 1 source input on the Audio Controller.
Installing/removing Tuner Modules requires removing the cover from the Audio Controller,
removing the Tuner Option cover plate from the rear panel of the Controller, installing the
Tuner Module, and setting Jumpers on both the Tuner Module to specify each Tuner as either
TUNER 1 or TUNER 2, and on the Interface Board pin-bus of the Audio Controller to enable/
disable Tuner 1 and 2.
WARNING: Disconnect all power sources before opening the chassis. Failure to disconnect
power before performing this installation may cause injury or death.
FIG. 2 provides orientation for the various internal components that must be accessed to
install the Tuner and set the Jumpers.
Slot 1 Interface Board Pin Bus
(with faceplate) (Controller Jumpers)
AMFM Tuner
Module
installed in
Slot 2
Tuner
Ribbon
Cable
(20-pin)
FIG. 2 Audio Controller - Internal view
CAUTION: Make sure to discharge all static electricity from your body before touching any
components of the tuner modules or the audio controller. Failure to do so may lead to
permanent damage to the tuner or controller.

Setting the Jumpers

Mi-Series and Tango Audio Controllers come equipped with one DAS-AMFM Tuner Module,
installed into Slot 2 (see FIG. 2). Mi-Series and Tango Audio Controllers support 2 Tuner
Modules in any combination, this document describes installing the DAS-AMFM Tuner
Module into Slot 1, leaving the factory-installed DAS-AMFM Tuner Module in Slot 2.
Note: Because of the location of the Jumpers in the Controller and on the Tuner Module, it
may be easier to make all jumper settings before installing the Tuner Module in the Controller.

Audio Controller Jumpers - Location

Examine the configuration of the jumpers on the left-side Interface Board Pin Bus, as seen
when viewing the Interface Board from the front of the Controller (FIG. 3).
Audio Controller Jumpers
Slot 1 (with faceplate installed)
Slot 2 (with AM/FM Tuner module installed)
FIG. 3 Audio Controller - Interface Board Pin Bus / Jumpers
Tuner Jumpers
20-pin Tuner Ribbon Cable
connector
Interface Board
Tuner slots:
Top = Slot 1
Bottom = Slot 2
Interface Board Pin Bus -
(see Fig 4 & 5)
DAS-AMFM

Audio Controller Jumpers - ON/OFF Settings

• ON position = pins 3 and 2 jumpered (with pin 1 exposed).
• OFF position = pins 2 and 1 jumpered (with pin 3 exposed).
ON position
Jumper (pins 3-2)
(Jumper pin 1 & 2)
exposed pin (3)
OFF position
Jumper (pins 2-1)
(Jumper pins 2 & 1)
FIG. 4 Controller Jumper Settings

Audio Controller Jumpers - Dual Tuner Setting

If two tuner modules are to be used, the Audio Controller jumpers should all be set to ON, as
shown in FIG. 5:
3
TUNER 1
1
Jumpers
TUNER 2
3
Jumpers
1
FIG. 5 Audio Controller Jumper Configuration (Dual Tuners)
Move the TUNER 2 jumpers to the ON position by connecting the top 2 sets of pins (pins 3-2)
and leaving the bottom pins (pin 1) exposed.

DAS-AMFM Tuner Module Jumpers

rear There are jumpers on the DAS-AMFM Tuner Module that must be set to differentiate Tuner 1
from Tuner 2 in the Controller.
Note: All DAS-AMFM AM/FM Tuner Modules are shipped in the Dual Tuners Tuner 1
configuration.
The instructions for setting these jumpers differ based on the color of the "Interface Board"
(red or green), as described below:

Red Interface Boards

Examine the configuration of the jumpers located on the Tuner Modules, to the right of the
20-pin ribbon cable connector (as seen when viewing the installed modules from the front of
the controller).
• Note that there are two rows of 5 pins as shown in FIG. 6.
• With only a single tuner, all pins are jumpered.
(no jumpers)
Dual Tuners: TUNER 1
FIG. 6 Tuner Module Jumper Configuration (Red Interface Boards)
front

Green Interface Boards

Examine the configuration of the jumpers located on the Tuner Modules, to the right of the
20-pin ribbon cable connector (as seen when viewing the installed modules from the front of
the controller). Note that there are two rows of 5 pins (FIG. 7).
Cable
Tuner 1
Configuration
Jumper
FIG. 7 Tuner Module Jumper Configuration (Green Interface Boards)
Remove all jumpers from the new tuner, and attach the 2-wire (red and white) end of the
cable included with your kit to the pins (FIG. 8):
rear panel
FIG. 8 Audio Controller - 2-wire end of cable connected to the tuner assembly.
Installation Guide
AM/FM Tuner Module
3
Jumper (pins 3-2)
exposed pin (1) exposed pin (1)
1
exposed pin (3)
3
Jumper (pins 2-1)
1
Top Left of Interface Board Pin Bus
3
Tuner 1 jumpers (in ON position)
1
3
Tuner 2 jumpers (in ON position)
1
Dual Tuners: TUNER 2
Cable
Tuner 2
Configuration
No Jumper
Note the position of the
Red and White wires
relative to the connector
