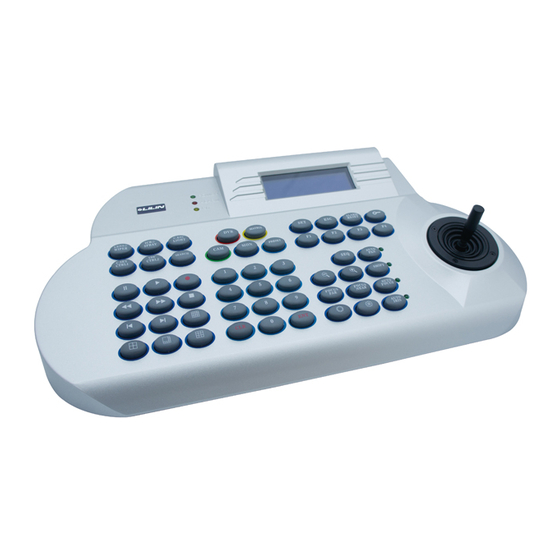

Lilin PIH-931D Instruction Manual

Keyboard controller

Hide thumbs

Table Of Contents

Keyboard Controller

PIH-931D/932T

INSTRUCTION MANUAL

Table of Contents

Summary of Contents for Lilin PIH-931D

Page 1 Keyboard Controller PIH-931D/932T INSTRUCTION MANUAL...
Page 2 IMPORTANT SAFEGUARDS 1. Read Instructions All the safety and operating instructions should be read before the unit is operated. 2. Retain Instructions The safety and operating instructions should be retained for future reference. 3. Head Warnings All warnings on the unit and in the operating instructions should be adhered to. 4.
Page 3: Table Of Contents
PREFACE Thank you for choosing PIH-931D/932T keyboard controller. For trouble free installation and optimum performance please read this manual thoroughly before attempting installation or operation. CONTENTS ......................1. Introduction ..................... 2. Specifications ....................3. Keyboard Layout ...................... 4. Keypad Panel ...............
Page 4: Introduction
INTRODUCTION The PIH-931D/932T is a keyboard controller for a range of matrix switchers, dome cameras, DVR and telemetry receivers. It allows operation all the functions of equipment and provides a simple operator interface. When matrix is present in the system, up to 8 keyboards can be used. However, one of the keyboards must always be configured as the Master, having greater access to settings than the slaves.
Page 5: Keyboard Layout
KEYBOARD LAYOUT POWER 06/02/15 12 PTZ MODE ID=000 ALARM ALARM LENS C.ESC MATRIX WIPER SPRAY LIGHT RESET C.SET SEARCH PRESET CTRL1 CTRL2 AUTO SHIFT FOCUS FOCUS AUTO NEAR FOCUS AUTO IRIS LCD Display Display the Keyboard system setup menu and operation information. Joystick 3 Axis(Pan/Tilt/Zoom) / 2 Axis(Pan/Tilt) Keypad Panel...
Page 6: Keypad Panel
KEYPAD PANEL ALARM LENS C.ESC MATRIX WIPER SPRAY LIGHT RESET C.SET SEARCH PRESET CTRL1 CTRL2 AUTO SHIFT FOCUS FOCUS AUTO NEAR FOCUS AUTO IRIS SET key Enter Setup Menu Mode. ESC key Use to exit from any function or programming. ALARM RESET key Reset alarms and video loss alarms.
Page 7 CLR key Clear to setting data. ENT key Used to enter or confirm data and programming. WIPER / LENS The command key of housing wiper when keyboard connects to PIH-820 (Receiver). Manual speed switch of Zoom, Focus and Iris when keyboard connects to Fast Dome Camera). SPRAY / ICR The command key of spray to housing.
Page 8: Joystick Operation (Pan/Tilt/Zoom Control)
JOYSTICK OPERATION (Pan/Tilt/Zoom Control) 1. The joystick can be used to control the Fast Dome Camera's left, right, up and down movements. 3 Axis 2 Axis 2. The joystick can be used to control Fast Dome Camera's zoom in and zoom out function. Stick turn counter-clockwise to zoom out.
Page 9 With one keyboard, it will be compelled to be the master control and the ID number = 1. With muti-keyboard, the ID number can not be repeated. The first one will be compelled to be the master controller and the ID number = 1. The maximum number of keyboard connections is according to the system mode 8 in PTZ/ Matrix mode, 4 in DVR mode.
Page 10 4. TONE TONE SETUP Keypad tone and Alarm tone ON/OFF control. Press Digit ON/OFF Keypad Tone 1. Keypad tone : ON Press the 1 button to turn on or turn off the buzzer for keypad 2. Alarm tone : ON tone.
Page 11: Fast Dome Operation
One shoot Press the 2 button to set as single transmission mode. Only when press button, then transmits the protocol. 10. INFORMATION SYSTEM INFORMATION Product mode, Joystick type and System version information Product : display. Joystick 3 axis Version : 1.3.0 11.
Page 12 Leave the control over cameras 2009/01/01 12 If no operations from keyboard over 2 minutes, the keyboard PTZ MODE ID=00 will automatically leave the control over cameras. Setting Preset Position Enter a number from 1~128 using the number pad and press the PRESET button to select the preset position.
Page 13: Matrix And Receiver Operation
PTZ & Lens Control Pan left Pan right Tilt up Tilt down Zoom in Zoom out Zoom in Zoom out FOCUS FOCUS Focus far Focus near NEAR Iris close Iris open Pan/Tilt/Zoom display information 2009/01/01 12 PTZ MODE ID=001 Pan_L=000 Tilt_U=007 Zoom_I=015 "Pan_L=000~007"...
Page 14 Function Keys F1 Turn on/off the on-screen display (time, date and camera number). F2 Display the list of last 10 alarms or video loss alarms information on the monitor. F3 Adjust the position of the on-screen display. F4 Set the P/T/Z preset position groups. KEYBOARD ID Setting Under MATRIX mode, need to setup keyboard ID.
Page 15: Dvr Operation
Pan left Pan right Tilt up Tilt down Zoom in Zoom out Zoom in Zoom out FOCUS FOCUS Focus far Focus near NEAR Iris close Iris open AUTO Auto pan 180 Reverse CTRL2 C.SET C.ESC Camera Menu Setup Camera Menu Esc CTRL1 LIGHT LENS...
Page 16 Call Camera After a DVR gets controlled, enter a number from 1~16 using the number pad and press the CAM button to select the camera. Example Call camera #8 of DVR #12 Direct to access a camera of a particular DVR Enter the camera's ID (1~4080) and press CAM button.
Page 17 1. Enter a submenu in playback menu ESC/Exit a submenu 2. Fast forward video in playback mode 1. ESC/Exit a submenu in playback menu Move cursor down 2. Fast reverse video in playback mode Decrease a digit Increase a digit Video Playback Operations Pause Press PAUSE button during playing video can pause the video in pause mode.
Page 18: Wiring Diagrams
Link Keyboard RS-485 - OUT Link Keyboard RS-485 + IN PTZ or Matrix RS-485 - IN PTZ or Matrix Connector Box PRODUCT COMPONENTS Keyboard Controller Connector Box RJ-45 Connection Cable Power Adaptor User's Instruction Manual Keyboard Controller PIH-931D/932T INSTRUCTION MANUAL...
Page 19: System Overview And Wiring
SYSTEM OVERVIEW PTZ (Fast Dome Camera) System Block RS-485 POWER POWER POWER 06/02/15 12 06/02/15 12 06/02/15 12 ALARM PTZ MODE ID=000 ALARM PTZ MODE ID=000 ALARM PTZ MODE ID=000 Keyboard 8 Keyboard 2 Keyboard 1 CAM 1 CAM 2 CAM 256 (ID = 8) (ID = 2)
Page 20 PTZ (Fast Dome Camera) System Wiring VIDEO RS-485 SWITCHING POWER Monitor 24Vac 90~260Vac DC-12V ADAPTOR ADAPTOR ADAPTOR POWER POWER POWER 06/02/15 12 06/02/15 12 06/02/15 12 ALARM PTZ MODE ID=000 ALARM PTZ MODE ID=000 ALARM PTZ MODE ID=000 Keyboard 1 Keyboard 2 Keyboard 8 Matrix and PTZ (Fast Dome Camera) System Wiring...
Page 21 DVR and PTZ (Fast Dome Camera) System Wiring With one keyboard controller VIDEO RS-485 SWITCHING POWER CAMERA IN VIDEO AUDIO IN POWER VIDEO ALARM/RS485 AUDIO S-VIDEO AC 100~240V 24Vac 90~260Vac POWER 06/02/15 12 PTZ MODE ID=000 ALARM RJ-45 Monitor Keyboard With muti-keyboard controller VIDEO RS-485...
Page 22 MERIT LI-LIN ENT. CO., LTD http://www.meritlilin.com 66-931CSE...

This manual is also suitable for:

Pih-932t
