Summary of Contents for Cirago CDD3000

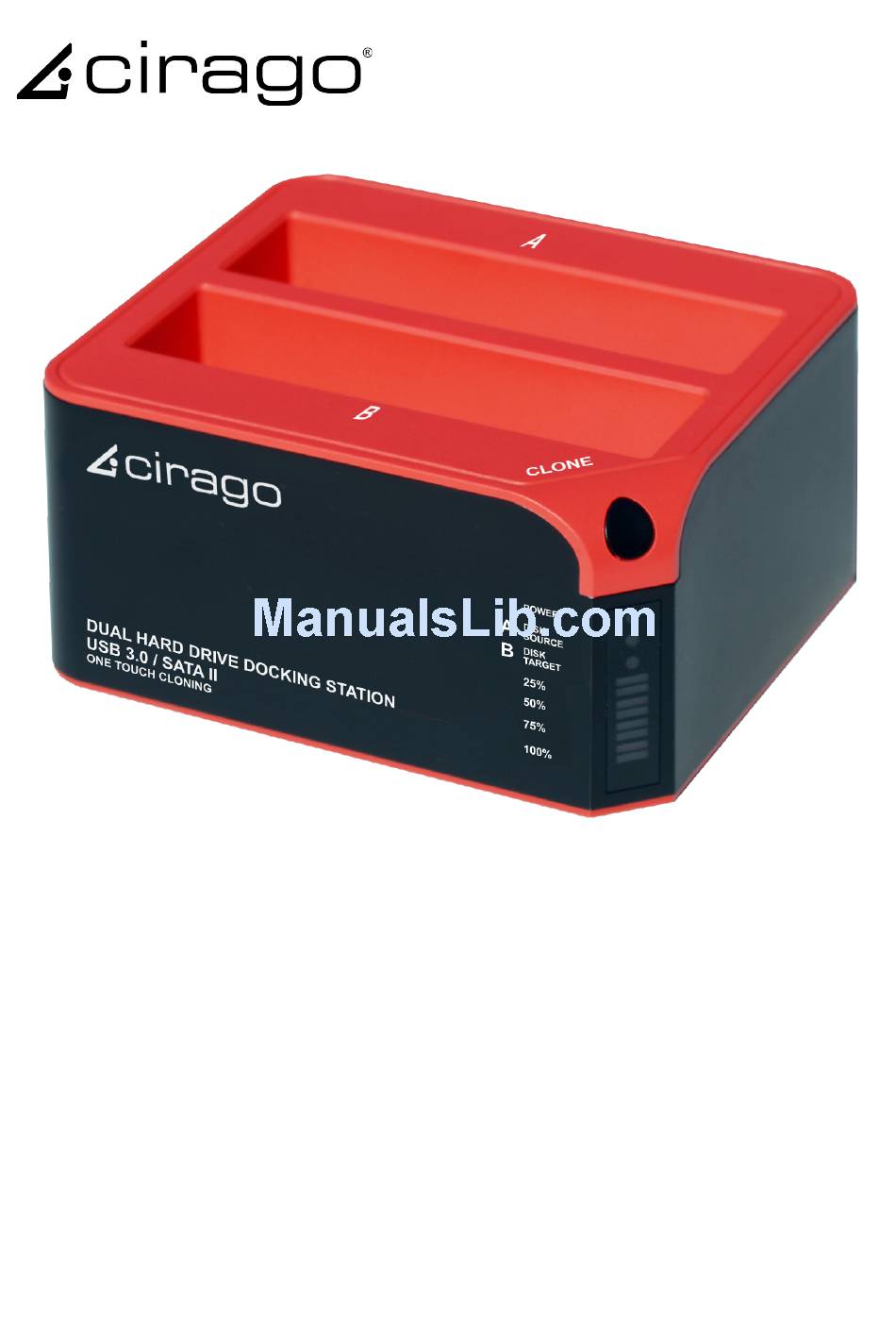

- Page 1 Dual Hard Drive Docking Station CDD3000 User Manual...
- Page 2 Introduction CDD3000 is a USB 3.0 dual-SATA 2.0 hard drive docking station. It supports simultaneous use of two 2.5” or 3.5” SATA hard disks for both data read and data write. It is also backward compatible with USB 2.0 and USB 1.1. It features One Touch Cloning, which clones your hard drive with touch of a button.
- Page 3 Note: When using E-SATA interface, the PC can only recognize one HDD in the docking station. If two HDDs are in the docking station, only Slot ‘A’ HDD will be recognized by the PC. If only one HDD is inserted to the dock, then you may use either Slot ’A’...
- Page 4 CLONE: Please note the below conditions before clone: Slot ‘A’ = SOURCE HDD Slot ‘B’ = TARGET HDD TARGET HDD’s capacity MUST be larger than SOURCE HDD, otherwise the CLONE cannot be completed. (Same capacity is also not acceptable) Before CLONE function starts, make sure you back up any important data in TARGET HDD;...
- Page 5 Once the Slot indicators are on, that means CDD3000 is ready for cloning. Press and hold the clone button for 3 seconds until the indicator light is on, press the button once more for Clone confirmation. Cloning process begins.
- Page 6 Clone progress indicator flashes and shows the progress (25%, 50%, 75%, 100%). Once cloning is finished, all progress indicators will light up. Turn off power and remove the HDDs carefully...
- Page 7 2) Cloning with USB Software Installation (Windows only) Please insert the CD drive and click “setup.exe”. Choose your language and click “ Next” Fill in the S/N # accordingly (you can find the S/N# on the cover of CD)
- Page 8 Click “Install” to begin installation Installation progress is displayed...
- Page 9 Clone from Source HDD to Target HDD Insert Source HDD and Target HDD into the docking station and connect CDD3000 to PC via USB cable. Turn on the power, and you can find the clone icon on the right bottom of window.
- Page 10 CloneDrive activated, click “Start” Press start to proceed with Clone...
- Page 11 Clone progress is displayed Click “OK” once clone is finished...
- Page 12 You should find the same contents of Source HDD in Target If your target HDD has extra space, the system will allocate it to “unallocated” area automatically, please refer to the below picture. Windows system only allows a maximum of four primary partitions, if the original disc already exist four primary partitions, then it can not distinguish the extra space but logical drives can have more than one...
- Page 13 HDD Partition Open Disk management and select the unallocated area Right click “New partition” for further action...
- Page 14 “Next” Base on your need and click “Next”...
- Page 15 Please enter the new partition capacity and click “Next” for further action Assign the drive letter and “Next”...
- Page 16 Select “Quick Format” to format the new partition Click “Finish”...
- Page 17 Partition completed, the new partition can be found.
-
Page 18: Limited Warranty
Product, or deliver the Product freight prepaid, in either its original packaging or packaging affording an equal degree of protection to Cirago’s service center together with a copy of your dated proof of purchase, a complete explanation of the problem and a return address. - Page 19 11. The original purchase receipt shall be provided upon request for service. 12. Under no circumstances will Cirago be liable for any consequential damages caused in relation to the use of this product. 13. This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
