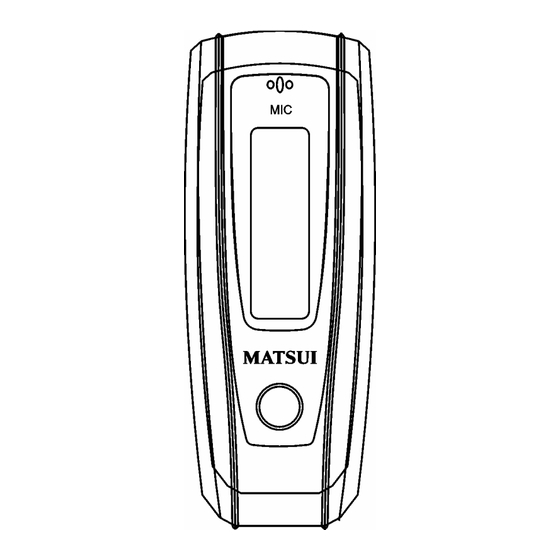

Matsui MAT 101MR Instruction Manual

Digital audio player

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

DIGITAL AUDIO PLAYER

MAT 101MR/102MR/105MR/110MR/120MR

INSTRUCTION MANUAL

Table of Contents

Summary of Contents for Matsui MAT 101MR

Page 1: Digital Audio Player
DIGITAL AUDIO PLAYER MAT 101MR/102MR/105MR/110MR/120MR INSTRUCTION MANUAL...
Page 2 Attention : if the player is used for illegally copying or distributing the software and music that are protected by intellectual property rights, the user must take all legal responsibility for such actions . The manufacturer importer or dealer cannot be held responsible for accidental damage due to inappropriate use of the player.
Page 3: Table Of Contents
Content Controls ………………………………………………………………………………. 4 Player …………………………………………………………………………………..5 The MP3 player supports lyric files in LRC format ………………………………..5 Power On & Power off ………………………………………………………………..6 Main menu ……………………………………………………………………………..7 Music …………………………………………………………………………………...7 1. Play list……………………………………………………………………………7 2. Enter ……………………………………………………………….. ……………7 3. Modes switch ……………………………………………………………….. …..8 4. Tracks select ……………………………………………………………….. …...8 5.
Page 4 Power off setting ………………………………………………………………... 13 Contrast ………………………………………………………………………….. 13 Record file types ………………………………………………………………… 13 Storage ………………………………………………………………………..14 Firmware vision …………………………………………………………………. 14 USB disk ……………………………………………………………………………..… 14 Software upgrading …………………………………………………………………..14 Disconnecting from the PC ………………………………………………………..…. 17 DRM……………………………………………………………………………………… 18 Trouble shooting and specifications ………………………………………………..21...
Page 5: Controls
● Controls Volume up:Press to increase the volume during playback. Volume down: Press to decrease the volume during playback. Record Play/Power on/Power off FFWD/Next Rew/Last Menu: Enter the selected submenu or return to the main menu Lock: Lock or unlock the keys.
Page 6: Player
● Player Lyric display This player supports LRC files to display the lyrics with the music(MP3 files only). How to know the lyric file exists or not? The icon will change to if the song has a LRC file. The MP3 player supports lyric files in LRC format. 1.
Page 7: Power On/Power Off
3. Rename the lyric file. For example, happymusic.lrc. It is to make sure the lyric filename is same as the corrosponding music filename. 4. Copy the lyric file & music file to the MP3 player. 5. Disconnect the MP3 player. 6.
Page 8: Main Menu
● Main Menu To enter the main menu press and hold or press briefly while recording. Music Recording Play System ● Music 1. Play list Choose “Music” in the menu to enter the folder. Play list information, As the picture under. Press to select 4 mode: Play all,Artist, Album, Songs,.
Page 9: Modes Switch
No music file exists, the display shows as To return to menu mode press and hold Notice:After power on action,the music mode is the default mode. 3. Modes switch While stop or pause , press to play. Stop mode Pause mode Playing mode Press to pause while playing...
Page 10: Volume
Volume Enter the interface of 'Volume adjusting', press to adjust the volume. Press to return to Play mode.(Press and hold to return to the Main Menu.) To change Volume value directly press while playing. Loop Enter the interface of 'Loop 'mode, as the picture shows: Six modes: Normal Stop playing after the current file finished.
Page 11: File Delete
Normal,.Rock,Jazz,Clasic, .Pop,Press to return to the Playmode. (Press and hold to return to the Main Menu.) File Delete Select the ' Delete the file', as the picture under: Press to enter the interface as the picture shows. (Press and hold to return to the Main Menu.) Press...
Page 12: Control Menu At Stop Mode
Press to select 'YES' or 'NO'. Choosing 'YES', press to start deleting all files and then return to the Play mode. (Press and hold to return to the Main Menu.) 6. Control Menu at stop mode Press to enter the control menu at stop mode. Not all control menu option will be available.To see all control menu option see chapter 4.
Page 13: Pause
3. Pause Press (A-B) to pause recording: Press (A-B) again to continue recording: ● Play recorded To play the recorded files. 1. Play Press to select 'Replay' in the Main Menu. Press to enter replay mode. There are recorded files stored in the machine. Press to play the recorded file, and press key again to pause .
Page 14: System
● System 1. Enter At Main Menu, press to select'System' or press and hold to enter the 'System' menu. At 'System' menu, press and hold to return to the Main Menu. 2. Select & enter each options At 'system' menu, press to select menu items.
Page 15: Storage
Storage space Check the storage space available. Press to return to the interface of 'system setting'. (Press and hold to return to the Main Menu.) Software version Check model and version of the machine. Press to return to the interface of 'system setting'.
Page 16 2. Connect the player to the USB port and ensure the connection is successful. Press the power on/off key and click the 'Start' of PC software, the system begins to upgrade automatically. As the picture shows:...
Page 17 3. upgrading. As the picture shows: 4. upgrading is done. There will be a notice appeared on the player as follows: Firmware upgrading is used for improving and maximising the capability of the product. It will not affect the normal running if you do not use the firmware upgrading. Do not disconnect the product while upgrading as this could damage the product.
Page 18: Disconnecting From The Pc
Disconnecting from the PC 1. Click the icon the PC tray. stop USB Mass storage Device-Drive(E:) 2. Click the pop-up message. 3. Click the " OK" button and physically disconnect the USB cable. Note: 1. If the tray icon is hidden. Click the " Display hidden icon " to the left of the system tray to view it.
Page 19: Drm
Recording and replaying DRM-licensed files NOTE: The use of Digital Rights Management (DRM) determines which rights on a file, e.g. a song, the user purchases. It is thus possible to specify how often or how long a piece of music can be used and whether it may be transferred to a portable player.
Page 20 7.In the menu window choose the tab "Devices". 8.Select the unit "Portable Device" and confirm your selection with "OK".
Page 21 9.In the Windows Media Player choose the menu option “Synch” followed by "Edit Playlist". 10.Click on the the music pieces to be transferred to the player with the mouse and confirm your selection with "OK". 11.Select "Start Synch". After the synchronizing process is finished the music is available on your player.
Page 22: Trouble Shooting And Specifications
● Trouble shooting and specifications No power supply. 1.To ensure the battery is inserted correctly. 2.To ensure the machine is power on.. No sound from the 1.Check the volume to see if it is set to 0 value . earphone. 2.Ensure there s no problem with the connection of the earphone.
Page 23 This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.
