Summary of Contents for ZOpid ZDE658
-

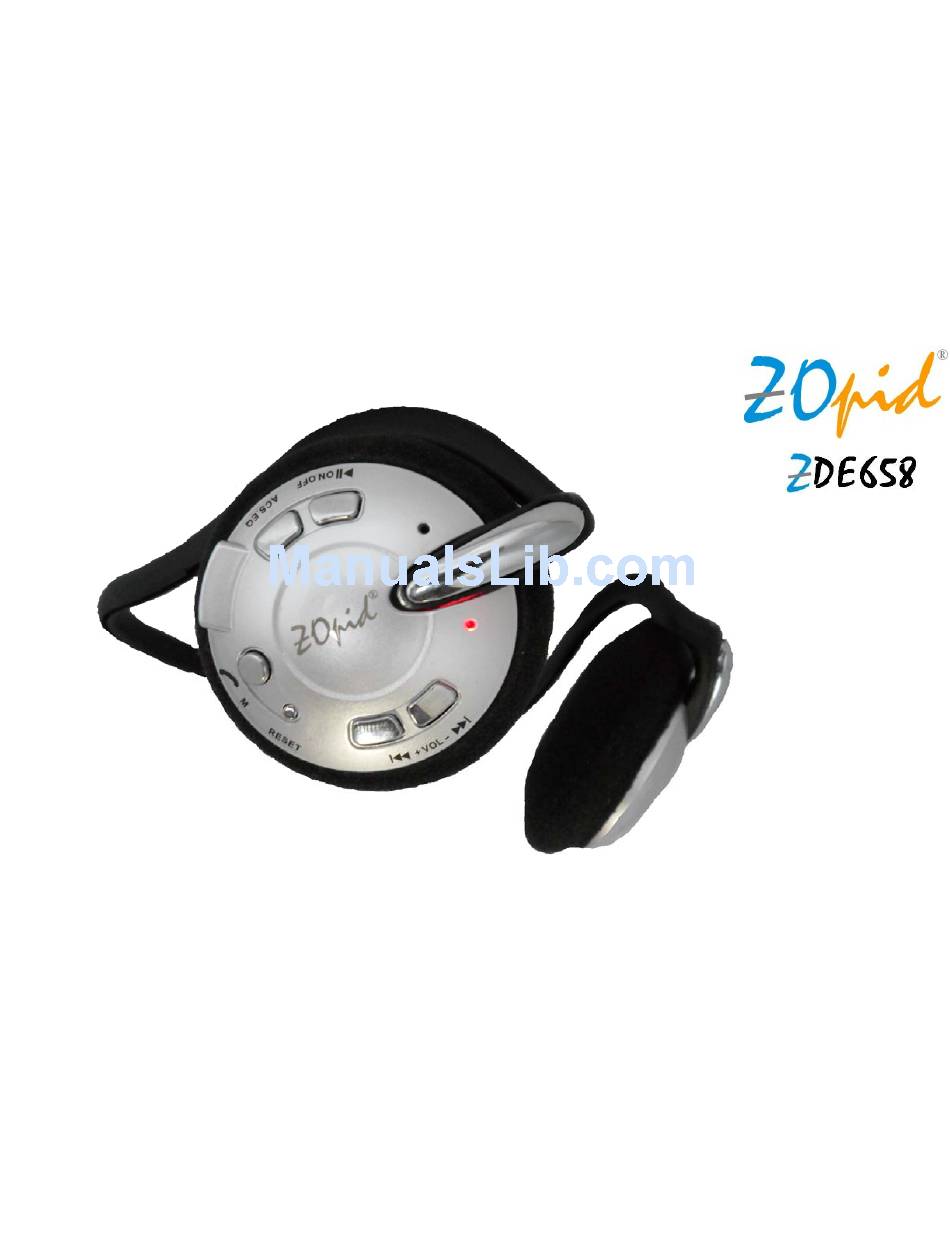

Page 1: User Manual
BLUETOOTH HEADSET MP3 PLAYER & FM RADIO with USER MANUAL... - Page 2 1. PREFACE Thanks for purchasing ZOpid Multi-function Headset! This Headset features Bluetooth, MP3 Player and FM Radio functions with built-in rechargeable battery and 4GB memory to store & play songs or use as a USB drive for data storage. Before operating the headset, make sure to read this user manual carefully. After reading it, please keep it in a safe place for future reference.
-
Page 3: Safety And General Information
2. SAFETY AND GENERAL INFORMATION READ THIS INFORMATION BEFORE USING THIS HEADSET Loud music may harm your hearing if you listen to it for a long time. New battery can reach its best performance after it has completely charged and discharged for two or three times. - Page 4 on, or the Red LED flashes fast (about 2 times per second), indicating low battery charge level. Avoid operating this Headset under very dry environment to prevent damage from static-shock. Do not disconnect the USB cable while formatting, uploading or downloading files;...
- Page 5 3. NOTES REGARDING FCC COMPLIANCE Users are not permitted to make changes or modify the device in any way. Changes or modifications that are not authorized by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules.
-
Page 6: Product Features
4. PRODUCT FEATURES Sporty behind-the-neck design for comfort and convenience Suitable for use during sports activities or use as a hands-free device while driving Announces the selected Mode when Mode/Call Answer ( ) button is pressed, and also announces the “Battery is Running Out” ... -
Page 7: Buttons & Interface
5. BUTTONS & INTERFACE... -
Page 8: On/Off Button
6. OPERATING INSTRUCTIONS: ON.OFF BUTTON Press and hold ON.OFF button for three seconds to turn Headset power ON - the headset will power on and enter Bluetooth standby mode. When the Headset is switched on, both the red light (MP3/FM indicator LED) will be solid RED and, green light (Bluetooth indicator LED) will flash 3-times per second indicating the headset is in Bluetooth searchable mode (visible to other Bluetooth devices for pairing) –... - Page 9 button while the player is playing songs from built-in memory. Automatic FM Channel Search and Store (FM Mode): In Radio Mode Press and Release ACS.EQ Button for the headset to scan all FM radio frequencies and store up to 40 channels with good signal in that area. Once the channels are stored pressing Previous and Next buttons will switch and play stored channels C.
-
Page 10: Reset Button
phone rings. Long press button to reject the call. Press and Release the button to end the call when done talking. D. Reset Button Press this button only when the Headset is in hung state and other buttons do not work +VOL- Buttons (Controls: Volume Adjustment and Channel,... - Page 11 7. Charging Headset’s Battery The Red LED stays on for a second and off for a second when the headset is in use and the battery charge level is good. When the headset battery charge level is low, the Red LED will fast-flash (two times per second) ...
-
Page 12: Bluetooth Mode
8. Bluetooth Mode: The Headset defaults to Bluetooth Mode when power is turned on. To switch from another mode to Bluetooth mode Press and Release button until you hear “Bluetooth Mode” announcement from the Headset NOTE: The mode announcement is heard a couple of seconds after the button is pressed and released A. - Page 13 B. Bluetooth LED: The Bluetooth indicator LED has three states Bluetooth Searchable mode: Green LED flashes about 3 times per second indicating Headset is in Bluetooth Pairing mode and is “Searchable” by other Bluetooth devices – See instructions in the previous section to pair Headset with a Bluetooth device ...
- Page 14 Special Tip: When the headset is in Standby mode (Green LED flashes about once per second), it is not searchable by other Bluetooth devices. To connect Headset to a different Bluetooth device when it’s in Standby mode (Green LED flashes about once per second) or Connected mode (Green LED flashes once every 5 seconds), it must be turned off and then on again to make the headset searchable by other Bluetooth devices (Green LED flash 3 times per second).
- Page 15 received – just press and release button to accept the call. Press & Hold +VOL button to increase volume and VOL- button to decrease volume. Once the Call is ended the headset will automatically switch back to the mode it was in before the call was answered. NOTE: Low battery charge may cause bad Bluetooth connection or abnormal sound from the headset D.
- Page 16 NOTE: When the Headset is in Music Play or Radio mode, whenever music is played on the connected Bluetooth device, the Headset will automatically switch to Bluetooth mode and play music on the Headset. NOTE ABOUT PHONE’S BLUETOOTH FUNCTION: Phone Calls and Music Media are two independent functions on a Cellular Phone and require pairing by the headset to both functions.
- Page 17 NOTE: The mode announcement is heard a couple of seconds after the button is pressed and released A. When Music is playing during Music Play Mode: Short press ACS.EQ key to select from 7 built-in Preset Equalizer modes: Nature, Rock, Pop, Classical, Soft, Jazz & Heavy-Bass NOTE: Equalizer function works only when music is played from Built-in memory i.e.
- Page 18 Press & Release VOL- button to switch to previous folder/directory (Red LED will flash once indicating previous folder is selected) - Press ON.OFF button to play first song in the new folder. C. Copying Songs to the Headset Built-in Memory from your computer’s hard-drive 1.
- Page 19 ® ® IMPORTANT: This player supports using Windows Media Player , iTunes ® RealPlayer or other song SYNC programs to transfer songs to the Headset, as long as the songs are in MP3 or WMA (without DRM) format. If you DO NOT want to use any of the file sync programs and instead want to use your computer’s file management program (Windows Explorer, Finder, etc.) and use drag and drop, or copy and paste to copy song files from one folder (your computer’s hard drive) to another (Headset’s built-in memory),...
-
Page 20: Radio Mode
NOTE: Headset can be used as an MP3 Player to store & play MP3/WMA songs and also as a standard USB-Drive to store other computer files. When in play mode, the Headset will ignore other files and only play MP3 & WMA files. 10. - Page 21 scanning process (IMPORTANT: Run ACS function every time using the Radio in a new location with different radio channels) The scanning process can take up to 3 minutes to complete - during scanning process there could be long or short pauses (no sound) and also different radio stations playing briefly.
-
Page 22: Technical Specifications
7. TECHNICAL SPECIFICATIONS Weight 2.2 oz (62.5 g) Battery Lithium Rechargeable Bluetooth Standby Time = 19-20 hrs Bluetooth Talk Time = 4-5 hrs MP3 or FM Play Time = 10-12 hrs Charging Time = 4 hrs (5V,500mA AC Charger) or 6 hrs (Computer’s USB Port) Listed times are for continuous use in a single mode –... -
Page 23: Frequently Asked Questions
8. FREQUENTLY ASKED QUESTIONS Q: How do I charge the Headset? A: You can charge players’ built-in battery by connecting the player using USB cable to a computer’s USB port or an A/C charger. Q: Can I use the Headset while it’s getting charged? A: Yes, the Headset can be used while it is getting charged –... -
Page 24: Limited 90-Day Warranty
Limited 90-Day Warranty Coverage: Hi-Tech Trading (USA), Inc. (“HiTT”) warrants this Headset (“product”) against defects in materials and workmanship under normal consumer use for 90 days from the date of purchase. HiTT, at its option, will at no charge repair, replace or refund the purchase price of this product should it not conform to this warranty. - Page 25 Woodbury, NY 11797 U.S.A. Web: www.hittusa.com Email: help@hittusa.com ZOpid and the Stylized Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © 2013 Hi-Tech Trading USA Inc The information contained in this User Manual is believed to be correct at the time of printing.
