Sony MAP-S1 Quick Start Manual

Multi Audio Player System

Quick Start Guide

Enjoy Music via a Wireless Network

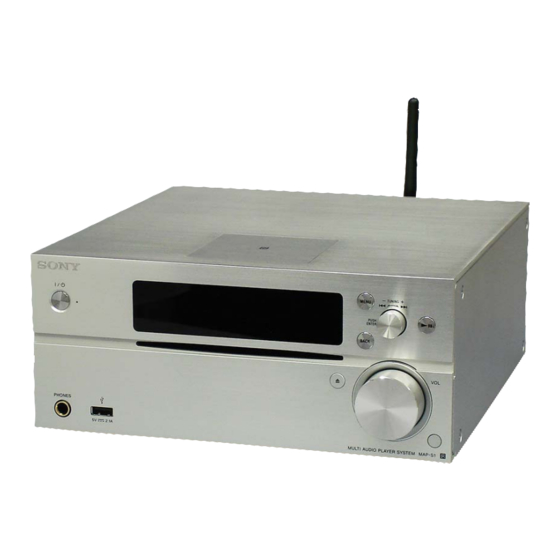

MAP-S1
Xperia
This Quick Start Guide explains how to set up a
Connecting to a Wireless Network by SongPal
wireless network using SongPal* and listen to music
in your Xperia™/iPhone via a wireless network.
1
Xperia
To listen to the music in your Xperia
Ô Ô
See this side.
Confirm that your Xperia is connected to the
For other Android smartphones, follow the steps
wireless network.
from 1 to 4 on this side to connect your
smartphone to a Wi-Fi network.
Record the SSID and password of your router in the
iPhone spaces below.
To listen to the music in your iPhone
SSID:
Ô Ô
See the reverse side.
Password:
For details, refer to the operating instructions of
* SongPal is an app for controlling various Sony audio
your router.
devices with your smartphone/iPhone.
5
Play the music.
ÔLaunch ([WALKMAN®] ÔTap
[SONY:MAP-S1], then
application)* on your
Xperia. start playback.
"HOME NETWORK" appears on the display window
* Your Xperia may not have the [WALKMAN®]
during music play.
application. In that case, this function cannot be used.
©2014 Sony Corporation Printed in China
2
Install SongPal on your Xperia, then launch
the app.
Search for "SongPal" at Google
Play™ Store.
After SongPal is launched, follow the app's
instructions.
When NFC is not available in your Xperia
Use the remote to set the unit in pairing mode. The
, select status of the unit is shown in the display window.
FUNCTION
MENU
/
ENTER
First, prepare the unit and remote
4-533-095-12(1)
Connecting the speakers
Connect the speakers to the SPEAKERS L/R (left/
right) connectors on the rear of the unit. Firmly
connect the right speaker cord to R, and the left
speaker cord to L.
3
Make a BLUETOOTH connection between the
unit and your Xperia by following the app's
instructions.
Touch the N-Mark on the unit with your Xperia.
Pairing is completed in about one minute.
Touch and hold until
your Xperia responds
If your Xperia does not support the NFC function, see
"When NFC is not available in your Xperia."
ÔPress FUNCTION on the remote to select
"BLUETOOTH."
Display window
ÔPress MENU on the remote.
If MENU is pressed twice, the operation is
BLUETOOTH
canceled.

Bluetooth Menu
ÔPress / on the remote to select "Bluetooth

Menu," then press ENTER on the remote.
Pairing
ÔPress / on the remote to select "Pairing," then
press ENTER on the remote.
ÔPress / on the remote to select "Ok," then
press ENTER on the remote.
Ô When "Pairing" starts flashing in the display
window, the unit enters pairing mode.
Inserting the batteries Turning on the unit
Insert two supplied R03 (size AAA) batteries,  side ÔÔ C onnect the power cord (supplied) to the rear of
first, matching the polarities shown below. the unit.
ÔConnect the power cord to the wall outlet.
ÔPress / of the unit to turn on the unit.


4
Configure the Wi-Fi settings by following the
app's instructions.
Enter the password that you The connection is
have recorded in step 1, then established in about two
tap [OK]. minutes. When the
connection is completed,
the lights up in the
display window. Press /
of the unit to turn it off,
and then restart it.
The design of the app may change without notice.
Make a BLUETOOTH
ÔTap [SONY:MAP-
connection from your Xperia.
S1(Bluetooth)].
Pairing is completed
ÔTap [Open the Bluetooth
in about one minute.
setting screen].
Proceed to step 4.

