Eli DirX ED-100 User Manual

Hearing instrument compatible wireless mobile phone solution
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ELI DirX ED-100
Ear Level Instrument
Hearing Instrument
Compatible Wireless
Mobile Phone Solution
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DirX ED-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eli DirX ED-100

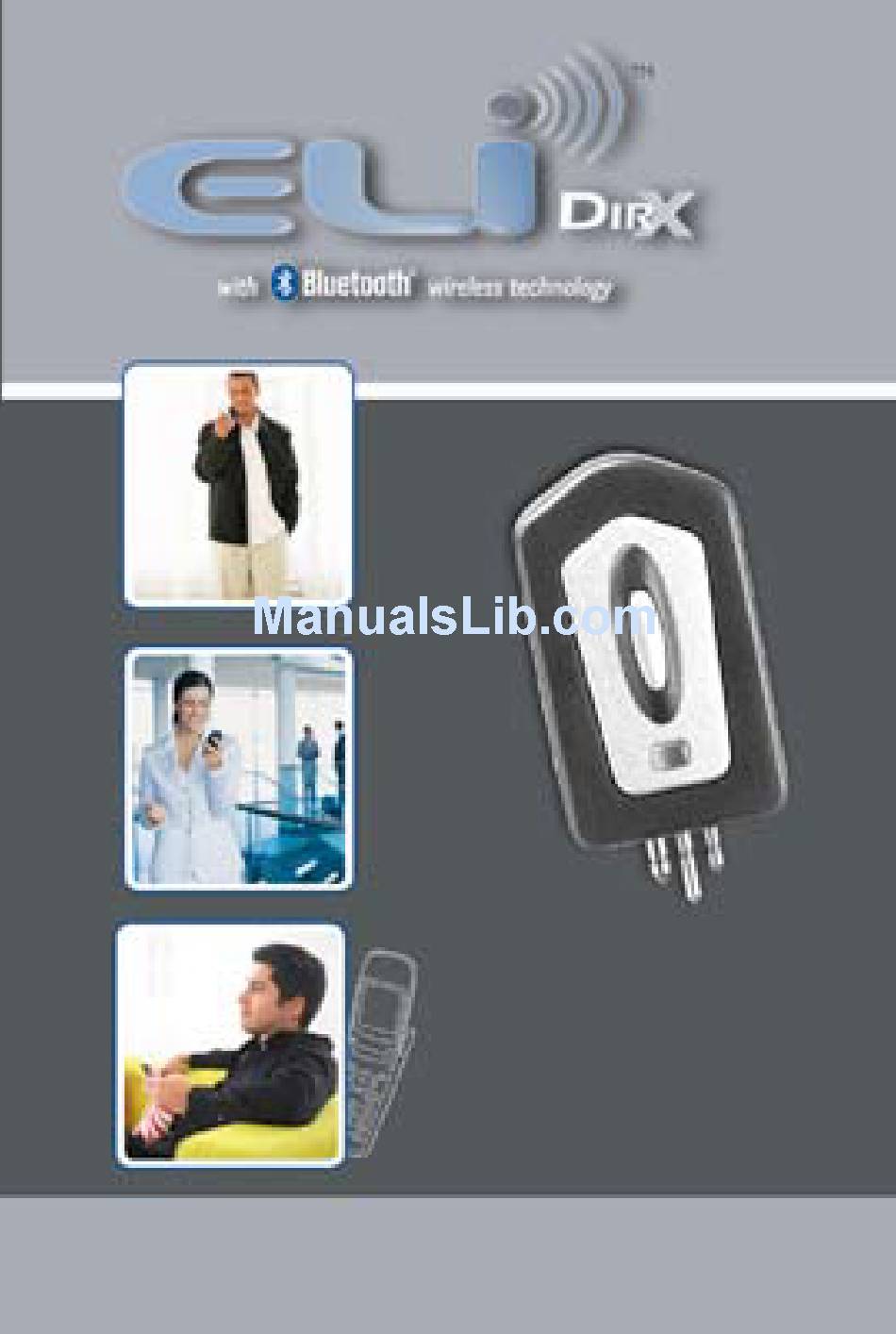

  • Page 1 ELI DirX ED-100 Ear Level Instrument Hearing Instrument Compatible Wireless Mobile Phone Solution User Manual...

  • Page 3: Table Of Contents

    . . . . . . . . . . . . . . . . . . Turning ELI DirX Module on and off .

  • Page 4: Introduction

    Bluetooth-compatible, digital mobile phone . Any mobile phone used with ELI DirX must be Bluetooth-compatible or have a Bluetooth adapter . The phone or adapter must support the Bluetooth- standard headset profile or hands-free profile .

  • Page 5: Contents Of The Eli Dirx Package

    Content of ELI DirX Package • ELI DirX Module • Charge Cradle • AC Outlet Adapters for USA, EU, UK and Australia • AC/DC Power Converter • User’s Manual • Quick Start Guide • Clear Protective Sleeve Actual Size...

  • Page 6: Main Features

    Microphone Master Control Three-pin Connector 1. Master Control • Turns ELI DirX on and off • Pairs ELI DirX with mobile phone or other devices • Answers incoming calls • Hangs up completed calls • Rejects calls 2. LED flashes to indicate status .

  • Page 7: Operation

    . Connect the Charge Cradle to a wall socket using the appropriate AC Adapter and AC/DC Power Converter . Insert the ELI DirX Module into the cradle . A red LED on the Charge Cradle will light up while the module is charging, and a green LED will light up when it is fully charged .

  • Page 8: Attaching The Eli Dirx Module To Your Hearing Instrument

    ELI DirX package and can be obtained from your hearing professional) . 2 . Insert the three-pin connector of the ELI DirX Module into the socket on the DAI boot . Be sure that the pins align properly, with the large pin in the large hole .
  • Page 9 DAI Boot...

  • Page 10: Mobile Phone Positioning

    Operation Mobile phone positioning For optimal performance, mobile phones should be carried on the same side of your body as the ELI DirX Module .

  • Page 11: Turning Eli Dirx Module On And Off

    Operation Turning the ELI DirX module on & off To turn on Press and hold the Master Control for 3 seconds; the LED will flash green three times . To turn off Press and hold the Master Control for 3 seconds;...

  • Page 12: Phone

    . 1. Make sure the ELI DirX Module is turned off . When you press the Master Control for 3 seconds, the module turns off, as indicated by the LED emitting 3 red flashes .
  • Page 13 . However, you must re- establish the connection between them each time you turn on the mobile phone or ELI DirX, or when the two devices are separated by more than their 10-meter range and are then brought back into range .

  • Page 14: Placing A Call

    ELI DirX Module . 4. Note that when a call is in progress on the ELI DirX Module, the microphone input to the hearing instrument is deactivated; it will turn...

  • Page 15: Answering A Call

    Bluetooth feature of the phone is turned on, you will hear a ring through your hearing instrument from the ELI DirX Module . 2. To answer a call, press the Master Control on the ELI DirX module briefly but firmly .

  • Page 16: Hanging Up A Call

    Operation with mobile phone Hanging up a call 1. To hang up a call, press the Master Control on the ELI DirX Module briefly but firmly . Alternatively, you can hang up using the End Call button on the mobile phone .

  • Page 17: Adjusting Volume

    Operation with mobile phone Adjusting volume 1. Set the preferred volume of calls by adjusting the volume control on the mobile phone . The signal from some mobile phones may sound distorted if the volume is turned up too high . 2.

  • Page 18: Additional Protection

    The sleeve reduces the potential for corrosion, which can interfere with battery charging . Under certain conditions, ELI DirX’s contacts can generate heat . This sleeve protects ELI DirX as well as your skin . To use the sleeve, simply snap it on ELI DirX from the 3-pin connector end .

  • Page 19: Eli Dirx Battery

    ELI DirX battery The battery powering the ELI DirX Module is a custom-made, rechargeable, lithium-ion polymer battery . When fully charged, it provides the ELI DirX Module an active talk time of 2 .5 hours and a standby life of 140 hours .

  • Page 20: Eli Dirx Battery

    AC adapter and AC/DC power converter . Insert the ELI DirX Module into the cradle . A red LED on the charge cradle will light up while the module is charging, and a green LED will light up when it is fully charged .

  • Page 22: Optional Accessories

    101 allows users of these hearing instruments to benefit from wireless mobile phone technology using ELI DirX . 1. To use the ELI DirX Neck Loop, simply attach the ELI DirX Module to the mounting platform of the neck loop using its three-pin connector .
  • Page 23 4. Placing calls and adjusting volume are accomplished exactly the same way as with the ELI DirX Module attached to a DAI boot . 5. When receiving calls via the ELI DirX Neck Loop, you will not hear the mobile phone ring through your hearing instrument .

  • Page 24: Optional Accessories

    (continued) Automobile Power Adapter When traveling, if you do not have access to an AC power outlet to recharge your ELI DirX Module, you can use the automobile power adapter . Any automobile adapter with the following specifications will work:...
  • Page 25 Bluetooth-enabled to the ELI DirX Module . Plug the Bluetooth transmitter/adapter into the output jack of a non-Bluetooth mobile phone, and pair and connect it with the ELI DirX Module according to the instructions provided with the transmitter/adapter .

  • Page 26: Specifications

    Specifications Weight . . . . . . . . . . . . . . . . . . . . 5 .
  • Page 27 This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 28 The ELI DirX ED-100 product is in compliance with the essential requirements and other relevant provisions of Directives 1999/5/ EC and 93/42/EEC. Manufactured by: Starkey Laboratories P.O. Box 9457, Minneapolis, MN 55344 Authorized European Representative: Wm. F. Austin House, Bramhall Technology Park...
