Ice Maker Flow Chart - Daewoo FRS-2011 Service Manual

Input
Fully Ice Sensor
Ice Maker Lock

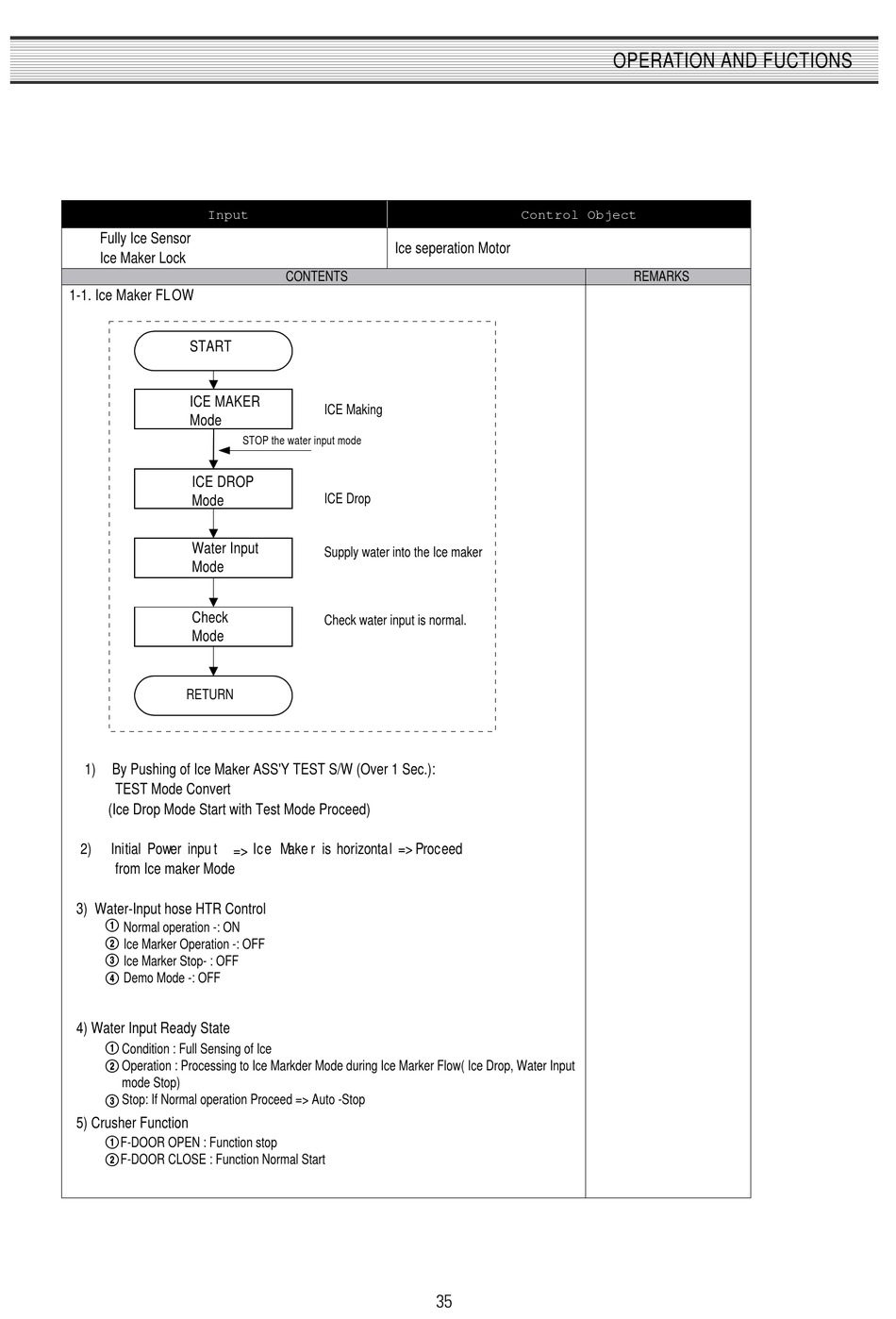

1-1. Ice Maker FL OW
START
ICE MAKER
Mode
ICE DROP
Mode
Water Input
Mode
Check
Mode
RETURN
1) By Pushing of Ice Maker ASS'Y TEST S/W (Over 1 Sec.):
TEST Mode Convert
(Ice Drop Mode Start with Test Mode Proceed)
2) Ini tial Power inpu t => Ice Make r is horizontal => Proceed
from Ice maker Mode
3) Water-Input hose HTR Control
!
Normal operation -: ON
@
Ice Marker Operation -: OFF
#
Ice Marker Stop- : OFF
$
Demo Mode -: OFF
4) Water Input Ready State
!
Condition : Full Sensing of Ice
@
Operation : Processing to Ice Markder Mode during Ice Marker Flow( Ice Drop, Water Input
mode Stop)
# Stop: If Normal operation Proceed => Auto -Stop
5) Crusher Function
!
F-DOOR OPEN : Function stop
@
F-DOOR CLOSE : Function Normal Start
Ice seperation Motor
CONTENTS
ICE Making
STOP the water input mode
ICE Drop
Supply water into the Ice maker
Check water input is normal.
