mBOX User Manual

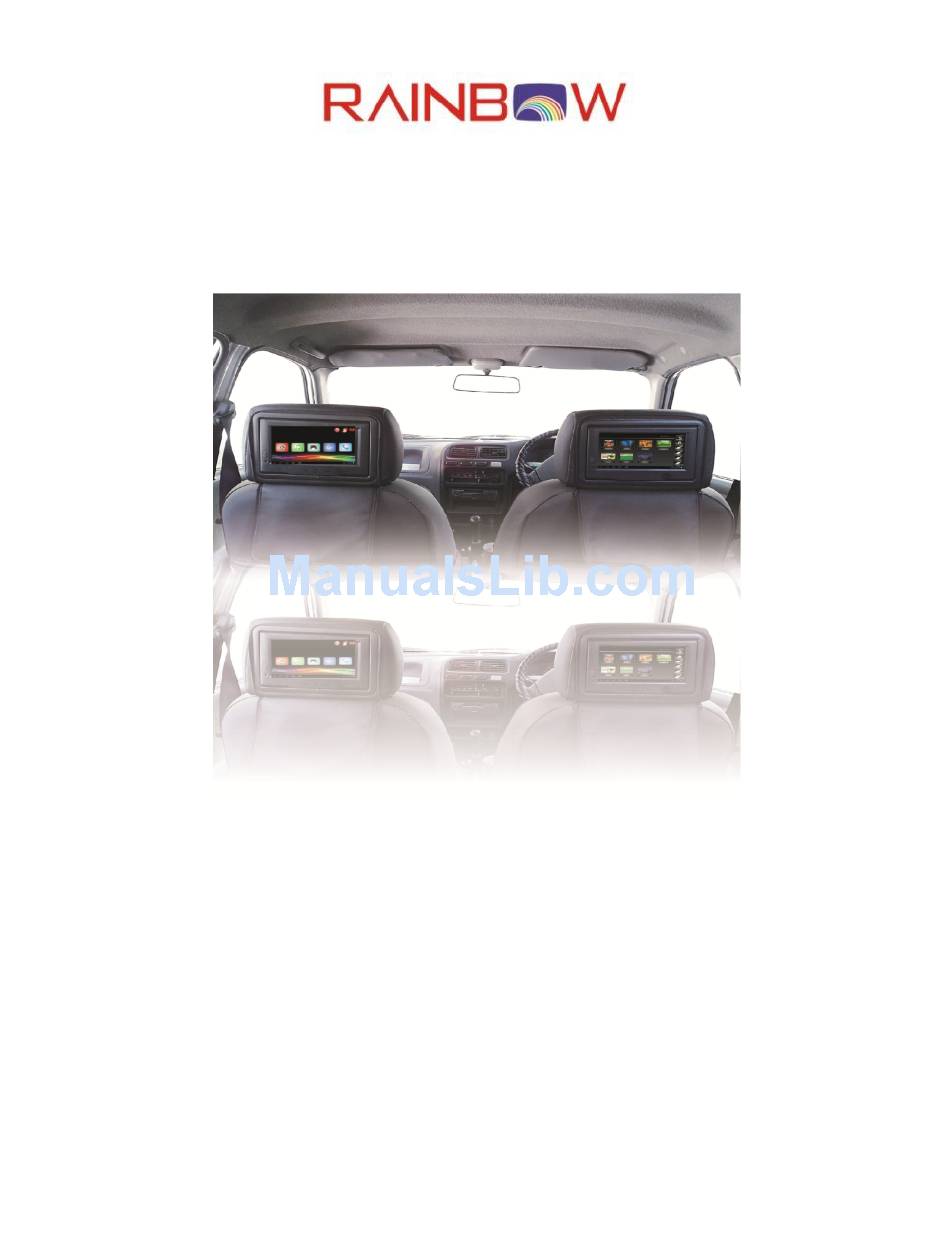

mBOX – The Multi User, Multi Tasking

Car entertainment system

Congratulations for buying mBOX!!

Feature rich and innovative....mBOX is the most advanced audio-visual and internet delivery

system ever designed for automobiles. Indigenously developed by our own R&D, mBOX contains

unique and proprietary Multi user, multi tasking technologies.

Full featured internet, on demand movies, games, chat and video conferencing.... all of these are

available on your fingertips through stunning graphics on highly advanced android touch

screens...... all in your moving car......

mBOX User Manual

Page 1 of 19

Table of Contents

Need help?

Do you have a question about the mBOX and is the answer not in the manual?

Questions and answers

Summary of Contents for Rainbow Media Solutions mBOX

Page 1 Congratulations for buying mBOX!! Feature rich and innovative….mBOX is the most advanced audio-visual and internet delivery system ever designed for automobiles. Indigenously developed by our own R&D, mBOX contains unique and proprietary Multi user, multi tasking technologies. Full featured internet, on demand movies, games, chat and video conferencing…. all of these are available on your fingertips through stunning graphics on highly advanced android touch screens……...
Page 2: Table Of Contents
Music gallery ...................... 11 Games gallery ..................... 12 Internet ........................ 13 Video conferencing, audio conferencing or Chat ..........14 Connecting your laptop or Smartphone to mBOX WIFI ........15 Power/LAN/WAN indicator ................15 Troubleshooting ....................17 Support ....................... 19 mBOX User Manual...
Page 3: Installation
In general users should not be required to engage with system installation directly. In case of need to make changes in installation, contact our support team or the dealer or shop from where you purchased your mBOX. 2. Package contents MBOX package contains following items.
Page 4: Mbox System Screen Functions
User Manual Rainbow Media Solutions 3. mBOX System Screen Functions Camera Volume Speaker Volume + Headphone Power Back plug Figure 1: mBOX 7 inch client is a touch screen android device mBOX User Manual Page 4 of 19...
Page 5 User Manual Rainbow Media Solutions Camera Volume Power Headphone Plug Speaker Volume Back Figure 2: mBOX 9 inch client is a touch screen android device mBOX User Manual Page 5 of 19...
Page 6 Power button  Press power button for long time to power ON mBOX client screen. When powering ON the screen will look like this. After successful power ON mBOX home screen will be displayed and the screen will look like this.
Page 7 Home (Available on graphics screen)  Press home icon will take users to mBOX home page Speaker  Speaker for audio without use of headphone. When headphone is not being used, speaker provides sound during video/audio play or video/audio conference or in any other application that outputs audio.
Page 8: Mbox Home Screen
User Manual Rainbow Media Solutions 4. mBOX Home Screen Figure 3: mBOX home screen 4.1. Video Icon Click on Video Icon to open video gallery. More details about the video gallery screen in later section (Section 5). 4.2. Music Icon Click on Music to open music gallery.
Page 9 4.4. Internet Click on internet Icon for browsing internet. mBOX has a full featured internet browser. Users can do everything on mBOX browser that is possible on a normal browser on your desktop, laptop or tablet devices 4.5. Video/Voice/Chat Click on Video/Voice/Chat icon to start Skype based internet video/voice/text chat with compatible account.
Page 10: Video Gallery
A maximum of 4 USB flash cards can be connected to the system as shown on each client screen. Each client device can avail all contents of all USB devices and HOME. However, mBOX currently supports only limited number of video format. More video format supports will be added in future versions (some of the future versions upgrades will be available to users through our website).
Page 11: Music Gallery
 Screen can slide up/down to view a complete list by dragging a finger on screen from top to bottom or vise versa  Select return to go back to previous screen  Select home to go to home screen of mBOX mBOX User Manual Page 11 of 19...
Page 12: Games Gallery
 These are normal video games. Instructions for playing a games is built in each game  Screen can be slide up and down by sliding finger on screen  Select return to go back to previous screen  Select home to go to home screen of mBOX mBOX User Manual Page 12 of 19...
Page 13: Internet
From here one can do a search or type the URL directly in address bar. Internet access experience on mBOX is similar to internet access on your laptop or desktop or tablet device. However WAN speed (speed of your wireless card and SIM car) can make a difference in speed of downloading and uploading contents and pages.
Page 14: Video Conferencing, Audio Conferencing Or Chat
Video, audio conferencing and text-chat is possible only when both WAN and LAN connections are established. LAN connection is part of mBOX system hence is always guaranteed to work (other than in situations of malfunctions), but WAN connection is established only through 2G/3G/4G data card. User is responsible for acquiring the USB dongle and SIM card with proper configurations that are necessary to access internet on mBOX.
Page 15: Connecting Your Laptop Or Smartphone To Mbox Wifi
10. Connecting your laptop or Smartphone to mBOX WIFI mBOX allows your laptop and smartphone to be connected to its WIFI. Using mBOX WIFI, users can use all applications available through the client devices in your car seats. Additionally, users can access their email or internet in their laptop and Smartphone devices if they prefer.
Page 16 11.3. WAN connection indicator mBOX uses 2G/3G/4G connection through wireless dongle to provide connectivity between server in your car and outside world. This connectivity is required for internet and live chat and audio/video conferencing. This connection from mBOX server to outside world is called WAN connection.
Page 17: Troubleshooting
User Manual Rainbow Media Solutions 12. Troubleshooting This section provides information about basic troubleshooting of mBOX. If simple steps described in this section don’t fix the problem, please contact Rainbow support. 12.1. Power cycle mBOX Power cycling (Switching the system OFF and switching it back ON) should fix most of the common problems assuming user has connected necessary components (2G/3G/4G wireless dongle for internet and video, audio, text conferencing and USB flash storage device for on demand video and audio.
Page 18 User Manual Rainbow Media Solutions WAN indicator (this icon in different colors) is the third icon from left on the top right of mBOX HOME scree.  If the WAN indicator is blue/light blue/green/light green/yellow , this means WAN connection is alive.
Page 19: Support
User Manual Rainbow Media Solutions 13. Support Phone 0124-4275-196 Email support@rainbowmediasolution.com www.rainbowmediasolution.com mBOX User Manual Page 19 of 19...
