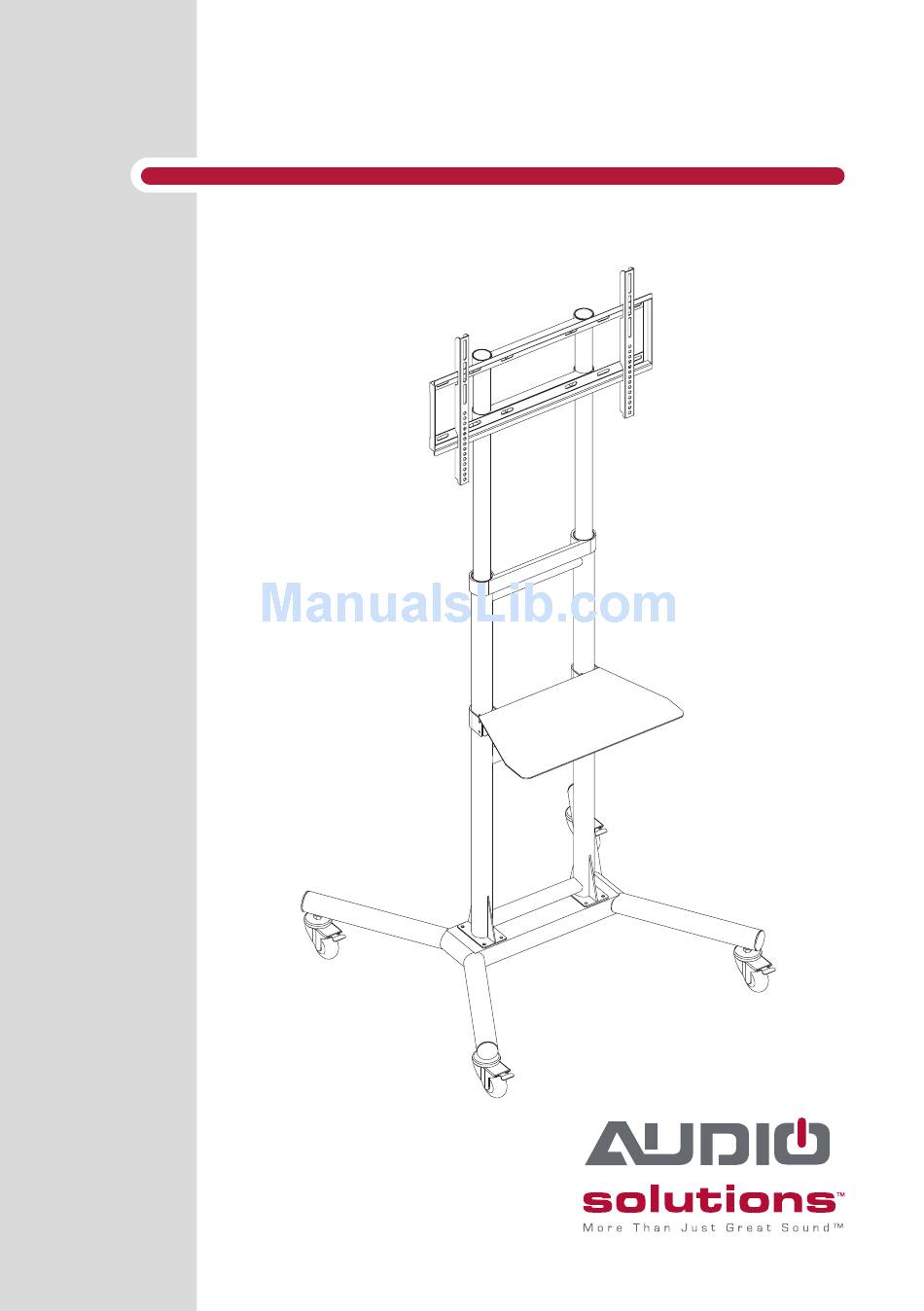

- Page 1 Model AS-RC3260 TV Cart Rolling Cart for Audio Mount™ System...
-
Page 2: Getting Started
NOTE: This rolling cart has been designed to work with the Audio Solutions™ 2.1 or 3.1 Audio Mount™. This cart will also work directly with most 32 to 60 inch Plasma, LCD and LED televisions with a maximum weight of 132lbs (60kg). -
Page 3: Package Contents
GettInG Started Package Contents Base Post Metal Tray Vertical Mounting Metal Shelf Clip (x2) Cable Clip (x3) Bracket (x2) ◦ Mounting/Assembly Hardware ◦ This User Manual Mounting Instructions Please read all enclosed instructions and verify hardware contents carefully before mounting. - Page 4 GettInG Started Cart Assembly Hardware TV Bracket Assembly Hardware Part Image Description Part Image Description M6 x 16 Bolt M4 x 12 Bolt M5 x 12 Bolt M8 x 16 Bolt M6 x 12 Bolt M8 Washer M8 x 16 Bolt M8 Nut M4 x 30 Bolt M5 x 30 Bolt Wheel...
- Page 5 InStaLLatIOn SteP 1 Read and understand all of the enclosed instructions and verify that all parts are present and appear in good working order before you begin. SteP 2 Decide if you’d rather use the Leveling Feet or Wheels on the cart Base. Choose option A or B to continue. Using one M12 Nut, one M12 Spring Washer and one M12 Washer per wheel, screw the four wheels into the legs, as shown in Figure 1.
- Page 6 InStaLLatIOn SteP 3 Attach the Post to the Base using the M6 bolts, as illustrated in Figure 3. Figure 3 - attach Pole to Base...
- Page 7 InStaLLatIOn SteP 4 Loosen the screws where the mounting bracket attaches to the post poles. Hold the mounting bracket to keep it from falling too quickly while adjusting the height to the ideal position. Tighten the screws to secure the mounting bracket at the desired height. See Figure 4. Figure 4 - adjust Height...
- Page 8 InStaLLatIOn SteP 5 Attach the Metal Tray to the post using the Metal Shelf Clips and M8 bolts, washers and nuts. See Figure 5. Figure 5 - Install Metal tray...
- Page 9 DO NOT OVER TIGHTEN the screws (Figure 6). When installing an Audio Solutions™ Audio Mount™ 2.1 or 3.1, mount the television to the Audio Mount™ as instructed in the Audio Mount™ Owner’s Manual and then mount the brackets to the back of the mount, as illustrated in Figure 6.
- Page 10 InStaLLatIOn NOTE: You will need at least 2 people to finish this mounting procedure. To avoid possible injury, do not attempt to mount the TV alone. YES! Figure 7 - two Person Install WarnInG! SteP 7 Hang the pre-assembled TV unit on the Mounting Plate. Tighten the safety screws at the bottom of each Bracket to secure (Figure 8).
- Page 11 InStaLLatIOn SteP 8 Route the cables from the television down one side of the post and secure with the plastic snap-on Cable Clips, as illustrated in Figure 9.
-
Page 12: Limited Warranty
LIMIted Warranty Audio Solutions™ – Audio Mount™ – Limited Warranty – Valid in the United States and Canada This 60 month limited warranty is provided by Metra Electronics Corporation for the Metra product identified by the purchaser’s registration as indicated below, and there are no other warranties, expressed or implied, except as required by law, including warranties of merchantability and fitness for a specific purpose, that are provided for herein, however all such implied warranties, if any, are limited to the duration of this specific limited product warranty. - Page 13 ©2011 Metra Electronics Corporati on, 460 Walker Street, Holly Hill, FL 32117-2699 Specifi cati ons are subject to change without noti ce. All trademarks are the property of their respecti ve owners. www.audiosoluti ons.com...
