AUVIO Universal Home Theater Remote User Manual

Package contents
TM

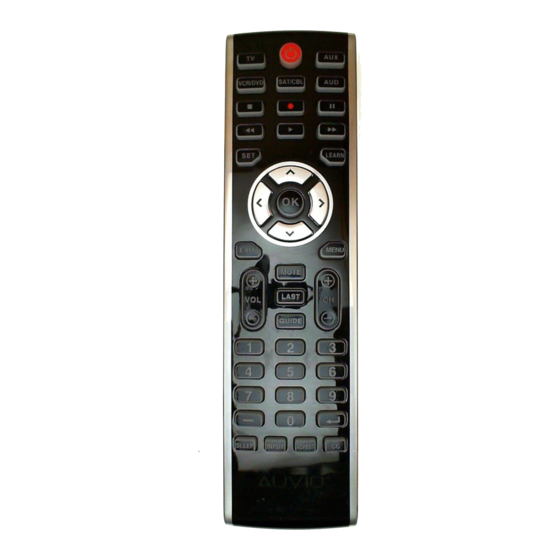

Remote Control
„ „
User's Guide
„ „
T H E PE RF O R MA NC E YOU NE ED
Features
Universal Home Theater
Remote Fully backlit keypad is easily visible
„
in the dark.
Learning mode lets you use your
Please read this user's guide before using „
existing remote to capture specific
your new remote.
key functions.
1
Install Batteries
User's Guide 15-304 Remove the battery cover and insert two
AAA batteries (not included) by
matching the polarity symbols
(+ / –) marked inside, then
replace the battery cover.
b
Battery Notes
Dispose of batteries promptly
and properly. Do not burn or bury
them.
Use only fresh batteries of the required
size and type.
Do not mix old and new batteries,
different types of batteries (alkaline, or
2/3
2
2
rechargeable), or rechargeable batteries
of different capacities.
Code List
If you do not plan to use the remote
for more than one week, remove the
Quick Start
batteries. Batteries can leak chemicals
that can damage electronic parts.
2
Set up
You can set up the remote by using the
brand code for your device, performing
an automatic search, or performing a
manual search. Check the Code List to
locate the 3-digit code for your device.
Use the Brand Code
Power on the device.
1.
Press SET and the device key
2.
(TV, VCR/DVD, or SAT/CBL)
simultaneously. The red LED lights.
3. Enter the 3-digit code (for example,
451 or 489 for an Auvio TV). The
LED blinks after each number and
turns off if successful.
Press various keys to make sure
4.
other remote functions work.
3
3
G Control your VCR or DVD player.
These functions are the same as those on
Turn on or off a selected device.
the device's original remote.
Device keys
LEARN
Select a device to control.
Copy the codes from another remote
control.
SET
MENU
Enter setup for the remote.
Display the menu for the selected device.
MUTE Turn off the sound.
EXIT LAST
Press to return to the last channel.
Exit menu and go back to viewing. GUIDE Display the program guide.
VOL +/–
CH +/–
Adjust the volume.
Select the next or previous channel.
0-9
Directly enter channels.
Confirm a setting.
ASPECT
Change viewing options
(4:3 or 16:9).
Access sub channels on a
SLEEP Set the sleep timer.
TV or receiver.
INPUT
Select the video inputs.
CC Closed caption options.
4 5
4 5
n
Notes: The red LED blinks slowly while
3.
the remote searches. The device
If the code number is incorrect, the red
switches itself off when the code is
LED blinks twice. Return to step 3 and try
another code. found.
If you've entered a code and some keys on
4. Once the device turns off, press any
your new remote don't work, try the next
key (except SET) immediately to
3-digit code listed for your device.
confirm the code.
If you want to quit during device setup,
press the device key or wait 10 seconds for
If the automatic search does not
5.
the remote to exit setup automatically.
find the code for your device, try
the steps under "Manual Search, "
Auto Search
which takes longer. Automatic
If your device's code isn't listed in
search stops after one search cycle,
the Code List, or your remote doesn't
approximately 18 minutes for TV,
work as instructed in "Use the Brand
20 minutes for DVD/VCR/DVR, 9
Code," follow the steps below to
minutes for satellite or cable, and 13
automatically search for your device.
minutes for other devices.
n
1. Power on the desired device. If it is
Notes:
a VCR, insert a tape.
Since action is required during automatic
Point the remote control toward your
2. search, you must stay with the device for
device, then press and hold SET and the duration of the process or you might
miss the code and have to repeat the
the device key simultaneously for at
process.
least 3 seconds.
If you miss the code during the automatic
search, press SET to change search
direction to get the code more quickly.
6 7
6 7
Press G to turn on the device and
6.
check other remote functions.
n
Notes:
If some keys still don't work properly, repeat
steps 2-4 to restart the search for a suitable
code.
To stop searching, press any key (except
SET) to quit search. The red LED turns off
and search stops.
During search, you can press SET to change
search direction from forward to backward
or vice versa.
Manual Search
1. Power on the desired device. If it is
a VCR, insert a tape.
2. Point the remote control toward
your device, then press SET and
the device key simultaneously. The
red LED lights.
Press G until the device turns off,
3.
then press the appropriate device
key quickly to confirm the code.
Press G to turn the device back on.
4.
