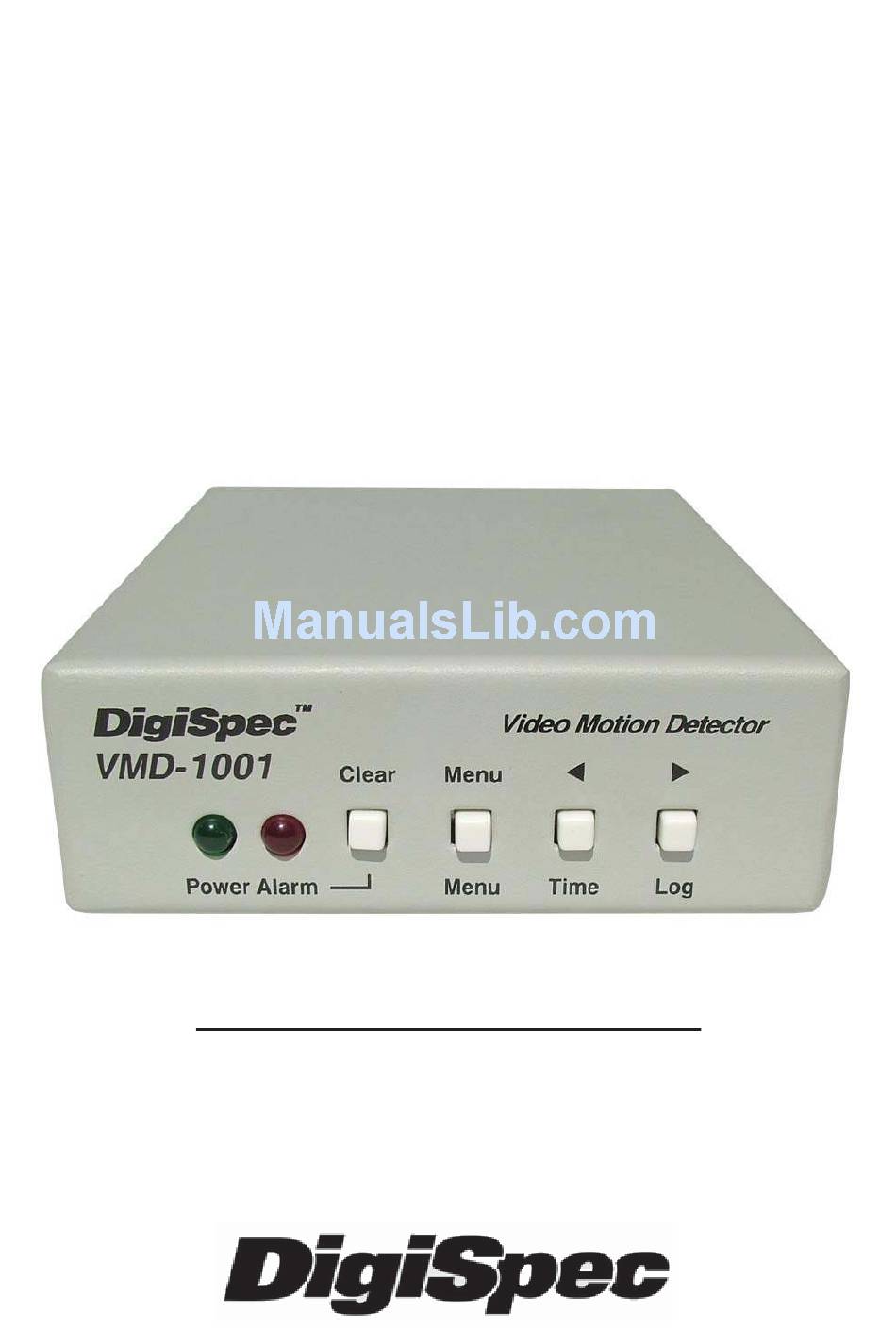

  • Page 1 VMD-1001 Digital Video Motion Detector Version G Operation Manual...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ..............Features ................4 Connecting the Video ............ 6 Types Cameras ..........Cable ..............Lighting ..............Video Input & Output ........Connecting Alarms ..........Alarm Output ............Connecting Power ..........Normal Operating Mode ..........10 Front Panel ............10 Button Operation ..........
  • Page 3: Introduction

    INTRODUCTION Congratulations on your purchase of the VMD-1001 Digital Video Mo- tion Detector. You are now the owner of one of the most innovative, low cost video motion detectors available today. We would like to person- ally thank you for your purchase and would like to provide you with additional information on this remarkable product.
  • Page 4: Features

    FEATURES - Compact Size - Simple Installation and Easy Set up - 198 Independently Selectable Zones - 99 Levels of Sensitivity - Duration Settings from 0-99 seconds - On-Screen Programming - 100-Entry Event Log - User Access Security Code - No external synchronization required - Low Power 7-15VDC @ 50mA...
  • Page 5: Connecting The Video

    CCD: High quality CCD cameras will work well with the VMD-1001. The higher the resolution, the more precise the motion detection. CCD cameras work equally well in both indoor and outdoor enviroments. It is recommednded that B&W CCD cameras be used in outdoor applica-...
  • Page 6: Lighting

    Lighting & Enviromental Conditions Unless a camera is in a controlled enviroment, fluctuations in condi- tions will occur. The VMD-1001 provides the flexibility to configure the Video Motion Detector for two separate sets of conditions. Florescent Lighting: Gradual or sudden lighting changes, video noise, intermittence or glitches in video lines, or power surges can be ignored by the VMD-1001.
  • Page 7: Connecting The Alarms

    Common NO NC Figure 2 - Alarm Plug Alarm Output The VMD-1001 has one Form-C alarm output with a normally open (N/ O) and normally closed (N/C) configuration. When power is lost, the contacts are as follows. The contacts change state (open to closed N/O, or closed to open N/ C) whenever an alarm occurs.
  • Page 8: Connecting The Power

    For mobile operation, a negative ground system is required, unless the video ground is isolated from the automobile chassis ground. If oper- ated in a vehicle, make sure the power supplied to the VMD-1001 is properly filtered so alternator, radio or other equipment does not gener- ated noise that might effect the motion detection performance.
  • Page 9: Normal Operating Mode

    This feature is useful when setting the Sensitivity Level. The red LED will light solid or slow flashing when the alarm is enabled. If an alarm is active (i.e. the VMD-1001 is generating an alarm) pressing the Alarm button will clear the alarm. After that, the alarms will toggle...
  • Page 10 Menu Button This button brings up the Programming Menu as white letters overlayed on the video and starts the Programming Mode. Time Button Momentarily displays the current data and time on the screen. Log Button Displays Log Page #1 and starts the Log Display Mode. The most re- cent alarm events, and their date, time, and alarm number are dis- played.
  • Page 11: On-Screen Displays

    ON-SCREEN DISPLAY DURING RUNNING OPERATION Alarm Display Whenever an alarm occurs, a message is shown on the bottom line of the screen which indicates the date and time of the alarm as well as the number of accumulated alarms (1-99). This display will continue for the duration of motion detection plus the programmed alarm Hold time.
  • Page 12: Log Display

    Log Display Pressing the Log button will display the alarm log, eight alarms at a time, starting with the most recent as number 1. Sample Alarm Log: Alarm Log 01 <=note:page number, press Left 04/02/99 08:05A 01 & Right to scroll through the 04/02/99 08:02A 02 pages of alarm events 04/01/99 03:25P 03...
  • Page 13: Programming The Vmd1001

    Programming the VMD1001 To start the programming, press the Menu button. The Main Menu page will be displayed. Main Menu MAIN MENU -> SECURITY CODE ALARM SETUP ALARM ZONES CLOCK FORMA CLOCK SET ALARM LOG The 6 items on the Main Menu are the main catagories for setting the VMD.
  • Page 14 the top of the page (the first prompt). Left Button Use this button to reduce the value if it is numeric or to sequence backwards if the value is text. During zone pattern settings, the cursor will move to the left. Holding down the button will cause its action to repeat rapidly.
  • Page 15 To set a security code, access this menu from the main menu by selecting Security Code using the Menu button. When the right ar- row is pointing to the Security Code, press the Log or Right (>) arrow button. Then Menu button moves the flashing cursor >< around the screen.
  • Page 16: Sensitivity Level

    Alarm Setup The Alarm Setup menu is the most important setup for the opera- tion of the motion detector. It is used to adjust criteria for qualifying a valid alarm. ALARM CRITERIA SENS >02< TRACK HOLD 0.05 RLY CONTACT >NC< BUZZER >OFF<...
  • Page 17: Tracking Level

    Use the Menu button to highlight the Track setting and either in- crease or decrease the value using the Left or Right arrow buttons. Configuration Hints: The Tracking criteria makes the VMD-1001 excellent for outdoors. By increasing the number of seconds, many natural occurences can be maske out.
  • Page 18: Relay Contact

    gust of wind might take 1.0 second. If the tracking is too low, sud- den changes such as lighting, insects near the camera, flashing lights, snow, and rain may falsely trigger alarms. The Tracking at- tribute can require up to 8.0 seconds of continuous motion which is more than sufficient to mask out most natural phenomena as well as intermittent motion.
  • Page 19: Alarm Zones

    Power up the VMD using the Relay Contact menu, select the proper choice (NO or NC) which indicates no alarm when in fact no alarm exists. Alarm Zones By selecting Alarm Zones you are able to change the detection zones of the video motion. Upon entering this menu, the top left most zone will be flashing a rectangular box.
  • Page 20: Clock Set

    Use the Menu button to highlight the Time Format setting and ei- ther select 12H or 24H using the Left or Right arrown buttons. TIME FORMAT -> >12H< DATE FORMAT >MDY< DMY Use the Menu button to highlight the Date Format setting and either select MDY or DMY using the Left or Right arrow but- tons.
  • Page 21 Use the Menu button again to move down and select either AM or PM using the Left or Right arrow buttons. TIME SET -> HOURS >09< MINS >AM< DATE SET YEAR MONTH DAY 01 Use the Menu button again to move down to Year and increase or decrease the year using the Left or Right arrow buttons.
  • Page 22 Configuration Hint: If you wish to preven accidental loss of the alarm log, be sure to setup a security code. CLEAR LOG? -> >NO< ENABLE LOG? >NO< Sample Alarm Log: Alarm Log 01 <= Note: page number, press 04/02/99 08:05A 01 Left &...
  • Page 23: Programming Notes

    Programming Notes Alarm Zone Settings [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []...
  • Page 24: Warranty

    LIMITED WARRANTY (Terms and Conditions) For 2 Years from the date of shipment, Seller warrants to Buyer that the Product is free from defects in material or workmanship under normal use and service. Equipment manufactured by other than Seller but furnished by Seller carries the same warranty to Buyer as Seller receives from the other manufacturer, notwithstanding any provision to the contrary.
  • Page 25 All of the foregoing constitute Buyer’s sole and exclusive remedy and Seller’s sole and exclusive liability for supplying nonconforming or defective Product. RETURNS. DigiSpec products are fully inspected and carefully packed to ensure you are delivered a quality product in good condition. If you are not fully satisfied with our product, returns of standard stocking items with no restocking fee can be made within thirty (30) days of invoice to Buyer.
  • Page 26: Specifications

    SPECIFICATIONS Video Input: 1V p-p, 75ohm, BNC Video Output: 1V p-p, BNC, automatic loop-through on power loss Video Standards: EIA / NTSC, CCIR / PAL, and SECAM (color or monochrome) Pixel Resolution: 288 horizontal by 216 vertical Power Supply: 7 to 15 V DC @ 50mA Alarm Output: Form-C relay contacts Normally Open (NO) and Normally Closed (NC)
  • Page 27 Emergency Security Code The Emergency Security Code for you VMD-1001 with serial num- ber ________________ is 93 12 87 04. Please do not inform any person or organization of this code ex- cept to gain access to this particular unit in an emergency.
