Mark Fitness XM-4418 Owner's Manual

Fid bench with arm curl & leg
Hide thumbs

Advertisement

Quick Links

Download this manual

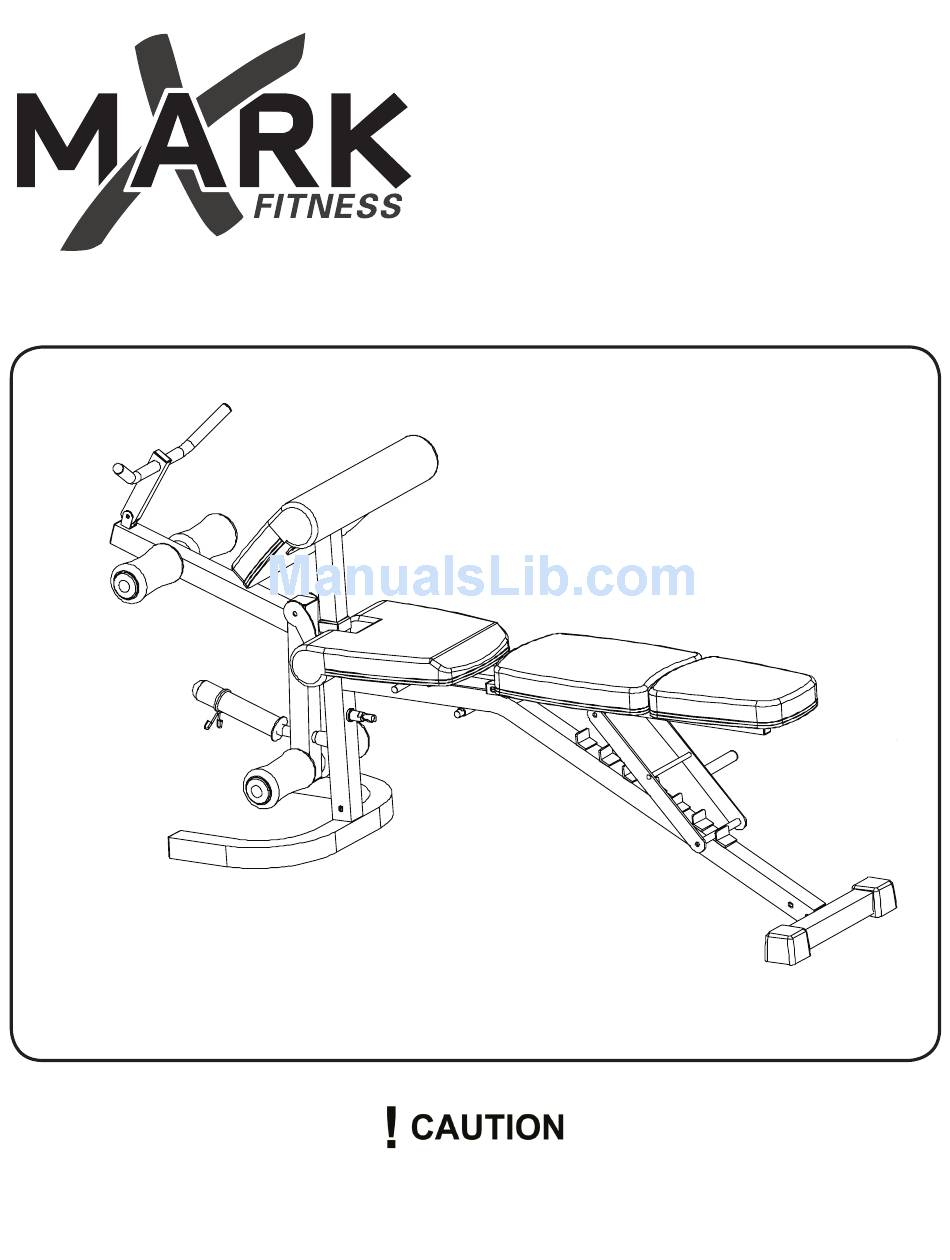

XM-4418
FID BENCH with
ARM CURL & LEG
Owner's Manual
Read all precautions and
instructions in this manual before
using this equipment.

Advertisement

loading
Need help?

Need help?

Do you have a question about the XM-4418 and is the answer not in the manual?

Questions and answers

Related Manuals for Mark Fitness XM-4418

Summary of Contents for Mark Fitness XM-4418

  • Page 1 XM-4418 FID BENCH with ARM CURL & LEG Owner’s Manual Read all precautions and instructions in this manual before using this equipment.

  • Page 2: Table Of Contents

    Table of Contents Before You Begin Important Safety Information Assembly Parts List Exploded View...

  • Page 3: Before You Begin

    Please visit www.xmarkfitness.com for warranty information. QUESTIONS? CALL 1-800-719-4605 Monday-Friday 8:30 a.m.-5:00 p.m. XMARK FITNESS SERIES (Central Standard Time) MODEL: XM-4418 When calling please have the following product information available: Model Name : XM-4418 Date Mfg.: Serial # Model Name Decal Location...

  • Page 4: Important Safety Information

    Important Safety Information NOTE: Hand tighten bolts and nylon nuts until machine is fully assembled. Prior to assembly, remove components from the box and verify that all the listed parts were supplied. SAFETY INFORMATION WARNING! Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre- existing health problems.

  • Page 5: Assembly

    Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 1 Attach U Base Frame (6) to Main Frame (5) using three Bolts M10 x 20 (A1), three Washers M10 (B1). STEP 2 Insert the Rear Base (17) into Main Frame (5) securing with four Bolts M10X20 (A1) and four M10 Washers (B1).
  • Page 6 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 3 Push two Spacers (24) into Leg Lift Bar (12). Attach the Leg Lift Bar (12) onto the Main Frame (5) wit h one Bolt M10X75 (A4) and one Lock Nut M10 (C1). STEP 4 Insert the Foam Roller Tubes(10) into the Leg Lift Bar (12).
  • Page 7 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 7 Attach the Curl Pad (1) to the Arm Curl Stand (4) using two M10X20 Bolts (A1). Insert Arm Curl Stand (4) into the top of the Main Frame (5), and secure in place using the Locking Pop Pin (11).
  • Page 8 Insert Axle (9) to Backrest Adjustment Bar (7) with two M10x20 Bolts (A1). Insert Backrest Adjustment Bar (7) to the Backrest Supports (8) with two M10 x 50 Bolts (A2) and two M10 Lock Nuts (C1). Congratulations!! You have completed assembly of your XM-4418.

  • Page 9: Parts List

    Parts List XM-4418 Parts List Key NO. Part No. DESCRIPTION 307040000704 CURL PAD, XM - 4418 307040000756 SEATPAD, XM - 4418 307040000757 UPPER BACK PAD 204042713503 ARM CURL STAND, XM - 4418 204056102503 MAIN FRAME, XM - 4418 204022810503 U SHAPED BASE, XM - 4418...

  • Page 10: Exploded View

    Exploded View B1X2 C1X2...
  • Page 11 Customer Service: 1-800-719-4605...
