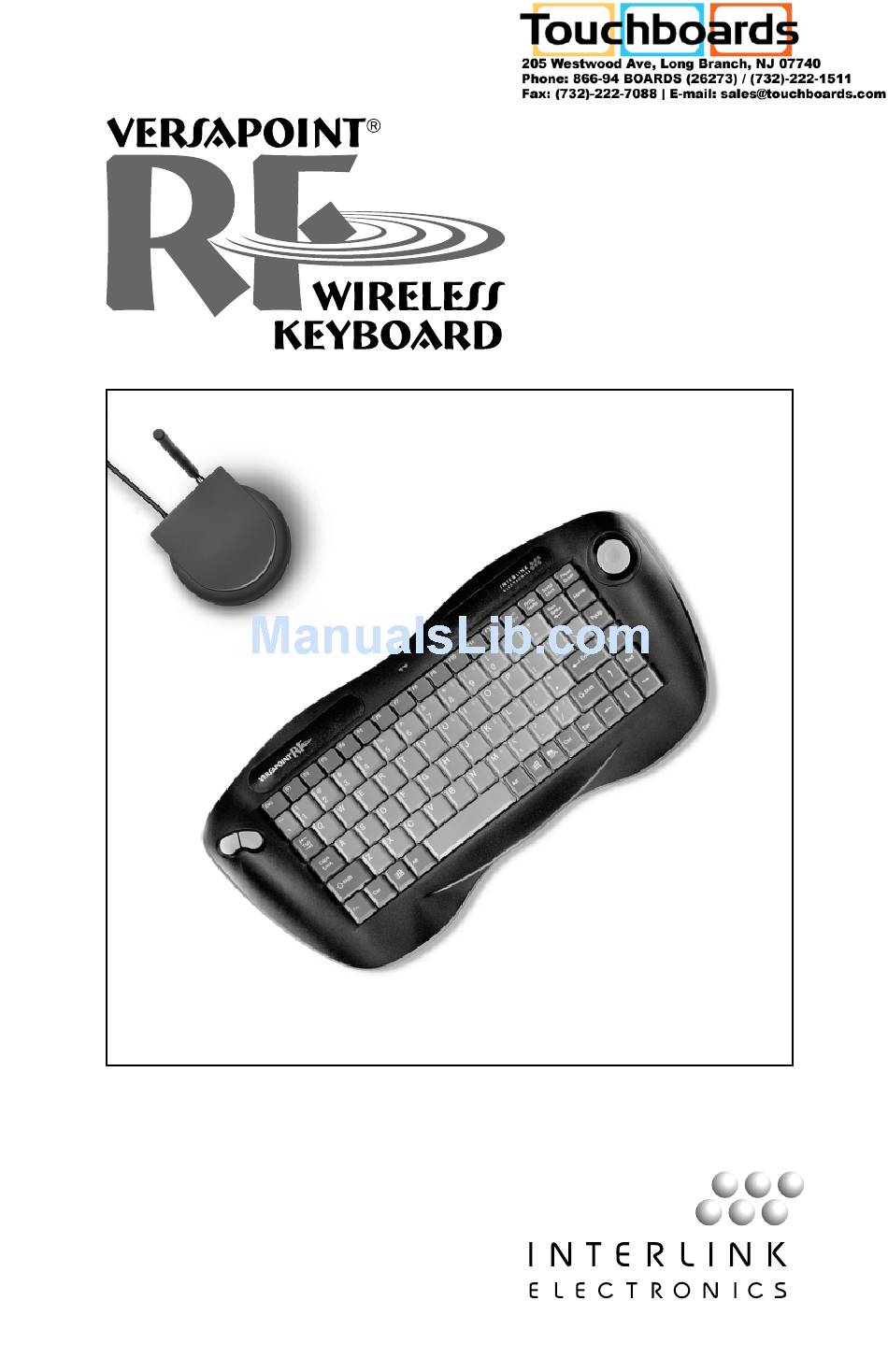

- Page 1 USER’S GUIDE • 100-foot range • 360° navigation • Sleek and elegant • 8 address pairs to eliminate interference • Compatible with the new RemotePoint RF User’s Guide Version 1.1...
- Page 2 P/N 90-15730 1/01 2001 © Interlink Electronics, Inc. All Rights Reserved. Interlink Electronics, the 6 dot logo, VersaPoint and VersaPad are registered trademarks of Interlink ELectronics, Inc. All other trademarks are the property of their respective owners. Protected by the following U.S. and Foreign patents: 4,489,302; 5,296,837; 5,302,936; 5,659,334;...
-
Page 3: Table Of Contents
USER’S GUIDE Table of Contents 1. Introduction ............ Page 1 2. Getting Started ..........Page 2 System Requirements Installing the Keyboard Batteries Connecting the Receiver Selecting an Address Positioning the Receiver 3. Using the Keyboard ........Page 6 Function (Fn) Key Numeric Keypad Status Indicators Keyboard Range... -
Page 4: Introduction

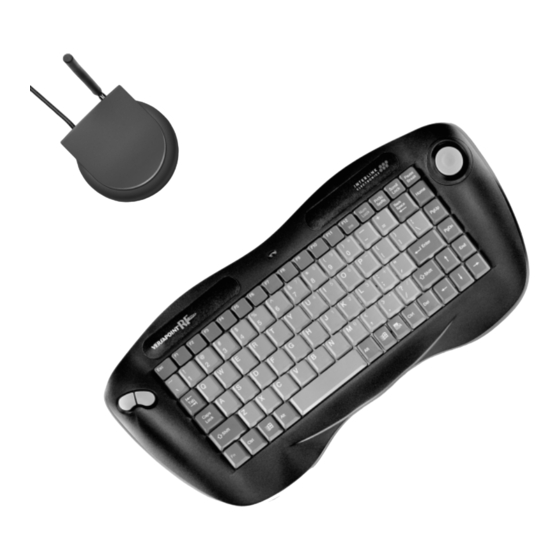

USER’S GUIDE Introduction About the Your new VersaPointRF Wireless Keyboard VersaPointRF combines pointing mouse functionality with touch ® Wireless typing, all in a convenient wireless package. It’s Keyboard perfect for relaxed Internet browsing, video conferencing, or everyday computing. Included in §... -
Page 5: Getting Started
VERSAPOINT RF WIRELESS KEYBOARD Getting Started System § IBM PC compatible computer Requirements § USB port available § Microsoft Windows 98 or higher Installing the 1. Turn the keyboard over onto its face. Keyboard Batteries 2. By pressing the latch tab toward the center of the keyboard, pry open the battery door with your fingers. -
Page 6: Selecting An Address
USER’S GUIDE Selecting an The address on which your keyboard and receiver Address communicate is pre-set at the factory. The factory setting is address 1. In most situations this will never need adjustment. However, if you are operating several RF devices in close proximity, or there are interfering sources, you may need to change the address from the factory setting. -
Page 7: Positioning The Receiver
VERSAPOINT RF WIRELESS KEYBOARD Changing 1. Locate the slot cutout on the Receiver the back of the receiver Address between the antenna and the cable. The switches can be seen inside the cutout slot. 2. The receiver must be set to the same address as the keyboard described above. - Page 8 USER’S GUIDE 1. Point the keyboard in the general direction of the Testing the receiver. Keyboard 2. Move your finger around on the mouse button. The cursor should move on the screen. Your new VersaPointRF Wireless Keyboard is now ready for use. No special software is required and it can be used with your current installed drivers.
-
Page 9: Using The Keyboard
VERSAPOINT RF WIRELESS KEYBOARD Using the Keyboard The VersaPointRF Wireless Keyboard operates like a traditional wired computer keyboard, except that it requires no cable to your computer. That is, simply point it in the general direction of the receiver and type on it. -
Page 10: Status Indicators
By using Interlink Electronics patented VersaPoint mouse technology combined with advanced battery conservation methods and sleep modes, the VersaPoint RF Wireless Keyboard easily achieves excellent range and exceptional battery life. Indoors operating ranges will be up 100’, and, under ideal conditions, more than that. -
Page 11: Battery Life
VERSAPOINT RF WIRELESS KEYBOARD Battery Life When it finally comes time for battery replacement, continued you may begin to notice a reduction in range, typified by lost keys at longer distances. In addition, the low battery indicator located above the keys will illumi- nate when batteries are approaching the end of life. -
Page 12: Using Versapoint Pressure Pointing Technology
Click Like a normal mouse, the VersaPoint RF Wireless Buttons Keyboard has left and right click buttons. These are located next to each other on the upper left side of the keyboard unit. -
Page 13: Troubleshooting
VERSAPOINT RF WIRELESS KEYBOARD Troubleshooting If you have connected your VersaPointRF Wireless Keyboard receiver and are having difficulties, please consult these troubleshooting guidelines. Keyboard § Check your connections – make sure the receiver Does Not is securely plugged into your computer’s USB port. -
Page 14: Specifications
USER’S GUIDE Appendix A Specifications Model Number VP6210 Technology: Omnidirectional RF Number of Keys: 88 (equal to 104 when combined with the Fn Key) Carrier Frequency: 916 MHz Effective Operating Range: Up to 100 feet (30 meters) typical Battery Life: Up to 6 months typical Power: 4 - AA alkaline batteries... -
Page 15: Appendix B – Technical Support
Appendix B Technical Support If you have any difficulties installing or using your VersaPoint RF Wireless Keyboard, please re-check the Troubleshooting section of this User’s Guide. If you are still unable to solve the problem, please call our Product Support team for assistance. -
Page 16: Appendix C – Warranty
1. What product is covered by this warranty? The following product (“the Product”) is covered by this warranty: VersaPointRF Wireless Keyboard. 2. What does this warranty cover? Interlink Electronics, Inc. (“Interlink”) warrants to the original end-user purchaser of the Product (“you”) that the Product will be free from defects in materials or workmanship under normal use and service during the warranty period described in Paragraphs 3 and 4. - Page 17 VERSAPOINT RF WIRELESS KEYBOARD NEGLIGENCE, STRICT TORT OR ANY OTHER LEGAL THEORY. SUCH DAM- AGES INCLUDE, BUT ARE NOT LIMITED TO, LOSS OF PROFITS, LOSS OF SAVINGS OR REVENUES, INABILITY TO USE THE PRODUCT OR ANY ASSOCI- ATED EQUIPMENT, COST OF CAPITAL, COST OF ANY SUBSTITUTE EQUIP- MENT, FACILITIES OR SERVICES, CLAIMS BY THIRD PARTIES OTHER THAN YOU, AND INJURY TO PROPERTY.
-
Page 18: Canadian Conformance
USER’S GUIDE Appendix D FCC Certification This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 19 VERSAPOINT RF WIRELESS KEYBOARD 546 Flynn Road • Camarillo, CA 93012 (805) 484-8855 • Fax (805) 484-8989 www.interlinkelectronics.com...
