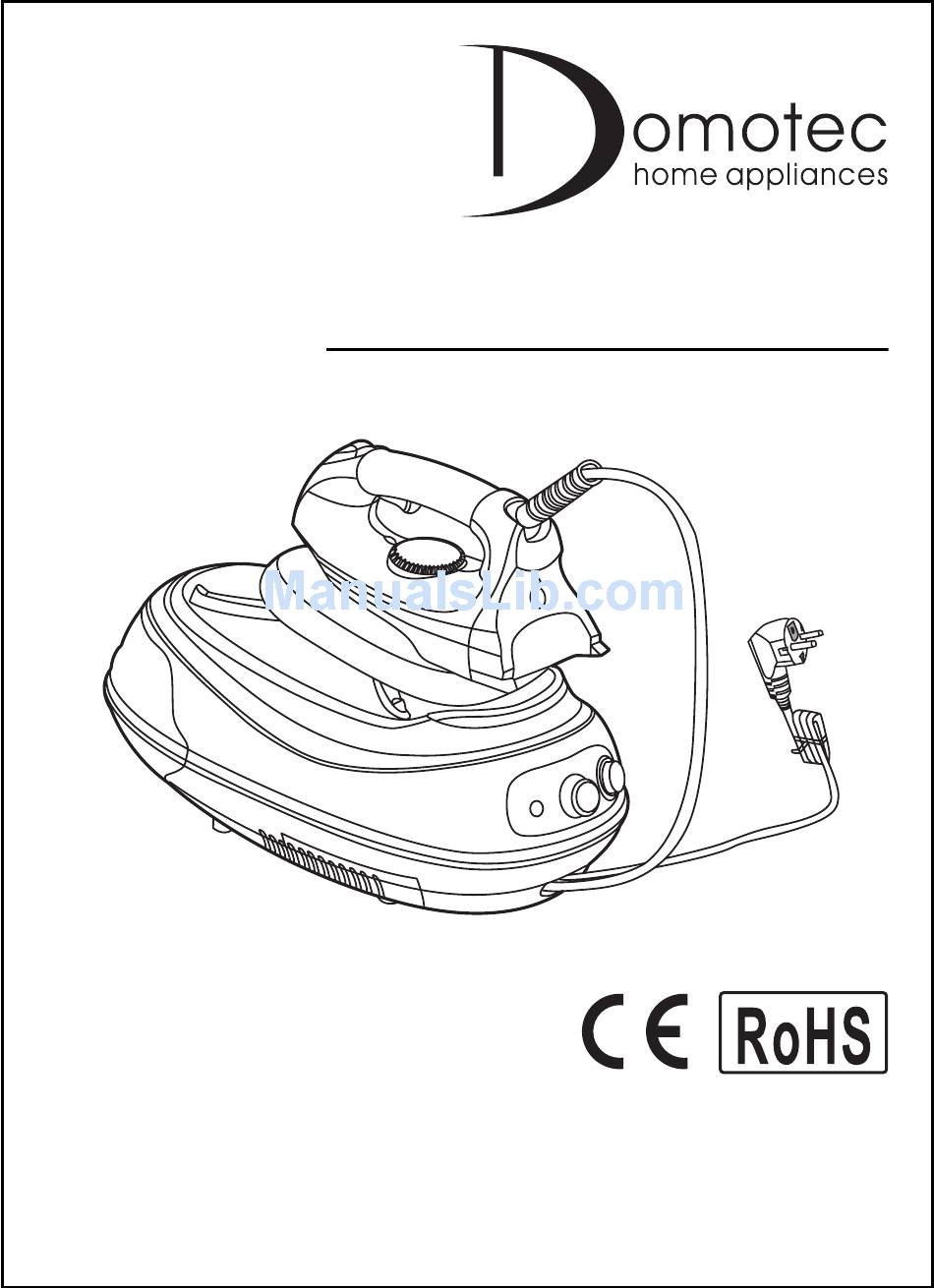

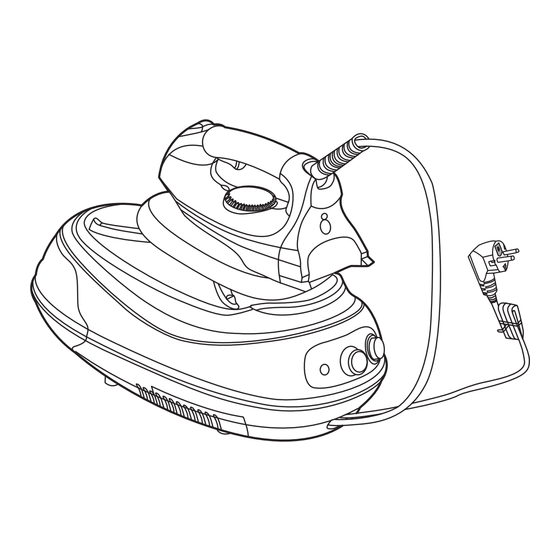

- Page 1 Steam Generator Iron Model: DSG33 Instruction Manual Please Retain For Reference...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS Make sure to read all the safety precautions below and look at the illustrations before you start using the appliance. 1. Read all instructions carefully before using. 2. Use the appliance for its intended use only. 3. The appliance is intended for household use only. 4. - Page 3 14. Burns can occur from touching hot metal parts, hot water or steam. Use caution when using the appliance. If the iron is placed onto the iron rest plate during use, the iron rest plate may become a hot surface. Do not touch the iron rest plate and the sole-plate until they have cooled down completely.
-
Page 4: Parts And Features
PARTS AND FEATURES Steam button assembly (Steam button, lock button) Steam trigger Temperature control dial Power cord/supply hose Power Cord Power switch Steam rate selector Steam delivery light Water tank Iron rest Soleplate Heating indicator light Steam button Steam lock Filter Water tank Lock... -
Page 5: Fabric Setting Chart
FABRIC SETTING CHART Temperature (Low) (Medium) (MAX) / Setting Synthetics, silk, Rayon Cotton, Fabric Wool, Polyester Nylon, Arcylic, Linen Acetate Ironing Dry Iron on the Use a press cloth Iron while fabric Instructions opposite side of and Steam iron on is still damp the fabric the opposite... -
Page 6: Important Hints
6. If you do not know what kind of fabric the article is made of, iron a piece of the material which is not visible when you wear to find out the appropriate temperature for your articles. 7. Pure woollen fabrics (100% wool) should be ironed with the iron setting to steam ironing position. -
Page 7: Fill Water Tank
Fill Water Tank 1. Press upwards the release button at the water tank and slide the detachable water Fig.1 tank outwards from the base. (See Fig.1) 2. Fill the water tank up to or below the “MAX” fill line with the clean tap water. (See Fig.2)(You can take filter out of the opening for filling water into water tank, Fig.2... -
Page 8: Steam Ironing
during use, set temperature control dial at higher temperature position or steam adjustable knob to lower position. When temperature control dial set at “ ”, do not use steam ironing, otherwise, water leakage will happen from soleplate. Steam ironing cannot be activated until heating indicator light turns off. Steam ironing 1. -
Page 9: Dry Ironing
7. Take water tank out of the base unit and pour out remaining water from water tank. NOTES: a. For every first time use, it is normal that a slight vibration sound may be heard from electrical pump inside the base unit for a few seconds when steam ironing is started. -
Page 10: Vertical Steam Ironing
Vertical steam ironing Follow the steam ironing process, and then hold the iron in vertical position between 5cm and 15cm away from the hanging fabrics. Press down steam switch, this will create vertical steam. This feature is especially used for removing creases from hanging clothes and curtains. -
Page 11: Replacement Of Filter
has been used up. Pump will be hot, and when temperature of pump being heated up exceeds its’ Max limit, overheat protection will automatically activate to protect pump being damaged. At this moment, steam delivery indicator light will turn off, please turn power switch on base unit off at first ,and then check if water tank has sufficient water or water tank has been well assembled. -
Page 12: Emptying And Storing
2. Filter should be replaced with a new one after about 2 months’ use.(base: 1. 0L / times x 2 times / week) Working life of filter depends on local water you used. If working life exceed its Max limit, the appliance can be used continuously, but limescale will be built up in steam chamber. -
Page 13: Troubleshooting Guide
Trouble Shooting Guide Problems Possible causes Solution The appliance has not been Connect the appliance to Iron won’t plugged into power supply power supply. heat The temperature control Select the required ironing button is set at “Min” temperature as indicated in position. -
Page 14: After Sales Service
You can obtain information on available collection services in your area by contacting your local Council waste collection department, or the retailer from which you bought the appliance. www.domotec.uk.com Domotec a quality brand from...
