Summary of Contents for J-Line Quattro Lite

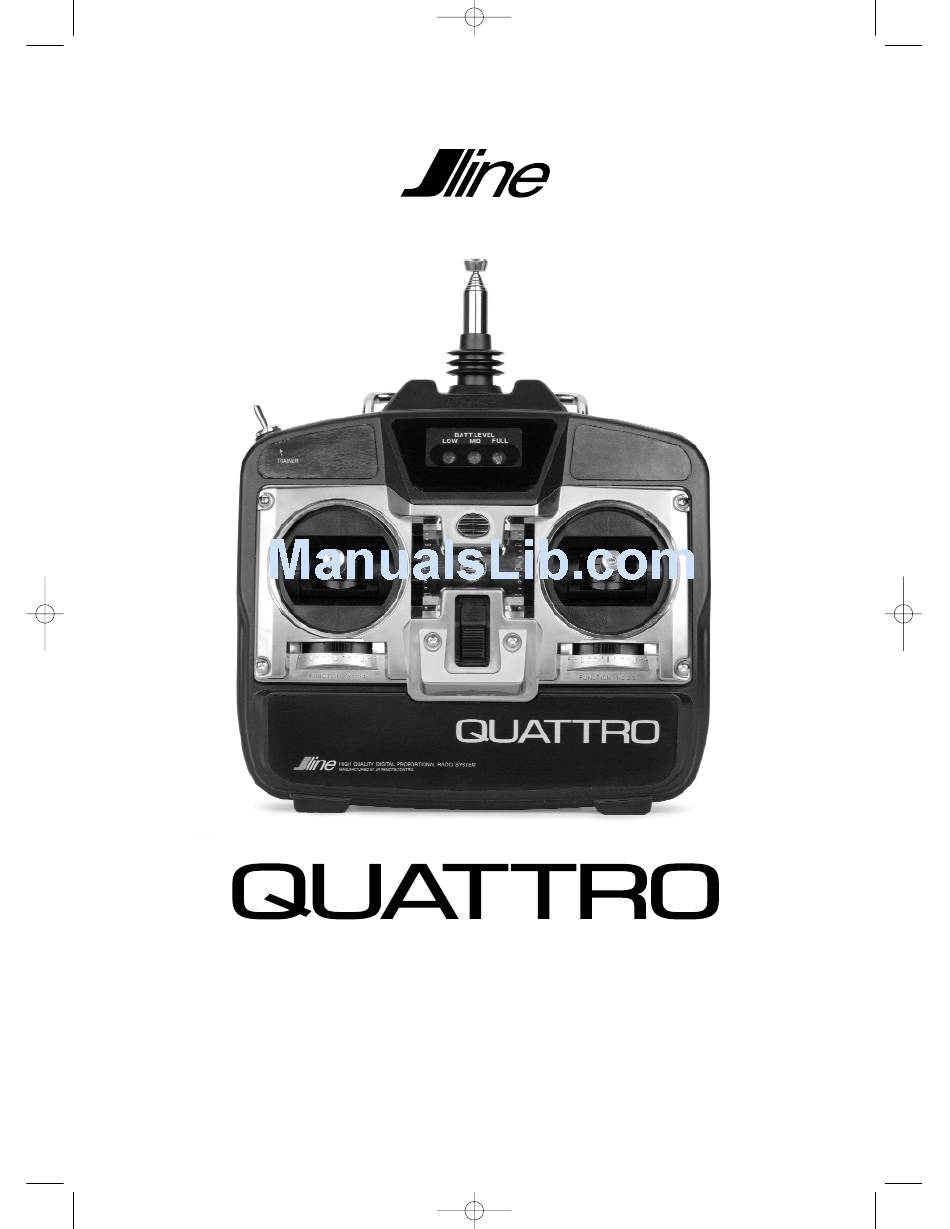

- Page 1 JRP4477.46 Update Quattro 1/29/01 4:20 PM Page 1 LITE 4-CHANNEL FM RADIO SYSTEM INSTRUCTION MANUAL MANUFACTURED BY JR REMOTE CONTROL...
-
Page 2: Table Of Contents
1/29/01 4:20 PM Page 2 1. INTRODUCTION TO THE J-LINE QUATTRO LITE RADIO SYSTEM Thank you for purchasing the J-line Quattro Lite radio system that can be depended upon for years to 4-Channel FM Radio System. This unit has been designed come. -
Page 3: System Specifications
Stick Power Switch Full Orange Green Aileron Trim Throttle Trim Rudder Trim Low: Do not fly. Mid : When flashing, OK to fly. When solid, time to replace batteries. Full : System OK to fly. Throttle/Rudder Stick QUATTRO LITE MANUAL... -
Page 4: Transmitter Specifications
There is an eye hook on the front of the transmitter so that the transmitter will be perfectly balanced for attaching an optional Neck Strap (JRPA023). The when a neck strap is used. eye hook is precisely positioned (see Section 3.2) QUATTRO LITE MANUAL... -
Page 5: R610M Micro Receiver
Type 6-Channel Micro FM 9 g (without case) ABC&W Size (W x L x H) 1.43" x 2.06" x 0.55" Frequency 72MHz Receiver Antenna 39" for all Aircraft Sensitivity 5ms Minimum Frequencies (Microseconds) Selectivity 8KHz/50db Voltage 3.2V–7.2V QUATTRO LITE MANUAL... -
Page 6: Sub Micro Servos
Servo Output Shaft Servo Mounting Flange Servo Case Servo Lead w/Connector 241 SUB MICRO SERVO SPECIFICATIONS Torque 17 oz Size 0.45" x 0.87" x 0.85" (oz/in) (WxLxH) Speed 0.23 sec/60° Motor 3-Pole Ferrite (sec./60°) Weight 0.32 oz (oz.) QUATTRO LITE MANUAL... -
Page 7: Installation Of Transmitter Batteries
3 LED lights are lit. This will confirm that the batteries are at full charge and installed correctly. Re-insert the battery case, being sure to insert the lead wires so they will not be pinched when the battery cover is installed. Replace the battery cover. QUATTRO LITE MANUAL... -
Page 8: Charging Your Quattro Transmitter With Optional Ni-Cd Batteries
Page 8 7. CHARGING YOUR QUATTRO TRANSMITTER WITH OPTIONAL NI-CD BATTERIES Your Quattro transmitter can easily be upgraded and J-Line brand systems. If a charger other than with a Ni-Cd Conversion Kit like the Dynamite ® the Dynamite or JR is use, please pay close DYN1900. -
Page 9: Preinstallation System Preparation
The receiver and servos will be powered by the ESC through this channel. TRANSMITTER PREPARATION Adjust each of the 4 trim levers (aileron, elevator, rudder, and throttle) to the center position. Left Gimble Stick Right Gimble Stick QUATTRO LITE MANUAL... -
Page 10: 241 Sub Micro Servo Preparation
Next, with the power still activated to the NOTE: Save the servo arms/horns; they will be transmitter and flight pack, remove the servo reattached to the servos after installation. arm/horn from each of the 241 servos. Then, QUATTRO LITE MANUAL... -
Page 11: Flight Pack Installation
See Section 8.3. types of models, mount the switch in the most convenient place. Make sure the switch operates freely and is capable of traveling its full distance. Servo Horn 90° with Servo at Control Rod Neutral/Center Position QUATTRO LITE MANUAL... -
Page 12: Servo Reversing
Aileron Elevator Rudder (Mode II Transmitter Shown) Servo Reversing Switches (Located behind Transmitter Battery Case) Rudder Aileron Down Aileron Up High Elevator Aileron Channel Rudder Channel Up Elevator Throttle Right Aileron Right Rudder (Aileron & Rudder Channel) QUATTRO LITE MANUAL... -
Page 13: Adjusting Control Surface Travel
By moving the control rod in on the servo original servo horn screw. arm/wheel, control surface travel will be reduced, QUATTRO LITE MANUAL... -
Page 14: Preflight Information
10.1 QUATTRO TRAINER FUNCTION The Quattro features a built-in trainer function. The with all other current PPM selectable (FM) J-Line or transmitter can be used as either a master (trainer) JR radios that have built-in trainer systems. An or as a slave (trainee). The Quattro is compatible optional Trainer Cord is needed (JRPA130). -
Page 15: General Notes
3. Ensure that all surfaces are moving in the 7. Check to be sure that all servo pigtails and proper manner. switch harness plugs are secure in the receiver. Also, make sure that the switch harness moves completely in both directions. QUATTRO LITE MANUAL... -
Page 16: Warranty And Service Information
Horizon Service Center 4105 Fieldstone Road 4. Include detailed information explaining your Champaign, Illinois 61822 operation of the equipment and problem(s) (217) 355-9511 encountered. Provide an itemized list of equipment enclosed and identify any particular QUATTRO LITE MANUAL... -
Page 17: Frequency Chart
The Federal Communication Commission (FCC) requires that changes in transmitter frequency must be performed only by an authorized service technician (Horizon Service Center). Any transmitter frequency changes made by a non-certified technician may result in an violation of the FCC rules. QUATTRO LITE MANUAL... -
Page 18: Optional Accessories
JRPS241 Sub Micro Servo JRPS331 High Torque Micro Servo JRPS341 Precision Micro Servo JRPA012 Micro Switch Harness JRPB3040 270mAh 4-Cell Flat RX Battery JRPB3041 270mAh 4-Cell Square RX Battery JRPA133 Y-Harness DYN1900 Transmitter Ni-Cd Conversion Set w/Charger QUATTRO LITE MANUAL... - Page 19 JRP4477.46 Update Quattro 1/29/01 4:20 PM Page 19 NOTES QUATTRO LITE MANUAL...
- Page 20 JRP4477.46 Update Quattro 1/29/01 4:20 PM Page 20 MANUFACTURED BY JR REMOTE COMTROL DISTRIBUTED EXCLUSIVELY BY HORIZON HOBBY, INC., CHAMPAIGN, IL 61822 www.horizonhobby.com...
