Summary of Contents for Zennox Simple Mobile B800

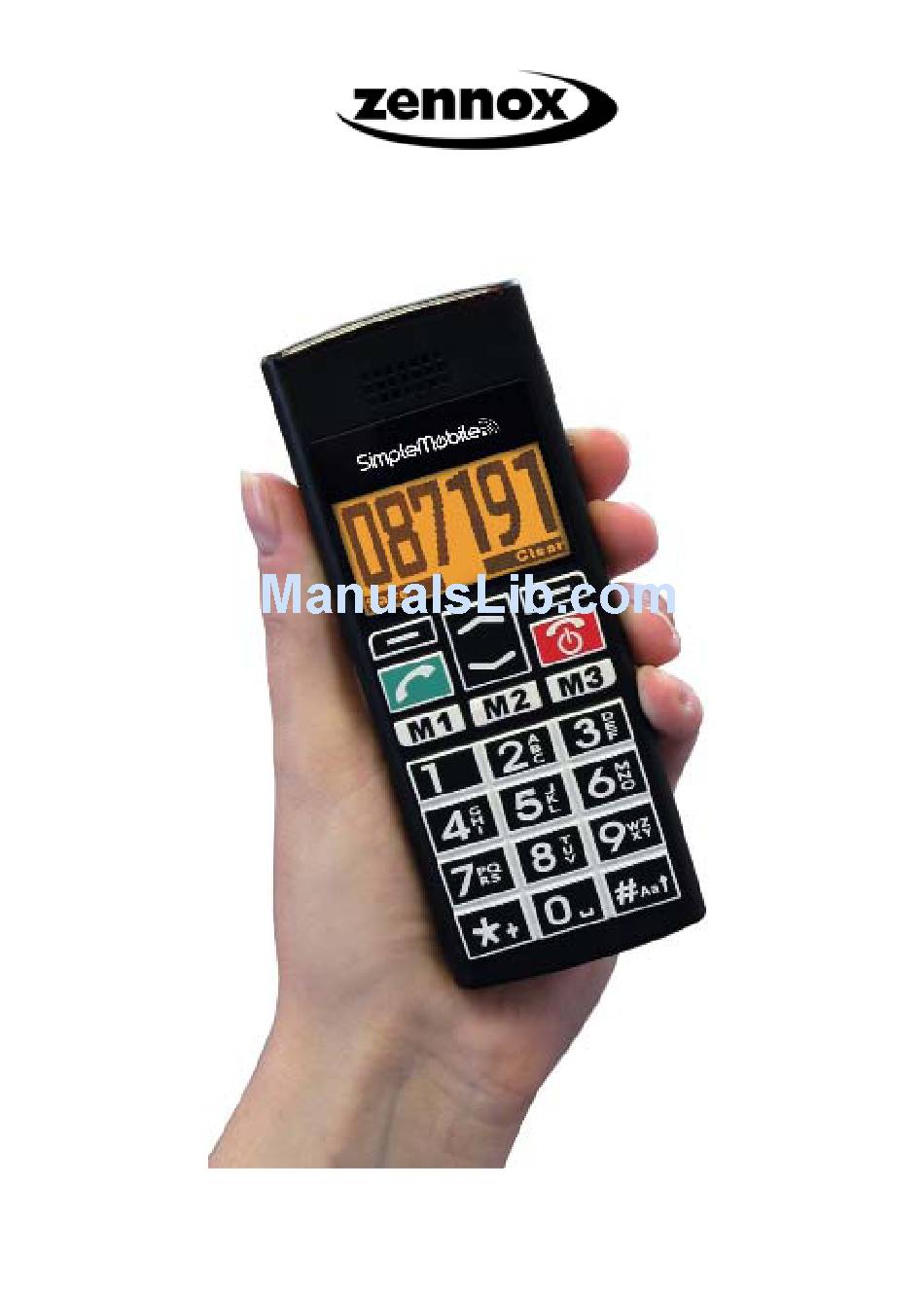

- Page 1 Simple Mobile B800 (D3880) Instruction Manual Before use, read these instructions carefully and keep in a safe place for future reference.
- Page 2 CLASS 2 M LASER PRODUCTS IMPORTANT – Your handset is not supplied with a SIM card. The B800 GSM will work on all UK GSM mobile networks except “3G”(because it is a UMTS network instead of GSM), and you will need to insert a SIM card for the handset to work correctly.
-
Page 3: Table Of Contents
Contents Where to find it…………………..…………..………… Symbols on the display ………..………………….… Menu Operation …………….…..………………..…… Read these notes first……..……….………….…… Installation and setup………………………..….…… Switching On and Off …………………..……..…..… 10 Making & answering calls…………………………… 11 Using the Phone Book & Fast keys (M1-M3)… Call log……………………………………………….…. 14 SMS text messaging……………………………….…... -
Page 4: Where To Find It
Where to find it Wrist strap holes Torch beam Visual Ringer Up/Down buttons Earpiece Press to adjust receiving volume in talk and speakerphone modes. Select buttons (Left/Right soft keys) Press to scroll through names, phone numbers, Perform functions menus and settings. indicated by the display text above Standby mode shortcuts:... -
Page 5: Symbols On The Display
Symbols on the display The network name or logo in XXXXXX service (If display option set) 1 - The left selection key in the standby mode is Menu. 2 - The right selection key in the standby mode is SMS. The Soft keys change to different functions in other modes. -
Page 6: Menu Operation
Menu Operation Menu lists are used for set up and operation. The left and right soft keys initially are Menu and SMS. Press Menu ( ) and the display changes and the soft keys become Select and Back. Use Up or Down to move up or down menu lists, and Select or Back for the next or previous display. - Page 7 • CARE & CLEANING - Do not drop or knock the phone excessively, and keep it clean using a damp cloth if necessary - do not use chemicals, cleaning solvents, or strong detergents.
-
Page 8: Installation And Setup
Installation and setup Before operating the B800 GSM a SIM card must be installed. Keep the SIM card out of small children’s reach. The SIM card and its contacts can be damaged easily by scratches or bending, so handle the card carefully. - Page 9 Charge the battery Warning! Use only batteries and chargers supplied with or approved by Zennox for this B800. Use of others will invalidate approvals or warranty and may be dangerous. Do not charge the battery with the back cover removed.
- Page 10 Headset / Charging Connector Plug in power adapter to charge battery. Plug in headset accessory (not supplied) for headset use.
-
Page 11: Switching On And Off
Switching On and Off To switch the phone on and off To switch off, press and hold End Call until the display clears. To switch back on, press and hold End Call until the display turns on. Warning! Do not switch on when mobile phone use is prohibited or it may cause interference or danger. -
Page 12: Making & Answering Calls
Making & Answering calls To make a call Ensure the phone is switched on and in service. Key in the telephone number including area code. (To add prefix "+" press the “*” key twice quickly) Press Talk to dial the number on the display. To end calls press the End Call button. -
Page 13: Using The Phone Book
To mute the microphone During a call, press Options & Down to go to Mute, & then Select the display shows To unmute, press Options and select Unmute. To make a conference call Conference call is a Network Service that lets up to four parties talk together. - Page 14 To add a new Phone Book entry Press Down to open the phonebook Select Options, New & select Save to SIM or Save to phone, then enter the letters for the Name Press Next & key in the digits for the Number Press Save to save the new contact.
-
Page 15: Using The Phone Book & Fast Keys (M1-M3)
Store a Phone Book entry to a fast key (M1– M3) Press Down to open the phonebook Press Up or Down to find the entry to save Select Options, Set to fast key Key in the Password (default is 0000) Select OK the display shows M1, M2, M3 Press Up or Down to choose the key to save to... -
Page 16: Sms Text Messaging
SMS text messaging Send & receive text messages. These are saved in the phone memory (max. 100) or on the SIM card. Received SMS are stored in the Inbox and the icon indicates new messages. Also “1 New message” displays until Select (to view) or Cancel (to clear) is pressed. - Page 17 Status report** – to request send delivery reports Select the option required and follow the menus. Message centre - Your B800 GSM reads the service number from the SIM card. If it has been accidentally changed, you’ll need to get the correct number and reprogram it.
-
Page 18: Settings
Settings Allows you to adjust various settings on the phone, and also to reset them to their factory default values. Press Menu, then press Down to go to Settings, and Select to display the list of settings available. Phone Settings Language –... -
Page 19: Call Settings
Call Settings – ( some network services may not be available) Auto redial – auto-dial up to 10 redial attempts Any key answer – so any key press will answer a call Send own number – withhold your number Sound profiles –... -
Page 20: Troubleshooting
Troubleshooting “Call failed” appears Check dialled number is correct, with full area code SIM card fitted – only Some SIM cards are thinner than others. Lightly press the makes emergency call SIM card holder to ensure a proper contact is made. The mobile phone The phone is in energy saving mode and the display has display is blank... -
Page 21: Guarantee
GUARANTEE IMPORTANT Please do not return this product without first calling the Customer Service number below: 0871 911 7003 Thank you for purchasing this product, which has been made to demanding high quality standards and is guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. -
Page 22: Battery Information
When the operating time becomes noticeably shorter than normal, it is time to buy a new battery. Use only batteries & chargers approved by Zennox and unplug the charger when not in use. Don’t leave the battery connected to a charger for more than 24hr - overcharging may shorten its life. - Page 23 Hearing aids Mobile phones may interfere with some hearing aids. In the event of interference, contact your hearing aid provider. Other medical devices Any radio transmitting equipment, including mobile phones, may interfere with inadequately protected medical devices. Consult a physician or the medical device supplier to check if it is shielded adequately from external RF energy.
-
Page 24: Declaration Of Conformity
Model Name Simple mobile Country of origin China Brand Zennox Complies with the essential protection requirements of EC Directive 2006/95/EC and EC Directive 2004/108/EC and EC Directive 99/05/EC and their amendments. This declaration applies to all specimens manufactured identical to the samples submitted for testing/evaluation. - Page 25 All essential radio test suites have been carried out. The declaration is under the responsibility of the manufacturer: The product is labelled with the European Approval Marketing CE as shown below. Any unauthorised modification of the product voids this Declaration. 0678 Signed: Mr Daniel Price...
- Page 26 Zennox improvement, and so reserves the right to make changes to the product and functions without notice.
-
Page 27: Getting Started With Orange Sim Card
Getting Started with your Orange Sim Card Follow the instructions below to activate your new Orange SIM card and retrieve your new phone number 1. Insert the SIM and turn the phone on. 2. Call 0800 079 0006 FREE from the Simple Mobile phone with SIM inserted.
