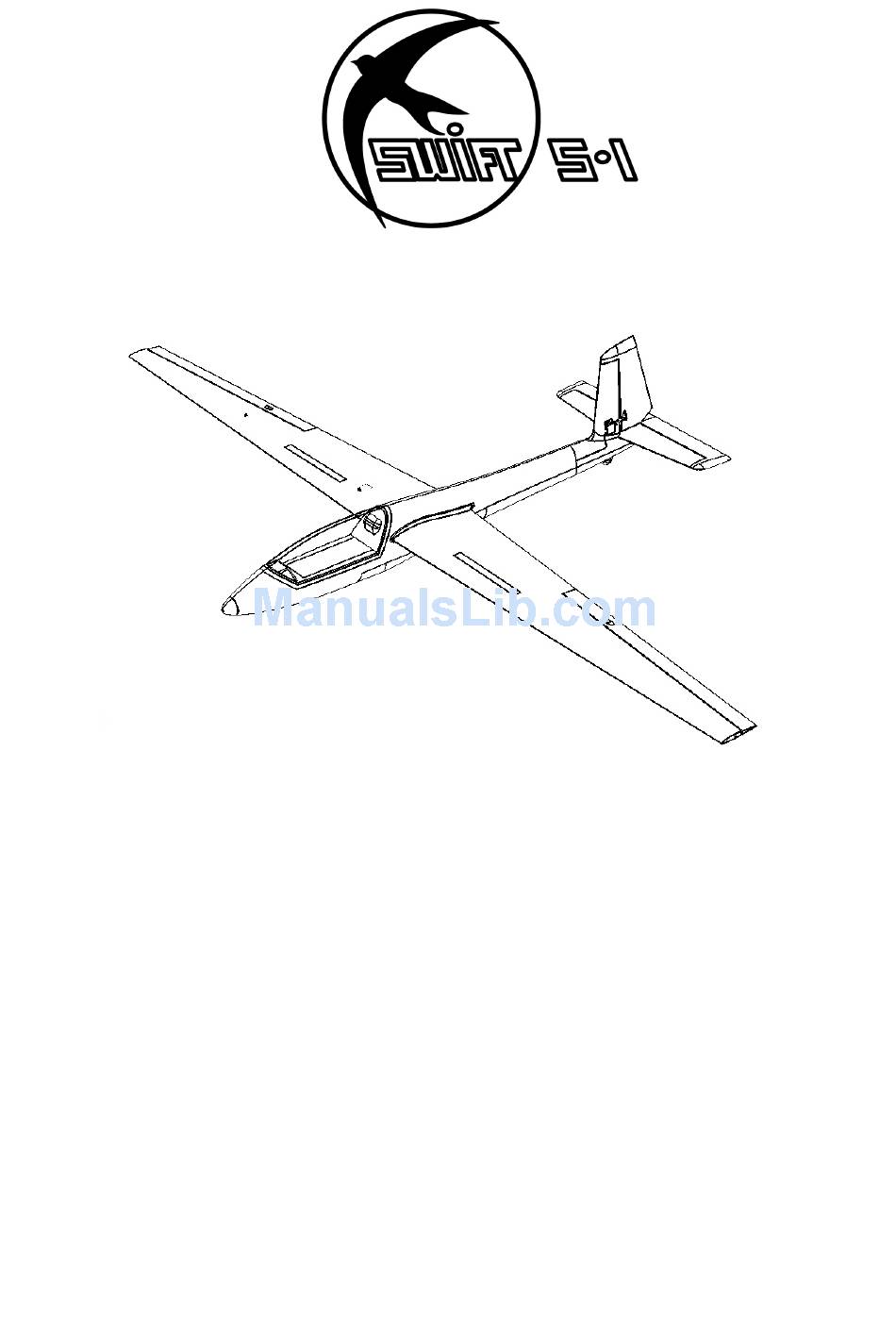

Build Instruction Manual
Wingspan: 2.2 meter
Length: 1.2 meter
Airfoil: RSB22
Wing Area: 330 sq.cm.
Weight: 880 grams
Wing Loading: 2.6g/sq.cm.
Material: EPO Foam
Radio: 3 to 4 channels
Servo: 4 to 7 mini size servos
Receiver Battery: AA X 4 pcs
CG: 7cm behind the wings leading edge
Rudder +/- 12mm
Elevator +/- 8mm
Aileron up 6mm, down 10mm
http://www.windrider.com.hk
Advertisement
Summary of Contents for WindRider 5-1
- Page 1 Build Instruction Manual Wingspan: 2.2 meter Length: 1.2 meter Airfoil: RSB22 Wing Area: 330 sq.cm. Weight: 880 grams Wing Loading: 2.6g/sq.cm. Material: EPO Foam Radio: 3 to 4 channels Servo: 4 to 7 mini size servos Receiver Battery: AA X 4 pcs CG: 7cm behind the wings leading edge Rudder +/- 12mm Elevator +/- 8mm...
- Page 2 Glue the carbon spar and ribbon into wing slot. Install the ailerion servo and push rod. Glue the airbrake OR foam parts on the wing top. Install the airbrake servo OR glue foam parts Glue the rectangle plywood on the wing join. under the wing. Glue the ribbon into the slot on elevator. Install the retract or glue foam parts under the bay. Install the elevator and rudder servo, also the Install the motor by provided cross plywood or glue the nose foam parts inside the nose. push rod. Glue the elevator to the tail by hot glue. Glue two fuselage halves together and hold the tail section. Tape the clear PVC canopy to the cockpit. Slide in the 8mm carbon spar into one wing join Glue the 8 pcs magnets to fuselage and cokpit. channel, slide in the another side of wings. All Install the retract servo and link the pushrod to the servo cable go into the cokpit. Slide in the retract system. provided plywood key to lock both side of wings fixed to the fuselage.
