PRIOR TO FIRST FIRE: Remove all labels from glass. Clean fingerprints from plated
surfaces with a glass cleanser and soft cloth to prevent permanent staining.
CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE
TEMPERATURES, ESPECIALLY THE STOVE GLASS, AND SHOULD STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION. THIS UNIT CONTAINS SMALL PARTS DURING ASSEMBLY THAT SHOULD
BE KEPT AWAY FROM CHILDREN DUE TO CHOKING HAZARD WHICH COULD RESULT IN PERSONAL
Homeowner: Save These Instructions for future reference.
Users' Installation
Operation and
Maintenance Manual
INJURY OR DEATH
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
7116 Beatty Dr
Mission, BC V2V 6B4
Canada

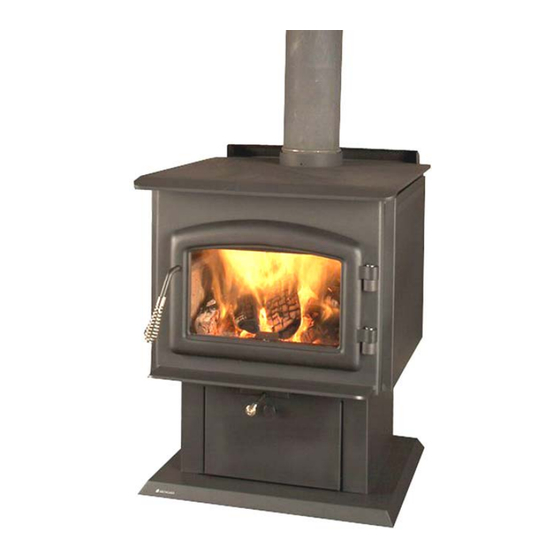

CHALET 1600
CHALET 1600
Wood Burning
Stove
.
200-0255
2008-10
Advertisement
Table of Contents
Related Manuals for Archgard CHALET 1600
Summary of Contents for Archgard CHALET 1600
- Page 1 CHALET 1600 CHALET 1600 Wood Burning Stove Users’ Installation Operation and Maintenance Manual PRIOR TO FIRST FIRE: Remove all labels from glass. Clean fingerprints from plated surfaces with a glass cleanser and soft cloth to prevent permanent staining. CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE STOVE GLASS, AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.
- Page 2 IMPORTANT SAFETY NOTES When installing your stove, particular attention should be paid to fire protection. If this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. Con- tact local building, fire officials or authority having jurisdiction about restrictions, installation inspection and permit requirements in your area.
- Page 3 Ash Drawer & Lid Congratulations on choosing a state-of-the-art Archgard Hearth Product! The hand crafted Chalet 1600 has been designed to provide you with comfort, security and economy for many years of trouble-free enjoyment. It has been our experience that the overall enjoyment of your new appliance will be greatly enhanced by becoming familiar with its installation, operation and maintenance.
-
Page 4: Table Of Contents
In Case of a Chimney Fire / Chimney Maintenance / Wood Door Gasket / Latch Adjustment / Glass Glass Maintenance Ash Disposal ACCESSORY / PARTS REPLACEMENT Exploded view of Chalet 1600 - Parts Accessory & Replacement Parts List Archgard Warranty Warranty Registration Card Notes... -
Page 5: Important Safety Notes
Chalet 1600 IMPORTANT SAFETY NOTES When installing your stove, particular attention should be paid to fire protection. If this room heater is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. Con- tact local building, fire officials or authority having jurisdiction about restrictions, installation inspection and permit requirements in your area. -
Page 6: Safety Label
SAFETY LABEL A copy of the label that accompanies each Archgard Chalet 1600, is printed on the next page for your convenience. NOTE: Archgard units are constantly being improved. If there is a conflict between the label on the unit and the one printed here, the label on the unit is the correct one. -
Page 7: Rating Plate Label
LISTED SPACE HEATER, SOLID FUEL TYPE. ALSO SUITABLE FOR MOBILE HOME INSTALLATION. SERIAL NUMBER / NUMÉRO DE SÉRIE: MODEL: CHALET 1600 FREE STANDING STOVE TESTED TO: UL 1482-96 / ULC S627-00 PREVENT HOUSE FIRES: INSTALL ONLY IN ACCORDANCE WITH THE MANUFACTURER’S INSTALLATION AND OPERATING INSTRUCTIONS. CONTACT LOCAL BUILDINGOR FIRE OFFI- CIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA. -
Page 8: Clearances
Chalet 1600 RESIDENTIAL INSTALLATION USING SINGLE WALL CONNECTOR SIDEWALL A - 356 mm / 14” D - 660 mm / 26” BACKWALL B - 279 mm / 11” E - 432 mm / 17” CORNER C - 229 mm / 9”... -
Page 9: Dimensions - Pedestal Unit
Chalet 1600 DIMENSIONS - PEDESTAL UNIT 23 3/4 in 11 7/8 in 6 5/16 in 21 in 28 5/8 in 30 3/8 “ (772 mm) 29 1/8” (740 mm) 27 3/8 in 11 5/8 in 11 3/8” (289mm) 24 in. -
Page 10: Dimensions - Leg Unit
Chalet 1600 DIMENSIONS - LEG UNIT DIMENSIONS - LEG UNIT 23 3/4 in 11 7/8 in 6 5/16 in. 21 in 29 5/8 in 31 3/8 “ (797 mm) 28 3/8 in 30 1/8” (765 mm) 12 5/8 in 12 3/8” (314 mm) -
Page 11: Specifications
Chalet 1600 SPECIFICATIONS MODEL CHALET 1600 FREESTANDING PEDESTAL WIDTH x DEPTH 24 in. W X 22 3/4 in. D HEIGHT 29 5/8 in 28 5/8 in HEIGHT OF BODY 15 1/8 in. E.P.A. EMISSIONS 2.88 g/hr. E.P.A. OUTPUT RATING APPROXIMATE HEATING AREA 800 —... -
Page 12: Pedestal Assembly Instructions
Unpack the stove and remove all the parts packed inside. Inspect all the parts and stove body for shipping damage. Contact your dealer if any irregularities are noticed. NOTE: The Chalet 1600 stove body comes strapped to a pallet with the bricks, secondary air tubes and baffle plates already installed. -
Page 13: Leg Assembly Instructions
Chalet 1600 LEG ASSEMBLY This applies to all painted and plated cast legs 1. Slip the 5/16” x 1” bolts through the very bottom of the Bottom Shield / Skirt and install the sup- plied washer and nut . 5 / 16” x 1”... -
Page 14: Door Assembly Instructions
Chalet 1600 The door comes assembled with the glass and gasket. Washer Cotter Pin Clevis Pin 1. Run the threaded end of the handle through the hole in the cast door. 2. Insert the clevis pin into the roller and Roller washer. -
Page 15: Brick Installation
Chalet 1600 BRICK INSTALLATION The firebox of your Archgard stove is lined with high quality firebrick, which has exceptional insulating properties. There is no need to use a grate; simply build the fire on the firebox floor of your stove. Do not operate this stove without the firebrick. -
Page 16: Air Tube Installation
Chalet 1600 AIR TUBE INSTALLATION The Air Tubes in the Archgard Chalet 1600 come already assembled with the baffle plates installed. If for some reason they need to be removed or installed, the following guidelines must be adhered to. (The stove must be cool) 1) Open the Archgard Freestanding Chalet 1600 door. -
Page 17: Mobile Home Installation - Listed Components
Chalet 1600 LISTED COMPONENTS FOR MOBILE HOME INSTALLATION OPTIONAL OUTSIDE AIR ADAPTOR The adaptor is required if the Chalet 1600 is to be installed into a Mobile Home or location requiring out- side combustion air. Mobile home installation requires the use of outside air. -
Page 18: Blower / Fan Installation
Chalet 1600 BLOWER / FAN INSTALLATION PART # FK-1800 FS The Chalet 1600 is certified for operation with or without the optional fan and may be installed at any Electrical Rating = 115V AC / 1.0 amps time by attachment at the back of the stove and plugging in the 3-prong power cord. -
Page 19: Residential Installation
Codes and Regulations may override some items in this manual. Check with your local Authority Having Jurisdiction. 2. Select a location for your Archgard Chalet 1600 Stove. Double check the clearances on the label and set the stove in place. - Page 20 RESIDENTIAL INSTALLATION (cont’d) 11) In seismically active areas, Archgard recommends that your unit be secured to the floor by using ¼” lag bolts in the bolt down holes on the pedestal or legs (the same ones used for Mobile Home installations).
-
Page 21: Mobile Home Installation
Chalet 1600 MOBILE HOME INSTALLATION Whether flat roof or sloped, the chim- Once you have properly marked the position of your unit and the ney must penetrate the roof by 36” (.91m) on the high side and be at floor protection as outlined in the Residential Installation, secure it least 24”... -
Page 22: Chase Enclosure / Masonry Chimney
Chalet 1600 CHASE ENCLOSURE If the chimney runs up the outside of the house, for best performance, it should be enclosed in a chase. It is best to locate the chase away from any overhead obstructions. For best results, the chase should be con- structed in such a way that it is part of building envelope. - Page 23 Chalet 1600 MASONRY CHIMNEY (cont’d) System B: 9" (228.6 mm) Clearance to Combustible Wall Member: Using a 6" (152.4 mm) inside diameter, listed, factory-built Solid-Pak chimney section with insula- tion of 1" (25.4 mm) or more, build a wall pass-through with a minimum 9"...
-
Page 24: Recommended Minimum Chimney Heights
Chalet 1600 RECOMMENDED MINIMUM CHIMNEY HEIGHTS The chimney must be at least 3 ft. (.9m) higher than the highest point where it passes through the roof and at least 2 ft. (.6m) higher than the highest part of the roof or structure within 10 ft. (3m) of the chimney, measured horizontally. -
Page 25: Vent Specifications / First Fire
VENT SPECIFICATIONS Pull this control all the way out when first starting the Your Archgard Chalet 1600 was designed for and stove. Once the fire has been established you may ad- tested on a 6” (152mm) chimney, 15’ (4.57m) high, just this control to set the burn rate of the fire. -
Page 26: Troubleshooting
We recommend that when you first fire up your Chalet 1600, you leave a door and/or window open in or- der to vent the smoke that may be created from the unit’s paint curing. The paint will smell a little for the first burn or two as it cures. - Page 27 Chalet 1600 TROUBLESHOOTING PROBLEM CAUSE CURE Glass is Dirty 1. Wood is wet Use dry wood 2. Turning down air control or Do not turn down until: damper too soon ❖ there is a good bed of coals ❖ the wood is charred 3.
-
Page 28: Creosote & Chimney Fires
The new, low-emission wood stoves, like the Archgard Chalet 1600 burn the wood so completely that, when oper- ated properly, their chimneys normally need cleaning only once a year. -
Page 29: In Case Of A Chimney Fire / Chimney Maintenance / Wood
CHIMNEY MAINTENANCE It is very important to carefully maintain your Chalet 1600 stove, including burning seasoned wood and main- taining a clean stove and chimney system. Have the chimney cleaned before the burning season and as nec- essary during the season, as creosote deposits may build up rapidly. Moving parts of your stove require no lubrication. - Page 30 Smaller, more finely split pieces are better for short, hot fires, while larger pieces suit extended firing cycles. The largest piece of wood for your Chalet 1600 should be no more than about 15 cm (6 in.) across and 18” long.
-
Page 31: Door Gasket / Latch Adjustment / Glass
This Archgard Chalet 1600 is equipped with 5 mm ceramic glass that will withstand the highest heat that your unit will pro- duce. - Page 32 8. Replace the door on the appliance. PAINT You may touch up the Archgard Chalet 1600 with STOVE BRIGHT 316-0100 Black high temperature paint. The correct paint is available from your dealer. When you paint the stove, remove the gold items (i.e., door), and cover the area surrounding the fireplace with newspaper.
-
Page 33: Ash Disposal
Chalet 1600 ASH DISPOSAL CAUTION: Ashes can start fires, even after several days of inactivity. Never dispose of ashes in a combustible container. Remove ashes only when stove and ashes are cold. When emptying the ash drawer, make sure the ashes are cold. Ashes should be placed in a metal container with a tight fitting lid. - Page 34 Chalet 1600 EXPLODED VIEW OF CHALET 1600 FOR DETAILED PARTS LIST, PLEASE SEE PAGE 35 Fire Brick Positions Brick 1 = 311-1000 Brick 2 = 780-1110 Brick 3 = 780-1111 Brick 4 = 780-1112...
-
Page 35: Accessory & Replacement Parts List
CAST IRON DOOR, NICKEL (INCLUES NICKEL PLATED SPRING HANDLE) 10-0203 300-2005 DECORATIVE HINGE BUTTONS FOR CHALET 1600 FS (SET OF 2) 300-2001 OR BRASS SPRING DOOR HANDLE FOR CHALET 1600 FS NICKEL PLATED SPRING DOOR HANDLE FOR CHALET 1600 FS... -
Page 36: Archgard Warranty
CHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE. purchase. Archgard is not liable for freight or labor on any wood burning appliance Special Finishes—One year on brushed nickel louvers and doors. replaced in the field. Any part or parts of this unit which in our judgment You can expect some changes in color as the product “ages”... -
Page 37: Warranty Registration Card
POSTAGE WARRANTY REGISTRATION ARCHGARD INDUSTRIES LTD. 7116 BEATTY DRIVE MISSION, B.C. CANADA V2V 6B4 FOLD DOWN AT LINE FOLD DOWN AT LINE & TAPE CLOSED CHALET 1600 Model # : Serial #: Date Installed: yyyy Name: Address: City: State/Prov: ZIP: Phone: ( _____ ) Dealer's Name &... - Page 38 Archgard fireplace products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thor- oughly before it leaves our door. Archgard is pleased to extend this Limited Life- time Warranty to the original purchaser of an Archgard Product.
