WAVE 2-Way Wireless Accessories and Adapters
for Touch Panels
Instruction Manual
Control Panel Accessories

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wave Wireless Accessories and Adapters none and is the answer not in the manual?

Questions and answers

Summary of Contents for AMX Wave Wireless Accessories and Adapters none

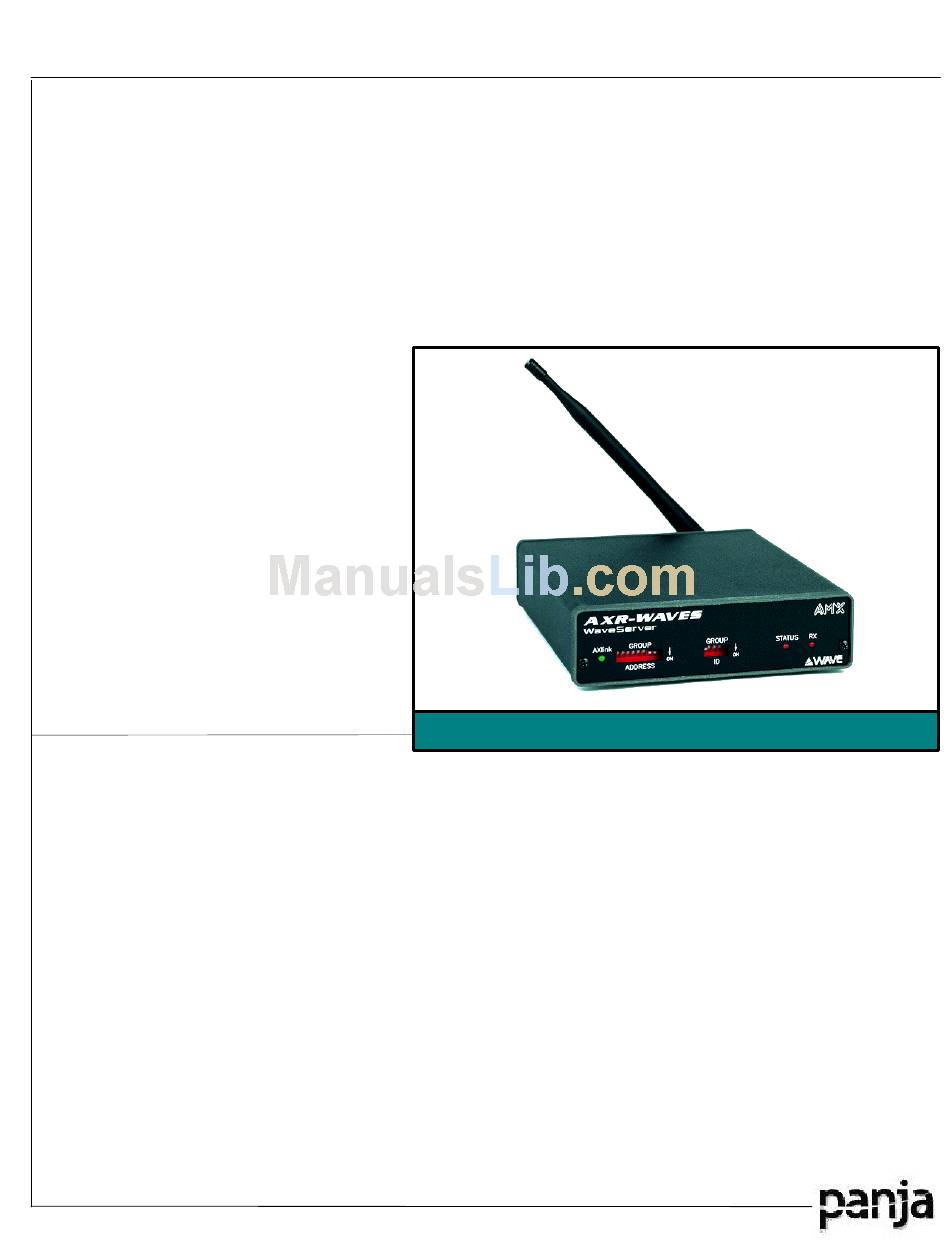

  • Page 1 WAVE 2-Way Wireless Accessories and Adapters for Touch Panels Instruction Manual Control Panel Accessories...

  • Page 2: Limited Warranty And Disclaimer

    Limited Warranty and Disclaimer Panja Inc. warrants its products to be free from defects in material and workmanship under normal use for a period of three years from date of purchase from Panja, In- corporated, with the following exceptions. Electroluminescent and LCD control pan- els are warranted for a period of three years, except for the display and touch over- lay components which are warranted for a period of one year.

  • Page 3: Table Of Contents

    Table of Contents Introduction ... 1 Overview Features What’s in this Manual What’s New Related Instruction Manuals Sample Product Application AXR-WAVES WAV-PK WAV-PKM WAV-LNK WaveLink Optional WAV-PM WaveLink Power Module Batteries Standard Power Supply Optional WAV-CHG Fast-Cycle Battery Charger Pre-Installation ... 17 Overview AXR-WAVES (or WAV-LNK) Group Address WAVE 2-Way Wireless Accessories and Adapters for Touch Panels...
  • Page 4 Installation ... 23 Firmware Upgrades... 33 Specifications... 39 Contacting Sales and Technical Support ... 45 Table of Contents AXR-WAVES (or WAV-LNK) Group ID DIP Switch WAV-PK Group ID DIP switch WAV-PKM Group ID DIP switch Battery Charging WAV-PM WaveLink Power Module Overview Installing the Control System Wiring the AXR-WAVES...

  • Page 5: Introduction

    Introduction Overview The AXR-WAVES Wireless AXlink Virtual Emulator Server (Figure 1) is a 2-way Radio Frequency (RF) device employing spread spectrum communications. A single AXR-WAVES can communicate with up to 16 wireless TiltScreen touch panels equipped with WAV-PK or WAV-PKM Wireless Power Packs. The WAV-PK and WAV-PKM are designed to enable 2-way wireless mobility of full-sized and mini- touch panels, thus eliminating the need for permanent installation of a touch panel.

  • Page 6: Features

    Additionally, the WAV-LNK WaveLink transceiver (Figure 2) may be used in con- junction with one or more WAV-PM modules when a UniMount or rack mounted touch panel is used in a remote, wireless application. The WAV-LNK is ideal for Un- iMount touch panels mounted in podiums or lecterns where cabling is of concern.

  • Page 7: What's New

    What’s New Updates to this manual include: All other revisions are identified by vertical margin bars as shown adjacent to this paragraph. AXR-WAVES AXR-WAVES features include: WAV-PK WAV-PK features include: Note The WAV-PK contains two small lithium batteries that will last approximately 5 years.

  • Page 8: Wav-Lnk Wavelink

    Note The WAV-PKM contains two small lithium batteries that will WAV-LNK WaveLink last approximately 5 years. The batteries are not user re- The WAV-LNK WaveLink transceiver features include: placeable and the WAV-PKM must be returned to Panja for battery replacement. WAV-PM WaveLink power module The WAV-PM WaveLink Power Module features include the following: Related Instruction Manuals...

  • Page 9: Sample Product Application

    Sample Product Application The AXR-WAVES connects to a Central Controller and communicates with a wide variety of touch panels. The WAV-PK and WAV-PKM power packs connect to full- sized and mini-touch panels to provide mobility and communications with an AXR- WAVES.
  • Page 10 Figure 4 AXR-WAVES front panel Introduction AXlink —Green LED that blinks when there is AXlink communication activ- ity. The green AXlink LED indicates the following power and data activity: One blink per second: Power is active and AXlink data communication is functional.

  • Page 11: Rear Panel

    Rear panel The rear panel has an RF antenna and a 4-pin AXlink bus connector. Figure 5 shows the AXR-WAVES rear panel. Figure 5 AXR-WAVES rear panel WAV-PK The WAV-PK full-sized TiltScreen touch panel controls and indicators are described in the following paragraphs. Front panel The front of the WAV-PK power pack contains a connector that mates with the full- sized TiltScreen touch panels.

  • Page 12: Rear Panel

    Figure 6 WAV-PK power pack front panel and connector Rear panel The WAV-PK rear panel provides a barrel power (plug-in) connector for operating or recharging of the unit. There is also a wake-up switch located in the center-rear of the WAV-PK. Figure 7 shows the rear of the unit and the power connector. Figure 7 WAV-BP battery...

  • Page 13: Rear Panel

    Figure 8 WAV-PKM front panel Rear panel The WAV-PKM rear panel provides a power connector for operating or recharging of the unit. Figure 9 shows the rear of the unit and the power connector. Figure 9 WAV-PKM rear panel WAV-LNK WaveLink The WAV-LNK WaveLink transceiver provides an interface for up to 16 touch pan- els or similar AXlink type devices.

  • Page 14: Front Panel

    Front panel Figure 10 shows the front panel for the WAV-LNK and its switches and indicators are described below. Figure 10 WAV-LNK front panel Rear panel Figure 11 shows the WAV-LNK rear panel and its connectors. They are: Introduction AXlink —This LED lights when an active AXlink connection is established.

  • Page 15: Optional Wav-Pm Wavelink Power Module

    Figure 11 WAV-LNK rear panel Optional WAV-PM WaveLink Power Module The WAV-PM WaveLink Power Module provides additional wireless backup power Note to a WaveLink device. WAV-PMs can be daisy-chained to provide 12 VDC at up to The WAV-PM WaveLink 10 A. The following paragraphs identify and define controls and indicators for the Power Module will only accept optional WAV-PM WaveLink Power Module.

  • Page 16: Rear Panel

    Note While a battery is charging, the Empty/Full indicator does not show a valid reading. Caution Ensure that the WAV-PM ap- plication environment does not require a greater supply cur- rent than the module can pro- vide. If the system is over- loaded, irreparable damage Rear panel could occur to the module.

  • Page 17: Power Management

    Power management The Wave Packs incorporate advanced power management schemes that reduce overall power consumption. Power management is software-controlled by the indi- vidual touch panel program. The user tells the WavePack when to go into power conservation mode (sleep mode). Pressing the rear-mounted WAV-PK wake-up switch activates the WavePack.

  • Page 18: Safe Handling And Usage Of The Battery

    Safe handling and usage of the battery To prevent deterioration or damage to the battery: Standard Power Supply The standard power supply furnished with the WAV-PK and WAV-PKM is shown Note in Figure 16. The power supply can be used for primary power or battery charging The WAV-BP or WAV-BPM of the WAV-PKs or WAV-PKMs battery.

  • Page 19: Optional Wav-Chg Fast-Cycle Battery Charger

    Optional WAV-CHG Fast-Cycle Battery Charger The WAV-CHG Fast-Cycle Battery Charger is shown in Figure 17. The charger will charge two batteries simultaneously. Refer to the Battery Charging subsection of this manual. The charger provides a fast-cycle, 4-hour, full-charge capability. Figure 17 Optional battery charging holder and power supply CHARGE...
  • Page 20 Introduction WAVE 2-Way Wireless Accessories and Adapters for Touch Panels...

  • Page 21: Pre-Installation

    Pre-Installation Overview Before installing the wireless communications equipment, set the AXR-WAVES GROUP ADDRESS DIP switch. Then, set the GROUP ID DIP switches for the AXR- WAVES, WAV-LNK, WAV-PK, and WAV-PKM. Figure 18 shows the DIP switches on the AXR-WAVES front panel. Figure 18 AXR-WAVES front panel AXR-WAVES (or WAV-LNK) Group Address DIP Switch...

  • Page 22: Axr-Waves (Or Wav-Lnk) Group Id Dip Switch

    Figure 19 shows the AXR-WAVES GROUP ADDRESS DIP (or WAV-LNK) switch and a quick reference for the DIP switch numbers and their values. Figure 19 1 2 3 4 5 6 7 8 GROUP ADDRESS and DIP switch settings quick reference DIP switch settings Switch AXR-WAVES (or WAV-LNK) Group ID DIP Switch...

  • Page 23: Wav-Pk Group Id Dip Switch

    Figure 20 GROUP ID DIP switch and switch settings DIP switch settings Switch WAV-PK Group ID DIP switch The 4-position group ID DIP switch (Figure 21) sets the identification number to syn- chronize communication between the wireless WAV-PK and the AXR-WAVES (or WAV-LNK).

  • Page 24: Wav-Pkm Group Id Dip Switch

    WAV-PKM Group ID DIP switch The 4-position Group ID DIP switch (Figure 22) sets the group identification number to synchronize communication between the wireless WAV-PKM and the AXR- WAVES (or WAV-LNK). Each AXR-WAVES (or WAV-LNK) must have a unique group ID number and each WAV-PKM must have its 4-position group ID DIP switch set to the same value as the AXR-WAVES group ID value.

  • Page 25: Wav-Pm Wavelink Power Module

    Fully charged WAV-BP and WAV-BPM lead-acid batteries provide approximately 2- hours of continuous touch panel operation running at full LCD brightness. How- ever, you can use the touch panel's sleep mode and LCD timeout features to signifi- cantly increase the operation time per charge. Refer to the touch panel's instruction manual to activate these features.
  • Page 26 Pre-Installation WAVE 2-Way Wireless Accessories and Adapters for Touch Panels...

  • Page 27: Overview

    Installation Overview The AXR-WAVES can be installed on any flat surface. The following describes how to set up and install an AXR-WAVES communications system. Installing the Control System Install the control system, AXR-WAVES, WAV-PK, and WAV-PKM as follows. Figure 24 shows a sample Central Controller configuration. Figure 24 Sample control system Power...

  • Page 28: Wiring The Axr-Waves

    Mount the Central Controller in the position where it will be used. Connect the Caution power supply. AXR-WAVES uses spread- spectrum signaling to avoid Place the AXR-WAVES in the position where it will be used. The RF antenna common problems associated should be set in a vertical position to communicate with the touch panels.

  • Page 29: Preparing Captive Wires

    Wiring guidelines Figure 26 Wire size Wiring guidelines 18 AWG 20 AWG 22 AWG 24 AWG Do not install the AXR-WAVES farther away from the control system than recom- mended in Figure 26. Preparing captive wires You will need a wire stripper and flat-head screwdriver to perform these steps. Pre- pare and connect the captive wires as follows.

  • Page 30: Installing The Wav-Pk

    Installing the WAV-PK The WAV-PK is installed in a full-sized touch panel as described in the following steps. The WAV-PK snaps into place and is self-retaining (Figure 28). Fully open the rear connector cover on the full-sized tilt screen touch panel. Then, remove the touch panel connector cover by pushing gently on one side- edge towards the center of the cover (Figure 28).

  • Page 31: Wav-Pk Battery Replacement

    Note WAV-PK Battery Replacement The WAV-PK or WAV-PKM Replace the WAV-PK battery (Figure 29) as follows. battery must be charged for a minimum of 4-hours before use. Figure 29 WAV-PK battery removal Caution Keep the following important safety considerations in mind when using the WAV-BP and WAV-BPM batteries: Do not incinerate.

  • Page 32: Installing The Wav-Pkm

    Installing the WAV-PKM The WAV-PKM is secured with two screws once it is mounted to a Mini-TiltScreen touch panel (Figure 30). Refer to the Black/White Mini-Touch Panels (Firmware ver- sion G3 or higher) instruction manual for more information on Mini-TiltScreens. To install the WAV-PKM, perform the following steps: Figure 30 WAV-PKM mounting screws...

  • Page 33: Wav-Pkm Battery Replacement

    Note The WAV-PKM top cover is not attached to the WAV-PKM until after installation. Figure 32 WAV-PKM installation WAV-PKM Battery Replacement Note The WAV-BP or WAV-BPM To install or remove the WAV-PKM rechargeable battery, follow the steps below. battery must be charged for a minimum of 4-hours before use.
  • Page 34 Depress the catch release point on the WAV-PKM top cover where it joins the Caution mini-touch panel (Figure 32). When disconnecting the bat- tery, do not pull the battery While pressing downward, slide the top cover rearward and lift upward from connector clip off the battery the unit.

  • Page 35: Installing The Wav-Pm

    Installing the WAV-PM WAV-PM WaveLink Power Modules can be used singly or daisy chained for opera- tion with a touch panel. A WAV-PM can be configured for two different hardware configurations, as described in the following paragraphs. Single WAV-PM module When using a single WAV-PM to power a WAV-LNK, see Figure 34 for connections.

  • Page 36: Multiple Wav-Pm Modules

    Multiple WAV-PM modules If you are using multiple WAV-PM modules, connect them as shown in Figure 35. Figure 35 Multiple WAV-PM modules Note When using multiple WAV-PM modules, each WAV-PM must have its own power supply (PS4.2) plugged into the PWR connector for charging.

  • Page 37: Firmware Upgrades

    Firmware Upgrades Overview Firmware upgrades allow you to install the latest available operating system for your AXR-WAVES or Wave Packs. This section provides the information required for removing an old firmware integrated circuit (ICs) and installing a new firmware upgrade IC. You will need a Phillips screwdriver and a non-conducting flat-blade tool to slip under the installed firmware IC to lift it up and out of the IC socket.

  • Page 38: Wav-Pk Battery Pack Firmware

    Remove the cover by lifting up while tilting the rear of the cover forward at the Caution same time. Ground yourself before touch- ing anything within the AXR- Using a non-conducting flat blade tool, pry the firmware chip from its socket by WAVES housing.
  • Page 39 Figure 37 Wakeup button WAV-PK bottom cover remo- val and circuit board compo- nent location Screws Wakeup button Under WAVE 2-Way Wireless Accessories and Adapters for Touch Panels Trace alignment notch indicator Integrated circuit (IC) socket strips After removing the old firmware chip, position the new firmware chip on the socket strips with the alignment notch over the top of the notch indicator on the circuit board trace.

  • Page 40: Wav-Pkm Battery Pack

    WAV-PKM Battery Pack Perform the following steps to replace the WAV-PKM firmware IC. Remove the WAV-PKM from the touch panel and turn it upside down. Then, using a Phillips-head screwdriver, remove the two screws holding the bottom cover to the unit housing (Figure 38). After removing the two bottom cover screws, slide the bottom cover forward while lifting the bottom cover rear edge upward at the same time.
  • Page 41 Caution Discharge any static electricity that you may have in your body to prevent possible dam- age to the WAV-PKM circuit board. WAVE 2-Way Wireless Accessories and Adapters for Touch Panels After the bottom cover has been removed, lift the circuit board from the unit housing, then turn the circuit board over and place it on a flat surface with the component side up.
  • Page 42 Firmware Upgrades WAVE 2-Way Wireless Accessories and Adapters for Touch Panels...

  • Page 43: Specifications

    Specifications AXR-WAVES Figure 39 shows the AXR-WAVES. The specifications are in Figure 40. Figure 39 AXR-WAVES server AXR-WAVES specifications Figure 40 AXR-WAVES specifications Power requirement Power consumption Operating frequency Indicators Connector Enclosure Weight Dimensions WAVE 2-Way Wireless Accessories and Adapters for Touch Panels 12 VDC 100 mA 2.4 GHz (digital spread spectrum)

  • Page 44: Wav-Pk

    WAV-PK Figure 41 shows the WAV-PK. The specifications are in Figure 42. Figure 41 WAV-PK wireless power pack WAV-PK specifications Figure 42 WAV-PK specifications Power requirement Operating frequency Connector Enclosure Note Battery Weight For more information on the charge cycles available for this Dimensions battery type, see Figure 15.

  • Page 45: Wav-Pkm

    WAV-PKM Figure 43 shows the WAV-PKM. The specifications are in Figure 44. Figure 43 WAV-PKM wireless power pack WAV-PKM specifications Figure 44 Power requirement WAV-PKM specifications Operating frequency Connector Note Enclosure For more information on the Battery charge cycles available for this battery type, see Figure 15.

  • Page 46: Wav-Bp And Wav-Bpm Batteries

    WAV-BP and WAV-BPM Batteries Figure 45 shows the WAV-BP and WAV-BPM batteries. Figure 46 shows the specifi- cations. Figure 45 WAV-BP and WAV- BPM bat- teries Note To maximize the recharge life of the battery, do not com- pletely discharge the battery, and recharge the battery im- mediately after use.

  • Page 47: Wav-Lnk Wavelink

    WAV-LNK WaveLink Figure 47 shows the WAV-LNK transceiver and Figure 48 shows the specifications. Figure 47 WAV-LNK WaveLink WAV-LNK specifications Figure 48 Power requirements WAV-LNK specifications Power consumption RF Frequency Enclosure Connector Enclosure Weight Dimensions WAVE 2-Way Wireless Accessories and Adapters for Touch Panels 12 VDC 100 mA 2.4 GHz digital spread spectrum...

  • Page 48: Wav-Pm Power Module

    WAV-PM Power Module Figure 49 Shows the WAV-PM Power Module and Figure 50 shows the specifica- tions. Figure 49 WAV-PM Power Module WAV-PM specifications Figure 50 Output voltage WAV-PM specifications Output current Input voltage Recommended power supply Weight Dimensions Enclosure Connectors Options Specifications...

  • Page 49: Overview

    Contacting Sales and Technical Support Overview Customer service and satisfaction is our highest priority here at Panja Incorporated. If you are experiencing any problems or have a question about your product, please contact Technical Support or your regional Sales and Support Team for assistance. U.S.

  • Page 50: Panja International Offices

    Other Panja contacts Figure 53 Other Panja contacts: Special Projects, Synergy and Interna- Special Projects tional Team contacts Synergy International Team Panja International Offices Figure 54 lists Panja International offices. Panja International Offices Figure 54 Panja International Offices Panja Singapore Panja Canada - Calgary Panja Canada -...
  • Page 51 Figure 55 lists the contact numbers for Technical Support Technical Support Figure 55 Technical Support U.S. and Canada (Dallas Office) U.S. East Coast region (Philadelphia office) Technical Support BBS WAVE 2-Way Wireless Accessories and Adapters for Touch Panels If you are having a problem with hardware firmware version you are using, what you were doing when the problem occurred, and any troubleshooting you've tried (if any).
