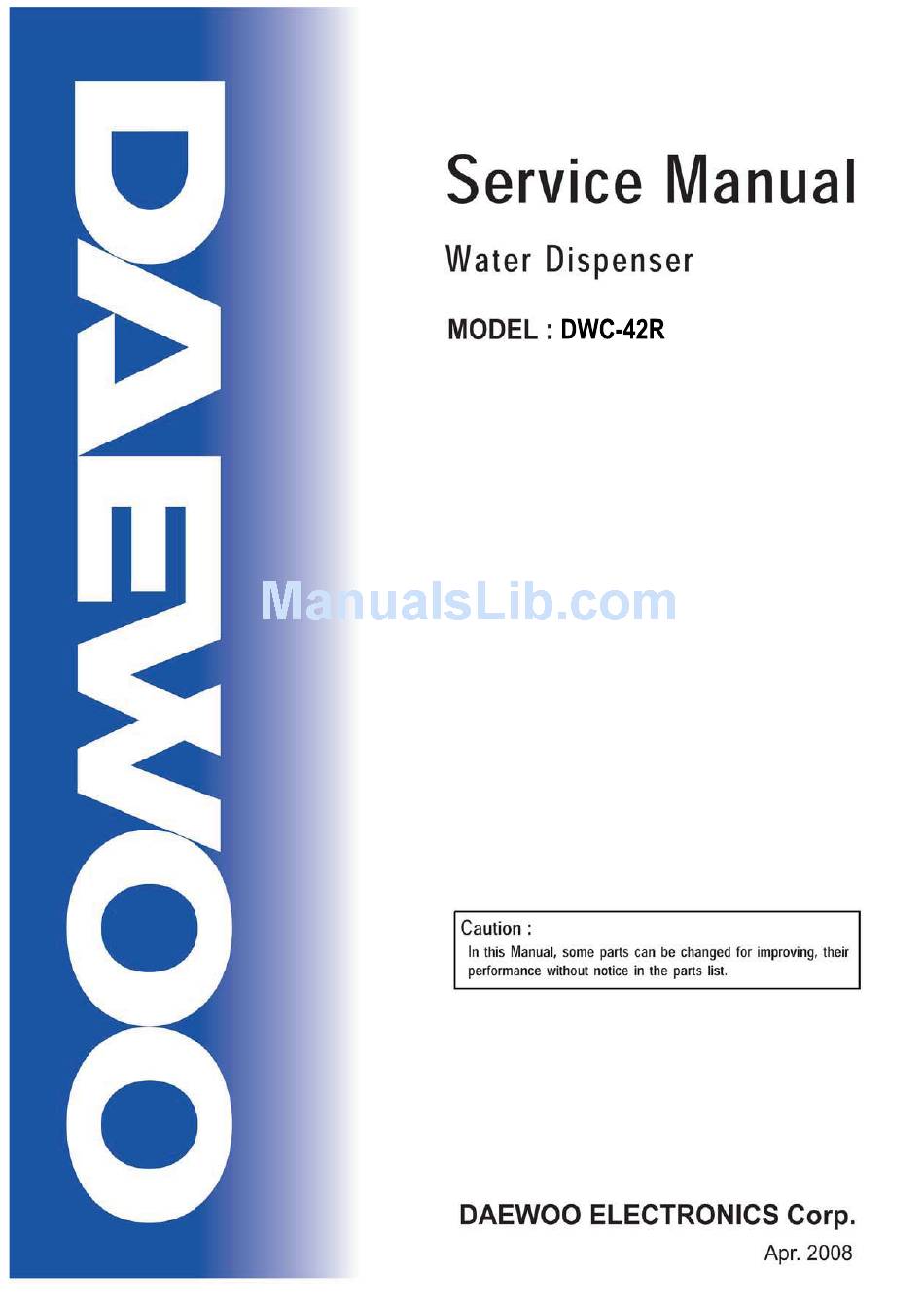

Daewoo DWC-42R Service Manual
  1. Manuals
  2. Brands
  3. Daewoo Manuals
  4. Water Dispenser
  5. DWC-42R
  6. Service manual
Daewoo DWC-42R Service Manual

Daewoo DWC-42R Service Manual

Water dispenser
Hide thumbs Also See for DWC-42R:
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

See also: Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWC-42R and is the answer not in the manual?

Questions and answers

Related Manuals for Daewoo DWC-42R

Summary of Contents for Daewoo DWC-42R

  • Page 2: Important Safety Notice

    IMPORTANT SAFETY NOTICE The information in this service guide is intended for use by individuals possessing adequate backgrounds of electrical ,electronic and mechanical experience .Any attempt to repair a major appliance may result in personal injury and property damage .The manufacture or seller cannot be responsible for the interpretation of this information ,nor can it assume any liability in connection with its use.

  • Page 4: Parts List

    PARTS LIST ITEM PART CODE NAME ITEM PART CODE NAME HWD-1 HWD-21  Water holder  Fix board 1 HWD-2 HWD-22  Top cover  Door axis 2 HWD-3 HWD-23 Cold tank Door holder HWD-4 HWD-24 Hot tank Rubber HWD-5 HWD-25  Compressor  Bottom board HWD-6 HWD-26 Silica gel tube...

  • Page 5: Circuit Diagram

    CIRCUIT DIAGRAM FUNCTION Heating System: Theory : The stainless steel heater is directly touched with the water in the hot tank ,and let the water hot .
  • Page 6 Hot Water Tank: Power : 500W-600W The Water Temperatue : 8 5-95 Hot Water Tank Material : SUS304 Hot Water Tank Capacity : 5.0L/hour Temperature Control : Thermostat (Chinaware) Cooling System: Theory : The compressor changes the refrigerant between liquid and vapour ,and let the water and refrigerator cool .

  • Page 7: Troubleshooting

    ROUBLE SHOOTING PROBLEM PROBLEM ANALYSIS SOLUTION The power off Plug the power plug tightly The heating switch off Turn on the heating switch Connection terminal loose Fix the connection terminal No hot water Heating thermostat failure replace the thermostat Temperature control I failure Replace temp control The heater short circuit or open Replace hot water tank...
  • Page 8 Water tap leakag Replace wa ter tap Supporter leakage Replace it The bottle leakage Replace it Water tube aging and leakage Replace it Water dispenser leakage Check way leakage Replace it Hot tank leakage Replace it Evaporator comes Seal the heat preservation foam condensation Leakage from purify bottle Replace purify b...
  • Page 9 DAEWOO ELECTRONICS Corp. 686, AHYEON-DONG MAPO-GU SEOUL, KOREA C.P.O. BOX 8003 SEOUL, KOREA...
