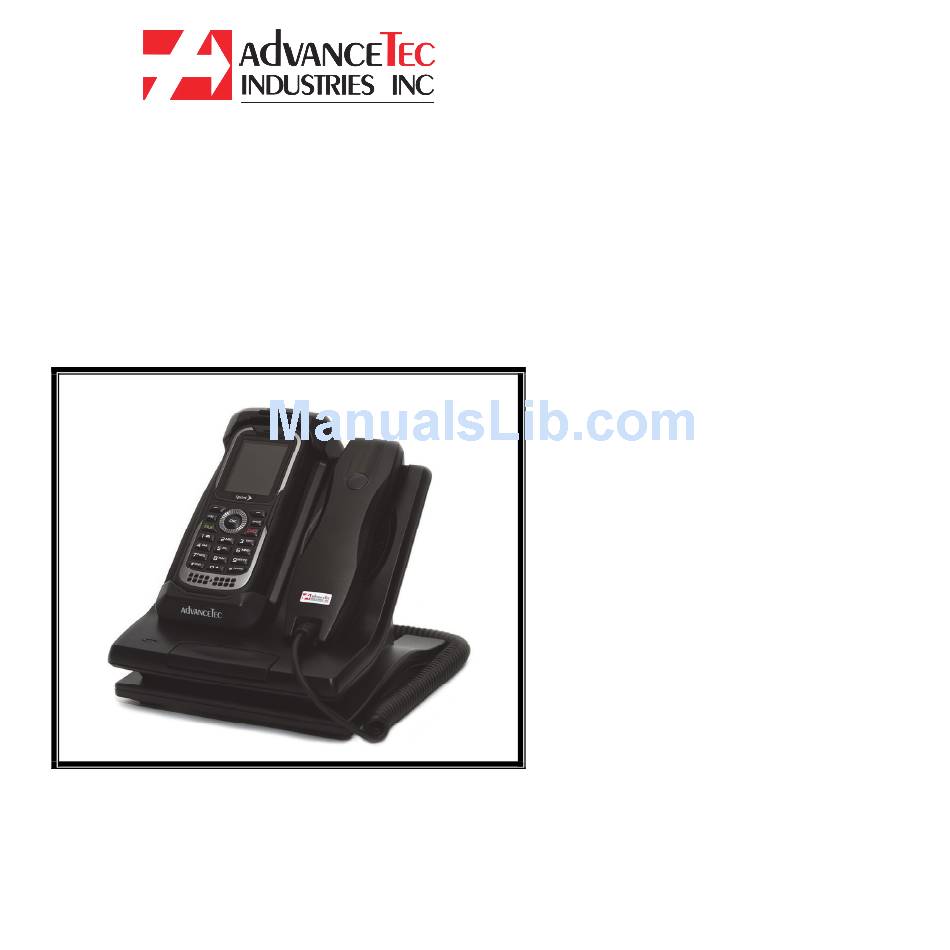

- Page 1 User Manual AdvanceCommunicator™ KYOCERA® DuraPlus™ Part # AT3082A The AdvanceTec AdvanceCommunicator™ is an accessory designed to adapt the Kyocera DuraPlus handsets into a Communications Base Station console device. Rev A 1001 ...
- Page 2 INDEX Page Details 2 Important Phone Settings 3 Replacing phone contact plate 3 Setting up AdvanceCommunicator™ 4 Installing phone into AdvanceCommunicator™ 4 Making and receiving calls in Hands‐ ...
- Page 3 NOTE: To enable the phone to latch into the cradle it is necessary to remove and replace the contact plate on the back of the phone as follows: Phone Contact Plate Diagram 1 1. Remove the 2 screws from the Phone Contact Plate on the back of the phone and remove the plate keeping the screws as they will be needed. 2. Replace the Phone Contact Plate with the Ridged Plate (see below) supplied and screw into place into the back of the phone with the screws removed from the Phone Contact Plate. Ridged plate P/N AT8434A Diagram 2 Setting up the AT3082A AdvanceCommunicator™ 1. Place the AdvanceCommunicator™ in a convenient position within easy reach of an AC power outlet. 2. Attach the plug at the end of the coil cord of the handset into the corresponding RJ45 handset receptacle on the back of the AdvanceCommunicator™. 3. Plug the power supply into the wall AC power outlet and the round barrel plug at the end of the cord of the power supply into the corresponding power receptacle on the back of the AdvanceCommunicator™...
- Page 4 Installing the portable into the AdvanceCommunicator™ 1. Plug the two (2) pin connector into the corresponding socket of the left bottom side of the AdvanceCommunicator™ 2 Pin into AdvanceCommunicator USB Connector Audio Connector 2. Remove the rubber protective cover from the connector receptacle covering the micro USB connector on the left side of the handset (handset facing you) and align the micro USB connector at the end on the one cable and insert the connector into the handset with the cable facing DOWN. 3. Remove the rubber protective cover from the connector receptacle covering the audio connector on the right side of the handset (handset facing you) and align the pin connector at the end of the other cable and insert the connector into the...
- Page 5 2. The voice of the person you are calling will be heard via the built‐in speaker in the AdvanceCommunicator™ 3. To receive a call in Hands‐free mode, press SEND/GREEN BUTTON on the phone or press shortly on the PTT/Space bar and speak towards the Microphone. The caller’s voice will be heard via the built‐in speaker in the AdvanceCommunicator™ 4. To end a call in hands‐free mode press the END/RED button on the phone. Making and Receiving calls via the Handset. 1. To make a call using the AdvanceCommunicator™ Handset, dial the desired number on the phone’s keypad and press SEND/GREEN button. Use the handset as you would with a regular desktop phone.
- Page 6 Summary of LED Indicators Flashing RED: Phone not connected to the Base Steady RED: Phone is connected to the Base with power OFF Steady GREEN: Phone connected with power ON Charging the battery With the portable turned off, the AdvanceCommunicator™ will charge the battery to 60% in approximately 1 hour. The charge time will be longer if the portable is operational during charge time. NOTE: Batteries of the portable will charge within the temperature window of ‐10 C to +40 C (50 F to 104 F). If the battery is outside this temperature window, no charge current will be supplied to the battery. ...
- Page 7 2. Headset ‐ Part # AT8421A 1. To use the Headset with the AdvanceCommunicator™ unplug the privacy handset supplied with the unit (and remove it from its cradle) and plug the RJ45 connector of the Headset into the corresponding RJ45 receptacle back the AdvanceCommunicator™ 2. Once connected, audio will be transferred to the Headset. 3. PTT calls can be made with the PTT/Space Bar or the PTT button on the cable on the Headset. 3. Foot Pedal ‐ Part # AT 8400A (with Part # AT8405A) 1. To use the Foot Pedal with the AdvanceCommunicator™ unplug the privacy handset supplied with the unit (and remove it from its cradle) 2. Plug the RJ45 connector of the Y Adapter Cable (Part # AT8405A supplied) into the corresponding RJ45 receptacle on back of the AdvanceCommunicator™...
- Page 8 RJ45 receptacle on back of the AdvanceCommunicator™ 3. Plug the Headset and Foot Pedal into the corresponding RJ45 receptacles of the Y Adapter Connector. ! NOTE: If neither the headset nor Foot Pedal work, swap around the plugs into the Y Adapter Connector. 3. Once connected, the Headset and Foot Pedal will function as set out above. 1150 NW 163rd Drive, Miami, FL 33169 T: 305-623-3939 F: 305-623-3996 Toll free USA 1-800-881-8211 www.advancetec.com www.advancemobileGPS.com...
