Do you have a question about the Coinmaster 6000/Di Series 2 and is the answer not in the manual?
Questions and answers
Ever Adan Estrada
April 21, 2025

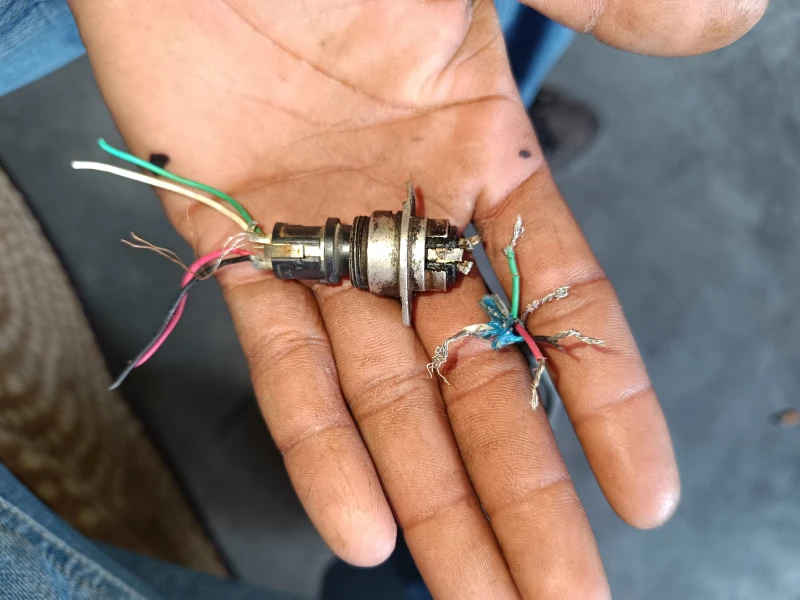

Quiero saber cómo ban conectados los cables en el conector de tablero dei detector
1 comments:
Mr. Anderson
May 11, 2025
To connect the wires to the control panel connector of the Whites Coinmaster 6000/Di Series 2 detector, follow these steps:
1. Identify the Wire Colors and Functions: Typically, the detector uses color-coded wires for different functions such as power, ground, coil signal, and speaker.
2. Open the Control Panel Housing: Carefully unscrew and remove the control box cover to access the internal connector block.
3. Locate the Connector Block: Find the terminal strip or plug-in connector where the wires from the search coil and battery pack connect to the control board.
4. Connect Each Wire to Its Terminal: - Match each wire color with the corresponding terminal based on the detector’s wiring diagram. - Secure wires firmly using terminal screws or plug them into the correct slots if using a connector.
5. Double-Check Connections: Ensure all wires are connected securely and there are no loose strands that could cause a short circuit.
6. Reassemble the Control Panel: After confirming proper connections, reattach the control box cover.
Important: Refer to the specific wiring diagram for the Coinmaster 6000/Di Series 2 to ensure correct wire placement, as wire color and function may vary.
If the diagram or wire color coding is not available, do not attempt connection without proper identification to avoid damage.
This answer is automatically generated
