Summary of Contents for Vooni VIR810

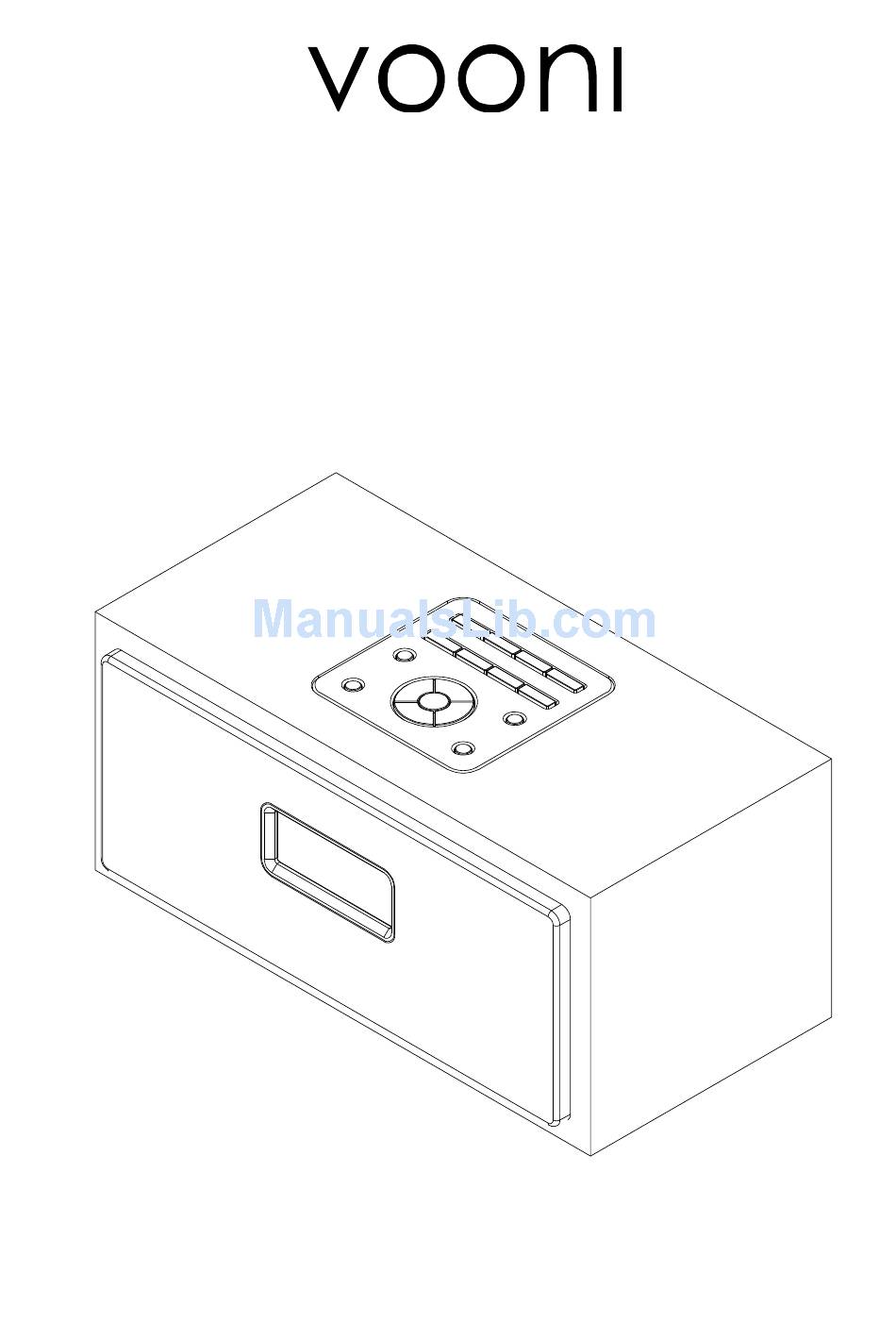

- Page 1 I n s t r u c t i o n M a n u a l V I R 8 1 0 D A B+ /F M /I n t er n e t R a d i o...
- Page 2 Safety Information 9. Do not defeat the safety purpose of the polarized or grounding - type plug. a polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong.
-
Page 3: Table Of Contents
Contents Safety Information Package Content Internet Radio Quick start Guide What you need before you can use your Internet Radio ............3 Front and Back Overview ....................4 Top Overview ........................6 Setup Wizard ........................7 How to Access a Station through Podcasts ................ 11 How to Get Access Code .................... -
Page 4: Safety Information
Package Content Main unit remote control AC-DC Adapter Instruction Manual... -
Page 5: Internet Radio Quick Start Guide
Internet Radio Quick start Guide What you need before you can use your Internet Radio Thanks for your buying! Before use it, you need to know followings: LAN Setting: Make sure the internet environment is ready and the network settings is available for LAN (ADSL or Cable Modems is highly recommended). -
Page 6: Front And Back Overview
Front and Back Overview Unit Front Overview Unit Back Overview... - Page 7 Remote Control...
-
Page 8: Top Overview
Top Overview Keys mode MODE Press to convert among Internet, Music player, DAB+, FM and AUX IN mode in turn STANDBY/ON Press to turn on/off Radio (Or when alarm is coming, press to put alarm off.) All mode: ... -
Page 9: Setup Wizard
Setup Wizard Step 1 - Power up 1. Connect to your Internet Radio adapter and ensure the power LED is lighting up. 2. In use, it can be switched on or off by pressing STANDBY/ON. For initial use, it will ask you ‘Setup wizard’. -
Page 10: Access Wireless Network
cycle through the alpha-numeric character list, press to select an appointed Press character. Note: WEP/WPA pass codes are case-sensitive. If you make a mistake while entering your password, select ‘ ’ to delete a character. a.>... -
Page 11: Local Stations
Local Stations Note: make sure your radio already successfully connected to network. 1. While cursor point to < Station list >, and then press to confirm. 2. Press to < Local China >, and then press to confirm. ... -
Page 12: Connecting To Wired Network
Connecting to Wired Network Step 1 – Choose LAN Setting Note: a. make sure LAN cable connecting to LAN socket already. 1. Press MENU, and then press to ‘Main Menu’, press to confirm. 2. Press to < System settings >, press to confirm. -
Page 13: How To Access A Station Through Podcasts
How to Shift to Wireless Network Note: to make this order works, you can either do a ‘factory reset’, or follow below steps: 1. Refer to previous page ‘choose LAN setting’ steps 1-4, press to < Wireless >, press confirm. -
Page 14: Add Station To 'My Favourites
Add Station to ‘My favourites’ 1. Visit website: http://www.wifiradio-frontier.com 2. Click on the register link. 3. Create account login, enter Access code is required, for how to get this code, please check previous page. Note: want to member login? Therefore save your registered ‘Email address’ and ‘Password’. ... -
Page 15: Add Station To 'My Added Stations
Add Station to ‘My Added Stations’ Even though the Internet radio portal contains thousands of stations, you may still want to listen to stations not listed. You can add your own stations via the portal. 1. Visit website: http://www.wifiradio-frontier.com ... -
Page 16: Music Player Mode
Music player Mode Setting up a Music Server In order to have your radio play music files from a computer, the computer must be set up to share files or media. UPnP media sharing allows devices like this radio to play music from a shared media library, navigating through tag menus such as Artist, Album or Genre. -
Page 17: Dab Mode
Play Shared Media 1. Press MODE repeatedly until < Music player > is showing up. Note: Or, enter < Main menu >, and then press to < Music player >, press to confirm. 2. While cursor point to < Shared media >, press to confirm, and then step by step to your selecting Music. -
Page 18: Manual Tune
2. Once the scanning is completed, the DAB stations will be displayed in alphanumeric order. The first station in the list will be selected. Note: if no DAB signal is found in your area, it may be necessary for you to relocate your radio. Shift to another DAB/DAB+ Station 1. -
Page 19: Fm Mode
DRC (Dynamic Range Control) value You can set the level of compression about the stations to eliminate the differences in dynamic range or sound level between radio stations. Note: a. Set DRC to off indicates no compression. b. set DRC to low indicates little compression. c. -
Page 20: Setting Station Presets
To auto-searching, while frequency is showing up, press and hold or simply press press SCAN Note: a. To ‘auto-searching’ the next active station, repeat the above step 3. b. The unit will display the frequency changing until it stops on the next station. Scan Setting ... -
Page 21: Aux In Mode
AUX IN Mode 1. Press MODE repeatedly until < AUX in > is showing up. Note: Or enter ‘Main Menu’, and then press to < AUX in >, press to confirm. 2. Through a cable connection, your radio can be transformed into a high quality digital audio speaker system. -
Page 22: General Operation
General Operation Return to Main Menu Press MENU, and then press to < Main menu >. Or, you can move back to radio’s top-line < Main menu > at any time by pressing repeatedly. Adjust Volume Level ... -
Page 23: Setting Alarm
Setting Alarm Note: Setting Alarm, make sure setting time at first. 1. It can be activated by pressing ALARM directly, or via press MENU < Main menu > < Alarms >, press to confirm. 2. Press ... -
Page 24: System Settings
System Settings Equaliser Note: Several preset EQ modes are available; also a user-defined setting through ‘My EQ profile setup’. 1. It can be activated by pressing MENU < Main Menu > < System settings > < Equaliser >, press to confirm. -
Page 25: Language
Language 1. It can be activated by pressing MENU < Main menu > < System settings > < Language>, press to confirm. 2. Press to your selecting one, and then press to confirm, it is done! Factory Reset A factory reset resets all user settings to default values, so time/date, network configuration and presets are lost. -
Page 26: Enter Setup Wizard
Enter Setup wizard When this unit is started for the first time, it runs through a setup wizard to configure settings for date/time and network. Once this has finished, the system is ready to use in most modes. 1. To run the setup wizard again, the path is: press MENU Main menu System settings Setup wizard ... -
Page 27: Troubleshooting
Troubleshooting If you experience any trouble with your wireless Internet Radio, then you may find it useful to visit the help section on our webpage: http://www.wifiRadio-frontier.com If you have trouble connecting the Radio to your wireless network, these steps may help to resolve the problem: 1.
