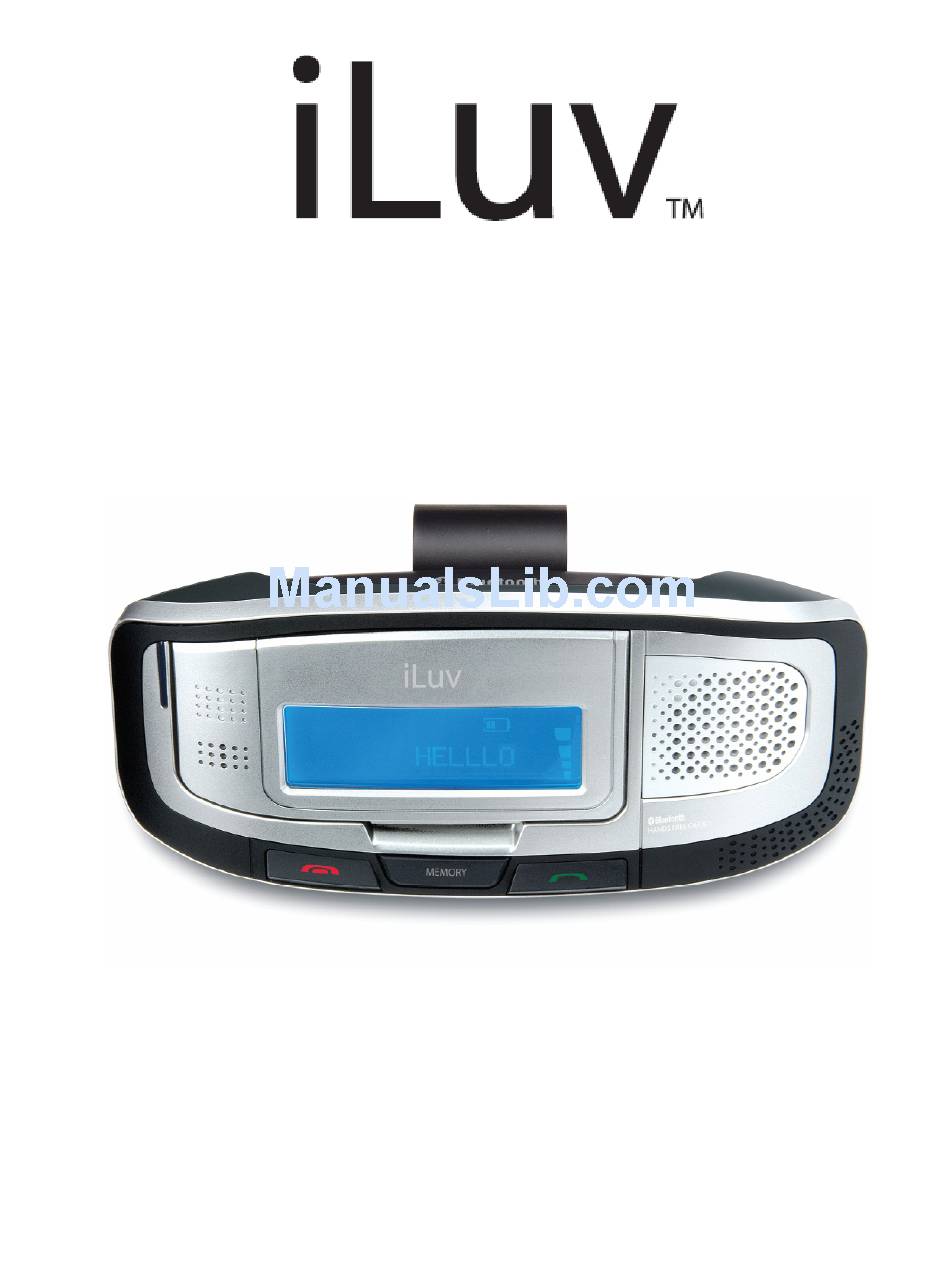

Page 1: Bluetooth Wireless Technology
Auto Speaker Phone with ® Bluetooth Wireless Technology Instruction Manual i322 Please read this manual carefully before operating and save it for future reference. Have a question? Please visit http://www.i-Luv.com... -
Page 2: Important Safety Instructions
Auto Phone w/ Bluetooth technology USER SAFETY GUIDE INSTRUCTIONS ON ENVIRONMENT PROTECTION Do not dispose of this product in the usual household garbage at the end of its life cycle; bring it to a collection point for the recycling of electrical and electronic appliances. This symbol on the product means the instructions for use or the packaging will inform about the methods of disposal. -
Page 3: Fcc Notice (Usa)
Auto Phone w/ Bluetooth technology USER SAFETY GUIDE Important Safety Instructions-Continued sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. 7. Power sources – The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. -
Page 4: Industry Canada Notice To Canadian Users
Auto Phone w/ Bluetooth technology USER SAFETY GUIDE FCC Notice (USA)-Continued communications, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •... -
Page 5: Additional Safety Instructions
Auto Phone w/ Bluetooth technology USER SAFETY GUIDE Additional Safety Instructions • When not in use, keep your device in a safe place where it will not be bent or crushed. • Keep this device away from children. Some small and detachable parts might be swallowed by children and result in harm to them. - Page 6 Auto Phone w/ Bluetooth technology USER SAFETY GUIDE IMPORTANT NOTES ON HEARING Your hearing is very important to you and to us. We strongly recommend you to follow the guideline below in order to prevent possible damage to or loss of hearing. Hearing experts caution that listening to loud sounds can damage hearing over time.
-
Page 7: Table Of Contents
Auto Phone w/ Bluetooth technology TABLE OF CONTENTS GETTING STARTED Introduction. …..………..……………………………………… 7 What’s Included in the Package…………………………..… 8 What is Bluetooth wireless technology? ... 8 Location of Controls…………………………………………… 9 Reading the LCD Screen… …………………………………… 10 Charging the Speaker Phone Unit…………………………… 11 Turning on the Speaker Phone………………………………... -
Page 8: Getting Started
GETTING STARTED Auto Speaker Phone with Bluetooth Wireless Technology Thank you for purchasing the i322 from iLuv. This speaker phone has been designed for mobile phone connection using Bluetooth wireless technology. Please keep this manual in a safe place for future reference. -
Page 9: What's Included In The Package
Auto Phone w/ Bluetooth technology V10M10_IM_EN_10012007 GETTING STARTED What’s included in the package? • Speaker Phone unit • Clamp • Car Charger • Instruction manual • Warranty card What is Bluetooth wireless technology? Bluetooth wireless technology is a short-range wireless communication technology intended to replace the cables connecting electronic devices while maintaining the high level of security. -
Page 10: Location Of Controls
Auto Phone w/ Bluetooth technology GETTING STARTED LOCATION OF CONTROLS 1. Clamp 3. TALK button 5. HOTLINE button 7. Microphone 9. JOG button V10M10_IM_EN_10012007 Front view Bottom view 2. Speaker 4. END button 6. LCD display 8. Earphone jack 10. Mini USB Charging Port - 9 - www.i-Luv.com... -
Page 11: Reading The Lcd Screen
Auto Phone w/ Bluetooth technology GETTING STARTED Reading the LCD Screen 1. Bluetooth Indicator 3. Call Activation Indicator 5. Received Signal Strength Indicator (RSSI) 6. Status Display V10M10_IM_EN_10012007 1 2 3 4 2. MIC Mute Indicator 4. Battery Status Indicator 7. -
Page 12: Charging The Speaker Phone Unit
Auto Phone w/ Bluetooth technology GETTING STARTED Charging the Speaker Phone Unit Fully charge the speaker phone unit by connecting the car charger to the mini- USB port on the bottom right side of the i322. Turning on the Speaker Phone The LCD screen is on a hinge allowing it to fold in and out. -
Page 13: Pairing The Speaker Phone
Auto Phone w/ Bluetooth technology GETTING STARTED Pairing the Speaker Phone The i322 will enter Pairing mode immediately after the unit is turned on and will remain in Pairing mode for 60 seconds. 1. If the 60 second period when the i322 is automatically in Pairing mode or if the Pairing mode manually ended, press and hold the END ( enter (re-enter) the Pairing mode. -
Page 14: Operational Instructions
Auto Phone w/ Bluetooth technology OPERATIONAL INSTRUCTIONS Menu Mode Please ensure that the unit is unpaired while using the MENU MODE. 1. Press and hold the JOG (+/-) button until MENU MODE appears on the LCD screen. 2. Move the JOG (+/-) button left and right to find the desired finction (RING TONE, PHONE BOOK, HOTLINE). -
Page 15: Storing Numbers In The Phone Book
Auto Phone w/ Bluetooth technology OPERATIONAL INSTRUCTIONS Storing Numbers in the Phone Book 1. In the Menu Mode, move the JOG (+/-) button left or right until PHONE BOOK appears on the LCD screen. 2. Once the Phone Book is located, press down the JOG (+/-) center button. 3. -
Page 16: Downloading The Phone Book
Auto Phone w/ Bluetooth technology OPERATIONAL INSTRUCTIONS Storing Numbers in the Phone Book-Cont. 10. Once the name is chosen, press and hold the JOG (+/-) until the words SAVED NAME appear briefly on the LCD screen. 11. You will automatically exit the Phone Book menu once a number and name have been saved. - Page 17 Auto Phone w/ Bluetooth technology OPERATING INSTRUCTIONS Downloading to the Phone Book-Cont. 5. When the i322 has established connection with your mobile phone, the word CONNECTED will appear on the LCD screen. 6. The desired number will send automatically and the word DOWNLOADING will appear on the LCD screen.
-
Page 18: Storing Numbers In The Hotline
Auto Phone w/ Bluetooth technology OPERATING INSTRUCTIONS Storing Numbers in the Hotline The Hotline function is for numbers to dial in case of an emergency (close relative or friend). 1. While in the Menu mode, move the JOG (+/-) left or right until HOTLINE appears on the LCD screen. -
Page 19: Making A Call
Auto Phone w/ Bluetooth technology OPERATING INSTRUCTIONS Making a Call • There are four (4) ways to make a call using the i322: Last Number Redial; Number Dial (from Phone Book); Voice Recognition Dial; and Hotline Dial. Note: If the paired Bluetooth phone moves beyond connection range (33 ft.), the i322 must be turned off and turned on again to re-establish the Bluetooth connection. -
Page 20: Receiving A Call
LCD screen. 3. If the caller’s name has not been stored in the Phone Book, the telephone number will appear on the LCD screen. 4. Push the TALK ( Adjusting a Volume When on an active call, move the JOG (+/-) left and right buttons to adjust the volume level. -
Page 21: Muting The Microphone
Auto Phone w/ Bluetooth technology OPERATING INSTRUCTIONS Muting the Microphone 1. When on an active call, press the JOG (+/-) center button, the microphone will be muted and other part can not hear you. 2. To end the mute function, press JOG (+/-) center button one time again. -
Page 22: Troubleshooting Guide
Auto Phone w/ Bluetooth technology TROUBLESHOOTING GUIDE 1. The Speaker Phone does not work with my mobile phone. Be certain that your mobile phone is equipped with Bluetooth wireless technology. This speaker phone will only work with such mobile phones. 2. -
Page 23: Specifications
Auto Phone w/ Bluetooth technology SPECIFICATIONS • Bluetooth spec. v2.0 compliant • Headset, Hands-free, Object Push • Bluetooth Class ll • Typically 8 hrs Talk Time • Typically 200 hrs Stand-by Time • Rechargeable Lithium Polymer Battery V10M10_IM_EN_10012007 Profiles supported - 22 - www.i-Luv.com... - Page 24 FAX: 516-626-7105 website: www.i-Luv.com iLuv is a trademark of jWIN Electronics Corp. Features and specifications are subject to change without prior notification. iPod is a trademark of Apple Computer, Inc. The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc.
