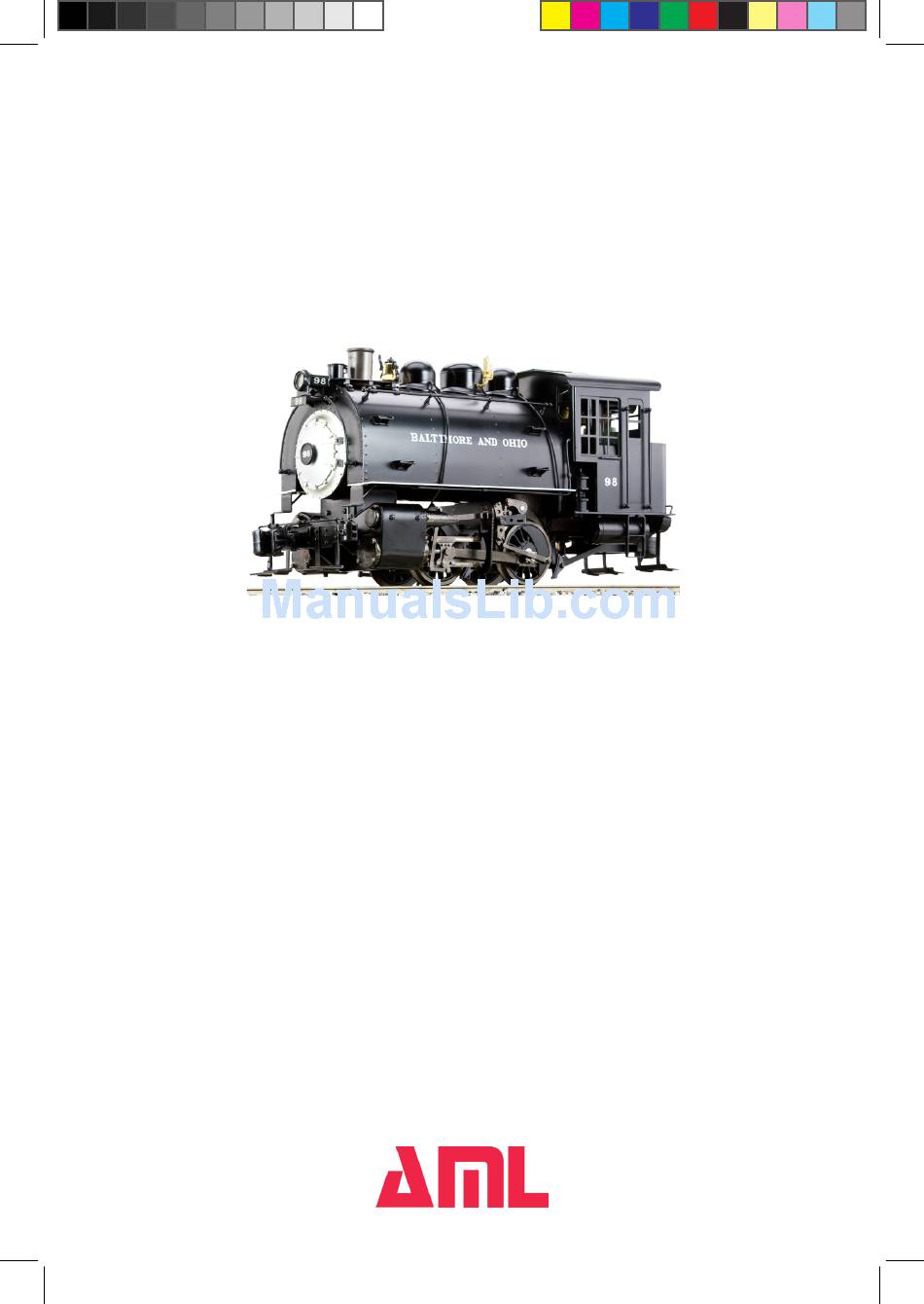

- Page 1 Instruction Manual B&O 0-4-0 DOCKSIDE Live Steam...
- Page 2 B&O 0-4-0 DOCKSIDE LIVE STEAM AML is proud to offer the famous B&O “DOCKSIDE” of the Baltimore Water- front. Four switchers were built in 1912 by Baldwin for the B&O. Initially con- structed as saddle tank engines, some were given tenders in later years. The diminutive size and short wheelbase were required to handle the tight curves of these lines.
- Page 3 B&O 0-4-0 DOCKSIDE LIVE STEAM GENERAL HINTS: As with operating all machinery, whether it is a model or full size, wear will occur. In the model steam locomotive much can be done to help prolong its life and decrease the amount of time required in the workshop for servicing. Keep the engine as clean as possible, and the motion free from dirt and garden debris.
- Page 4 B&O 0-4-0 DOCKSIDE LIVE STEAM using a thread sealant sparingly on the threads. Ensure it is tightened up firmly. Replace the assembly into the burner and re-connect the pipe to the control valve. Ensure this is done up tightly, test CAREFULLY with a flame and the gas “just on,”...
- Page 5 B&O 0-4-0 DOCKSIDE LIVE STEAM LIGHTING UP: Open the smoke box door; just pull it open by the door handle. Light your lighter/match etc., and gently open the gas control valve until a gentle hiss is heard in the burner. Apply your light into the smoke box and the flame should ‘pop’...
- Page 6 B&O 0-4-0 DOCKSIDE LIVE STEAM After a minute or so, remove the cloth and continue running. In running it is correct practice to balance the boiler pressure against the load being pulled and track conditions. With a light load and level track the pressure may need to be only 25-30 p.s.i.
- Page 7 B&O 0-4-0 DOCKSIDE LIVE STEAM Technical Specifications Feature: Butane fuel, Single flue gas fired copper boiler. Safety valve, Throttle, Pressure gauge, Piston valve with reversing valve. Scale: 1:29 Scale, 45 mm Gauge Minimum Radius: 30.11 inch (76.5 mm) Locomotive Information: Length: 13.35”...
- Page 8 33268 Central Avenue Union City, CA 94587 Tel: 510-324-3399 Fax: 510-324-3366 Email: info@americanmainline.com Copyright 2010...
