Summary of Contents for Toyhouse Daisy

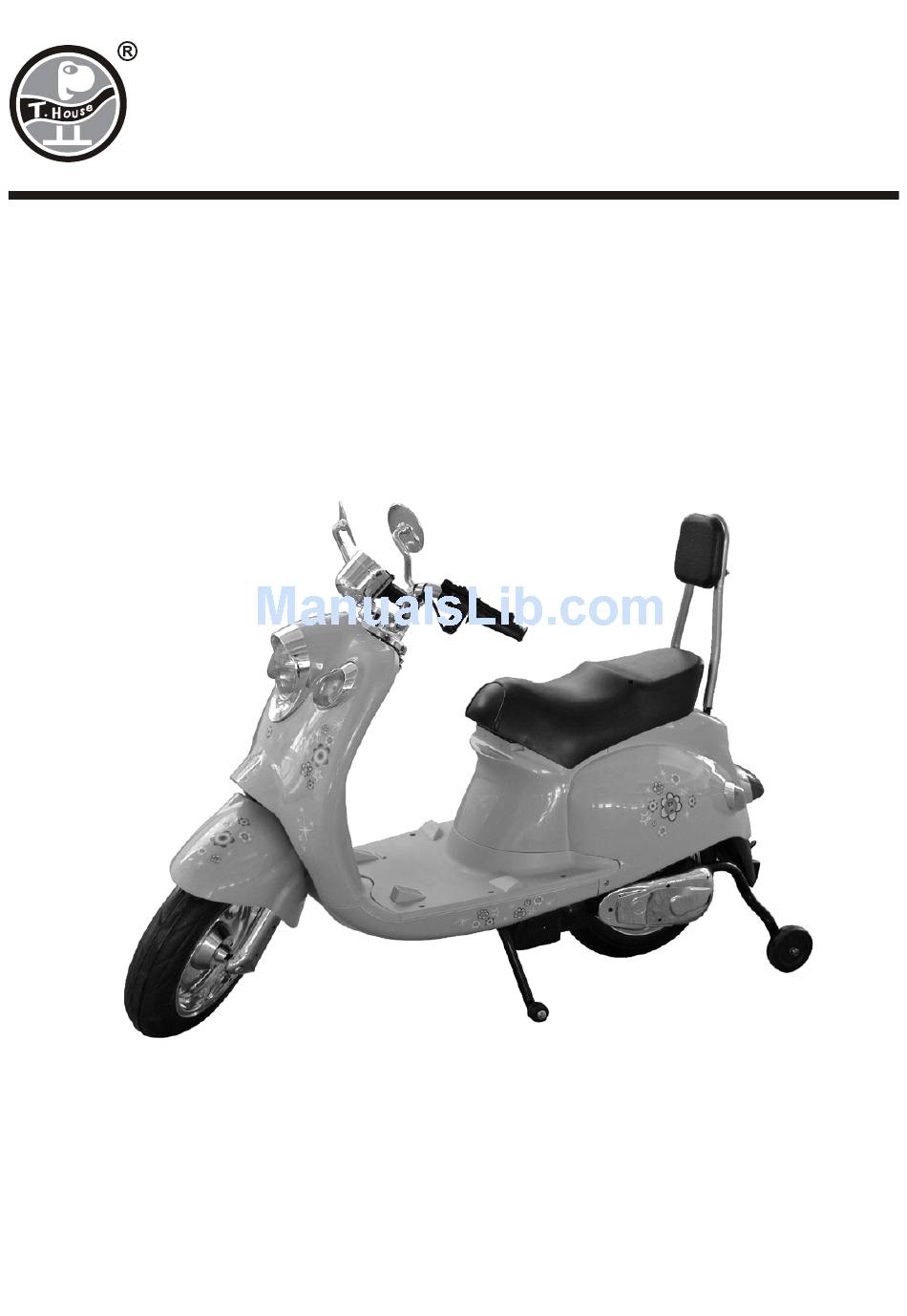

- Page 1 TOYHOUSE User's Manual DAISY SCOOTER Item Code: 158900 Please read this manual carefully before assembly and use!
-
Page 2: Riding Instructions
RIDING INSTRUCTIONS 1.To move forward, press the left hand switch to'F'and press the right hand foot pedal. 2.The speed can be restricted by setting the right hand switch to'low'. Maximum Speed: 6km/h. 3. To reverse, switch the left hand switch to'R'and press the right hand foot pedal. 4. - Page 3 ASSEMBLY ATTENTION: This toy must be assembled by adults only. 1.Carefully unpack and identify all parts - see parts below. A. Vehicle Body G.Lock Washer x2 B. Handlebar H. Nylon Nut x2 & larger M 19x1 C. Left/Right Front Wheel Covers I.
- Page 4 2. Take the Vehicle Body (A), see Fig.1. Fig. 1 3. lnsert the Front Fork (F) into the Vehicle Body (A), see Fig.2. NOTE: Fig. 2 - Ensure of 'V' arrow on the stem points towards the rear of the vehicle body. 4.
- Page 5 8. Feed the Front Axle (l) through the Wheel (D). On both sides of the axle, slide a Sleeve (K), see Fig.8. Fig. 8 9. Slide this assembly part between the Front Forks (F), see Fig.9. 10. Secure this in place by fitting a Lock Washer (G), followed by a small Washer (J) and then a Nylon Nut (H), on both Fig.
-
Page 6: Charging The Battery
Battery connector Charger DC joint 14. Fit the motor connector plug to the battery connector plug, see Fig.13. 15. Replace the saddle. CHARGING THE BATTERY ATTENTION: The charger is not a toy and must only be used by an adult. Power input: AC 230V - 240V. -
Page 7: Maintenance
MAI NTENANCE Regularly check the conditions of the vehicle, particular the steering column, electrical installation and check that all wearable parts are sound. CLEANING The surface of the vehicle should be cleaned with a damp cloth; only an adult should do this. TROUBLE SHOOTING 1. - Page 8 Information on Waste Disposal for Consumers of Electrical & Electronic Equipment This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment (WEEE). Any WEEE marked waste products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.For proper treatment, recovery and recycling;...
