  • Page 1: User Manual

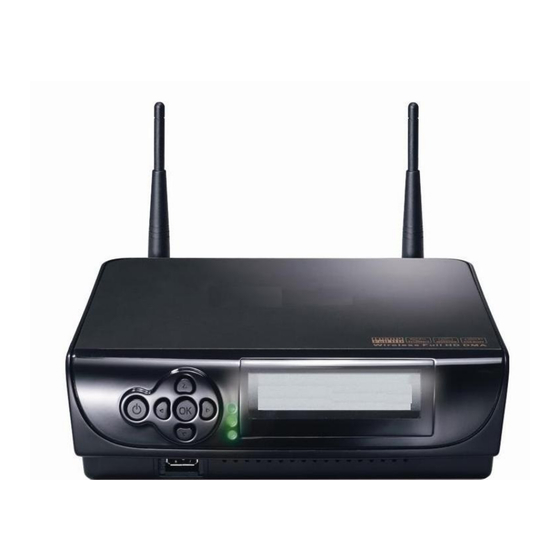

    MediaGate MG-800HD User Manual MediaGate USA Inc. Version v 1.0 MediaGate USA Inc.

  • Page 2: Table Of Contents

    About This Manual …………..……..………………..…………………………6 Safety Information ……………………............6 Chapter 1 Basic Setup……… ………............7 Package Contents ………..………………………………………7 What You Need to Connect the MG-800HD...………………..7 Hardware Overview ……………………………..……………….8 Using the Remote Control …………………………..……….….9 Install MG-800HD…………………………………………………11 Connecting MG-800HD …………………………………………..11 Video and Audio Connections ………………………………11 Network Connections…………………………………………12 Set Up MG-800HD………………………………………………..13...
  • Page 3 Importing Media……………………………..…………………….37 System Tab ……………………………………………………….39 Change MediaGate Sever Name as You Like ……………..39 DMA Setup ……………………………………………………40 Options Tab ……………………………………………………..40 Chapter 4 Play Media through other Protocol ………………………42 NFS Protocol…………………………………………………………..42 Through MG-800HD On-screen menu………………………….42 Through MediaGate DMS software……………………………..44 Samba Client Protocol ………………………………………………..46 Chapter 5 Play Multimedia Files …………………………………………49...
  • Page 4 Chapter 8 Hard Disk Installation And Setup ……………………….93 HDD Installation………………………………………………………93 MG-800HD HDD Format Wizard …………………..……………….95 Copy Files from USB Storage Device MG-800HD (Local HDD)…97 Copy/Delete Files from PC to MG-800HD (Local HDD) …………99 Through MediaGate Media Server Software………..………99 Through Samba Server ………………………………..……102 Chapter 8 Miscellaneous Setting ………………………………….….106...
  • Page 5 Video Setup …………………………………………………………109 Other Settings ………………………………………………………110 Hard Disk Share Setup …………………………………………….111 Chapter 9 Trouble Shooting & FAQ ……………………………………..111 Trouble Shooting ……………………………………………………113 FAQ …………………………………………………………………..116 MediaGate USA Inc.

  • Page 6: About This Manual

    About this Manual The MediaGate MG-800HD User Manual gives you a step-by-step explanation of how to set up and configure the MG-800HD Media Player This Manual is provided in PDF format on the MediaGate DMS CD. Your computer must have the free Adobe Acrobat Reader installed in order to view and print PDF files.

  • Page 7: Chapter 1 Basic Setup

    Power cable, localized to country of sale Category 5 (CAT5) Ethernet cable Composite (CVBS) Video cable and Audio cable MG-800HD Installation CD, including MediaGate MG-800HD User Manual in PDF format 4 Screws (for HDD) What You Need to Connect the MG-800HD...

  • Page 8: Hardware Overview

    Hardware Overview Navigation Button LCD Window; 16x2 Characters LED Indicator Power On/Off Button USB Host (1) Power (2) HDD Fig. 1-1 Front View (3) Network Wi-Fi Antenna (Optional) Video Out/CVBS Power Adapto Ethernet Client USB Host HDMI SPDIF/Optical SPDIF/ Coaxial Audio Out/Stereo Fig.

  • Page 9: Using The Remote Control

    Using Remote Control Use the remote control to navigate menus, and to select and watch videos, listen to music, or view photos on your television. 20,21, 22,24 MediaGate USA Inc.
  • Page 10 Go to the Menu of DVD films. Set/Cancel A-B repeat mode. SLOW Slow forward / backward the media with speed 1/2x, 1/4x,1/8x… ZOOM Zoom video or photo. 1. Video & Music: Repeat current file or Repeat all files in this REPEAT folder or cancel repeat function.

  • Page 11: Install Mg-800Hd

    Install MG-800HD Following descriptions explain how to install the MG-800HD with basic setup. Install your MG-800HD in this order: 1. Connect MG-800HD 2. Set Up MG-800HD 3. Install software on your computer with MediaGate DMS CD 4. Configure your MediaGate DMS Server to work with the MG-800HD...

  • Page 12: Network Connections

    Turn on the TV. Set the video sources selector on your TV to match the connection from your MG-800HD. For example, if you used HDMI, set the TV to use “HDMI” Input 1. Turn on MG-800HD. The LED on the front panel of the MG-800HD lights up to show that it is powered on.
  • Page 13 Main Menu. If there is still no video output after the start up page appears, please make sure the MG-800HD and the TV are in the same mode. If not, please cycle through the “Output”...

  • Page 14: Wired Network Setup

    5. Select Wired or Wireless Network for MG-800HD to set up. Wired Network Setup 1) Press “Setup” hotkey on the remote control or select “SETUP” mode from The Main Menu. 2) Select Network Wizard from set up main menu to start setup wizard 3) Select “Wired”...

  • Page 15: Wireless Network Setup

    DNS addresses. For more info, make reference to Honeywld DMS Wireless Network Setup If your MG-800HD is shipped with Wi-Fi antenna, you can enable network wizard for Wi-Fi function. If your MG-800HD doesn’t come with Wi-Fi antenna, you can have a Wi-Fi N USB dongle and hook it at USB host to enable the Wi-Fi funciton.
  • Page 16 4) MG-800HD displays all available networks, navigate on the menu and choose the one you want. 5) MG-800HD detects the network type automatically; click “Next” and then “Save” to apply setting. 6) If the network you choose is encrypted, a “Lock” icon displays on the network.

  • Page 17: When Wireless Network Is Hidden

    8) Input password and choose “Enter” to save. 9) Follow the onscreen instructions to complete the setting. Note: With each network, there are signal strength indicators in 3 colors; red, yellow and green. It is recommended to play high-bit-rate video only when the signal turns into green.

  • Page 18: Wireless Setup For Pc

    Wireless Setup for PC When using wireless network, after MG-800HD is set up, you have to ensure your PC is also linked with the same AP. See below to ensure the correct settings. Windows XP Mode 1. Click right button of mouse on wireless icon, and choose “ View Available Wireless Networks”...

  • Page 19: Windows Vista Mode

    3. Input network key if necessary. 4. Network is successfully connected. Windows Vista Mode Select “ Control Panel” MediaGate USA Inc.
  • Page 20 2. Click on “Network and Internet” 3. Select “Network and Sharing Center” and click on “Connect to a network” 4. Select the Access Point you want and click on “Connect”. MediaGate USA Inc.

  • Page 21: Using The Mediagate Digital Media Server (Dms)

    MediaGate Digital Media Sever (DMS) on the PC that contains the files you want to share. The MG-800HD can connect to more than one Media Server at a time and scan all the files you want to share in the same local network.

  • Page 22: Configuring Your Mediagate Dms

    3. After all are done, click “Play “button to begin service. 4. When you are finished, go to your TV. 5. Your MG-800HD is ready to use. The Main Menu is displayed. Note: MediaGate will put new version of server on the website (www.mediagateusa.com) when it is released, please uninstall the old version of DMS everytime before you install a new one.

  • Page 23: Chapter 2 Advanced Network Setup

    Chapter 2 Advanced Network Setup Connect MG-800HD to PC directly This Chapter gives you a description on how to connect the MG-800HD directly to your PC instead of the local area network. Wired Network Connect the LAN cable to the LAN port of both MG-800HD and the PC.

  • Page 24: Wireless Network Configuration Under Windows Xp

    Wireless Configuration Under Windows XP Wireless Network Configuration 1. Click right button of mouse on wireless icon and select “View Available Wireless Networks” 2. Choose the wireless network you want and click “Connect”. MediaGate USA Inc.

  • Page 25: Ad-Hoc Mode Settings

    Note: Some firewall and anti-Virus tools will forbid “UPnP” protocol. This will affect the connection between “MediaGate DMS” and MG-800HD. It is suggested to allow “MediaGate DMS” pass through your firewall or temporarily turn off your firewall when you are using MG-800HD.
  • Page 26 Select “Computer-to-compute (ad-hoc) mode” networks only and click on “Close” Note: Some firewall and anti-Virus tools will forbid “UPnP” protocol. This will affect the connection between “MediaGate DMS” and MG-800HD. It is suggested to allow “MediaGate DMS” pass through your firewall or temporarily turn off your firewall when you are using MG-800HD MediaGate USA Inc.

  • Page 27: Wireless Network Configuration Under Windows Vista

    Wireless Configuration under Windows Vista Wireless Network Configuration 1. Select “Control Panel” 2. Select “Network & Internet” 3. Choose “Network and Sharing Center” and cilck on “Connect to MediaGate USA Inc.

  • Page 28: Disable Firewall Under Windows Vista

    a network” 4 Select the network you want and click “Connect” 5 Computer to Computer network is done. Disable Firewall under Windows Vista MediaGate USA Inc.
  • Page 29 Some firewall and anti-Virus tools will forbid “UPnP” protocol. That will affect the connection between “MediaGate DMS” and MG-800HD. It is suggested to allow “MediaGate DMS” pass through your firewall or temporarily turn off your firewall when you are using MG-800HD.
  • Page 30 4. Click “Browse…” to browse for MediaGate DMS program Note: The default MediaGate DMS program files path is at: Computer Local Disk ( C) Program Files MediaGate. MediaGate USA Inc.
  • Page 31 Follow below steps 5~8 to search for MediaGate program files. 5. Clic k “Computer”. 6. Click “Program files” 7. Click Folders “MediaGate” MediaGate USA Inc.
  • Page 32 8. Click “DMS Server vX.XX.XX” 9. Select “DigitalMediaServer” MediaGate USA Inc.
  • Page 33 10. MediaGate DMS Server is successfully included to the exceptions. Click “OK” to finish. 11. Click “Allow” to add this program. MediaGate USA Inc.
  • Page 34 MediaGate USA Inc.

  • Page 35: Chapter 3 Media Server

    Server software (MediaGate DMS) which users can use on their option. UPnP Server The MG-800HD will automatically detect all available UPnP AV compliant content severs on boot up and list them on “My Media” page. No additional setup is necessary on the MG-800HD itself. MediaGate Digital Media Server The MG-800HD comes with Digital Media Server software that runs in a computer on your home network.

  • Page 36: Importing Media

    3. The DMS will ignore those none supported files automatically and you can see which folders had been shared from “Shared Directory” column. 4. Press “Play” button to start the file sharing service, then you can choose this server from Digital Media Player. MediaGate USA Inc.
  • Page 37 6. If there is any change in the folders that you shared, please also press “Stop Service” button first, and then press “Refresh” button to refresh the file list. Files refreshed 7. When all folders you shared are refreshed, Digital Media Server will restart automatically. MediaGate USA Inc.

  • Page 38: System Tab

    Follow below steps to change the desired name. 1. Press “Change” button then change the desired name. 2. Click “OK” to restart service with new server name. 1. Enter new name for your 2. Press “OK” Digital Media Server. MediaGate USA Inc.

  • Page 39: Dma Setup

    DMA Setup The DMA Setup has two major functions. One is to help you to add/delete your favorite internet radio/tv lists on iMedia. The other is to browse for each local HDD contents on the network and to copy/delete its files by using the MediaGate DMS Software installed on your PC.
  • Page 40 1. Check the “Enable Auto Run” box and this Digital Media Server will auto run once the Window system is up. 2. Check the “Minimized at Startup” box and this Digital Media Server will minimize to system tray when the program is invoked.

  • Page 41: Chapter 4 Play Media Through Other Protocol

    Chapter 4 : Play Media through other Protocol The MG-800HD provides other option to access media files in the network instead of Using UPnP server or MediaGate DMS. NFS protocol The NFS protocol allows the MG-800HD to access media files on NAS (Network Attached Storage) without the using of other UPnP server or MediaGate DMS server.
  • Page 42 The 192.168.2.112 is the IP address of the NAS you want to approach, and the mnt/hd_a2 is the sub folder name of your target source. (4) After the URL is saved, go back to the menu of “My Media”, and you will find the protocol at “My Media” list.

  • Page 43: Through Mediagate Dms Software

    MG-800HD in the network. (1) Start up the MediaGate DMS server installed at your PC. Choose “System Tab” and click on “DMA Setup”. (2) Highlight the MG-800HD URL in the network which you want to get into, and click “OK”. MediaGate USA Inc.
  • Page 44 (3) The browser will start after you get into the MG-800HD, click on “New Station” Key in the IP address. The URL link will appear, key in the IP address and sub-folder name which you have prepared, and click on “OK” after finish.

  • Page 45: Samba Client Protocol

    Samba Client Protocol The Samba Client allows the MG-800HD to access media files from samba shares on PCs on the network. As long as the network is linked, there is no additional set up to enable this feature. Following steps show how to access media through the Samba Client Protocol.
  • Page 46 Since sources from UPnP server or Samba client will be found at the same layer, you may have 2 different approaches of same sources at one menu list. You can compare the 2 approaches of Samba client and UPnP server to the same NAS as below. Samba client protocol UPnP Server...
  • Page 47 5. After input of username and password, you can get into your target source and select the media files you want to play. Remark The performance of high bit rate files (>30 Mbps)will has some lag through Samba Protocol, therefore we don’t suggest to play high bit rate files with this protocol.

  • Page 48: Chapter 5 Play Multimedia Files

    WMA, ASF To Play Music 1. Select “My Media” from Main Menu to enter server list, or press “Music” hotkey on remote control. . 2. All available file sources will be listed on the server list, including files stored at...
  • Page 49 MediaGate media server in your PC, at USB flash stick, at USB external Hard disk drive, local hard disk drive or at other UPnP servers. Please select the media server you want to use and press “OK” button on remote control.
  • Page 50 organized in several subfolders as on your PC. Please use “Up” and “Down” buttons on the remote control to navigate those folders, and select the option by press “OK” or “Right” button on the remote control. 5. Select the folder that contains the music files or the subfolders you want, and press “OK”, “Play”, or “Left”...

  • Page 51: Controlling Music Playback

    Controlling Music Playback Use the remote to PLAY, PAUSE, or STOPV music. Controlling the music playback will be as easy as controlling your TV set. Play and Pause Press “PLAY” button while music is playing you can pause the music by pressing “PLAY”...

  • Page 52: Repeat And Repeat All

    Fast Forward: Press “>>(FF)” button to fast forward the music file. Press several times to switch the speed. Rewind: Press “<<(REW)” button to fast backward the music file. Press several times to switch the speed. Repeat and Repeat All You can turn on the repeat function to continuously play individual music or music within a folder.
  • Page 53 The MG-800HD is capable of displaying photos and playing background music simultaneously. . Follow below steps to add music to “BGM” (Back Ground Music) list. 1. Enter music files list 2. Please use “Up” and “Down” buttons on the remote control to navigate music files, and press “BGM”...

  • Page 54: Music)

    Add music to BGM list Music added successfully 5. To play BGM files, please select “ ”button on “BGM” tool bar; to stop playing BGM, please select “ ” button. 6. To remove music files from BGM list, please select “ ”...

  • Page 55: Photos

    JPEG, JPEG, JPE, TIFF, TIF JPEG JPEG, JPG JPEG2000 JPG, JPEG, JPE TIFF TIFF, TIFF Windows Media Photo WDP, HDP To Play Photos 1. Select “My Media” from Main Menu to enter server list, or press “PHOTO” hotkey on remote control. MediaGate USA Inc.
  • Page 56 2. All available file sources will be listed on the server list, including files stored at MediaGate media server in your PC, at USB flash stick, at USB external Hard disk drive, local hard disk drive or at other UPnP servers. Please select the media server you want to use and press “OK”...
  • Page 57 If you select “MediaGate DMS”, you may select “My Folders” to view the image files that organized in several subfolders as on your PC, or select “All Images” to see all shared image files. Please use “Up” and “Down” buttons on the remote control to navigate those folders, and select the option by press “OK”...

  • Page 58: Playing A Photo Slideshow

    Note: icon is stand for a folder; icon is stand for a file. Playing a Photo Slideshow To start playing a photo slideshow (all photos in one folder), you need to press “PLAY” Button twice on the remote to enable this function. (1) Navigate to the first photo of each folder and press ‘Play”...

  • Page 59: Viewing Photo Information

    Skip to Next or Previous File: Press “Next” or “Down” buttons to skip to next video file. Press “PREV” or “UP” buttons to skip to previous music file. Viewing Photo Information Press “Info” button to get image information. Photo Viewing Effect Zoom in and Zoom Out Press “ZOOM”...
  • Page 60 3. Press “Zoom” button and press “Right” button to shrink the image Rotate: ress “Repeat” button while viewing the photo to enable rotate function. MediaGate USA Inc.
  • Page 61 View Photo in Thumbnails Mode You can view thumnails of several photos at a time. To enable the thumbnail mode, please do the following: 1. Go to “Setup Main Menu”. 2. Select “Other Settings”. 3. Choose “Thumnail” on “Photo Display Setup” Menu. 4.

  • Page 62: Video

    Video Supported Video Format The following movie format are supported Format File Extensions DivX 3 AVI, DivX DivX 4 AVI, DivX DivX 5 HD AVI, DivX DiVX 5 SD AVI, DivX DivX 6 HD AVI, DivX DivX 6 SD AVI, DivX H.

  • Page 63: To Play Video

    2. All available file sources will be listed on the server list, including files stored at MediaGate media server in your PC, at USB flash stick, at USB external Hard disk drive, local hard disk drive or at other UPnP servers.
  • Page 64 4. If you select “MediaGate DMS”, you may select “My Folder” to view the video files that organized in several subfolders as on your PC, or select “All Videos” to see all shared video files. Please use “Up” and “Down” buttons on the remote control to navigate those folders, and select the option by press “OK”...

  • Page 65: Control Video Playback

    Control Video Playback Volume Control: Press “Vole+” or “Vole-” buttons to control the volume Mute: Press “Mute” button to mute or un-mute the video. mute video un-mute video Pause and Play: Press “PLAY” button while video is playing you can pause the music by pressing “PLAY”...

  • Page 66: Viewing Video Information

    Press “>>(FF)” button to fast forward the video file. Press several times to switch the speed. Fast Forward Video Rewind: Press “<<(REW)” button to fast backward the video file. Press several times to switch the speed. Rewind Video Slow Forward Press “Slow”...

  • Page 67: Repeat And Repeat All

    While video is playing, press “ZOOM” button to enable zoom in/ zoom out function. 1. Press “Zoom” button and press “Left” button to enlarge the video screen. 2. When the video screen is larger than TV screen, press “Zoom” again and press “directions”...

  • Page 68: Subtitles And Languages

    Note: To use it, make sure that it is in the same folder as your video file and that they are both named exactly the same. Video Resume Playing The MG-800HD supports resume video playing to the previous point where the video is interrupted. The device needs to keep powered on to enable this function. MediaGate USA Inc.
  • Page 69 The default setting is that it will ask you everytime whether you want to resume the playing when you are back to the interrupted file. If you want to change the setting, please follow below instructions: (1)Go to “System Set Up “ (1) Select “Other Setting”, and highlight “Video Resume Playing”.

  • Page 70: Play Next Video Automatically

    ‘Play Next Video” to disable the function. Search Video The MG-800HD provides two options to seek the video frame. One is to seek by percentage of total file length; and the other is to seek by time. Seek by Percentage While video is playing, you can press the numeric keys on the remote control to Jump to your destination.

  • Page 71: Seek By Time

    The total time length of the file DVD Menu Navigation The MG-800HD support viewing DVD files as you are playing a DVD menu. Follow below steps to enable DVD menu navigation feature. 1. When you select a DVD file, choose the item with and press “Play”...
  • Page 72 MediaGate USA Inc.

  • Page 73: Chapter 6 Internet Media

    Follow below steps to access the radio stations: 1. Make sure your network setting is correct and be able to access internet. 2. Select “media” from main menu or press “media” button on the remote control. 3. Select “Live 365” and press “OK” button on remote control.
  • Page 74 5. Select a radio station from list, and press “OK”, “Play”, or “Left” button to play it. Note: is stand for a radio station. Live365- Playing MediaGate USA Inc.

  • Page 75: Play Internet Radio- My Radio

    1. Make sure your network setting is correct and be able to access internet 2. Select “iMedia” from main menu or press “iMedia” button on the remote control. 3. Select “My Media” and press “OK” button on remote control. 4. Select “My Radio” and press “OK” to enter.

  • Page 76: Play Internet Video- My Video

    1. Make sure your network setting is correct and be able to access internet 2. Select “iMedia” from main menu or press “iMedia” button on the remote control. 3. Select “My Media” and press “OK” button on remote control. 4. Select “My Video” and press “OK” to enter.
  • Page 77 5. There are also some internet video stations listed as default; you can select one of the stations from the list and play it. Note: is stand for a video station. Adjust the Screen Size You can press the Zoom key on the remote, and zoon in/out icon will show up.

  • Page 78: Viewing Youtube Content

    Screen reduced Viewing Youtube Content You can use the MG-800HD to view Youtube content. The Youtube content is transcoded by MediaGate DMS, and you must have a PC running the MediaGate DMS for Windows software to use this feature. To view YouTube content, follow these steps: 1.
  • Page 79 3. Select “Internet Videos” 4.Select ‘Youtube” 6. The MG-800HD list the Youtube content in 7 categories, Choose the item you will view and press “OK”. Note: The Youtube content on MG-800HD is streamed from www.youtube.com MediaGate USA Inc.

  • Page 80: Add/Delete The Internet Radio/Tv Station Lists

    Add/Delete the Internet Radio/TV Station Lists You can manager the iMedia list at the MG-800HD onscreen menu or through your computer by operating MediaGate DMS software. Through MG-800HD Onscreen Menu 1) Gets into “My Video”. 2) Press the MENU key on the remote control, the Menu list will pop up.
  • Page 81 The System tab Double click “DMA Setup” icon. Click “DMA Setup” 3. The “DMA List” menu pops up, and shows all available MG-800HD on the local network. Following is the example with 2 MG-800HD connected to the same local network.
  • Page 82 4. Choose the one you want and double click “OK” icon. 5. The browser links automatically to the IP of MG-800HD you select. This may takes few seconds based on your computer speed. MediaGate USA Inc.

  • Page 83: Bittorrent Downloader

    7. You can edit/delete list from the browser via your PC now. Go on step 3~5 if you want to manage other MG-800HD iMedia lists on the network. BitTorrent Downloader You have to install local HDD before enabling this feature. (You can make reference to Chapter 8 in how to install HDD).

  • Page 84: Add New Torrent Seed And Start Downloader

    1. Go to “iMedia” and highlight “BitTorrent” 2. Have your .torrent seed file ready at USB storage if it is the first time to add new torrent files. Insert your USB storage to the MG-800HD, Enter into “BitTorrent” Select “Add New Torrent” and press “OK”...
  • Page 85 5.Wait few seconds, and the torrent files selected will appear on the menu. (Press “Back” on the remote to return to BitTorrent menu). 6. As long as the MG-800HD is connected with network, the files will keep downloading automatically until completed.
  • Page 86 7. The .torrent files will be stored in local HDD by default. After media files download are completed, go to “My Media” and enter “HDD Disk” to browse your HDD Disk content. 8. The complete files will be stored at the “bt” folder which is the default path.

  • Page 87: Bittorrent Management

    Note: If your files are not able to play, please check if they are media files and among the formats which are supported by the MG-800HD. BitTorrent Management The BitTorrent Control Menu offers you the ability to start, stop, set priority and remove the files.
  • Page 88 Torrent” to remove the torrent files which are downloading. Remove Download Completed Files If the files have been downloaded complete, there may be some other data along with the main torrent files. You can highlight the files and press “OK” to view all the data contents.
  • Page 89 If you want to remove all the data, you can highlight the files and select “Remove BT” and remove all the data which have been stored at local HDD. Display Files Info You can press “Display” key on the remote to view the files info. Files info MediaGate USA Inc.

  • Page 90: Chapter 7 Firmware Upgrade And Reset To Default

    1. Go to “Set Up Main Menu”, Select “Version”, and choose ‘Firmware upgrade” 2. Choose “Internet Upgrade”, the system will automatically search available firmware code. 3. Follow the onscreen instructions to complete the upgrade. 4. When the upgrade is successfully finished, MG-800HD will reboot automatically. MediaGate USA Inc.

  • Page 91: Reset To Default

    Upgrade by Using USB Flash Stick As an option, MG-800HD provides you the other choice for using USB flash for updates. Follow the steps below to check for product updates: 1. Have your USB flash ready, download by PC the latest firmware from http://www.MediaGate.com.tw...

  • Page 92: Chapter 8 Hard Disk Installation And Setup

    HDD Installation MG-800HD supports 3.5” SATA HDD as internal storage with NTFS, FAT32 and EXT3 file systems. By installing the HDD inside, you can copy and delete media files via PC to local HDD. WARNING: We recommend you to format new HDD with the PC system.
  • Page 93 4. Insert the HDD into the Cover case as below direction. 5. Put the HDD on the cover and screw up the HDD firmly in the four holes. 6. Connect the SATA data cable with the MG-800HD board. SATA data cable 7.

  • Page 94: Mg-800Hd Hdd Format Wizard

    HDD Power cable 8. Close the bottom and top case cover of the MG-800HD by original 4 screws. MG-800HD HDD Format Wizard WARNING: We recommend you to format new HDD with the PC system you’re using. MG-800HD can format the HDD only as EXT3 file system only, it may cause problem for file sharing with Windows system.
  • Page 95 Stick 3. Highlight the file you want to copy, and then press “COPY” key on the remote control. 4. The MG-800HD will ensure you whether you want to copy, press “Yes” if you want to move on. MediaGate USA Inc.

  • Page 96: Copy/Delete Files From Pc To Mg-800Hd (Local Hdd)

    Note: The MG-800HD only support USB hosts copy to local HDD, you are not able to delete files copied to HDD by using this feature. Copy/Delete files from PC to MG-800HD You can copy/delete files on each MG-800HD internal HDD available in your local network by using your PC.
  • Page 97 Click “DMA Setup” 3. The “DMA List” menu pops up, and shows the all available MG-800HD on the local network. Following is the example with 2 MG-800HD connected to the Network. 4. Choose the one you want and double click “File Browser” icon 5.
  • Page 98 6. Browser connects to local HDD successfully. 7. By opening second browser, you can copy/ delete files between your PC and the local HDD via PC mouse. MediaGate USA Inc.

  • Page 99: Through Samba Server

    8. Repeat step 3~6 if you want to manage the files of other MG-800HD local HDD Through Samba Server This server allows a remote PC to access the locally installed HDD on the MG-800HD. Following is an example on how to do this through Microsoft Windows XP.
  • Page 100 3. Click “Microsoft Windows Network” “MShome” 1. The default MG-800HD Local HDD location is “MShome”, double click it and you will see the MG-800HD (ShareHDD) icon. MediaGate USA Inc.
  • Page 101 2. Double click the pd00e907 (ShareHDD) icon, a login menu pops up. Input the default user name and password “ admin” 3. Log in is successful. Now you can copy/delete media files between your PC to MG-800HD local HDD by using PC mouse.
  • Page 102 Through USB Client Port MG-800HD has an USB client port to connect to the USB host port of the PC. Connecting MG-800HD to PC with an USB cable, you’ll see MG-800HD as an mass storage device like you’re using an external HDD with enclosure.

  • Page 103: Chapter 8 Miscellaneous Setting

    Chapter 9 Miscellaneous Settings System Language and other settings apply on system are configured in the “System Setup” of the Setup Main Menu”. Please select the item that you want to configure and press “OK” button or “Right” button on remote control to enter sub page. After configuration, please press “Back”...

  • Page 104: Language

    System Setup main page Below table is a brief description for the System Setup selection. Item Name Value Language Language Selecct TV System/ Video Output/ TV Mode Setup Configure Video Scale Digital Audio Output/Analog Audio Setup Configure Audio Output Brightness/ Contrast/ HUE/ Video Setup Adjust Saturation...

  • Page 105: Tv Mode Setup

    Language Table Item Name Value English/German/French/Italian/Spanish/Portugese Language /Turkish/Netherlandish/Serbian/Hewbrew/Traditonal Select Chinese TV Mode Setup You can go to the “System Setup” menu to change the TV mode setting, including the Video output, TV system and aspect ratio. TV Mode Setup Table Item Name Value P-SCAN YPbPr/ S-Video/...

  • Page 106: Video Setup

    If you are connecting the Optical/Coaxial cable, please make sure the Digital Audio Output mode is on. (SPDIF-PCM / SPDIF-RAW) Audio Setup Table Item Name Value SPDIF-PCM/ SPDIF-RAW/ Digital Audio Output Select SPDIF-OFF MONO R/ MONO L/ MIX Analog Audio Output Select MONO/ STEREO Video Setup...

  • Page 107: Hard Disk Share Setup

    Play Next Video Enable/Disable Switch Advance Setting On/Off Switch Hard Disk Share Setup If you have installed a Hard Disk Drive into your MG-800HD, You can see the “Hard Disk Share Setup” here to configure your HDD Settings. MediaGate USA Inc.
  • Page 108 You can rename the default Share Name, Group Name, User Name and Password by onscreen keyboard. You can format the HDD and check the HDD format whenever you want by the select at this Setup page. MediaGate USA Inc.
  • Page 109 3. Make sure you are using the correct video cables and that they are connected firmly to MG-800HD and to your TV. 4. The Power cords for MG-800HD and your TV are securely connected to a working power source. MG-800HD does not find my network.
  • Page 110 2. You can use a Static IP Address of there is a problem connecting to the server. If you are using a wireless network, verify that MG-800HD is associated with the correct SSID, and that the WEP settings on MG-800HD match the setting on your access point.
  • Page 111 BGM list is 500 files. Can not find Firmware Upgrade file in the USB device Please check if you put the latest firmware file under root directory of USB device, or MG-800HD system can not find it. MediaGate USA Inc.
  • Page 112 Q: Performance of video playing is not so good? Answer: If you use wireless connection, the playing performance can be affected by the wireless environment, you may try to enable the “Transcoding” function to make the video playing smoother. Q: USB HDD External Enclosure is not supported? Answer: Please use external power supply for USB HDD External Enclosure.
