• Please read this manual

and save it with your original

sales receipt.

• Tools needed for assembly:

Phillips Screwdriver and Safety

Scissors (both not included).

• Use only with the included

Power Wheels

® ®

12 Volt Lead-

Acid, Rechargeable, orange

Battery with Built-in Thermal

Fuse and a Power Wheels

12 Volt Charger with type 12V

connector (both included).

• Requires four "C" (LR14)

alkaline

alkaline batteries for

batteries for

FM Radio/Digital Clock

operation (not included).

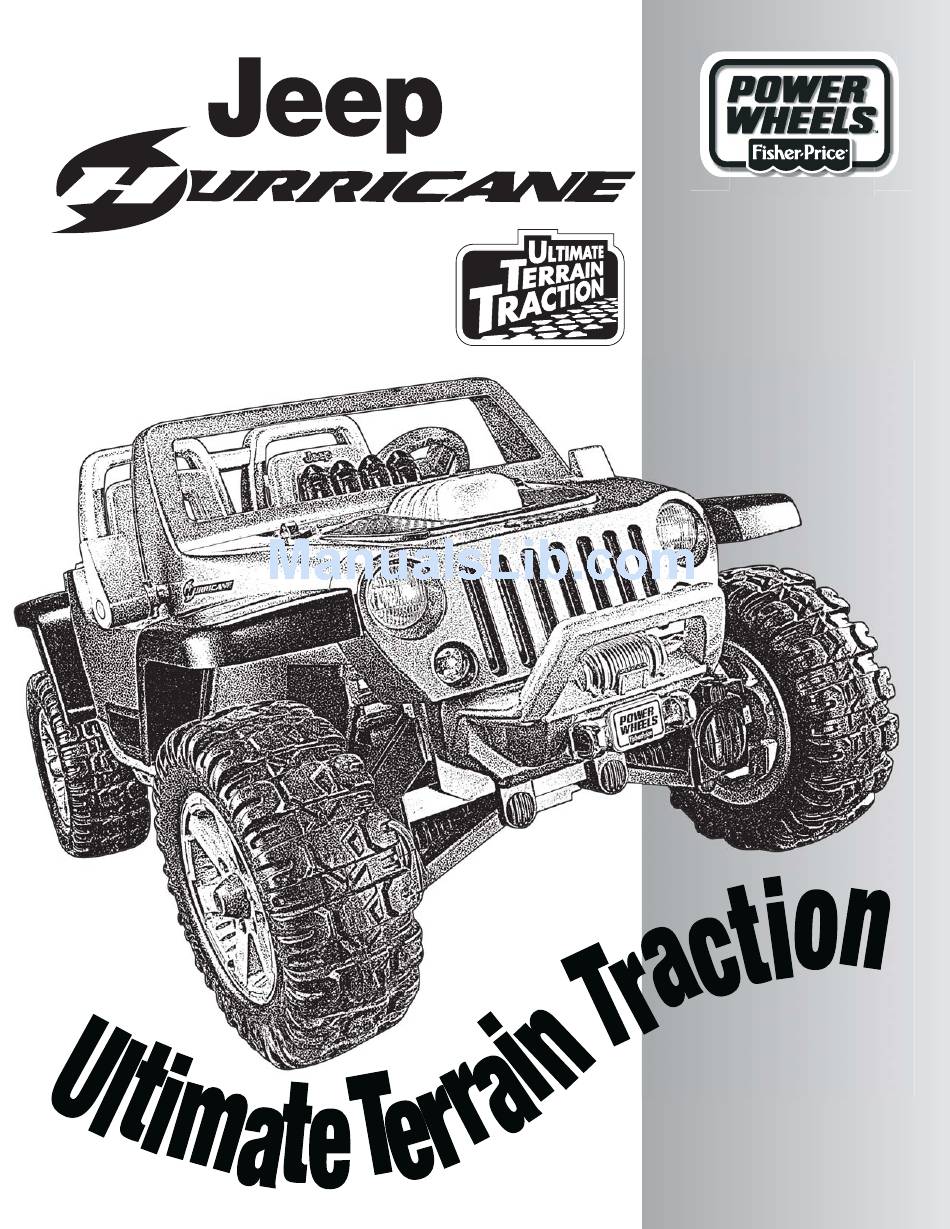

Owner's Manual

with Assembly Instructions

For Model J4394

® ®

Table of Contents

Need help?

Do you have a question about the J4394 and is the answer not in the manual?

Questions and answers

Summary of Contents for Power Wheels J4394

Page 1 12 Volt Lead- Acid, Rechargeable, orange Acid, Rechargeable, orange Battery with Built-in Thermal Battery with Built-in Thermal Fuse and a Power Wheels Fuse and a Power Wheels ® ® 12 Volt Charger with type 12V 12 Volt Charger with type 12V connector (both included).
Page 2: Table Of Contents
Limited Warranty ..................31 IMPORTANT INFORMATION ® • Your new vehicle requires adult assembly. Please set aside at • If you have any questions about your Power Wheels vehicle, least 60 minutes for assembly. please call our toll-free service lines at 1-800-348-0751 from 9 AM to 7 PM (EST) Monday through Friday and 11 AM to 5 •...
Page 3: Warnings And Cautions
® ® - Use of Power Wheels components in products other than Power Wheels vehicles could cause overheating, fire or explosion. • The battery must be handled by adults only. The battery is heavy and contains sulfuric acid (electrolyte).
Page 4: Parts
PARTS • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. •...
Page 5 Steering Wheel Cap Steering Wheel 2 Side Mirrors (Left and Right) Rear Grille 4 Hubcaps Steering Column Rear Axle 2 Taillights 2 Wheel 4 Front Steering Retainers Axle Caps Column Cap 12 Volt Charger 12 Volt Orange Battery Part Not Shown: Label Sheet - 2 #8 x "...
Page 6: Parts Picture
PARTS PICTURE Note: Some parts shown are assembled to both sides of the vehicle. Vehicle Seat Bar Steering Column Short Seat Belt - 2 Front Grille Rear Grille Taillights - 2 Long Seat Belt Brush Guard Fender - 4 Wheel Retainer - 2 Parts Not Shown Rear Clip Side Mirror - 2...
Page 7: Battery Charging
If a thermal fuse in a battery continually trips under normal driving conditions, please contact your local Power Wheels ® ® - Use of Power Wheels components in Authorized Service Center.
Page 8: Assembly
ASSEMBLY WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking and Orange Battery assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.
Page 9 Motor Harness Connector Rear Clip REAR VIEW • Pull the motor harness connector through the opening in the rear clip and into the trunk. • Fit the rear clip onto the rear end of the vehicle and over the rear bumper. •...
Page 10 Seat Bar Taillights Seat • “Snap” both taillights to the rear clip. • Fit the seat bar to the back of the seat. • Insert four screws through the seat bar and into the seat. Tighten the screws. Short Seat Belt Seat Long Seat Belt •...
Page 11 Front Grille Brush Guard SIDE VIEW • Fit the front grille to the grooves in the top of the brush guard, • Insert four screws through the seat bar and into the vehicle. as shown. Tighten the screws. • Inset three screws through the front grille and into the brush guard.
Page 12 Steering Column INSIDE VIEW • Wipe the steering column with a paper towel to remove any TOP VIEW excess lubricant. • Insert the curved end of the steering column down through the opening in the dash and then down through the hole in the •...
Page 13 Steering Column Steering Column FRONT BOTTOM VIEW • Fit the steering column cap onto the end of the steering column. Wheel Well Fender • Insert a screw through each wheel well and into each fender. Tighten the screws. • Insert a screw through the large opening in the steering column cap and the hole in the steering column.
Page 14 Front Axle Cap Front Axle Post Front Axle Cap • Fit a front axle cap onto the front axle post and hold it in place. • Fit a front axle cap onto the end of the front axle. • Insert a screw through the large opening in the front axle cap and the hole in the front axle.
Page 15 Wheel Retainer • Fit a wheel retainer onto the end of the rear axle. Rear Axle REAR BOTTOM VIEW • Slide the rear axle through the large opening near the rear of the vehicle, as shown. • Insert a screw through the large opening in the wheel retainer and the hole in the rear axle.
Page 16 " x 1 " x 1 " x 1 " Pin " Pin " Pin Hubcaps Press Wheel Press Wheel Press Wheel 32 32 Hubcaps Lift Steering Lift Steering Lift Steering Column Column Column • Align the tabs on a hubcap with the slots in a wheel. “Snap” a hubcap into the center of each wheel.
Page 17 Steering Wheel Cap Post Side Mirror Recessed Area • Fit the steering wheel cap onto the center of the steering wheel. • Insert two screws into the steering wheel cap and tighten. Right Side Mirror SIDE VIEW • Position the right side mirror with the recessed area facing up, as shown.
Page 18 1.5V x 4 "C" (LR14) Battery Safety Information In exceptional circumstances batteries may leak fluids that can cause a chemical burn injury or ruin your toy. To avoid battery leakage: • Do not mix old and new batteries or batteries of different types: alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
Page 19: Decoration
DECORATION • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. • Place the labels exactly as shown in the illustrations. For best results, avoid repositioning a label once it has been applied to the vehicle.
Page 20 BACK VIEW SIDE VIEW J4394a-0921...
Page 21: Battery Installation
BATTERY INSTALLATION IMPORTANT! Use only a Power Wheels 12 volt orange lead- ® acid rechargeable battery with built-in thermal fuse. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels ®...
Page 22: Battery Care And Disposal
• Return an exhausted battery to a federal or state approved hours after each use. Never charge the battery longer than 30 lead-acid battery recycler, such as a Power Wheels ® hours. Charge the battery after each use, regardless of how authorized service center or a local seller of automotive long the vehicle was used.
Page 23: Safe Driving Rules
SAFE DRIVING RULES Teach Safety Rules to Children RIDING HAZARD While children can quickly develop the skill necessary to drive this vehicle, it is important to remember that their judgment skills WARNING are still very immature. Unsupervised driving by children can lead to serious injury.
Page 24: Vehicle Operation
VEHICLE OPERATION As assembled, your vehicle is ready to roll in low speed (2 mph, maximum). After your child has mastered the basic skills of driving and understands the rules for safe driving, it’s time to remove the high speed lock-out screw to allow the vehicle to operate in low or high speed.
Page 25: Vehicle Care
• To ensure that your vehicle stays in good operating order, we 12 VOLT BATTERY CHARGE INDICATOR recommend that you periodically have your vehicle checked by a Power Wheels ® authorized service center. For the location of the authorized service center nearest you, please visit us on-line at •...
Page 26 FM RADIO/DIGITAL CLOCK USE FM Radio Station/ Minute Adjust Hour Adjust Mute Main Reset Volume Time Display Power Scan Scan Reset Power/Volume • Press the power button to turn on or off. • Turn the volume dial to adjust to a comfortable listening level. Hint: The FM Radio will turn off automatically after several minutes of non-use.
Page 27: Problems And Solutions Guide
Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 9 AM - 7 PM (EST) Monday through Friday and 11 AM - 5 PM (EST) Saturday. Or, contact your local Power Wheels ® authorized service center. For the location nearest you, please visit us on-line at www.powerwheels.com, or call 1-800-348-0751.
Page 28: Www.powerwheels.com
If ® a thermal fuse continually trips, contact your local Power Wheels authorized service center. You have replaced the 12 volt orange battery that came with this ®...
Page 29 Average battery life is 1 to 3 years depending on the vehicle use ® and use conditions. Replace the battery with a new Power Wheels 12 volt orange battery. Do not substitute parts. Vehicle is overloaded Make sure you do not overload the vehicle by allowing more than one rider at one time, by exceeding the 130 lb.
Page 30 PROBLEM POSSIBLE CAUSE SOLUTION ® Loud clacking or grinding noise Broken gears Contact your local Power Wheels authorized service center for from a motor-gearbox diagnosis and repair. Charger gets warm during use It is normal for some chargers to get No action required.
Page 31: Fcc And Ices (Nmb) Statements
Note: Changes or modifications not expressly approved by the THIS WARRANTY DOES NOT COVER, AND IS INTENDED TO manufacturer responsible for compliance could void the user’s EXCLUDE, ANY LIABILITY ON THE PART OF POWER WHEELS ® authority to operate the equipment.
Page 32: Www.powerwheels.com
Jeep Hurricane and its trade dress are used under license from DaimlerChrysler. ©DaimlerChrysler Corporation 2006 ® Fisher-Price and Power Wheels are U.S. trademarks of Mattel, Inc. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2008 Mattel, Inc. All Rights Reserved.
