INSTRUCTION MANUAL
Contents
Warnings & Precautions ................................................................................... 2
Important Safety Instructions ............................................................................ 3
In the Box & Features ....................................................................................... 4
Powering the Unit ............................................................................................. 5
Setting the Time................................................................................................ 6
Setting the Alarms ............................................................................................ 7
Docking and Playing an iPod......................................................................... 8-9
Tuning the AM and FM Radio ......................................................................... 10
Auxiliary Output .............................................................................................. 12
Auxiliary Input ................................................................................................. 13
Location of Controls and Control Definitions ............................................. 14-19
Service Information......................................................................................... 20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iLive IC638W
Summary of Contents for iLive IC638W
-
Page 1: Table Of Contents

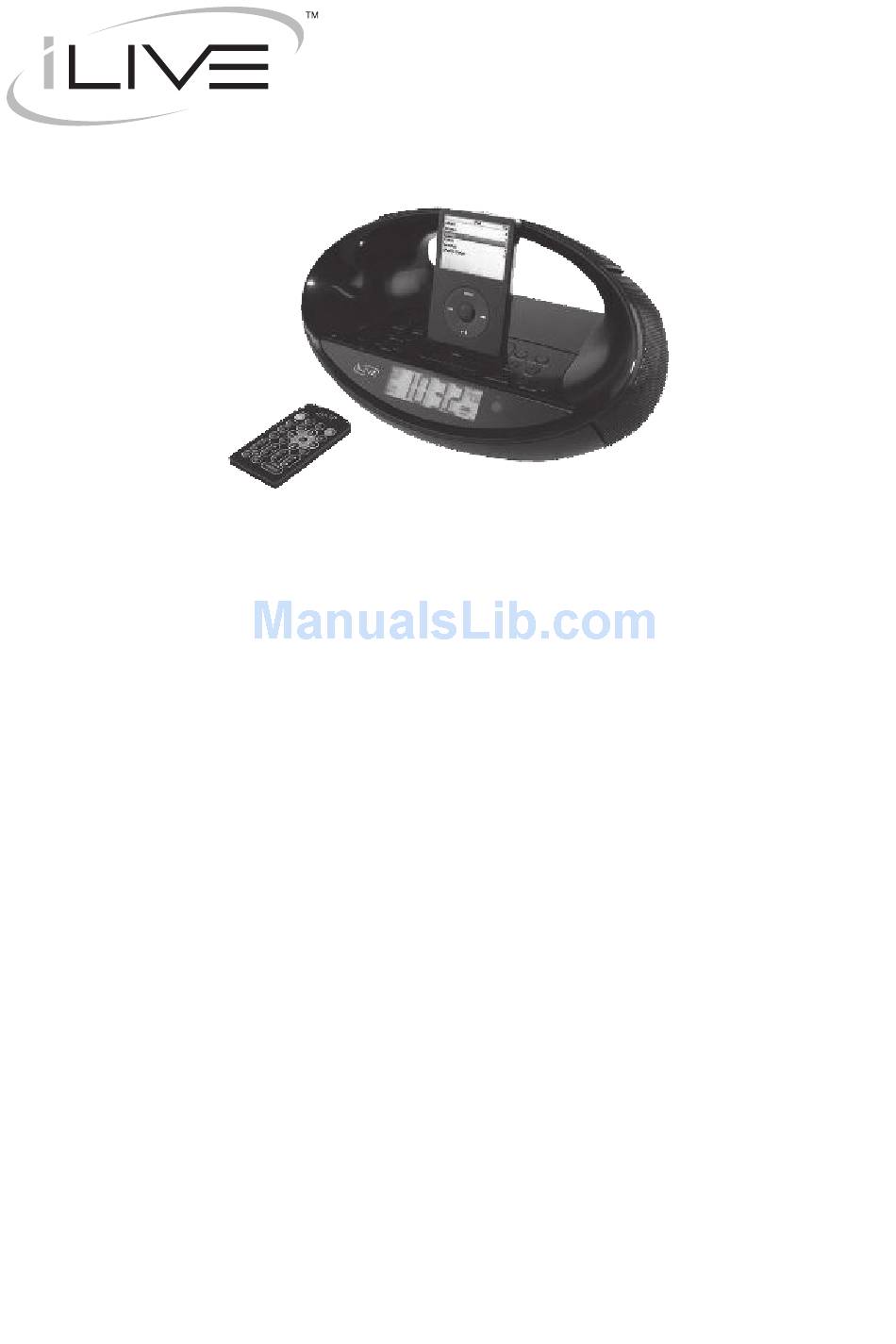

IC638B IC638W INSTRUCTION MANUAL Contents Warnings & Precautions ... 2 Important Safety Instructions ... 3 In the Box & Features ... 4 Powering the Unit ... 5 Setting the Time... 6 Setting the Alarms ... 7 Docking and Playing an iPod... 8-9 Tuning the AM and FM Radio ... -
Page 2: Warnings & Precautions
Warnings and Precautions TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. This symbol, located on back or bottom of the unit, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 3: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. All the safety and operating instruction should be read before the product is operated. 2. Keep these instructions. The safety and operating instruction should be retained for future reference. 3. Heed all warnings. All warning on the product and in the operating instructions should be adhered to. -
Page 4: In The Box & Features
In the Box • Clock Radio and Dock for iPod • Remote Control • iPod Docking Brackets • Documentation Features • Dock Connection for iPod compatible with iPod photo, iPod mini, iPod nano, and iPod with video. • Auxiliary Input •... -
Page 5: Powering The Unit
Powering the Unit AC 10 V/60Hz Battery Information Batteries power for Back-up only. Battery back-up will save the clock and alarm times in case of a power outage. -
Page 6: Automatic Time Set
Automatic Time Set 1. When the unit is plugged in to a standard AC Outlet (120V~60Hz) for the first time, it will automatically begin searching for the time. The letters “CT” will flash on the LCD display to indicate that the unit is search- ing for the time. -
Page 7: Setting The Alarms
Setting the Alarm 1 Turn the unit off by pressing the Standby/AL Off/Reset Button. Press and hold Alarm Set Button 1 or 2. The hour of the alarm time will begin to blink, indicating it can be changed. Press the /HR/MIN/Tuner/ Buttons to adjust the blinking hour. -
Page 8: Docking And Playing An Ipod
Docking an iPod 1. Locate the numbered Bracket that fits the iPod that will be docked. Each included Bracket has a number on it, indicating which iPod model that bracket is compatible with. See the separate bracket chart page to identify which bracket is needed. -
Page 9: Playing An Ipod
Playing an iPod 1. Connect an iPod to the Docking Station. . Press the Standby/AL Off/Reset Button to turn the unit on. . Press the iPod Button to switch to iPod Mode. . Press the Play/Pause Button to begin playing the docked iPod. 5. -
Page 10: Tuning The Am And Fm Radio
Tuning the AM and FM Radio 1 Turn the unit off by pressing the Standby/AL Off/Reset Button. Press the Function Button to switch the unit to Radio Mode. Press the Stop/Band Button to switch between AM and FM radio. Press the /HR/MIN/Tuner/... - Page 11 Saving an AM/FM Radio Station to the Station Presets 1 Select an AM or FM Radio station using the /HR/MIN/Tuner/ Buttons. Press the MEM/CLK Set Button. Press the Play/Pause/M+ Button to change the preset number. Press the MEM/CLK Set Button to save the current AM or FM radio station to the selected preset number.
-
Page 12: Auxiliary Output
Auxiliary Output: Connecting to an Television When connecting two products using an RCA Cable, match the colored ports with the same colored connection. (Red to Red, White to White, and Yellow to Yellow) 1. Plug one end of a .5 mm Cable (not included) or a .5 mm to RCA Cable (not included) into the AUX (Auxiliary) Output on the unit. -
Page 13: Auxiliary Input
Auxiliary Input: Connecting to an Mp3 Player When connecting two products using an RCA Cable, match the colored ports with the same colored connection. (Red to Red, White to White, and Yellow to Yellow) 1. Plug one end of a .5 mm Cable (not included) or a .5 mm - RCA Cable (not included) into the AUX (Auxiliary) Input on the unit. -
Page 14: Location Of Controls And Control Definitions
Location of Controls STANDBY AL OFF/ RESET... -
Page 15: Control Definitions
Control Definitions Docking Station Use the Dock as a connection for an iPod. Display Button Press the Display Button to view the time on the LCD Display while listening to the AM or FM radio. Standby/AL Off/Reset Button Press the Standby/AL Off/Reset Button to turn the unit off and on. When an alarm sounds, press the Standby/AL Off/Reset Button to turn the alarm off. -
Page 16: Location Of Controls & Definitions
Location of Controls & Definitions Control Definitions 17 Aux (Auxiliary) Output Use the Aux Output to play audio, on the unit, from a connected Mp player or other audio source. 18 Aux (Auxiliary) Input Use the Aux Input to play audio from the unit on a connected television or stereo system. 19 Dimmer Switch Adjust the brightness of the LCD Display to LO or HI. - Page 17 Location of Controls...
- Page 18 Control Definitions 21 Mute Button Press the Mute Button to mute the unit’s volume. 22 Standby/AL Off/Reset Button Press the Standby/AL Off/Reset Button to turn the unit off and on. When an alarm sounds, press the Standby/AL Off/Reset Button to turn the alarm off. 23 Play/Pause/M+ Button In iPod Mode, press the Play/Pause/M+ Button to play or pause media from an iPod.
- Page 19 Control Definitions 35 Menu ▲ Button Press the Menu ▲ Button to navigate through a docked iPod. 36 HR/MIN/TUN-UP Button In iPod Mode, press the HR/MIN/TUN-UP Button to skip to the next media file, or press and hold the HR/MIN/TUN-UP Button to search forward through an individual audio or video file. When setting the clock, press the HR/MIN/TUN-UP Button to adjust the hour and minute upward on the time.
-
Page 20: Service Information
SRS Labs, Inc. All other trademarks appearing herein are the property of their respective owners. Para descargar este manual de instrucción en inglés, español, o francés visite la sección de la ayu- da en www.ilive.net. Pour télécharger manuel d’instruction en anglais, espagnol,...
