INSTRUCTION MANUAL

Vanguard-HD Mega pixel

IR OUTDOOR CAMERA

Table of Contents

Need help?

Do you have a question about the HD Mega pixel and is the answer not in the manual?

Questions and answers

Summary of Contents for Vanguard HD Mega pixel

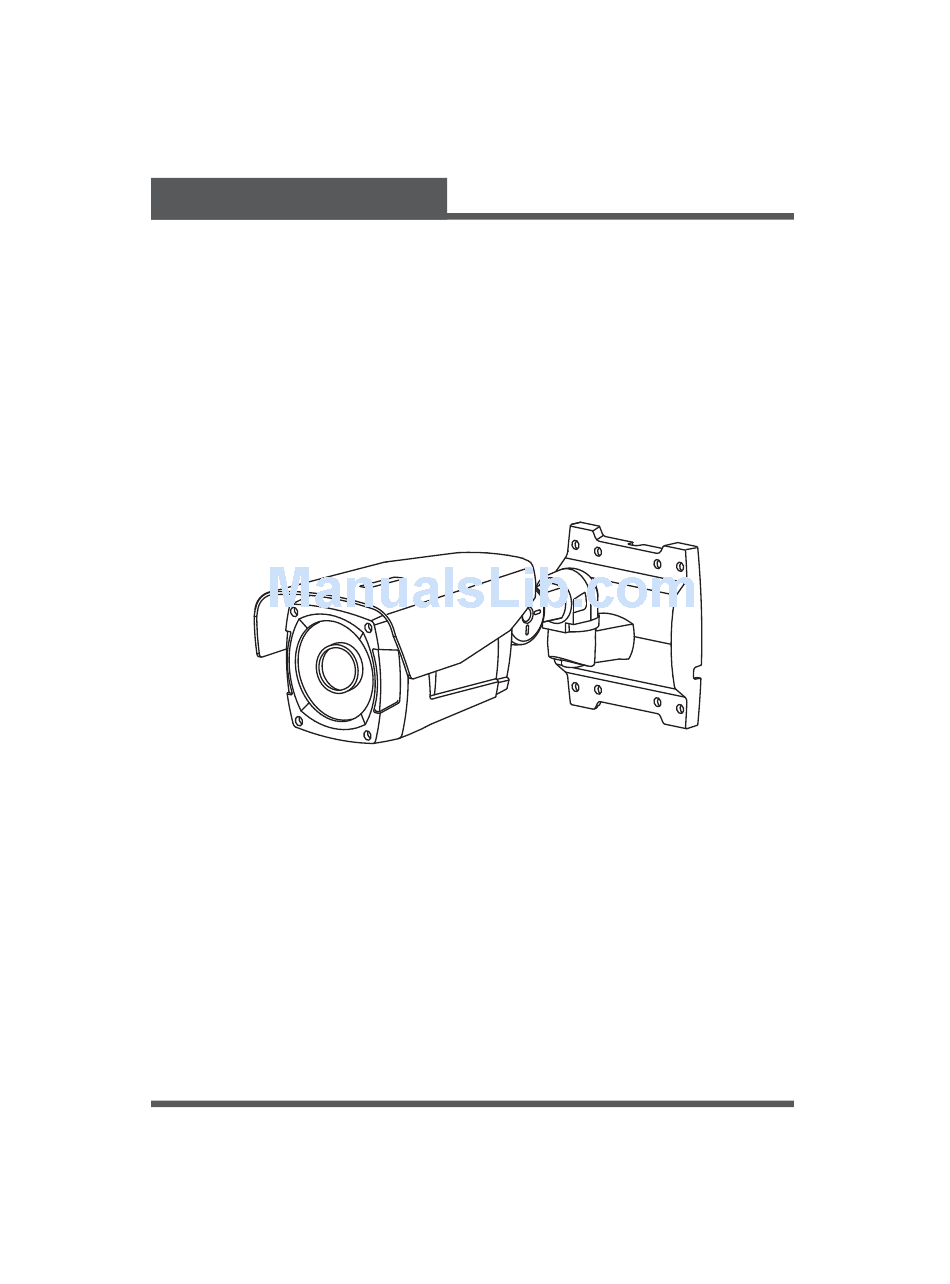

Page 1 INSTRUCTION MANUAL Vanguard-HD Mega pixel IR OUTDOOR CAMERA...
Page 3: Table Of Contents
CONTENTS WARNING & CAUTION GENERAL FEATURES NAME OF EACH PART INSTALLATION CONNECTION SPECIFICATIONS OSD MENU SETTING TROUBLESHOOTING DIMENSIONS...
Page 4: Warning & Caution
WARNING & CAUTION If you fail to read this information and handle the product incorrectly, death or serious injury may occur. The unit should be installed by the trained Personnel. Switch off immediately if the product emits smoke or abnormal heat. Never install the product in area exposed to oil or gas.
Page 5 WARNING & CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to the presence of un-insulated "dangerous voltage"...
Page 6: General Features
GENERAL FEATURES 1/3" Panasonic 2.2M Progressive Scan CMOS HD-SDI : 1080@30p/25p, 720@60p/50p NTSC, PAL CVBS without WDR TDN ICR Mega pixel lens 40PCS High performance IR LEDs Joystick type OSD control key Wide Dynamic Range compensation Adaptive Contrast Enhancer Supports various digital features of Mirror, Flip, Digital Zoom, Privacy Masking, Motion Detection, Sharpness control and shading IP-67 rated waterproof frame housing 3-Axis bracket (Wall, Ceiling, Pole mount available)
Page 7: Name Of Each Part
NAME OF EACH PART FIG.1 1. Sunvisor 2. Camera Body 3. Function Cover 4. Function Part 5. IR LED Lamp 6. Lens 7. Camera Bracket 8. Lens Control Lever 9. Set Screw groove for Sunvisor 10. X-Axis Set Screw 11. Y-Axis Set Screw 12.
Page 8 NAME OF EACH PART FUNCTION PART FIG.2 FUNCTION Extra Video Out CVBS Output IR Gain IR Gain Control 3 Lux / 6 Lux CDS Sensitivity Control ON / OFF IR LED ON / OFF OSD Button Up, Down, Set, Left, Right...
Page 9: Installation
INSTALLATION Calblock( 6x30) Template Label 81mm Hole Diameter : 6mm Depth : 30mm FIG.4 FIG.3 Seal Tape FIG.5 1. When you need to install a camera on the surface of a concrete wall, you can drill a hole like Fig.3 exactly by using a Template Card offered by accessory. 2.
Page 10 INSTALLATION Wrench 2mm Screw 4x30 Wrench 3mm FIG.6 FIG.7 FIG.8 4. Like Fig.6, after put the cable connector part into the bracket, please fix the bracket on the wall by use of screws. 5. Like Fig.7, after set the camera to desired direction, please fix tightly by L-Wrench. 6.
Page 11 INSTALLATION How to install Junction Box Calblock( 6x30) Template Label 46mm Hole Diameter : 6mm Depth : 30mm FIG.9 FIG.10 Screw 4x30 FIG.11 1. Like Fig.9, please make a screw sign hole on the wall for fixation of Junction Box by use of offered Template Label.
Page 12 INSTALLATION Screw M4x60 Nut M4 Screw M4x20 FIG.12 FIG.13 4. Joint the Camera bracket to the Junction Box, then put the Screw into a Hinge part after that tighten by Nut. (Fig.12) 5. Connect a cable and like Fig.13, please join Bracket part. (Please refer to Page 11 regarding cable connection) How to install Ceiling &...
Page 13: Connection
CONNECTION DUAL POWER TYPE *A power source connection is nonpolar. FIG.16 1. Terminal Block (Accessory) 2. DC Jack Cable (Accessory) 3. Adaptor (DC12V or AC24V) 4. Video Output (HD-SDI) 5. Seal Tape *A power source connection is nonpolar. DC12V POWER TYPE FIG.17 1.
Page 14: Specifications
SPECIFICATIONS MODEL Full HD Mega Pixel IR Outdoor Camera TV System NTSC (50Hz) / PAL (60Hz) Image Device 1/3'' Panasonic CMOS Scanning System Progressive Scan Total Pixels 2010(H) X 1108(V) : 2.2Mega pixel Effective Pixels 1944(H) X 1092(V) : 2.1Mega pixel Lens 2.8-12mm Mega Pixel Lens...
Page 15 SPECIFICATIONS MODEL Full HD Mega Pixel IR Outdoor Camera MODE AUTO / EXT / COLOR / B&W DWELL TIME 1~10sec DAY & NIGHT D->N LEVEL 0~20 N->D LEVEL 0~20 SHARPNESS 0~20 COLOR LEVEL 0~20 MIRROR OFF / ON IMAGE FLIP...
Page 16: Osd Menu Setting
OSD MENU SETTING SETUP MENU SUB MANU 1 SUB MANU 2 VALUE OUTDOOR / INDOOR LENS MANUAL BRIGHTNESS 0 ~ 20 0 ~ 20 *NOTE 1 EXPOSURE SHUTTER MODE AUTO / MANUAL SHUTTER SPEED 1/30(25), 60(50), 120(100), 250, 700, 1K, 1.6K, 5K, 7K, 10K, 30K SENS-UP OFF / X2 / X3 / X4 *NOTE 2...
Page 17 OSD MENU SETTING SETUP MENU SUB MANU 1 SUB MANU 2 VALUE SDI FORMAT 1080P / 720P SDI FPS 30/25@1080p, 60/50@720p *Factory setting FREQ (NT/PAL) 60Hz(NTSC) / 50Hz(PAL) *NOTE 4 SYSTEM CVBS SCALE FULL / CUT CVBS OUT OFF / ON *NOTE 1 FACTORY DEFAULT Reset to factory setting...
Page 18: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION No picture Check if the power cable is connected properly. Check if the video cable is connected correctly. Camera with excessive Check if the power supply meets the minimum heat, Abnormal motion requirements and that the power supply is or Black lines on the functioning properly.
Page 19: Dimensions
DIMENSIONS UNITS:mm...
Page 20 MP86C028...
