Summary of Contents for Tekvox TEK 380-HD HDMI/SDI

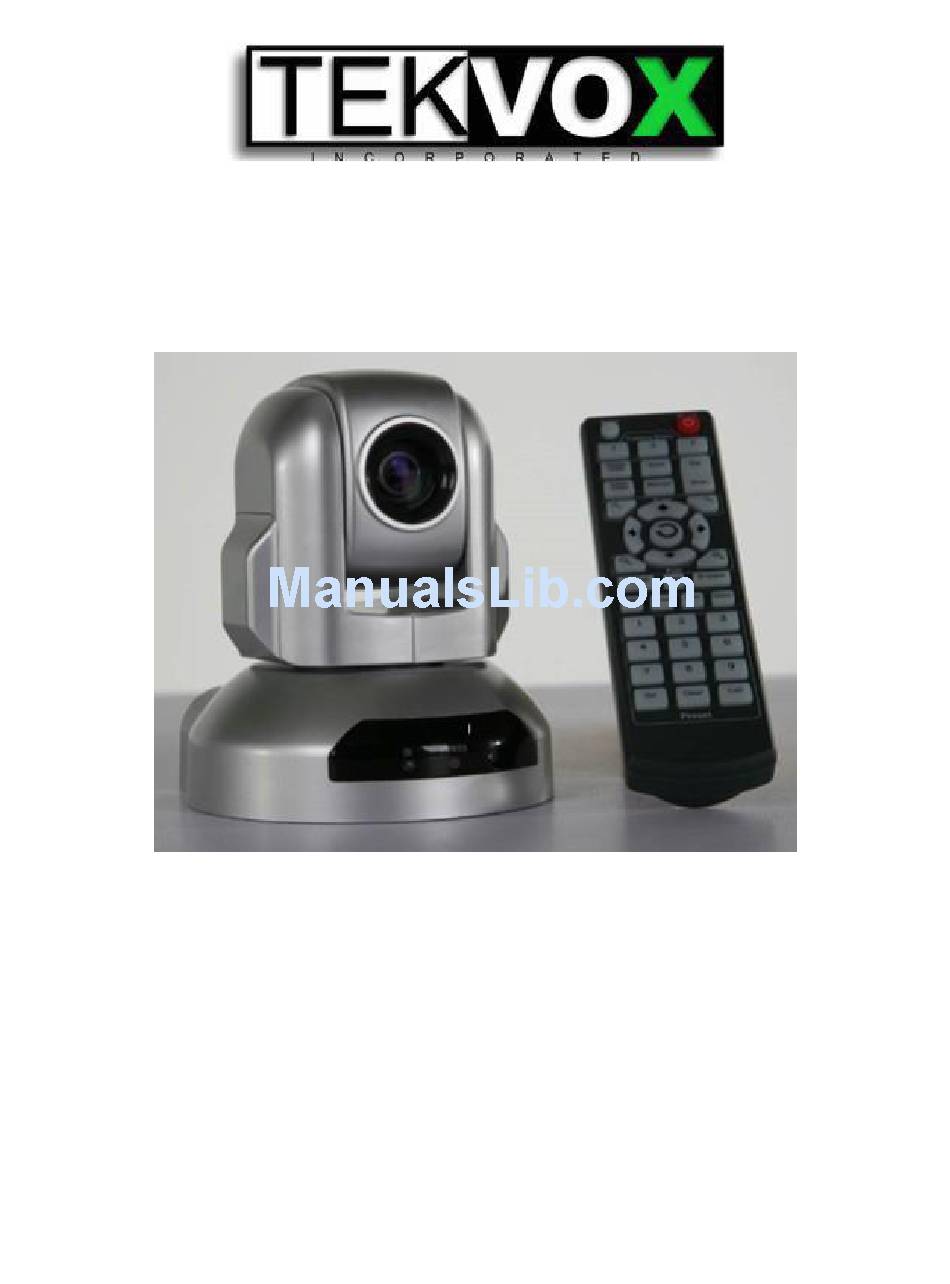

- Page 1 TEK 380-HD HDMI/SDI Conference Camera User’s Guide...
-
Page 3: Table Of Contents
SW2 Communication Protocol Settings ..............11 IR Address Select ....................12 Installation ........................12 Size ..........................12 Specifications ........................ 13 VISCA PROTOCOL ....................... 15 Command Set ......................15 Inquiry Command List ..................... 17 TEKVOX, Inc. – 210.348.6565 – www.TEKVOX.com San Antonio, TX 78216... -
Page 5: Overview
This makes the camera much easier to control as compared to other cameras that are only 6 to 15 presets. Other features include up to1080i@60 resolution with both HDMI and SDI outputs. TEKVOX, Inc. – 210.348.6565 – www.TEKVOX.com... -
Page 6: Camera And Lens
Camera and Lens Video CMOS Sensor: 1/2.5 inch super quality HD CMOS transducer Image: 16:9 2.1 Mega pixel Resolution: HD 1080i@60; 1080p30; 720p/30; 720p/60 Lens zoom: 10x optical zoom, f=4.5-45mm F1.8-2.2 Focus, 1.0Lux at F 1.8 ... -
Page 7: Rear Connectors
Only the TX, RX and GND need to be connected, Input Connector – Connect to Control System using a straight through DB-9 and supplied RS-232 Cable. Function DTR IN DSR IN TXD IN RXD IN NO Connection NO Connection TEKVOX, Inc. – 210.348.6565 – www.TEKVOX.com San Antonio, TX 78216... - Page 8 RS-232C OUT Connector Function DTR OUT DSR OUT TXD OUT RXD OUT NO Connection NO Connection Camera Union...
-
Page 9: Osd Menu
Other Settings - 1080p/30, 1080p/25, 1080p/24, 1080i/60, 1080i/50, 720p/60, 720p/50 OUTPUT TYPE Default value: DVI Other settings - HDMI / DVI ASPECT RATIO (display mode) Default value: 16:9 Other settings - 16:9/4:3 TEKVOX, Inc. – 210.348.6565 – www.TEKVOX.com San Antonio, TX 78216... -
Page 10: Lens Osd
LENS OSD Press “LENS OSD” button on remote controller to display and make changes to the camera’s Lens and its image quality. When changes are made to these settings, their values are stored in the camera’s nonvolatile memory. ISS (Image Stable Mode) Default value: NO SUPPORT/NO Support option ... -
Page 11: Ir Remote Controller
L-Limit: Set Left limit Scanning position b. Scan: Enable Boundary scanning c. R-Limit: Set Right limit scanning position d. Home: Camera Home position e. Tour: Enable Patrolling 12. Rev: Image auto-flip TEKVOX, Inc. – 210.348.6565 – www.TEKVOX.com San Antonio, TX 78216... -
Page 12: Camera Switch Settings
Camera Switch Settings SW1 Address Setting Table SW1 Switch code state(1-7 Bit) DIP- DIP- DIP- DIP- DIP- DIP- DIP- Default Notes: PELCO protocol Broadcast address：If the sent address is 255，any camera can be controlled. Test Address：If the camera address is set to 0, any address code can control the camera. SW2 Communication Protocol Settings Default –... -
Page 13: Ir Address Select
Do not use a heavy HDMI cable directly connected to the camera; use a smaller size adapter cable to reduce strain on the HDMI connector. Size TEKVOX, Inc. – 210.348.6565 – www.TEKVOX.com San Antonio, TX 78216... -
Page 14: Specifications
Specifications Model HD-380 1/2.5 model, primary color CMOS, 2.1 M compatible 6Lux(F1.8/50IRE/TV=1/30sec, 1920×1080movie) Minimum Scene Illumination 1Lux (F1.8/50IRE/TV=1/8sec, 1920x1080 movie night mode) auto/daylight/cloudy/shade/fluorescent lamp Image Sensor W (white)/fluorescent lamp N White Balance (Natural)/fluorescent lamp D (daylight) / tungsten /custom/manual Gain Control Auto Back-light On/Off... - Page 15 Power Supply DC 12V+-10%；1.2A 0-60 ℃(Temperature)，0-95% RH Temperature and humidity Size W: 4.9-4.7-5.7 in / H: 6.6-5.7-6.3 in Weight 1.76 lbs / 2.86 lbs（Package） Specifications are subject to change without notice. TEKVOX, Inc. – 210.348.6565 – www.TEKVOX.com San Antonio, TX 78216...
-
Page 16: Visca Protocol
VISCA PROTOCOL Protocol for the TEK 380-HD Camera is similar, but not identical to the Sony® VISCA™ command set. There are extra commands that are supported by this camera that are not in the VISCA commands. Command Set Command Type Command Packet Comments... - Page 17 YYYY: Pan Position 0000 to 07E0 (left Limit Clear 8x 01 06 07 01 0W 0000) 07 0F 0F 0F 07 0F 0F 0F FF ZZZZ: Tilt Position 0000 to 01C8 (down 0000) TEKVOX, Inc. – 210.348.6565 – www.TEKVOX.com San Antonio, TX 78216...
-
Page 18: Inquiry Command List
Inquiry Command List Command Command Receive Packet Comments Type Packet Camera Power 8x 09 04 00 FF y0 50 02 FF Inquiry y0 50 03 FF Off (Standby) y0 50 04 FF Internal power circuit error Camera Zoom 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position Pos, Inquiry...
