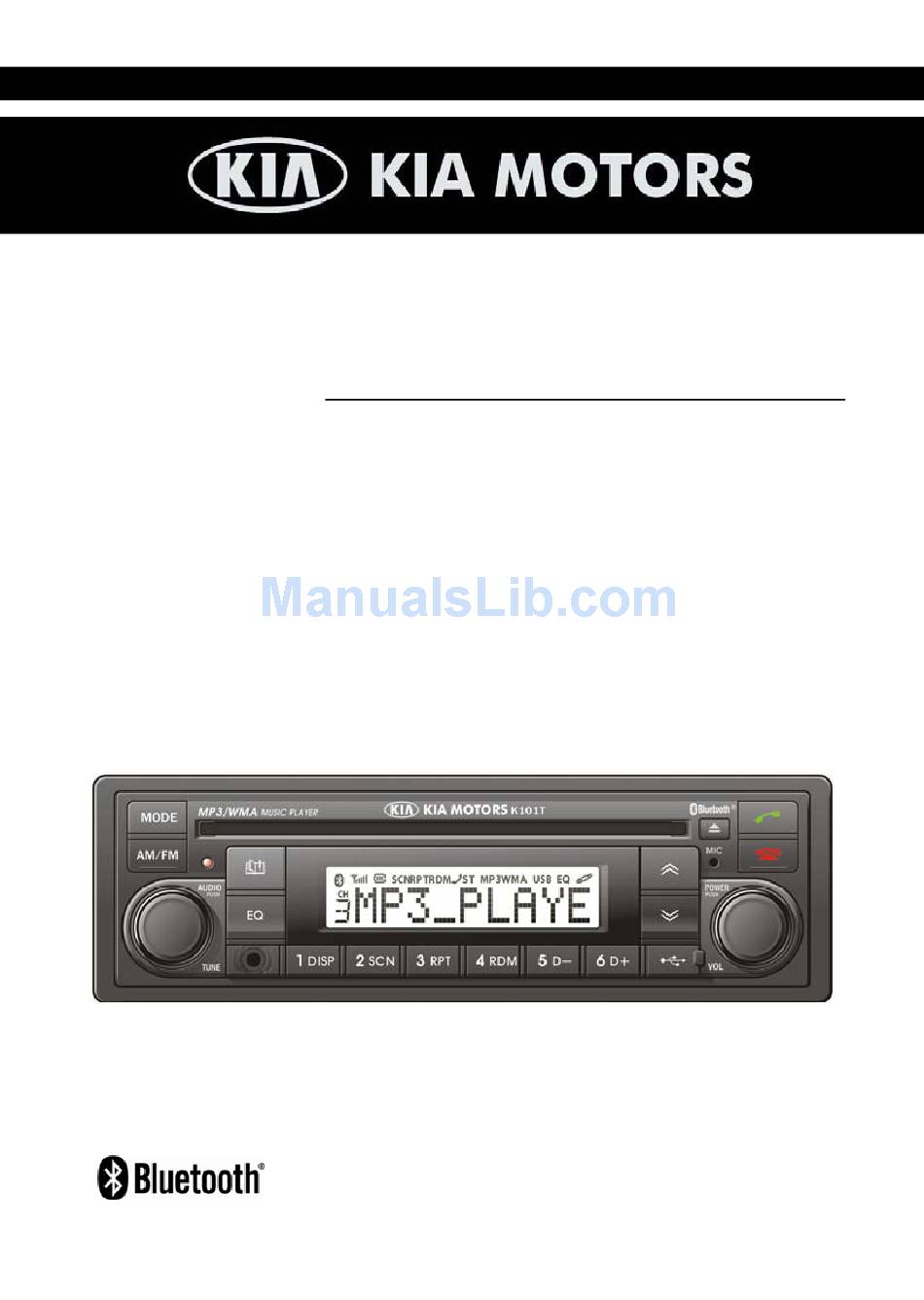

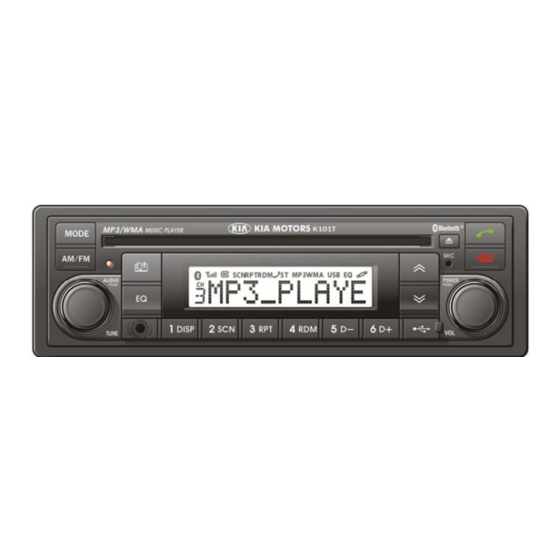

  • Page 1 INSTRUCTION MANUAL K101T MP3/USB/AUX/BLUETOOTH CD PLAYER WITH AM/FM RADIO...

  • Page 2: Table Of Contents

    BEFORE USE Before operating the unit, please read this manual thoroughly and retain it for future reference 1. OPERATING INSTRUCTIONS ---------------------------------- Page 03 2. BLUETOOTH -------------------------------------------------------- Page 04 3. GENERAL ------------------------------------------------------------ Page 21 4. ANTI-THEFT SECURITY CODE -------------------------------- Page 24 5.

  • Page 3: Operating Instructions

    OPERATING INSTRUCTIONS POWER (ON / OFF / Volume) ① PRESET 3 MEMORY ⑫ (RPT – Repeat Mode) AUDIO SETTING SELECT / TUNING PRESET 4 MEMORY ② ⑬ (RDM – Random Mode) WARNING LED PRESET 5 MEMORY ③ ⑭ (DIRECTORY DOWN) USB CONNECTOR ④...

  • Page 4: Bluetooth

    1.5. Basic telephone operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 11 1.5.1. Using the KIA Bluetooth radio for hands-free calls - - - - - - - - - - - - 11 1.5.2.

  • Page 5: Using Bluetooth Wireless Technology

    Check your mobile phone owners manual for details. Note: a. When the car ignition switch is in the ACC position, the Kia Bluetooth radio is on standby to connect with your mobile phone even if the radio is switched off. The car battery may therefore become drained if the ignition switch remains in the ACC position for an extended period of time.

  • Page 6: Bluetooth Indicators Shown On The Radio Display

    BLUETOOTH - Introduction ■ Bluetooth indicators shown on the radio display ► Bluetooth indicator The Bluetooth logo above is displayed when a Bluetooth device is connected, and not displayed, when no Bluetooth device is connected. If the Bluetooth mobile phone is connected but the connection is not of satisfactory quality, the Bluetooth logo is not displayed.

  • Page 7: Registering A Bluetooth Mobile Phone Or Music Player

    Bluetooth device to respond with the correct details. 3) Now, set your Bluetooth device to pair with the Kia Bluetooth radio. For a guide to setting your Bluetooth device to do this, refer to section 1.1.2. ‘Setting your Bluetooth device to pairing mode’...

  • Page 8: Setting Your Bluetooth Device To Pairing Mode

    Bluetooth device can locate all the Bluetooth devices within range that may be connected. 3) After the search is complete, KIA should appear on your mobile phone or music player screen. 4) Select CONNECT or SELECT on your mobile phone or music player.

  • Page 9: Selecting A Bluetooth Device

    Samsung CONNECTED appears on the display. Note: a. The name of the Bluetooth device is sent by the device and stored in the Kia Bluetooth radio memory. In most Bluetooth devices, the name can be changed by the user. Refer to the user manual of your Bluetooth device for details.

  • Page 10: Deleting A Previously Paired Bluetooth Device

    – Bluetooth Function 1.4 Deleting a previously paired Bluetooth device If you no longer need to use a paired Bluetooth device with the Kia Bluetooth radio, it can be deleted. it from the registration assignment for another mobile phone. Refer to the example of paired devices shown in table 1.1 on the previous page.

  • Page 11: Basic Telephone Operation

    1.5. Basic telephone operation 1.5.1. Using the Kia Bluetooth radio for hands-free calls 1) When an incoming call arrives at the Kia Bluetooth radio via your connected Bluetooth mobile phone, INCOMING appears on the display for 3 seconds then the calling telephone number is shown.

  • Page 12: Using The Phonebook

    8) Phonebook entries can be deleted one-by-one or the entire contents can be deleted. See section 2.3.3. Note: a. Some mobile phones may not be capable of transferring name and numbers to the Kia Bluetooth radio. b. Some mobile phones may not be capable of transferring a complete phonebook, only a single name and number at a time.

  • Page 13: Transferring Entries From A Mobile Phone To The Radio Phonebook

    Bluetooth radio while WAITING is displayed. Check your mobile phone instruction manual to understand how to transfer entries using Bluetooth. 10) Once a single entry begins to transfer from the mobile phone to the Kia Bluetooth radio, 01-TRANS appears on the display.
  • Page 14 BLUETOOTH – Phonebook Function - Table 2.3 - PAGE PAGE 1 PAGE 2 PAGE 3 PAGE 4 … PAGE 12 PAGE 13 PRESET 01 STORED 02 STORED 03 EMPTY 04 EMPTY 12 EMPTY 13 EMPTY 01 STORED 02 STORED 03 EMPTY 04 EMPTY 12 EMPTY 13 EMPTY 01 STORED 02 STORED 03 EMPTY 04 EMPTY 12 EMPTY 13 EMPTY...

  • Page 15: Managing The Phonebook

    – Phonebook Function 2.3. Managing the Phonebook 2.3.1. Registering the last call phone number The phone number of the last received call can be stored in the phonebook of the Kia Bluetooth radio. 1) Press button ⑳ to select BLUETOOTH mode.

  • Page 16: Editing Name And Phone Number Entries

    4) Press knob ② and turn clockwise to increase the page number or press a preset button until the entry for editing is found. 5) Once entry is located and displayed, press knob ② and turn clockwise. The Kia Bluetooth radio display shows as follows:...

  • Page 17: Deleting Stored Phone Numbers

    4) Press knob ② and turn clockwise to increase the page number or press a preset button until the entry for editing is found. 5) Once entry is located and displayed, press knob ② and turn clockwise. The Kia Bluetooth radio display shows as follows:...

  • Page 18: Playing Music Using Bluetooth Audio

    Control Profile’ (AVRCP). If your Bluetooth mobile phone or music player supports this profile then it is possible to advance to the next track or replay previous tracks on using the buttons on the front of the Kia Bluetooth radio or steering wheel remote controls (if fitted) on your vehicle.

  • Page 19: Connecting A Bluetooth Music Player And Mobile Phone Simultaneously

    It is possible to connect a Bluetooth mobile phone and a separate Bluetooth music player to the Kia Bluetooth radio at the same time. Phone calls can be sent and received using the hands-free feature whilst music is playing using the Bluetooth audio feature.

  • Page 20: Setting The Automatic Call Answer Feature

    Turn knob ② right or left to adjust the calling voice volume as desired. This is the level the calling voice volume will be set to each time the Kia Bluetooth radio is used after the car ignition switch is turned off and then on again.

  • Page 21: General

    GENERAL ① POWER ON/OFF BUTTON Press button ① momentarily to turn the set on or off. When the set is next switched on, the previous mode and disc play position will be restored. ① VOLUME UP/DOWN CONTROL Turn button ① right to increase the volume level. The level will be shown as “VOLUME xx” on the display panel.
  • Page 22 GENERAL ② TREBLE CONTROL (3 setting) To adjust the treble tone level, first select the treble mode by pressing button ② until “TREBLE” appears on the display panel. Within 5 seconds of selecting the treble mode, turn button ② right or left to adjust the treble level as desired. The treble level will be shown on the display panel from a minimum of “TREBLE -10”...
  • Page 23 GENERAL ⑥ MODE BUTTON Press button ⑥ to select RADIO → CD →USB → AUX → BT AUDIO ⑰ EQUALIZER (EQ) You can select an equalizer curve for 4 music types (CLASSIC, POP, ROCK, JAZZ). Press button ⑰ repeatedly until the desired equalizer effect is displayed. Each time you press this button, the radio displays each mode as follows : CLASSIC →...

  • Page 24: Anti-Theft Security Code

    2. If the stereo screen indicates “1 CDE”, this is a message that you need enter your anti- theft security pin code. 3. Your security pin code number can be found on the card supplied with your new KIA vehicle.

  • Page 25: Radio

    RADIO ② MANUAL TUNING To manually tune to a radio station, turn button ② left or right to increase or decrease the radio frequency. ⑤ AM/FM BAND SELECTOR (AM/FM) Each time this button is pressed, the radio band is changed. Each time this button is pressed, LCD displays each band as follows: F1 →...

  • Page 26: Cd Player

    CD PLAYER ② MP3 DIRECTORY/FILE SEARCHING Button is used to select a particular directory and file on a compact disc or USB device. ② Press and hold button for more than 3 seconds. Then, turn button right or left to ②...
  • Page 27 CD PLAYER ⑧ TRACK UP & CUE BUTTON This button is used to select track up. ⑧ Each time the Forward Track select ( ) is pressed, track number is increased. Press and hold this button ( ) to advance rapidly in the forward direction. High-speed audible search of any track on a disc can be made by this button ⑧...
  • Page 28 CD PLAYER ⑬ RANDOM PLAY SELECTOR (RDM) During disc play, press button to play tracks on the disc in a random or shuffled order. ⑬ “RDM” will appear on the display panel. The track select function will also select tracks in ⑬...

  • Page 29: Usb Player

    USB PLAYER ④ ⑥ ⑥ - (1) USB PLAYBACK To play music files using the USB connection, first gently open the mini USB socket cover ④ from the radio. Connect the small end of the USB cable to the radio USB socket at ④. Connect your USB device to the USB connector cable large socket.

  • Page 30: Aux Player

    AUX PLAYER ⑨ Your portable Media Player ⑨ AUX CONNECTOR (AUX) It is possible to connect your portable media player to the car audio system for playback of the audio tracks via the car speakers. To get the best results when connecting the portable media to the car audio system, follow these steps: 1) Use a 3.5mm stereo plug cable to connect the media player headphone socket to the radio.

  • Page 31: Firmware Upgrade

    1.1. Upgrading system firmware (RADIO/CD/USB/AUX) 1) Set Ignition switch to the ACC or ON position. 2) Turn on the Kia Bluetooth radio. 3) Connect the USB storage device with the valid firmware file to the radio. 4) USB PLAY appears on the display.
  • Page 32 FIRMWARE UPGRADE 1.2. Upgrading Bluetooth Firmware The operation of the Bluetooth section of the Kia Bluetooth radio may also be upgraded to improve performance of the hands-free, phonebook and Bluetooth music player features. During Bluetooth firmware upgrade, all paired mobile phones will be removed from the system but the phonebook memory contents will be maintained.

  • Page 33: Handling Compact Discs

    HANDLING COMPACT DISCS 1) Dirt, dust and scratches on the disc surface and warped discs can cause loss of sound or skipping during playback. Additionally, deterioration of sound quality may also result. Please observe these guidelines to take care of your compact discs: ＊Fingerprints, dust and dirt should be carefully wiped off the disc's playing surface (shiny side) with a soft cloth.

  • Page 34: Error Display

    ERROR DISPLAY If a problem should develop while operating the CD player, the following error codes may be displayed on the LCD. LCD SYMBOL ERROR DESCRIPTION ERROR 1 LOAD Loading is not available. ERROR 2 MECHANISM Mechanism problem. ERROR 3 FAULT Mechanism fault.

  • Page 35: Product And Warranty Service

    MP3/WMA CD Player supports for MP3 CD of Joliet, ISO9660 and UDF File Format. In the event your MP3/WMA CD Player is faulty, please take your KIA vehicle to your nearest KIA dealer for their diagnostic inspection of your MP3/WMA CD Player.

  • Page 36: Mp3/Wma Information

    MP3/WMA INFORMATION The Kia Bluetooth radio is able to play MP3 and WMA music files from a compact disc or USB memory device. MP3 is an abbreviation of Motion Picture Experts Group (MPEG) Audio layer 3. MP3 audio format files are typically only 1/10th the size of conventional CD DA audio files. Most MP3 files are created on a personal computer using special software.

  • Page 37: Warnings And Precautions

    WARNINGS AND PRECAUTIONS 1) WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 38: Specifications

    SPECIFICATIONS Output Power - - - - - - - - - - - - - - - - - - - - - - - - - 180 watts (4 x 45 Watts) Tuning Range - - - - - - - - - - - - - - - - - - - - - - - - - AM : 522 ~ 1,620 KHz. 9 KHz. Steps FM : 87.5 ~ 108.0 MHz.
