Summary of Contents for iSymphony WS2

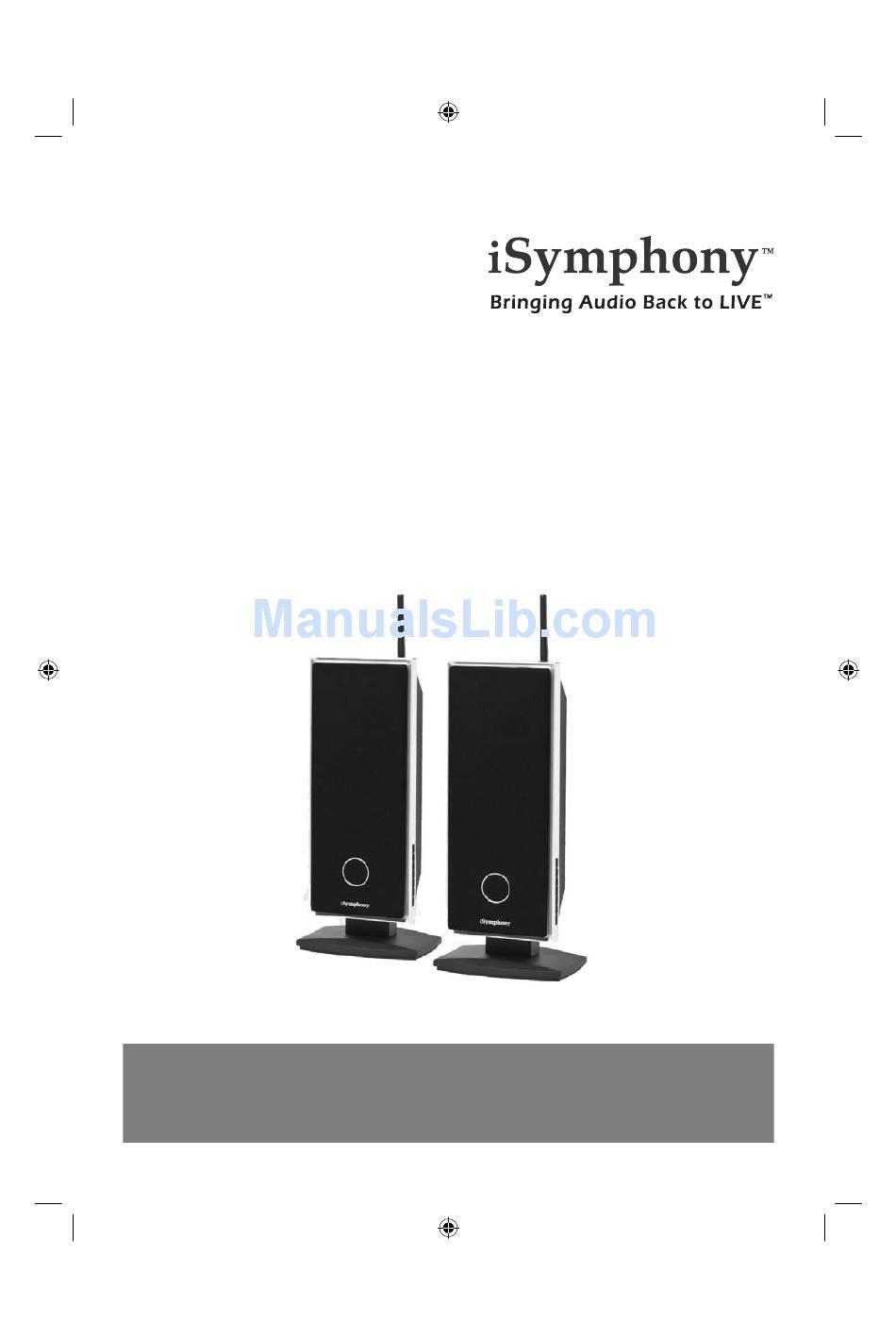

- Page 1 User Manual Wireless Speakers...
-
Page 2: Table Of Contents
General Controls ..........12 Introduction .............6 Troubleshooting ..........13 Unpacking the Unit .........6 Protect your Furniture ........6 Limited Warranty ..........14 iSymphony Limited Warranty ......14 Speaker Set-Up ..........7 A Word about Wireless Products ....7 Technical Specifi cations ........15 Minimum Separation from Other ....7 Devices ............7... -
Page 3: Safety Information
Safety Information IMPORTANT SAFETY INSTRUCTIONS TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADE SCAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. - Page 4 Safety Information following the operating instructions. Adjust only grounding of the mast and supporting structure, those controls that are covered by the operating grounding of the lead-in wire to an antenna instructions as an improving adjustment of other discharge unit, size of grounding conductors, controls may result in damage and will often require location of antenna-discharge unit, connection to extensive work by a qualifi...
-
Page 5: Precautions For The Unit
Safety Information Precautions for the Unit This equipment generates, uses and can radiate radio frequency energy and, if not SECURITY • Before operation, check if the voltage of the installed and used in accordance with the unit is in line with the local voltage. instructions, may cause harmful interference •... -
Page 6: Introduction
Thank you for purchasing the iSymphony WS2 Wireless Speakers. WS2 speakers allow you to expand your iSymphony wireless audio system throughout your home or offi ce. WS2 speakers are designed to be used with an iSymphony W-series wireless main unit as an audio source. -
Page 7: Speaker Set-Up
Speaker Set-Up Set-Up A Word about Wireless Products In order to confi gure the WS2 wireless speakers This product uses state-of-the-art wireless to work with an existing wireless main unit you transceiver technology operating in the 2.4GHz must fi rst pair the speakers and the main unit. - Page 8 Speaker Set-Up • If the right speaker the PAIRING button is pressed: • To set as Slave Group press the button for to select “No” and press the ENTER button to confi rm. Display shows “Pairing Complete!” 3. Press the PAIRING button on the speaker 5.
- Page 9 • Each pair of Slave Group Speakers has its own volume control, independent of the main unit and any other pairs in the Slave Group. • Adjusting the volume on any speaker in the Slave Group will affect the volume only on the other speaker in its pair, that is L + R speakers always act together.
-
Page 10: Location Of Controls
Location of Controls Speaker 1. STANDBY button 6. PLAY/PAUSE 2. VOL + button 7. PAIRING button 3. VOL – button 8. LINK LED 4. SKIP FORWARD 9. MUTE LED 5. SKIP BACKWARD 10. POWER LED 11. IR remote sensor (right speaker only) Speaker LED Indication Illuminated Non-illuminated... -
Page 11: Remote Control
Location of Controls Remote Control 1. VOL + button 2. SKIP BACKWARD 3. VOL – button 4. STOP 5. REPEAT button 6. STANDBY button 7. SNOOZE/FUNCTION button 8. MUTE button 9. SKIP FORWARD 10. PLAY/PAUSE 11. ALARM button... -
Page 12: System Operation
System Operation General Controls The main functions of the wireless main unit can be controlled remotely from the WS2 speakers. Controls are located on the side panel of the speakers and on the mini remote control as detailed on the previous pages. The operation of... -
Page 13: Troubleshooting
Troubleshooting No power • AC connection is not complete. Check all cords and cables. System does not respond to key presses • The built-in microprocessor may malfunction due to external electrical interference. • Unplug the AC power cord and then plug it back in. -
Page 14: Limited Warranty
2. PARTS: During the ninety days parts limited warranty period, iSymphony will supply new or rebuilt replacements for defective parts as may be deemed necessary by iSymphony. -
Page 15: Technical Specifi Cations
Technical Specifi cations 1. General • Electrical supply: 100-240 V ~ 50/60Hz • Power requirements of wireless speaker unit: 15V 2A • Dimensions of wireless speaker unit: 345(L) x 118(W) x 158(H) • Weight of wireless speaker unit: 1.7Kg 2. 4GHz transmission section •...
