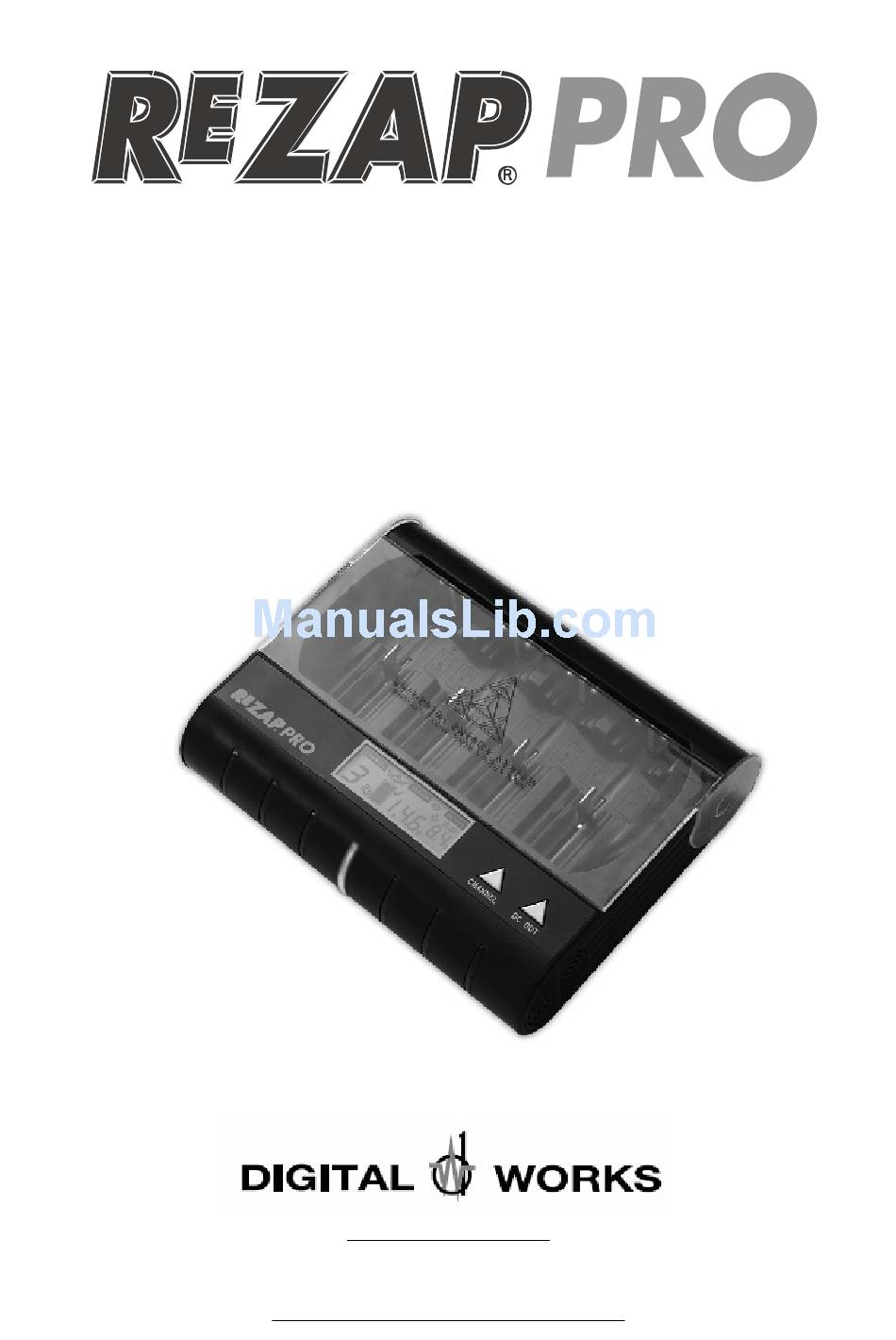

- Page 1 THE ULTIMATE BATTERY CHARGING STATION REDUCE • REUSE • RECYCLE USE & CARE GUIDE www.rezap.com DIRECT ALL TECHNICAL SUPPORT TO: support@digitalworks.com.au...
- Page 2 ENERGY HUB FOR THE MODERN FAMILY Welcome to your REZAP® PRO - Model RBC889. The device represents Digital Works' latest and most advanced battery charger yet. It employs state-of-the-art; multi-chemistry battery charging technology and innovative active charge monitor technique to ensure each battery is individually custom charged.
- Page 3 Discovering your REZAP® PRO - Model RBC889 LCD Shows Selected Channel Centre Positive & Negative Number, Battery Charging Contacts Within Each Slot Are for Status & Selected DC Out Charging 1.2 & 1.5V Batteries. Voltage Level. Channel 1, 2, 3 or 4 Select Button DC Out Voltage Select Button...
- Page 4 ESSENTIAL LCD INDICATORS CAUTION - Care is required when – Graphical illustration of battery making DC-Out voltage selection as cell being charged. over-voltage may lead to damage of – Battery is being analysed. equipment being powered. ALWAYS select voltage first and then plug in –...
- Page 5 WHAT COME WITH THE PACKAGE Items that come with the packe include: REZAP® PRO RBC889 Charger, Approved switching power supply, Multi-headed DC-OUT cable with 6 diferent connectors, This User Instruction Guide. Approved DC-Out Cable REZAP® PRO 12V, 2000mA, with 6-connectors Charger RBC889 100-240V...
-
Page 6: Optional Accessories
OPTIONAL ACCESSORIES Followings are optional add-on items for the REZAP® PRO, coming soon at a later stage. Please check available status at: www.rezap.com • Entertainment Cable Kit Include support for: ® o Nintendo DS Lite™ handheld game console ® o Nintendo DS™... -
Page 7: For Your Safety
CONGRATULATIONS Thank you for your purchase of the REZAP® PRO. Our products are engineered to meet the highest standards of quality, functionality and design. We hope you get the most out of it and enjoy using it for many years to come. - Page 8 Do not remove any service covers from the charger. There are no user • serviceable parts inside. Any repair should only be carried out by a trained technician at an appointed service outlet. The charger must be stored where weather conditions cannot affect it. The •...
-
Page 9: Safety Features
• Built-in dynamic battery tester function measuring the strength of each battery and display its condition on the LCD screen. • Built-in sound alert for the visually impaired. • Built-in dual high power USB ports. • Built-in FAN for cooling of the internal charger's circuitry when required. •... -
Page 10: Quick Start
• Wrong polarity Protection, • Negative delta voltage protection, • Zero delta voltage protection, • Timer Protection, • Temperature protection via built-in cooling fan, • Cooling fan failsafe protection. The REZAP® Pro, RBC889 complies with the following International Standards for electrical safety: •... - Page 11 • Place used batteries to be charged into the charger slots according to their different sizes as follows and ensure all batteries are connected correctly to the charger. Pay attention to battery polarities. o AAA, AA, C, D and 9V batteries can be inserted into any of the four main slots.
- Page 12 o GREEN LIGHT TURNS OFF AFTER FLASHING – Battery is faulty, exhausted and or is no longer rechargeable. Prompt dispose of these batteries to avoid eventual battery leakage. o RED LIGHT ON – USB or DC-OUT ports on active mode when there are devices connected to these ports on the charger.
- Page 13 • DC-OUT DEFAULT VOLTAGE: o By default, the DC-OUT setting is initialised at the lowest level of 4.2V when the charger is first powered ON. • VOLTAGE SELECTION: Select 4.2V – to power devices accepting 3.0V – 4.5V input. Select 6V – to power devices accepting 5.0V – 6.5V input. Select 8.4V –...
- Page 14 DUAL USB CHARGING FUNCTION ® The REZAP PRO is also equipped with two high powered USB ports located at the back of the unit. By using standard USB cables that come with many digital devices at time of their purchase, the charger can power a range of otherwise unpowered devices or charge up different battery packs in many 5-volt, self-powered devices.
- Page 15 IMPORTANT NOTES WHEN USING THE REZAP® PRO CHARGER: • Charge only Alkaline, RAM (Rechargeable Alkaline Manganese), NiCd and NiMH batteries. DO NOT charge Carbon Zinc (such as those with no battery type printed on them or those labelled as SUPER HEAVY DUTY or GENERAL PURPOSE) or primary Lithium batteries (such as those used in cameras, 3V or 6V and labelled –...
- Page 16 • Different brands of alkaline cells may give different results, depending on the chemical composition used in making the batteries. Do not be surprised to find that some top brand alkaline cells may yield fewer cycle lives than less well-known brands. Try different brands of batteries and decide for yourself the brands that work best in your applications and in ®...
-
Page 17: Extending Battery Life
EXTENDING BATTERY LIFE • Keep extra batteries around for your convenience. Store batteries in a dry place at normal room temperature. • When storing batteries, remove any load or short circuit from their terminals. • When storing battery-powered devices for long periods (i.e., more than a month), remove the batteries. - Page 18 GENERAL BATTERY SAFETY TIPS • Do not short-circuit a battery. A short-circuit may cause severe damage to the battery. • Do not drop, hit or otherwise abuse the battery as this may result in the exposure of the cell contents, which are corrosive. •...
- Page 19 REZAP® PRO RBC-889 SPECIFICATIONS Digital Works' state-of-the-art proprietary Multi-Chemistry battery charger’s Microcontroller high performance 8-bit microprocessor, CMOS, fully static, employing advanced RISC architecture with integrated analogue-to-digital converters and multi-channel high speed input/output ports controlling the whole charging process in real time.
- Page 20 BATTERY TYPES GUIDE There are two main groups of batteries, primary (non-rechargeable) and secondary (rechargeable). The table below shows some of their most common features and properties: TYPICAL COMMONLY USED DOMESTIC BATTERIES FEATURES Carbon Alkaline Titanium NiCd NiMH Lithium Carbon Zinc, Alkaline Titanium Rechargeable...
