Geen Works 24132 Owner's Manual

24v lithium-ion cordless blower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
24V LITHIUM-ION CORDLESS BLOWER
Some Greenworks Lithium-Ion products are
sold with or without battery and charger.
To order: Battery (Sold Separately)
(2Ah Model # 29722 / 4Ah Model # 29732)
Charger (Sold Separately) (Model # 29702)
TOLL-FREE HELPLINE: 1-888-90WORKS
Read all safety rules and instructions carefully before operating this tool.
24132
Owner's Manual
www.GreenWorksTools.com
(888.909.6757)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 24132 and is the answer not in the manual?

Questions and answers

Summary of Contents for Geen Works 24132

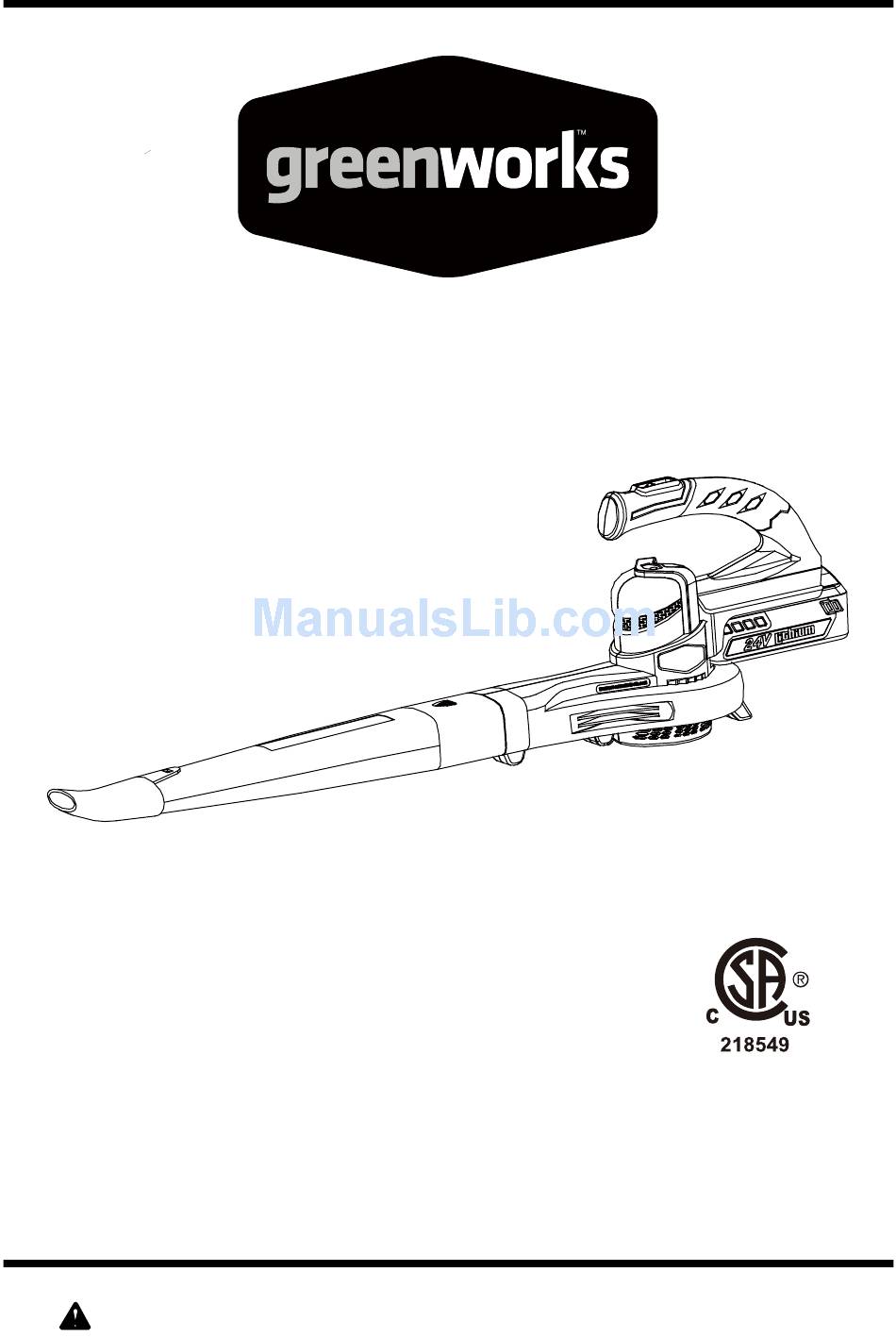

  • Page 1 24V LITHIUM-ION CORDLESS BLOWER 24132 Some Greenworks Lithium-Ion products are sold with or without battery and charger. To order: Battery (Sold Separately) (2Ah Model # 29722 / 4Ah Model # 29732) Charger (Sold Separately) (Model # 29702) Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757)

  • Page 2: Table Of Contents

    CONTENTS Contents ..........................2 Product specifications ......................2 General safety rules ......................3-5 Symbols ..........................6-7 Know your blower ........................ 8 Assembly instruction ....................... 9-10 Operation ..........................11 Battery charger........................12-13 Maintenance...........................12 Environmentally safe battery disposal..................13 Troubleshooting........................14 Warranty........................15 Exploded View ........................16 Parts List..........................17 PRODUCT SPECIfICATIONS 24V LITHIUM-ION CORDLESS BLOWER Type ....................

  • Page 3: General Safety Rules

    GENERAL SAfETy RULES W A R N I N G Read and understand all instructions before using this product. failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
  • Page 4 GENERAL SAfETy RULES • Keep all parts of your body away from any moving parts and all hot surfaces of the unit. • Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.

  • Page 5: General Safety Rules

    GENERAL SAfETy RULES • Do not point the blower nozzle in the direction of people or pets. • Never run the unit without the proper equipment attached. Always ensure the sweeper tubes are installed. • When not in use, blower should be stored indoors in a dry, locked up place—out of the reach of children.

  • Page 6: Symbols

    SyMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz frequency (cycles per second)
  • Page 7 SyMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

  • Page 8: Know Your Blower

    KNOW yOUR BLOWER Two-speed Switch Nozzle High Velocity Tip 24V Lithium-Ion battery Fig. 1 KNOW YOUR BLOWER ( See Figure 1. The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

  • Page 9: Assembly Instruction

    ASSEMBLy INSTRUCTION BATTERY IMPORTANT! The battery pack is not charged when it is purchased. Before using the trimmer for the first time, place the battery pack in the battery charger and charge. Make sure to read all safety precautions, and follow the instructions in the Battery Charger section.. To remove (See Figure 2.) 1.

  • Page 10: Assembly Instruction

    ASSEMBLy INSTRUCTION Nozzles (See Figure 3.) The two nozzles extend the reach of the blower. for blowing (See Figure 3.): 1. Align the widest end of the large nozzle (1) with the front opening on the blower (2). 2. Slide the nozzle over the blower outlet opening until the latch on the blower is inserted into the opening on the nozzle.

  • Page 11: Operation

    OPERATION TWO-SPEED SWITCH (See Figure 4.) The blower is equipped with a two-speed switch. Starting/Stopping the blower: 1. Install the battery pack. (Refer to Installing the battery pack) 2. To start the blower, press the power switch in the 1 or 2 position. 3.

  • Page 12: Battery Charger

    MAINTENANCE W A R N I N G In order to avoid personal injury and the risk of fire and electric shock, remove the battery pack before adjusting, inspecting, or cleaning the blower. Cleaning Remove the battery pack. 1. Brush or blow dust and debris out of the air vents using compressed air or a vacuum. Keep the air vents free of obstructions, sawdust, and wood chips.

  • Page 13: Environmentally Safe Battery Disposal

    ENVIRONMENTALLy SAfE BATTERy DISPOSAL The following toxic and corrosive materials are in the batteries used in this blower battery pack: Lithium-Ion, a toxic material. W A R N I N G All toxic materials must be disposed of in a specified manner to prevent contamination of the environment.

  • Page 14: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor fails to start Battery is not secure. To secure the battery pack, make sure when switch trigger the latches on the top of the battery pack is depressed. snap into place. Battery is not charged. Charge the battery pack according to the instructions included with your model.

  • Page 15: Warranty

    LIMITED fOUR-yEAR WARRANTy GREENWORKS™ hereby warranties this product, to the original purchaser with proof of purchase, for a period of four (4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer.

  • Page 16: Exploded View

    EXPLODED VIEW...

  • Page 17: Parts List

    PARTS LIST ITEM NO. PART NO. DESCRIPTION 34101214 Left housing 34104647 Decoration slice 34102214 Right housing 36202214 34103214 Switch pole 3630173 Switch 36102214 Motor 3330546-1 Motor fixing plate 3290186 Washer 3290675 Washer 3220515 Screw 3110273 fan assembly 36302203-4 Button 34101203-2 Blowing pipe 34102203-2 Guard...
  • Page 18 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Rev: 00 (12-20-12) Printed in China on 100% Recycled Paper...
