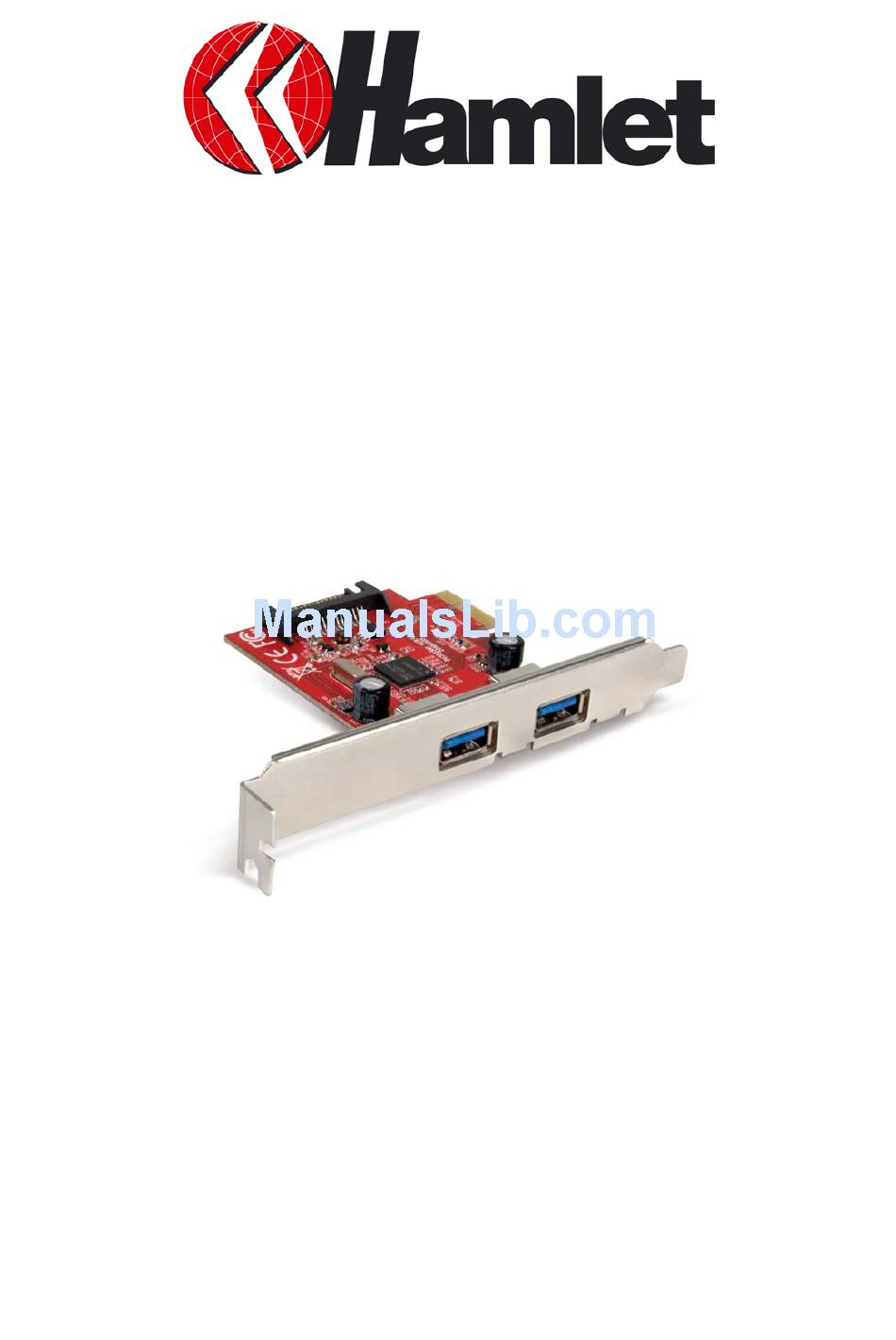

- Page 1 USB 3.0 PCI Express 2-Ports Host Controller Card User Manual HUSB302PCX www.hamletcom.com...
-
Page 2: Table Of Contents
Index 1. INTRODUCTION......................4 2. INSTALLATION ......................5 2.1. H ...........................5 ARDWARE NSTALLATION 2.2. D XP/V /7) ..................6 RIVER NSTALLATION INDOWS ISTA 3. INSTALLATION VERIFICATION.................. 10 4. SPECIFICATIONS ......................12 About this manual Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. - Page 3 The complete CE declaration of conformity of the product can be obtained by contacting Hamlet at info@hamletcom.com specifying the product code and the documentation. The information on the importer for your country are available in the “About Us” section of the Hamlet website at www.hamletcom.com.
-
Page 4: Introduction
1. Introduction The USB 3.0 PCI Express card is compliant to USB 3.0 Standards and backward compatible with USB 2.0 devices. It also allows you to connect multiple peripherals to your PC at the same time. The USB 3.0 PCI Express card enhances the performance of transmission that excessively faster than existing USB 2.0 device. -
Page 5: Installation
2. Installation 2.1. Hardware Installation SATA power USB 3.0 ports connector Turn your computer off and any peripherals connected to the computer. Unplug the power cable before installing the host card. Remove the cover from the computer case (Refer to the computer’s manual if necessary). Locate an available PCI Express slot and remove the bracket cover. -
Page 6: Driver Installation (Windows Xp/Vista/7)
2.2. Driver Installation (Windows XP/Vista/7) Insert the provided CD into CD-Rom locates and double-click the Setup.exe file. When the following screen shows up, please click Next to install the Driver. - Page 7 After reading the End-User License Agreement, please choose “I accept the terms of the License Agreement” and click Next. Please click Browse to choose the destination folder. Then click Next.
- Page 8 Click Install to install the NEC Electronics USB 3.0 Host Controller Driver. It will take a while to install the driver.
- Page 9 Please click Finish to complete the NEC Electronics USB 3.0 Host Controller Driver. Actual pictures depend on your operation system. These screen shots are from Windows 7 and might vary slightly for each operation system.
-
Page 10: Installation Verification
3. Installation Verification After finishing driver installation and plugging this PCI Express Card to PC, the system will detect the device. You can go to Device Manager to verify the entire installation. Windows XP... - Page 11 Windows Vista / 7...
-
Page 12: Specifications
4. Specifications Compliant with Universal Serial Bus 3.0 Specification Revision 1.0 • Supports the following speed data rate as follows: • Low-speed (1.5 Mbps) Full-speed (12 Mbps) High-speed (480 Mbps) Super-speed (5 Gbps) Supports 2 downstream ports for all levels of speed •...
