OUTPUTS
V
Motion
1
Detector
C
V
CCTV
2
Camera
C
V
3
C
V
4
C
V
5
LOW VOLTAGE POWER
C
V
6
DISTRIBUTION MODULE
C
V
7
C
V
8
C

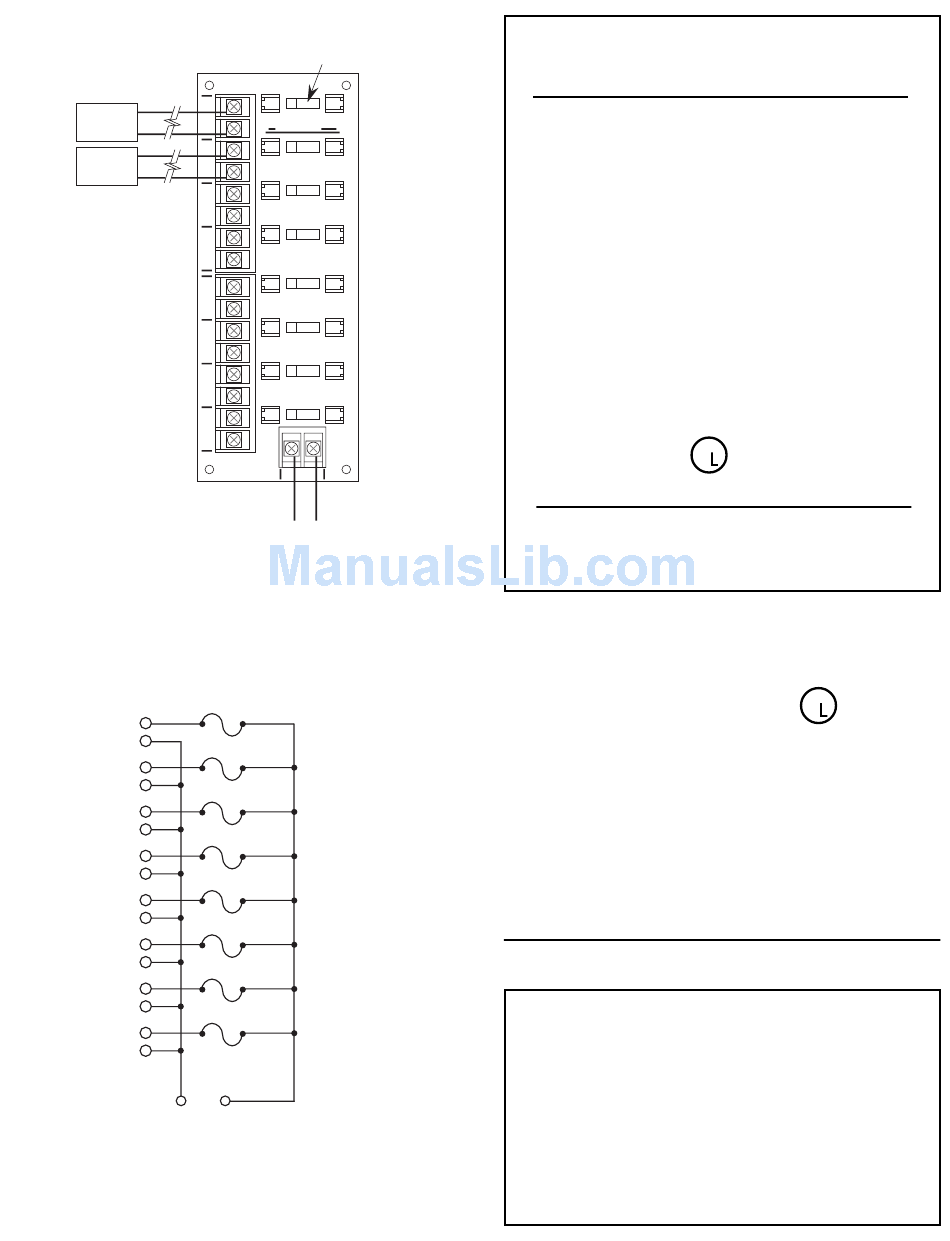

Figure 1 - LV-8A Wiring Diagram
Outputs
1
2
3
4
5
6
7
8
C
V
Power
Figure 2 - LV-8A Schematic Diagram
Write Fuse Size Here
1
BASE
2
3
LV-8A
4
5
6
7
8
C
V
Power
From
Low Voltage
Power Supply
BASE
LV-8A
Low Voltage
Power Distribution Module
BASE Electronics, Inc.
2856-C Janitell Road • Colorado Springs, CO 80906 • (719) 540-9697 • Fax (719) 540-9698
LV-8A Specifications
• Indoor Temperature Range: -25° C. to +70°C.
• Electrical
Maximum Voltage AC/DC: 30V
Maximum Total Current: 8A
Maximum Recommended Current per Output: 2.5A
Connections: Captive Screw Terminals for #14 to #24AWG Wire
• Size: 2.75" wide by 7.00" long by 1.20 maximum height (inches).
• Mounting: (4) 3/8 inch high nylon standoffs included
• Other Power Distribution Modules Available
LV-8 with Emergency Power Disconnect Relay
LV-8RC with 8 Relay Outputs and Emergency Power Disconnect Relay
LV-8RCL with 8 LED/Relay Outputs and Emergency Power Disconnect Relay/LED
LV-8RC-N, LV-8RCL-N for Open Collector Access Controllers (Sink Drive)
BASE Electronics, Inc.
2856-C Janitell Road • Colorado Springs, CO 80906 • (719) 540-9697 • Fax (719) 540-9698
Limited Warranty
The LV-8A Low Voltage Power Distribution Module is warranted by BASE Electronics against manufac-
turing defects in materials and workmanship for a period of 2 years from date of purchase. During this
period, any warranty repair required will be made at no charge for parts or labor. This warranty does not
apply to any work or materials provided by any outside persons or technicians involved in the installation,
unauthorized repair, connection, or testing of this product. This warranty does not cover any damage or
failure caused by or attributable to Acts of God, abuse, misuse, improper or abnormal usage, faulty or
improper installation or maintenance, neglect or accident. BASE Electronics is not responsible or liable
for any special, consequential or indirect damages resulting from or in connection with the use or perfor-
mance of this product as pertaining to economic loss, property loss, costs for removal or installation, or
loss of revenues or profit. Except as provided herein, BASE Electronics makes no expressed or implied
warranties. The duration of product performance for its intended purpose is limited to the duration set
forth herein.
For Warranty or other repair, send the product postage prepaid to BASE Electronics and include Sender's
name, company, address, phone and brief problem description. BASE Electronics will notify sender of
any required repair costs not covered under this warranty prior to making such repairs.
This Warranty gives you specific legal rights. You may have other rights that vary from state to state.
U
LISTED
®
U
LISTED
®
REVISED 1/02
