Summary of Contents for OrthoDuad ES600

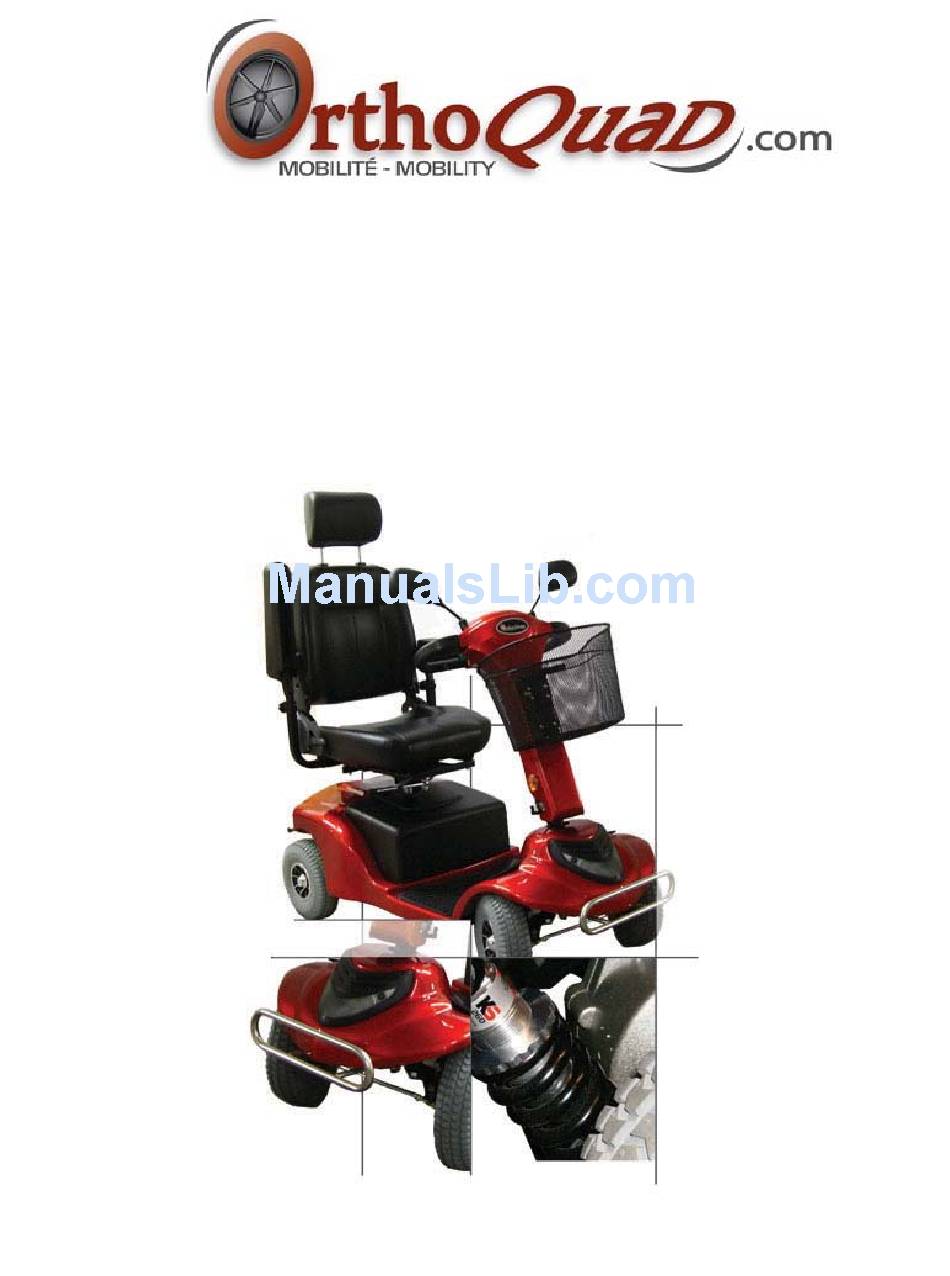

- Page 1 ES600 Mobility Scooter User’s Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction Specifications III. Features Operating your scooter Safety Instructions Battery Charging VII. Maintenance Schedule VIII. Warranty... -
Page 3: Introduction
I. INTRODUCTION Thank you for your interest in our scooter ES600. This scooter is a mobility assistive device designed for senior citizens who have walking difficulty or are weak in physical strength and for also for the disabled people. We designed this scooter to restore the dignity, equality and personal freedom, to provide convenience and comfort to you. -
Page 4: Specifications
ABOUT THE MANUAL The manufacturer reserves the rights of final interpretation on the manual. For any printing mistakes or new improvements, the manufacturer will update in the new editions. SPECIFICATIONS ES600 PERFORMANCE DATA Maximum forward speed 10 km/h Maximum backward speed 4.8 km/h... -
Page 5: Features
III. FEATURES Modular construction - disassembles in one minute without use of tools Adjustable seat height Swing away armrests 360 degrees swivel seat Adjustable Forward/Reverse Seat Adjustable tiller Dynamic regenerative braking coupled with fail-safe electro-mechanical disk brake Rear wheel direct drive with differential Fully solid state controller External Battery Charger 24-volt permanent magnet heavy duty DC motor... -
Page 6: Operating Your Scooter
OPERATING YOUR SCOOTER 1, BEFORE OPERATION 1). Insert the power key into the switch lock and turn clockwise to the ON position. 2). Check the battery charge indicator to make sure the batteries are fully charged. 3). Make sure that clutch lever is at close position. 2, TURN POWER ON Insert the key into the key switch on the upper tiller and rotate clockwise to the “ON”... - Page 7 Warning: The brake may not be effective when engaged on inclines greater than 15 degrees or 21% if the occupant’s weight exceeds 265 pounds. In case the brake fails to engage, the scooter may roll slowly on a slope. Turning off the key switch cuts off power off brake. 5.
-
Page 8: Safety Instructions
V. SAFETY INSTRUCTIONS Your scooter can move on grass , gravel, dirt, and sand surfaces, as well as hard paved or carpeted surfaces. However, extra caution should be taken when operating your unit on uneven surfaces other than flat surfaces. There are some concerns about electromagnetic interference to powered wheelchairs and scooters. - Page 9 The sources of radiated EMI can be broadly classified into three types: 1) Hand-held portable transceivers (transmitters-receivers) with the antenna mounted directly on the transmitting unit. Examples include: citizens band (CB) radios, “walkie talkie,” security, fire, and police transceivers, cellular telephones, and other personal communication devices.
- Page 10 2) Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming close to them; 3) If unintended movement or brake release occurs, turn the powered scooter OFF as soon as it is safe. 4) Be aware that adding accessories or components, or modifying the powered scooter, may make it more susceptible to EMI (Note: There is no easy way to evaluate their effect on the overall immunity of the powered scooter.
- Page 11 In summary, - DO NOT try to climb sharp curbs. - DO NOT drive off or over obstacles exceeding 5 cm in height. - DO NOT make abrupt changes in direction at high speed or while traveling on an incline. - DO NOT climb inclines greater than 15 degrees or a rise of 2 meters in 10 meters.
-
Page 12: Battery Charging
VI. BATTERY CHARGING To ensure the best performance and maximum battery life, we recommend frequent battery charging. Your scooter comes with an external battery charger for your ease and convenience. The console battery display makes charging simple and easy. Follow these steps for battery charging. -
Page 13: Maintenance Schedule
VII. MAINTENENCE SCHEDULE In order to obtain the best performance and lasting service life, please maintain your unit according to the following schedule and instructions: DAILY Test brake effectiveness before you drive. Recharge battery fully every night. WEEKLY 1. Check tire pressure. Pressure should be 40 - 50 psi. 2. -
Page 14: Warranty
VIII WARRANTY To guarantee your benefits and the excellent after-sale service provided by the manufacturer, please read the following items carefully. GUARANTEE CONTENTS, TARGETS AND DEADLINE: a) guarantee contents: Purchase the unit from the manufacturer or authorized dealer. Operate according to the instructions set in this manual. The manufacturer guarantee to any quality problems concerns its manufacturing or materials within the guarantee period.
